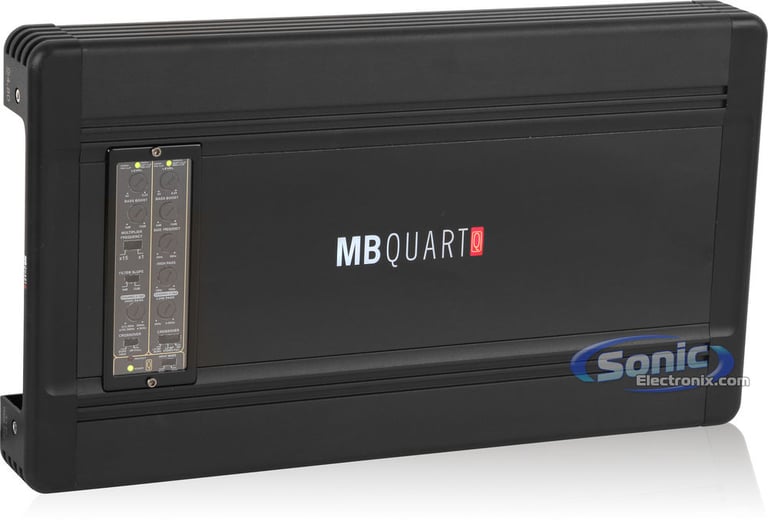

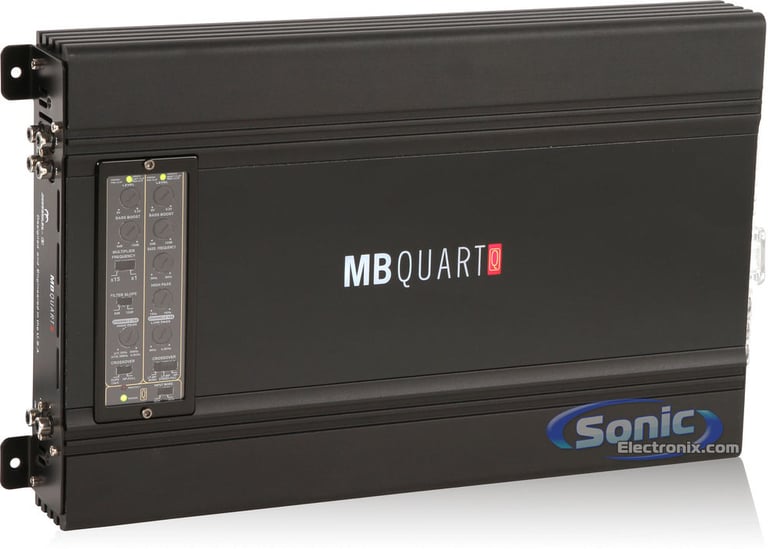

MB Quart Q4.80

480W RMS Q Series 4-Channel Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

Q Series 4-Channel Amplifier • 80W x 4 Chan @ 4 Ohm • 120W x 4 Chan @ 2 Ohm • PWM MOSFET Power Supply • Full Feature Crossover Design • Clipping Control with LED Indicator • Frequency Multiplier • Multi-Channel Configuration • Built-In System Diagnostics

Learn more about the q480

We apologize

This item has been discontinued


Loading...
40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Ram

49
-13.05%

$19.99

List price $22.99

99-3012G-LC main

Metra 99-3012G-LC

Single/Double-DIN Dash Installation Kit for select 2012-2016 Sonic

1
-40.68%

$104.99

List price $176.99

HRN-HRR-GM2 main

iDataLink Maestro HRN-HRR-GM2 Wiring Harness

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2010-2020 vehicles from Chevrolet, GMC

-13.04%

$79.99

List price $91.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

S2-S65C main

Alpine S2-S65C

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Component Car Speakers

1
-18.20%

$179.95

List price $220.00

CVMPCL6.5 main

Cerwin Vega CVMPCL6.5 (Sold Individually)

200W Peak (100W RMS) 6.5" Stroker Pro Series Full Range 4-ohm Speakers

9
-16.67%

$99.99

List price $119.99

660BRGB main

Boss Elite 660BRGB

Double DIN CD Receiver with Bluetooth (Black)

4

Product Highlights


Q Series 4-Channel Amplifier • 80W x 4 Chan @ 4 Ohm • 120W x 4 Chan @ 2 Ohm • PWM MOSFET Power Supply • Full Feature Crossover Design • Clipping Control with LED Indicator • Frequency Multiplier • Multi-Channel Configuration • Built-In System Diagnostics

Description


MB Quart brand icon

Authorized dealer

  • Q Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 80 watts x 4 chan.
    • 2 ohm: 120 watts x 4 chan.
    • Bridged, 4 ohm: 240 watts x 2 chan.
  • Max power output: 960 watts
  • High Speed MOSFET Output Devices
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost from selectable frequency range 30-80 Hz)
  • Soft Start Turn-on
  • 4/3/2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)

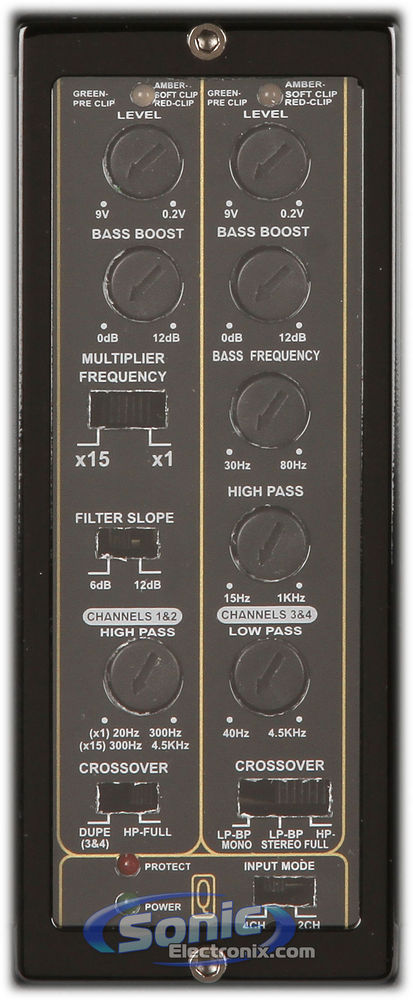

  • Top Mount Control
  • Variable Low Pass, and High Pass for specific tuning adjustments
  • Full Feature Crossover Design
  • Clipping Control with Pre-Clip, Soft Clip and Full Clip Visual Indicators
  • Built-in System Diagnostics
  • Double Sided PCB Design
  • High-density split-dome convection heat sink for high amounts of heat dissipation

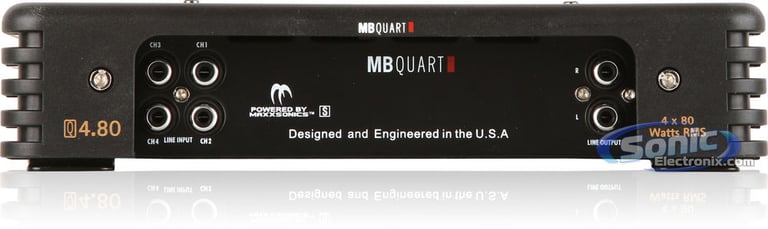

  • Plated RCA level inputs
  • Input sensitivity:
    • Low level: 0.2V-9V
  • Channels 1 & 2 high-pass filter (20-45,000 Hz)
  • Channels 3 & 4 high-pass filter (15-1000 Hz)
  • Variable low-pass filter (40-45,000 Hz)
  • Damping factor: >280
  • Frequency response: 15-45,000 Hz
  • CEA-2006 compliant amplifier
  • Dimensions: 15-9/16"L x 9-1/8"W x 2"H

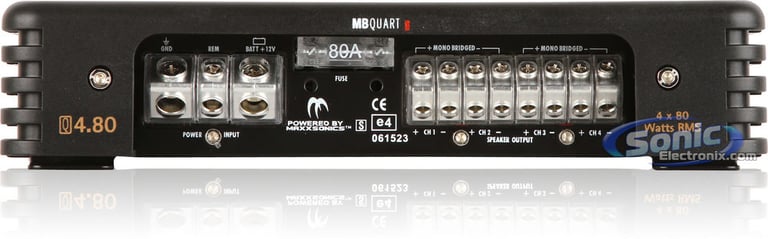

  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 4 channel
RMS Power @ 2 ohms
120 watts x 4 channel
Bridged RMS Power
240 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
960 watts
Total RMS Power Output
480 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
20 - 45,000 Hz
Low-Pass Crossover Frequency
40 - 45,000 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No

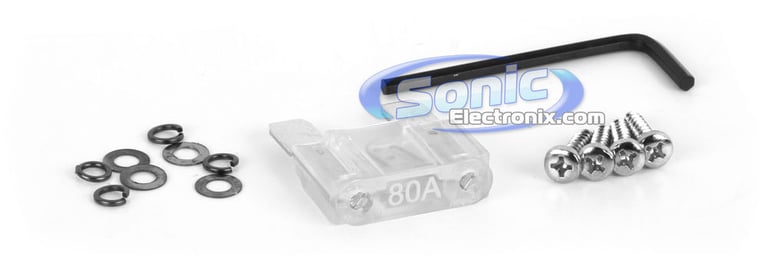

Fuse Rating
80A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Q4.80

Weight:

11.50lbs

Internal SKU:

q480

Internal Product ID:

29976

Product and How-to Videos


Customer Ratings & Reviews


MB Quart Q4.80 thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
5
Features
5
Design
4.4
Usability
4.4

Customer Reviews

Sort by:

Loading...

Not bad

Not bad but the amp gets warmer then I would like after 30 minutes of playing. It was only on a 4 ohm load with gain at 12 o'clock position. I've done around 15 custom installs in my cars over the years. Everything from 6 12's to 2 15's from components to coaxials. I know what I'm doing so it's not any fault of mine.

PROS: good price, good sound quality, good power, good cross over options, adjustments on top easy to get to, looks nice, not to big, lots of ohm and setup options

CONS: gets kinda hot even in well ventilated arounds, fans recommended, would be nice to get 2 Allen wrenches since the cover over the cross over controls take a smaller size then the one used to remover the end caps (comes with Allen for end caps), would have liked Allen wrench holes instead of philips for wire screw downs

Overall: good amp for the money, gets hotter then I like (never went into protection) but hot enough it's uncomfortable to hold your hand on the heat sink for more then 10 seconds, other then the heat issue which never affected performance just person preference I would recommend this to others. If you can afford to get the Q150.4 do it. It's worth it a little larger but gets warm at best at the same levels and play time of the Q80.4, both amps sound great. Hope this helps with you decision.

By Neal on August 23, 2011

6 found this helpful


unaltered sound

This amp pushes my 2 sets of mtx component speakers. It made them sound more natural than the other amps ive tried. It makes the midbass come out very nice and natural, and never gets harsh highs even at high volumes. It does use up quite a bit of power so make sure you use high quality 4 ga wire and rcas to get the best out of this top quality amp. The only downside is the acrylic top which flexes when hot and the knobs on top are funky to adjust so make sure to have a small screwdriver. and a 2.5 mm allen to remove the cover. other than that it is the cleanest and best quality amp i have used at the price. even an amp around 500 would maybe sound as good.

By Andrew on April 21, 2011

5 found this helpful


Wow. Kinda in shock here...

Bought this to run an active front stage (Usher 8836a 7" woofers and Vifa NE-19VTC tweets) in my wife's 04 Miata. For the price, I didn't expect much, but wow! First off, the noise floor with this amp is VERY low. Absolutely NO hiss/hum/static or noise of any kind (might just be my mad install skills, though...haha). Also, no annoying turn-on pops here; very nice. The power seems to be there, too; drives those 8-ohm Ushers with authority. Controls are easy to use and seem to work well. Got a little warm after 2 hours of driving it hard, but then again I have it installed vertically behind the pass seat (terrible for cooling), so It'd probably stay pretty cool in any "normal" install. Overall, I'm shocked at the value here. I didn't expect anywhere near this much from an inexpensive Maxxsonics amp.

By Josh on October 14, 2011

3 found this helpful




CG-830i7 small

Omega Crime Guard CG-830i7

2-Way Remote Start Vehicle Security Car Alarm System with LCD Pager

(10)

$119.99

List price $299.99

SLT38 small

The Install Bay SLT38

100 ft of 3/8" Split Loom Tubing

(5)

$32.99

List price $36.99

CPT1-2000 small

Power Acoustik CPT1-2000

2000W Max CRYPT Series Monoblock Amplifier

(17)

$99.99

List price $269.99

PTID-8300NRT small

Power Acoustik PTID-8300NRT

In-Dash 8.3" TFT-LCD Touchscreen Monitor with DVD/CD/MP3 Player, USB, Aux-In and TV Tuner

(5)

$239.99

List price $659.99

AVIC-Z1 small

Pioneer AVIC-Z1

Double DIN In-dash DVD player/navigation system with 30GB hard drive and 7" TFT-LCD video screen (Bluetooth, iPod ready)

(1)

$1649.99

List price $2299.99

99-8906HG small

Metra 99-8906HG Dash Kit

Install a new Single-DIN car stereo in select 2015-2019 Legacy and Outback (High Gloss Black)

$29.99

List price $53.99

99-5026 small

Metra 99-5026 Dash Kit

Install a new Single-DIN car stereo in select 2001-2006 vehicles from Ford, Lincoln, Mercury

(1)

$9.99

List price $26.99

RA640.4 small

MB Quart RA640.4

640W 4-Channel Reference Series Class SQ Bridgeable Power Amplifier (RA6404)

(11)

$109.99

List price $259.99

AVIC-X910BT small

Pioneer AVIC-X910BT

5.8" In-Dash Double DIN Touchscreen Monitor w/ DVD, CD, MP3 Receiver, Built-in GPS Navigation, Bluetooth, SD and USB Inputs

(12)

$615.00

List price $1199.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Chevrolet Sonic

2009 GMC Envoy

2016 GMC Canyon

1987 Ford Bronco

2011 GMC Canyon

2020 Ford Expedition

1985 Buick Regal

2011 Chevrolet Corvette

2007 Jaguar S-Type

2005 BMW X3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
