Name: VIBE Audio BlackBox BASS4 R/B
Brand: VIBE
SKU: LS-bbbass4-RB
Price: 99.99 USD
Availability: Discontinued

by VIBE

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

VIBE Audio BlackBox BASS4 R/B Image 1 — VIBE Audio BlackBox BASS4 R/B

VIBE Audio BlackBox BASS4 R/B Image 2 — VIBE Audio BlackBox BASS4 R/B

VIBE Audio BlackBox BASS4 R/B Image 3 — VIBE Audio BlackBox BASS4 R/B

VIBE Audio BlackBox BASS4 R/B Image 4 — VIBE Audio BlackBox BASS4 R/B

VIBE Audio BlackBox BASS4 R/B Image 5 — VIBE Audio BlackBox BASS4 R/B

VIBE Audio BlackBox BASS4 R/B Image 6 — VIBE Audio BlackBox BASS4 R/B

VIBE Audio BlackBox BASS4 R/B Image 7 — VIBE Audio BlackBox BASS4 R/B

VIBE Audio BlackBox BASS4 R/B Image 8 — VIBE Audio BlackBox BASS4 R/B

VIBE Audio BlackBox BASS4 R/B Image 9 — VIBE Audio BlackBox BASS4 R/B

VIBE Audio BlackBox BASS4 R/B Image 10 — VIBE Audio BlackBox BASS4 R/B

VIBE Audio BlackBox BASS4 R/B Image 11 — VIBE Audio BlackBox BASS4 R/B

VIBE Audio BlackBox BASS4 R/B Image 12 — VIBE Audio BlackBox BASS4 R/B

VIBE Audio BlackBox BASS4 R/B Image 13 — VIBE Audio BlackBox BASS4 R/B

Product videos

Product highlights

Black Box Series Monoblock Hybrid Class G/H Car Amplifier • Remote Bass Level Control • Preamp RCA Outputs • Microprocessor Controlled System Protection • Internal Convection Cooling Technology

Learn more about the LS-bbbass4-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

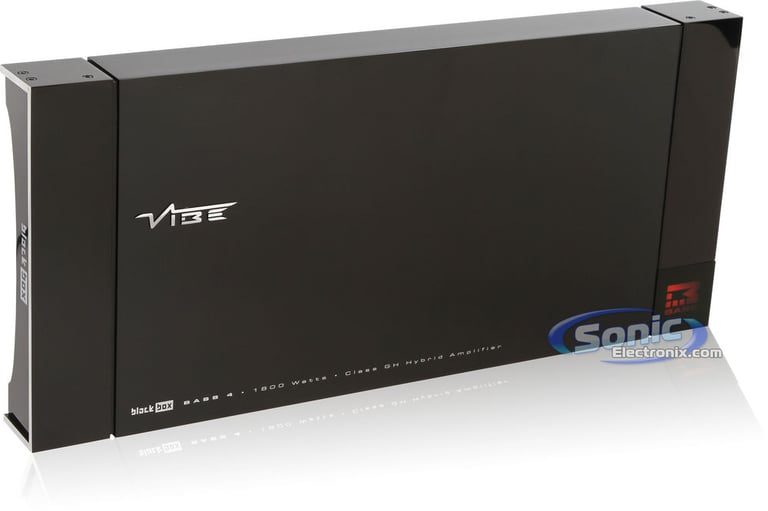

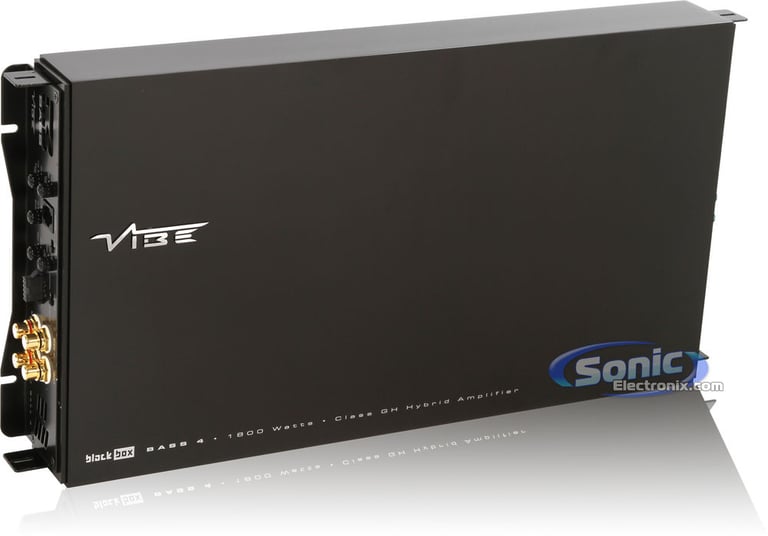

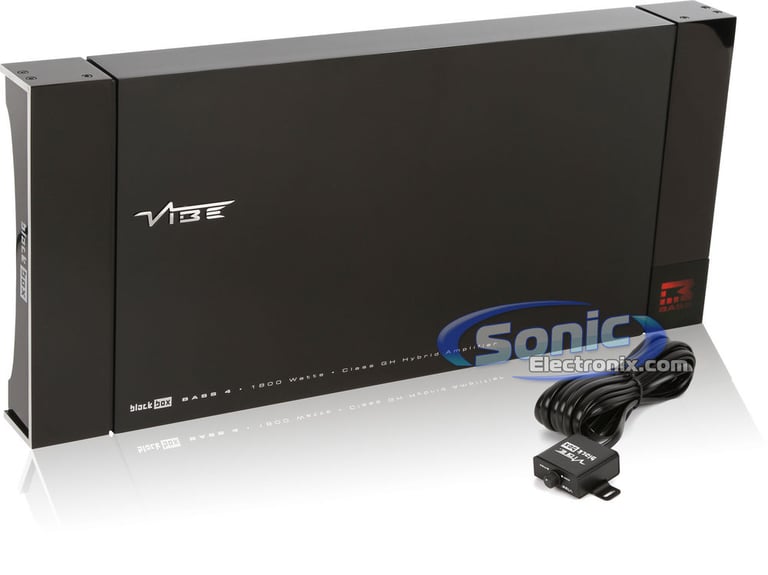

Black Box Series Monoblock Hybrid Class G/H Car Amplifier
RMS Power Rating (13.8V):
- 4 ohm: 450 watts x 1 chan.
- 2 ohm: 900 watts x 1 chan.
- 1 ohm: 800 watts x 1 chan.
Max Power Output: 1800 watts
MOSFET power supply with high switching speed and greater stability
Hybrid G/H circuitry combines the sound quality of class A/B with the efficiency of class D technology

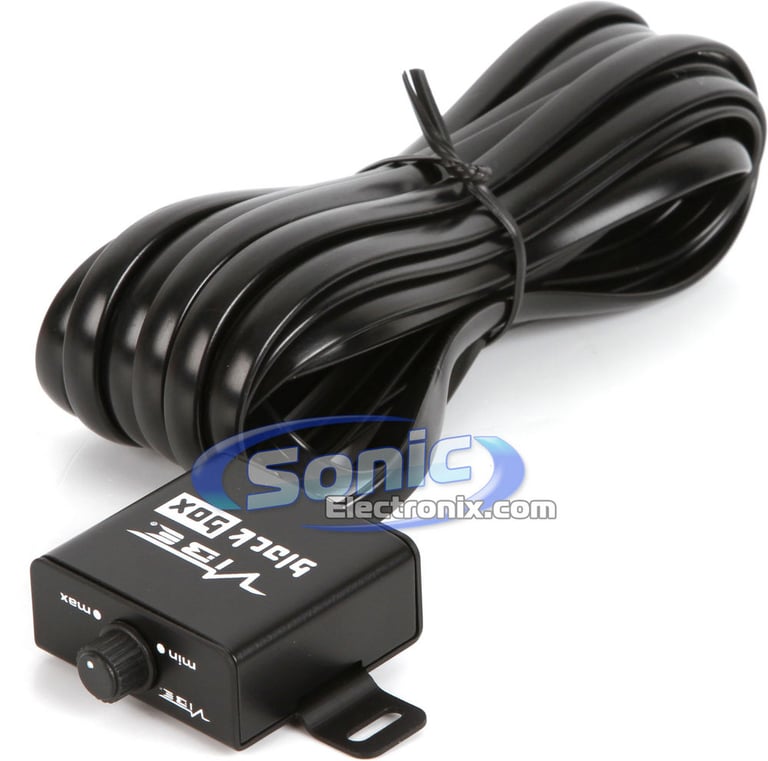

Wired remote bass level control included
LED power (red) and protect (flashing red) indicators
Variable Bass Boost (0 to +15 dB bass boost at 30-125 Hz)
Soft Start Turn-on
Mono channel operation

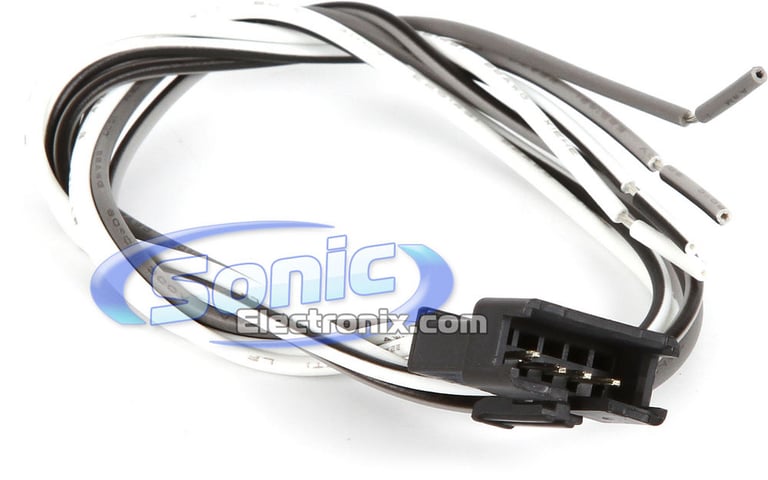

Speaker-level (high-level) inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
3-Way Microprocessor Controlled System Protection circuitry (thermal, overload, and speaker short protection)
Linkable plate allows multiple amps to be connected together for the appearance of one large amplifier
Internal convection cooling technology from internally mounted heatsink fins
Heavy duty piano black aluminum alloy heatsink for extreme heat dissipation

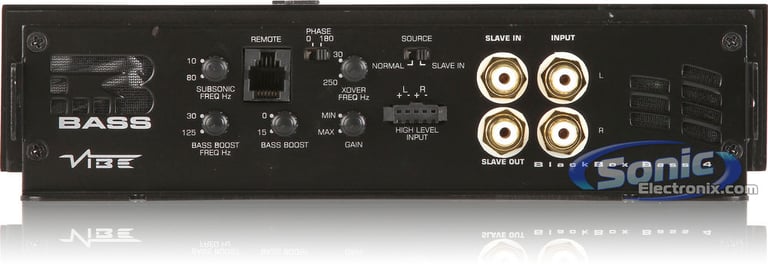

Gold-plated RCA level inputs

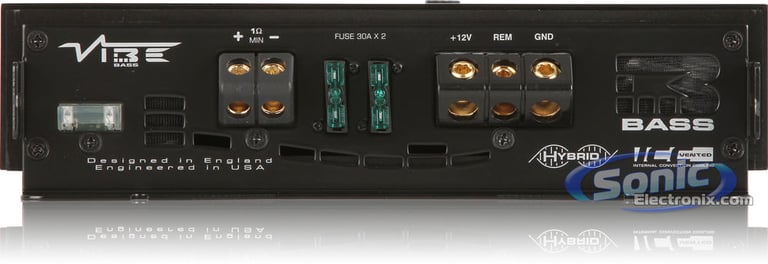

Gold-plated screw terminals
Input sensitivity:
- Level: 200mV-5.5V
Variable low-pass filter (30-250 Hz, 24 dB/octave)
Subsonic filter (10-80 Hz)
Phase Shift: 0-180°
Frequency response: 10-250 Hz
Dimensions: 19-5/8"D x 8-13/16"W x 2-1/4"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-Day Manufacturer's warranty
Item Condition: Factory Refurbished

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

450 watts x 1 channel

RMS Power @ 2 ohms

900 watts x 1 channel

RMS Power @ 1 ohm

800 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

1800 watts

Total RMS Power Output

800 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.1%

Speaker Level Inputs

Yes - with included adapter

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

30 - 250 Hz

Subsonic Filter

10 - 80 Hz

Signal-to-Noise Ratio

114 dB

Bass Boost

0 - 15 dB

Remote bass/level controller

Yes

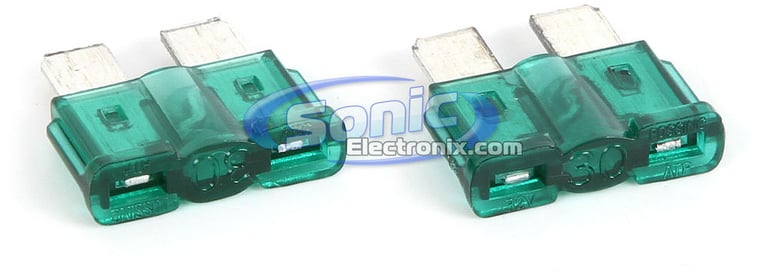

Fuse Rating

30A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
