Kicker ZX650.4 (11ZX650.4)

650W 4-Channel ZX Series Car Amplifier

Kicker
Shop all Kicker
Product videos
highlight-star-icon

• 120W x 4-Chan. @ 4 ohm
• 160W x 4-Chan. @ 2 ohm
• 320W x 2 chan. @ 4 ohm
• 650W Total RMS
• Balanced differential inputs

Learn more about the 11zx6504

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

11
-33.36%

$79.96

List price $119.99

T1650-S main

Rockford Fosgate Power T1 T1650-S

320W Peak (160W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

1
CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Limited time!
CST20 main

Kicker CST204 (46CST204)

200W Peak (100W RMS) 3/4” CS Series 4-ohm Titanium Dome Tweeters

3
-30.04%

$55.96

List price $79.99

Crunch CS5768CX

500W Peak (100W RMS) 5x7"/6x8" CS Series 2-Way Coaxial 4-ohm Car Speakers

13
-11.77%

$29.99

List price $33.99

Limited time!

JVC KW-M595BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

3
-30.30%

$299.00

List price $429.00

Product Highlights


• 120W x 4-Chan. @ 4 ohm
• 160W x 4-Chan. @ 2 ohm
• 320W x 2 chan. @ 4 ohm
• 650W Total RMS
• Balanced differential inputs

Description


Kicker brand icon

Authorized dealer

Why Choose Kicker Amplifiers:

Kicker Always Exceeds Rated Power

Kicker Performance Audio has been around since 1980 and has been producing amazing products since then. Kicker’s drive to consistently produce products that not only are great but also push the standards of the car audio industry is very apparent in all series of their amplifiers. All Kicker amplifiers are CEA-2006 Compliant, assuring you are receiving a continuous certified RMS power rating. Kicker will always exceed the rated power because Kicker is notorious for under rating their amplifiers. So really you will be getting more power than you actually pay for, which is not true for other lower end amplifiers that generally over rate their amplifiers. Kicker amplifiers will provide a choice of three automatic turn-on modes; remote, DC offset, or signal sense, which make them compatible with any car audio system. Along with their high-density convection heat sink for extreme heat dissipation and high efficiency MOSFET power supply, Kickers amplifiers are great way to go when selecting the perfect amplifier for your car audio system.

Kicker FIT Fail Safe Integration Technology

Kicker Fail Safe Technology (FIT):

Kicker has manufactured a new Fail-Safe Integration (FIT) technology into all of their amplifiers. The FIT technology uses isolated differential inputs in order to reject noise or electrical interferences, caused by engines, alternators or any other audio or video component throughout your vehicle. The differential inputs will use a muting circuit that will block out any additional noise that may stream down the line. The FIT technology will help created the cleanest and purest sound possible for any audio system. The Kicker FIT technology is setting the standard for high quality sound.

General Features

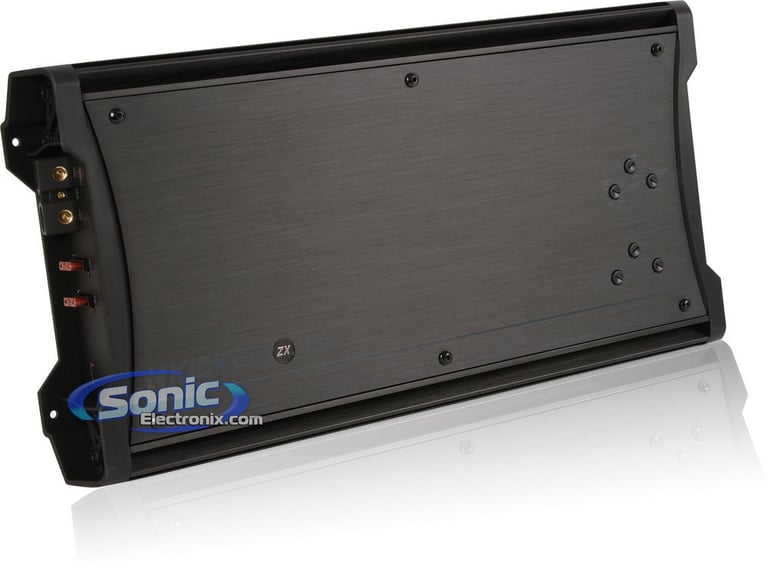

  • ZX Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating (@ 14.4V):
    • 4 ohm: 120 watts x 4 chan.
    • 2 ohm: 160 watts x 4 chan.
    • Bridged, 4 ohm: 320 watts x 2 chan.
  • MOSFET power supply
  • Wired remote bass level control optional (Kicker 10ZXRC)
  • LED power and protection indicators
  • Tuned Bass EQ (0-18 dB bass boost at 40 Hz)
  • FIT (Fail-Safe Integration Technology) utilizes differential inputs to reject noise and electrical interference for the quietest operation possible and ultimate audio clarity
  • Balanced differential inputs make KICKER ZX Amplifiers compatible with any factory radios
  • Eliminates unwanted noise in a system

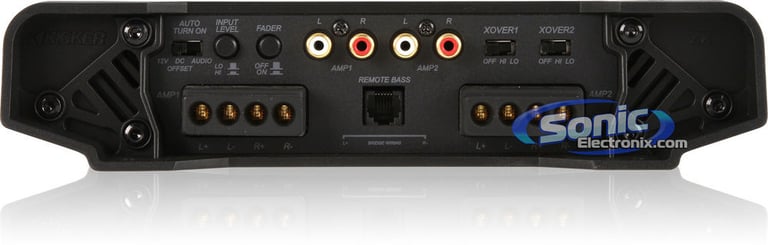

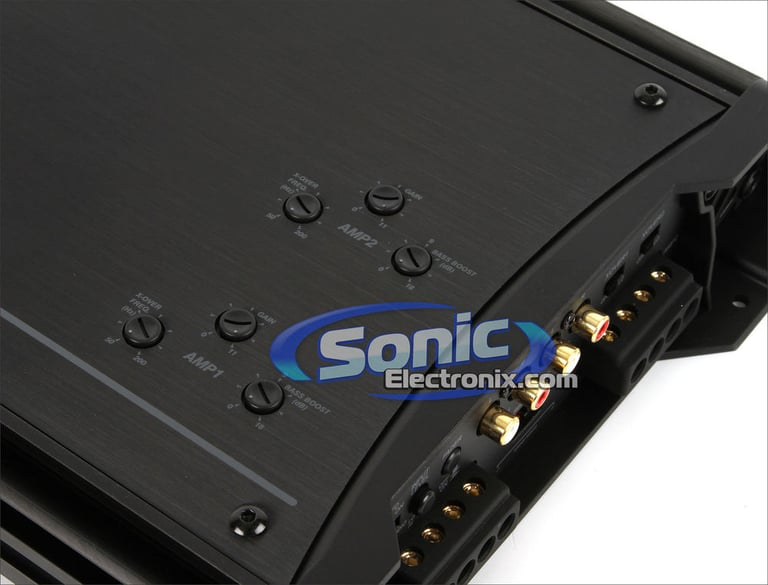

  • Boost, gain, and crossover frequencies are top-mounted for easy access, and a handy protection indicator featuring a new flashing yellow low-voltage light enhances the end panel
  • Bridgeable operation
  • Speaker-level inputs compatible (switchable) through RCA connection, Kicker 09ZISL required and sold separately
  • Automatic turn on modes: remote, DC offset, or signal sense
  • Thermal, voltage, and short circuit protection circuitry
  • Variable high-pass filter (50-200 Hz, 12 dB/octave)
  • Variable low-pass filter (50-200 Hz, 12 dB/octave)
  • Frequency response: 20-20000 Hz
  • New front panel allows customization with decals
  • CEA-2006 compliant amplifier
  • Dimensions: 20"L x 9-5/8"W x 2-1/8"H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

Extend your Kicker warranty to 3 Years when you install your new Kicker amplifier with a compatible Kicker power kit! For a limited time, you can register your Kicker amplifier and power kit to qualify for an additional year of coverage. This offer is only available through official Kicker dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: Kicker CK44, and Kicker 09ZCK44.

2011 Kicker Authorized Online Dealer and eBay Seller

Product history:

Kicker 11ZX6504 thumbnail
(newest, current model)
Kicker 10ZX650.4 thumbnail
(previous model, replaced by Kicker ZX650.4 (11ZX650.4))
Kicker 08ZX650.4 thumbnail
(previous model, replaced by Kicker ZX650.4 (10ZX650.4))
Kicker ZX650.4 thumbnail
(previous model, replaced by Kicker 08ZX650.4)
Kicker KX650.4 thumbnail
(previous model, replaced by Kicker ZX650.4)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
120 watts x 4 channel
RMS Power @ 2 ohms
160 watts x 4 channel
Bridged RMS Power
320 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
650 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)

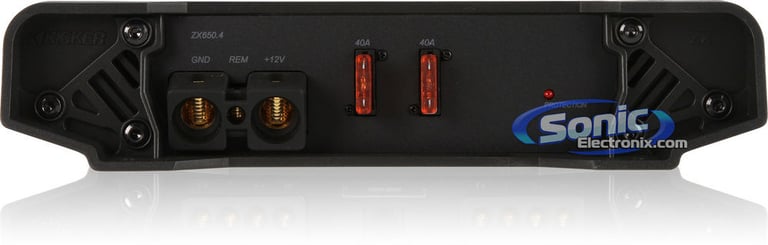

Fuse Rating
80A x 1
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

11ZX6504

Weight:

13.50lbs

Internal SKU:

11zx6504

Internal Product ID:

31881
