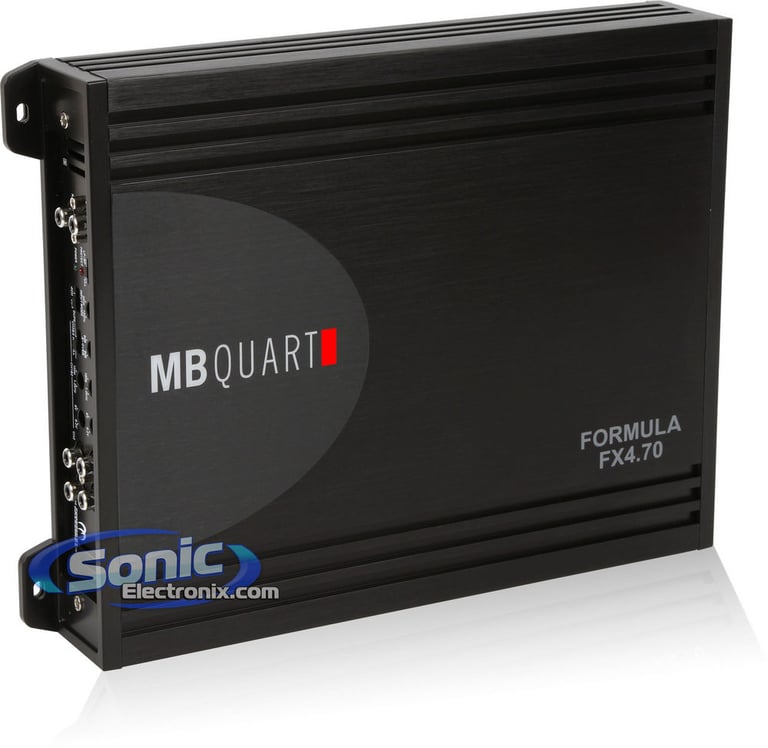

MB Quart FX4.70

560W RMS, 4-Channel Formula Series Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

Formula Series 4-Channel Class A/B Car Amplifier • 70W at 4 Ohm • 140W at 2 Ohm • PWM MOSFET Power Supply • Variable High Pass Filter • Variable Low Pass Filer • Variable Bass Boost • 4 Way Protection Circuitry

Learn more about the fx470

We apologize

This item has been discontinued


Loading...
70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

88-00-9000 main

Metra 88-00-9000

Pocket Radio Installation Kit For select 1990-2006 vehicles from Toyota, Infiniti, Mazda

7
-55.90%

$14.99

List price $33.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-31.25%

$54.99

List price $79.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

PNW1 main

AudioControl PNW1

125W RMS 1" PNW Series Component Car Tweeters

3
-13.42%

$129.00

List price $149.00

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

VSP69 main

NVX VSP69

900W Peak (300W RMS) 6x9" V-Series 2 Way Coaxial Car Speakers

54
-16.67%

$109.99

List price $131.99

Product Highlights


Formula Series 4-Channel Class A/B Car Amplifier • 70W at 4 Ohm • 140W at 2 Ohm • PWM MOSFET Power Supply • Variable High Pass Filter • Variable Low Pass Filer • Variable Bass Boost • 4 Way Protection Circuitry

Description


MB Quart brand icon

Authorized dealer

MB Quart FX4.70 Features:
  • Formula Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 70 watts x 4 chan.
    • 2 ohm: 140 watts x 4 chan.
    • Bridged, 4 ohm: 280 watts x 2 chan

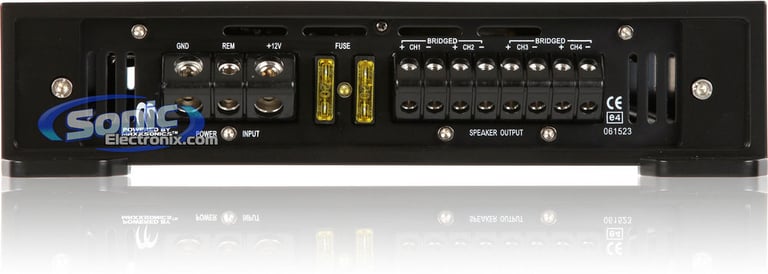

  • PWM (Pulse Width Modulated) MOSFET power supply
  • LED power (green) and protect (red) indicators

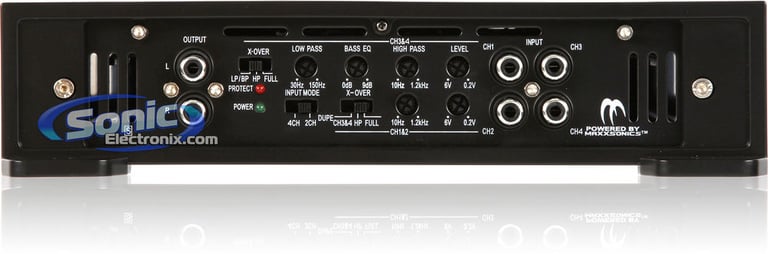

  • Variable Bass Boost (0 to +9 dB bass boost at 45 Hz
  • 4/3/2 Channel operation
  • Unbalanced RCA input jack
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy convection heatsink for superb heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Signal to noise ratio: 90dB
  • Channel separation: 80dB
  • Variable low-pass filter: 30-150 Hz
  • Variable high-pass filer: 10-1200 Hx
  • LP/HP/Full crossover switch
  • Damping factor: >180
  • Frequency response: 10-45,000 Hz
  • Dimensions: 12-3/4"L x 9-1/2"W x 2-1/4"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 4 channel
RMS Power @ 2 ohms
140 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
280 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
Not Specified
Total RMS Power Output
560 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
10 - 1200 Hz
Low-Pass Crossover Frequency
30 - 150 Hz
Subsonic Filter
Not Specified
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
20A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

FX4.70

Weight:

9.00lbs

Internal SKU:

fx470

Internal Product ID:

33004

Product and How-to Videos


Customer Ratings & Reviews


MB Quart FX4.70 thumbnail image

5 star
57%
4 star
29%
3 star
0%
2 star
14%
1 star
0%



Durability
4.2
Value
4.6
Features
4.3
Design
4
Usability
4.6

Customer Reviews

Sort by:

Loading...

Great Amplifier!!

Best ever had, great power, great sound for the speakers and the original radio I used; cassette BMW M3 Radio, and it sounds as any new radio. Love my amplifier, will recommend.

By hk on October 17, 2012

8 found this helpful


Good buy

Excellent value for money, very good power output, clean channels and easy to use

By Dev on August 31, 2012

6 found this helpful


Fantastic sound

I had a Kenwood KAC-8405 used from ebay that only lasted 6 months, after that bad experience I decided to give a chance to the MB Quart FX4.70 and I have to say that I am amazed of the quality. The sound is just amazing and much better than the Kenwood, highs are detailed and crisps, mid and low end bass amazing too.
If you are somebody like me that cannot expend hundreds and hundreds of dollars in a system but like to enjoy hi-fi sound this is the amplifier to try.
I have mine connected to the stock head unit of my Saab 93 and I really do not see a need to upgrade the head unit at all, the sound is detailed, accurate and extremely hi-fi to my standards

By MCFL on December 3, 2012

5 found this helpful


Just as planned :D

I purchased this for my MB Quart components and it is solid. Still works very well and as long as you do not abuse electronics, they will last forever. The clarity is audible and with the right lossless formatting, this amp will shine. It has a great amount of filters and options for virtually any set of speakers on the market. For the price, this is really a great product.

By Mobile Enclosures on September 24, 2012

6 found this helpful


Very Happy

Extremely happy with this amp. For the price and power nothing else can touch it. I have the amp powering 4 Infinity Kappa 682.9cf 6x8 door speakers @ 2ohms.
The speakers are actually only rated for 100w rms per channel but I am pushing them with this amp @ the manufacturer stated 140w rms (in all actuality it's probably closer to 120). I'm confident that if I was using a cheaper quality amp I wouldn't be able to push the speakers that hard without risking some damage. I am getting nice bright highs, decent mids and some fantastic bass from the speakers. Would recommend this amp for your setup without hesitation.

By Jason on September 15, 2012

5 found this helpful


great, clean, powerful amplifier

I was sceptacle about buying an amplifier that wasnt cea rated, i looked at the fuse rating and new it wouldnt do the 70 watts per cannel it says. but this amp easily does 50 watts per channel at 4 ohms of clean, undistorted signal, i was very surprised at the quality of the sound that came from this amp, even at high volumes. i got 6 speakers running off this thing and soon to be 8, and this amp sounds amazing for the price, u couldnt get a better deal.

some cons are the crossovers arent that accurate on this amp, so u gotta play around with them for a bit, but they still work great once u found the spot u want it at.

By Tyler on September 2, 2012

4 found this helpful


not as good as it seems

I've had one of these for less than a year and already it is completely useless. Sound cuts in and out every 5 seconds or just doesn't work at all, never going with MB Quart again.

By Thomas on February 14, 2013

3 found this helpful




A1400 small

JL Audio A1400

** CLOSEOUT!! ** 500W RMS, Class D Monoblock A Series Amplifier

(2)

$219.99

List price $399.99

99-5831B small

Metra 99-5831B Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2014-2018 Transit Connect (Matte Black)

(1)

$122.99

List price $207.99

43CVT104 small

Kicker CompVT 10" 4 Ohm (43CVT104) Open Box Complete

800W Peak (400W RMS) 10" CompVT Series Dual 4-Ohm Car Subwoofer

$148.54

List price $189.99

BMW-485 small

Nitro BMW-485

1600W Max, 4-Channel Amplifier with Bass Remote

(9)

$127.49

List price $299.99

VU-DIN small

SMD VU-DIN LED Sound System Output Display by Steve Meade Designs

In-dash or Custom-Mount LED Sound System Output Display for Amplifier Voltage Readout (VUDIN)

$149.99

List price $134.99

GTO529 small

JBL GTO 529

270W Peak (90W RMS) 5-1/4" 2-Way GTO Series Coaxial Car Speakers

(6)

$64.99

List price $139.95

99-3011S small

Metra 99-3011S Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2011-2016 Cruze and Cruze Limited (Silver)

(2)

$48.99

List price $54.99

99-5200 small

Metra 99-5200 Dash Kit

Install a new Single-DIN car stereo in select 1999-2004 Focus and Cougar

(1)

$14.99

List price $31.99

MATRIX PLUS-WHITE small

AudioControl MATRIX PLUS (Note: this will ship in Black color)

6-Channel Line Driver with 5 Year Warranty*!

(2)

$215.00

List price $215.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2000 Toyota Solara

2001 Toyota 4Runner

2012 Hyundai Equus

1987 Ford Bronco

2008 Saab 9-7X

2007 Jaguar S-Type

2006 BMW M3

2012 Audi R8

2018 Lexus GS300

2008 Subaru Legacy

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
