Name: Autotek ATX1000.2-OPEN BOX
Brand: Autotek
SKU: LS-atx10002-OB
Price: 46.99 USD
Availability: Discontinued

by Autotek

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

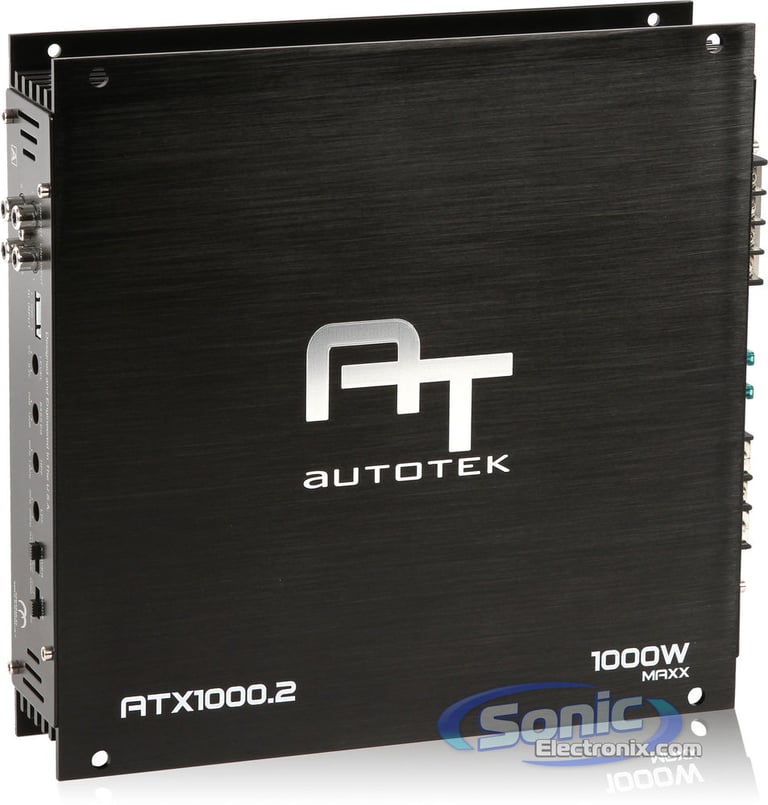

Autotek ATX1000.2-OPEN BOX Image 1 — Autotek ATX1000.2-OPEN BOX

Autotek ATX1000.2-OPEN BOX Image 2 — Autotek ATX1000.2-OPEN BOX

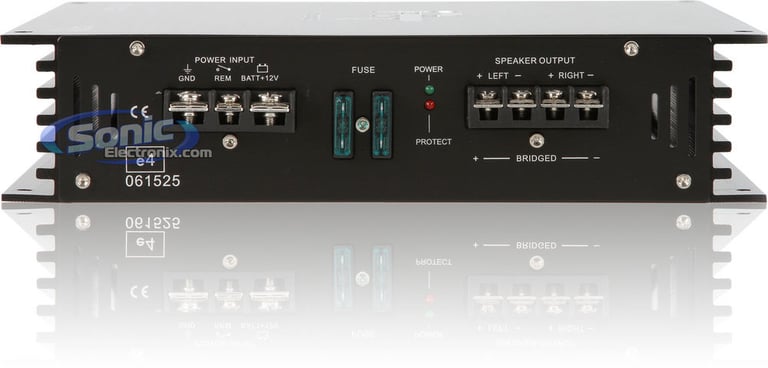

Autotek ATX1000.2-OPEN BOX Image 3 — Autotek ATX1000.2-OPEN BOX

Autotek ATX1000.2-OPEN BOX Image 4 — Autotek ATX1000.2-OPEN BOX

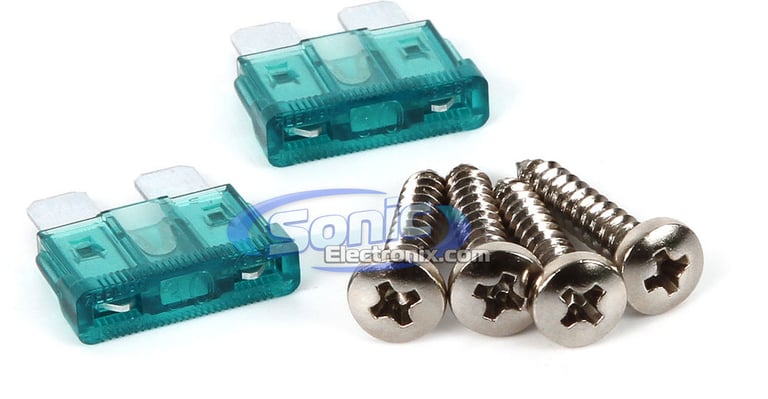

Autotek ATX1000.2-OPEN BOX Image 5 — Autotek ATX1000.2-OPEN BOX

Autotek ATX1000.2-OPEN BOX Image 6 — Autotek ATX1000.2-OPEN BOX

Autotek ATX1000.2-OPEN BOX Image 7 — Autotek ATX1000.2-OPEN BOX

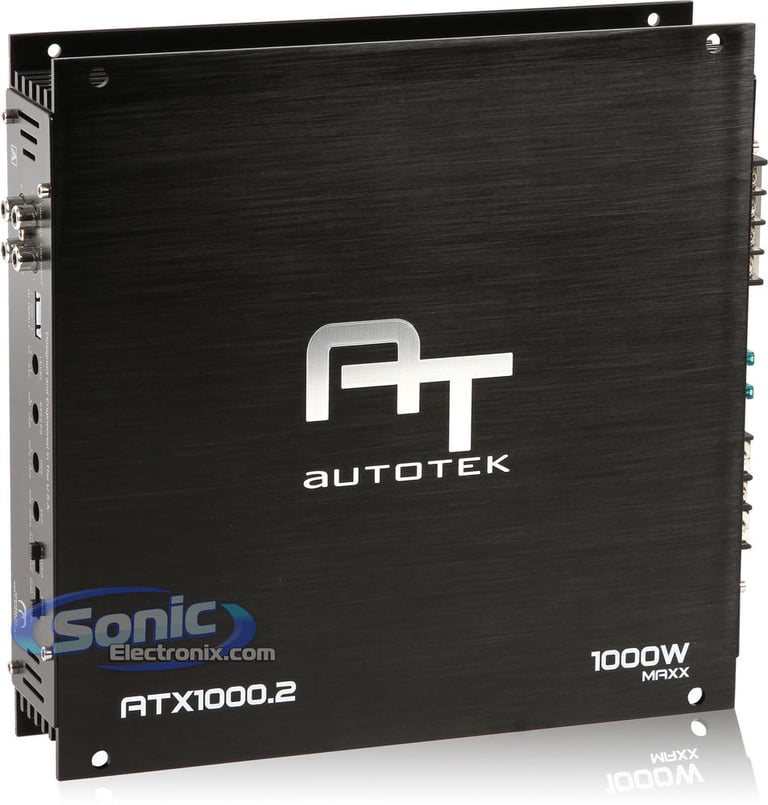

Autotek ATX1000.2-OPEN BOX Image 8 — Autotek ATX1000.2-OPEN BOX

Autotek ATX1000.2-OPEN BOX Image 9 — Autotek ATX1000.2-OPEN BOX

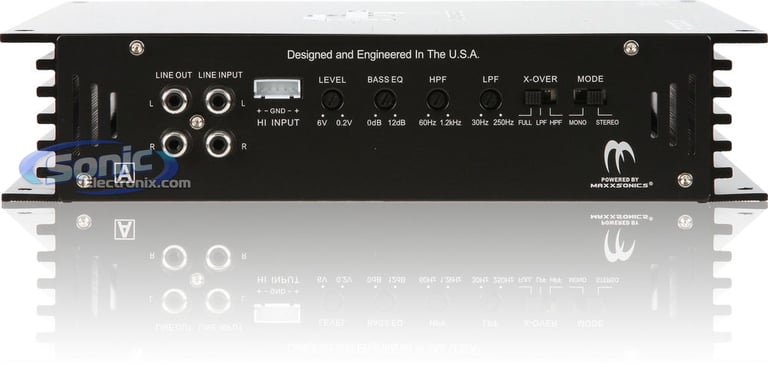

Autotek ATX1000.2-OPEN BOX Image 10 — Autotek ATX1000.2-OPEN BOX

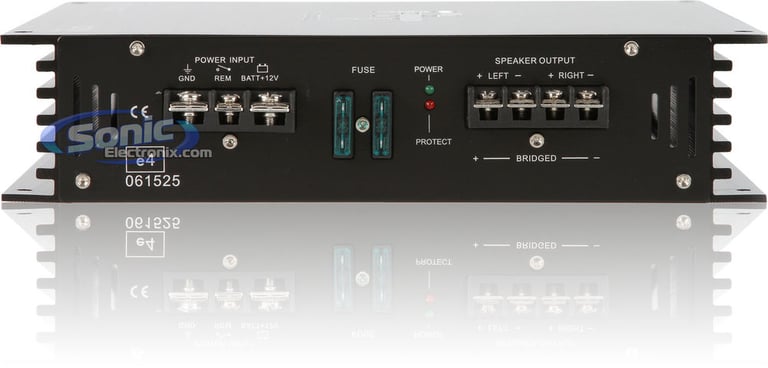

Autotek ATX1000.2-OPEN BOX Image 11 — Autotek ATX1000.2-OPEN BOX

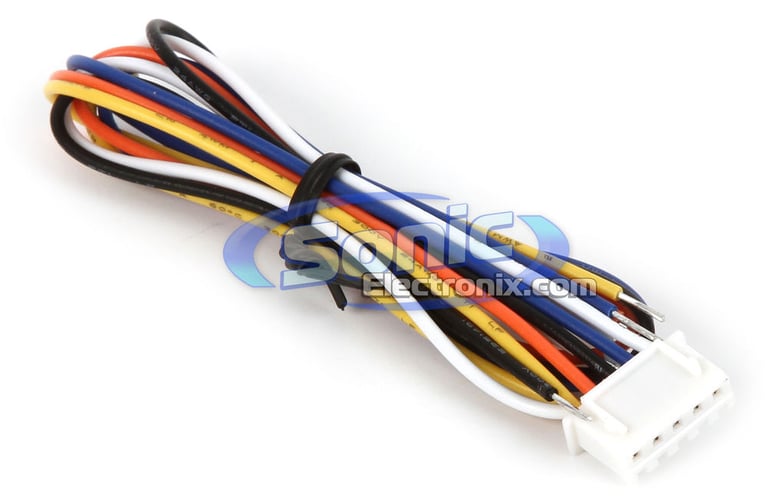

Autotek ATX1000.2-OPEN BOX Image 12 — Autotek ATX1000.2-OPEN BOX

Autotek ATX1000.2-OPEN BOX Image 13 — Autotek ATX1000.2-OPEN BOX

Product videos

Product highlights

• Max Power: 4 ohm: 250 watts x 2 chan., 2 ohm: 500 watts x 2 chan.
• PWM MOSFET Power Supply
• Bass Boost
• Soft Start Turn-On
• High Level Inputs
• Preamp RCA Outputs
• 4-Way System Protection Circuitry
• Flat Panel Heatsink Design
• Subsonic Filter

Learn more about the LS-atx10002-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Autotek ATX1000.2 2-Channel ATX Series Amplifier

Sonic Electronix is now carrying the new 2011 line of Autotek ATX Series Amplifiers. These amps come in Monoblock, 2-Channel, and 4-Channel configurations as well as numerous different power ratings. Each one these Autotek ATX amplifiers feature a flat panel heatsink design, soft turn on circuit, 4-way protection circuitry, LED power & protect indicators, and much more.

The ATX1000.2 version has an MAXX power rating of 250 watts x 2-channels wired at 4 ohms and 500 watts x 2-channels wired at 2 ohms. It is equipped with nickel plated RCA level inputs & screw terminals and is powered by a MOSFET power supply. The ATX Series amps have a wide variety of power and channel configurations for you to chose from.

Product Features

2-Channel Class AB ATX Series Car Amplifier
MAXX Power Rating:
- 4 ohm: 250 watts x 2 chan.
- 2 ohm: 500 watts x 2 chan.
- Bridged, 4 ohm: 1000 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
LED power green and protect red indicators
Bass Boost (0-12 dB @ 45 Hz)
Soft Start Turn-on
2 or Mono channel operation
Speaker-level (high-level) inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
Flat panel heatsink design for extreme heat dissipation
Nickel-Plated RCA level inputs
Nickel-Plated screw terminals
Variable High-Pass Filter (60-1200 Hz)
Variable Low-Pass Filter (30-250 Hz)
Subsonic Filter (60-1200 Hz)
Signal-to-Noise Ratio: >95 dB
Damping Factor: >200
THD (Total Harmonic Distortion): <0.05%
Channel Separation: >70 dB
Variable Input Level Control: 0.2V-5V
Fuse Rating: 2 x 15 Amp
Frequency Response: 30-45,000 Hz
Dimensions: 9-7/8"L x 9-3/4"W x 2-3/16"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

250 watts x 2 channel

RMS Power @ 2 ohms

500 watts x 2 channel

Bridged RMS Power

1000 watts x 1 channel

Amplifier Specifications

Series

ATX Series

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

1000 watts

Total RMS Power Output

Not specified by manufacturer

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

Not specified by manufacturer

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

60 - 1200 Hz

Low-Pass Crossover Frequency

30 - 350 Hz

Subsonic Filter

60 - 1200 Hz

Signal-to-Noise Ratio

>95 dB

Channel Separation

>70 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

2A x 15

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
