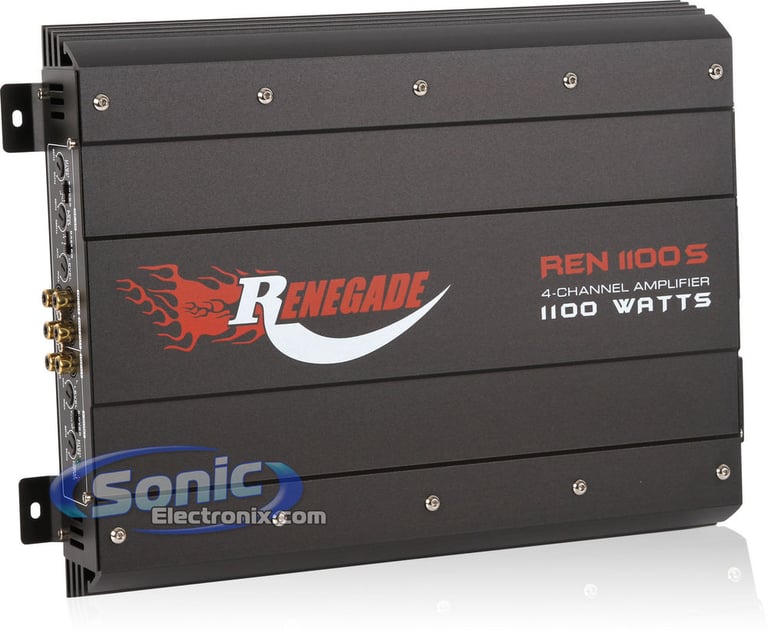

Renegade REN1100S

1100W, 4 Channel Renegade Power Amplifier

Renegade
Shop all Renegade
Product videos
highlight-star-icon

REN Series 4-Channel Class A/B Car Amplifier • 1100W Max • 275 Watts x 4 Chan. @ 2 Ohm Max • Speaker-Level (High-Level) Inputs • Preamp RCA Outputs • Variable High/Low-Pass Filter

Learn more about the ren1100s

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

95-5026 main

Metra 95-5026 Dash Kit

Install a new Double-DIN car stereo in select 2002-2006 vehicles from Ford, Lincoln, Mercury (Black)

18
-41.68%

$13.99

List price $23.99

FD1428B main

Scosche FD1428B / FD1428 Dash Kit

Install a new Double-DIN car stereo in select 2001-2006 vehicles from Ford, Lincoln, Mercury (Black)

39
-9.51%

$11.99

List price $13.25

70-5701 main

Metra 70-5701 Wiring Harness

Install a new car stereo and retain factory amplifier in select 1998-2003 Mountaineer and Explorer

9
-10.26%

$34.99

List price $38.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85

Product Highlights


REN Series 4-Channel Class A/B Car Amplifier • 1100W Max • 275 Watts x 4 Chan. @ 2 Ohm Max • Speaker-Level (High-Level) Inputs • Preamp RCA Outputs • Variable High/Low-Pass Filter

Description


  • REN Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 135 watts x 4 chan.
    • Bridged, 4 ohm: 275 watts x 2 chan.
  • MAX Power Rating:
    • 4 ohm: 150 watts x 4 chan.
    • 2 ohm: 275 watts x 4 chan.
    • Bridged, 4 ohm: 550 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators

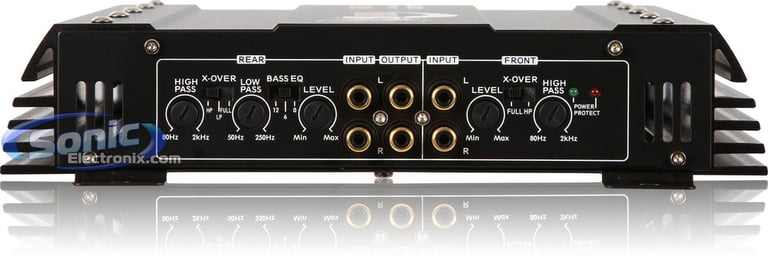

  • Super selectable bass boost (0, 6, 12 dB at 45 Hz)
  • Soft Start Turn-on
  • 4/3/2 channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Gold-plated RCA level cinch inputs

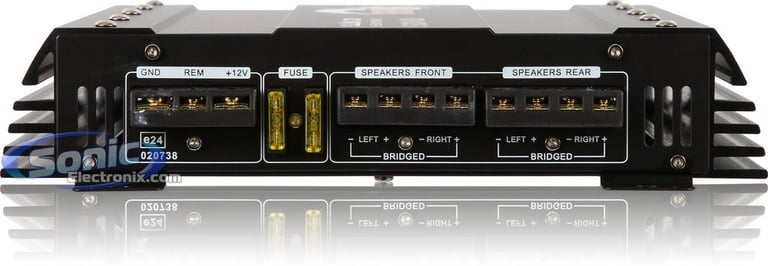

  • Gold-plated screw terminals
  • Input sensitivity:
    • Low level: 100mV-4V
  • Variable high-pass filter (80-2,000 Hz)
  • Variable low-pass filter (50-250 Hz)
  • Frequency response: 20-30,000 Hz
  • Dimensions: 12-5/8"L x 10-1/16"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Renegade products are imported from Germany and distributed to authorized dealers through Rockford Fosgate.


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

KTA-450 small

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
135 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
275 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1100 watts
Total RMS Power Output
550 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.5%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
80 - 2,000 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
>80 dB
Channel Separation
>50 dB
Bass Boost
0dB, 6dB, 12dB
Remote bass/level controller
No
Fuse Rating
20A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

REN1100S

Weight:

8.00lbs

Internal SKU:

ren1100s

Internal Product ID:

33237

Product and How-to Videos


Customer Ratings & Reviews


Renegade REN1100S thumbnail image

5 star
75%
4 star
0%
3 star
25%
2 star
0%
1 star
0%



Durability
4.3
Value
4.3
Features
3.8
Design
4.8
Usability
4.5

Customer Reviews

Sort by:

Loading...

An amp that isnt cea compliant.....

Now I'm going to start by saying this...if u want a really nice 4 channel amp...dnt get this 1.....its has pros and cons but 2 me...the cons overrule......let's start with the pros..... It sounds loud clear and not too distorted if....u play with the eq on. Your head unit... its sorta small...not 2 big....it looks way more expensive in person vs...internet...now cons....it gets hot.....really hot........however the same amount of time it takes to get hot is the same amount of time for it to get baq cool...so it dnt stay hot...u jus have to turn ya music down until it cools off....overall this isn't a good buy unless your on a budjet and dnt mind havn an amp that gets hot quickly...it doesn't sound 2 bad...but it definately doesn't sound 2 good either.....if you are to get this amp get a warnty.

By Dk on June 4, 2011

12 found this helpful


Excellent for the Price

I paid $150 for this from the local stereo shop. For $150 it's great for $85 its a steal. I'm running Phoenix Gold Xenon Components 6.5" up front and a set of Alpine Type-S 6.5" in the rear and this thing hasn't even been warm enough to notice a difference to the palm. It kicks hard and it's a Rockford Fosgate in a different skin. Great deal.

By BK on February 26, 2012

10 found this helpful


Wow now thats what you call price vs. performance

It is by far better than a comprable Sony or Pioneer. Its a renegade made by the trusty company Rockford Fosgate. I currently have this powering some RF p1652-s Components and man for the Highs and Mid bass this things awesome. way better than any i repeat any head unit can produce. The best thing about the amp is price vs. Rms vs any comprable product. A+ to fosgate for relating to the lower end community.

By Gross on August 3, 2011

6 found this helpful


good amp for the price

I bought this amp to run 4 polk audio db571s I like it so much i'm going to buy another 1 to run a rockford fosgate P3 shallow mount sub when I get the extra cash.

By sidekick on October 5, 2011

5 found this helpful




VFDB2 small

VFDB2

Dual MANL V12 Series Fused Distribution Block w/ 1/0 Gauge Input and Two 4/8 Gauge Output

(10)

$38.99

List price $43.99

460-MAX small

Python 460 MAX - 3105P

1-way Car Alarm Vehicle Security System, Includes Two 1-way Remotes

(10)

$69.99

List price $239.99

Distro Block small

DC Audio Distro Block

1/0-Gauge Input and Output Power/Ground Machined Distribution Block

(1)

$75.00

List price $75.99

CLOC+D small

Cache CLOC+D

Line Output Converter & Line Driver

(10)

$39.99

List price $99.99

GL712 small

Kicker GL712 (08GL712)

Square Grille for Kicker 12" Solo-Baric L7 Subwoofers

(13)

$34.99

List price $34.99

RZ4-2000D small

Power Acoustik RZ4-2000D

2000W Peak (1000W RMS) Class D RAZOR Series 4-Channel Car Amplifier

(25)

$118.99

List price $179.99

12DM small

Atrend 12DM

Empty Dual 12" Medium Sealed Subwoofer Enclosure

$109.99

List price $149.99

44-PW530 small

Metra 44-PW530 Antenna

Universal Fully Automatic Power Antenna

(2)

$119.99

List price $213.99

40CWS82 small

Kicker 40CWS82 (CompS82)

200W 8" Comp S Series Single 2-Ohm Subwoofer

(2)

$79.95

List price $99.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Ford Explorer

1996 Eagle Vision

1990 Eagle Premier

2011 Ford Explorer

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
