4-Channel Class AB Car Amplifier • MOS-FET Power Supply • 800 Watts Max Power Output • 4, 3, or 2 Channel Operation • Fixed High Pass Filter • Fixed Low Pass Filter • Variable Input RCA Level Control

Learn more about the ksax3104

NVX - Worth the Envy - Direct to Consumer Car Audio

Other Dodge Stratus owners bought

Product Highlights

Description

Authorized dealer

Get the Combo with the JVC CS-V6937 + JVC CS-V627 and Save over $15.00 on your system!

Click here to buy the combo package!

JVC DRVN Power

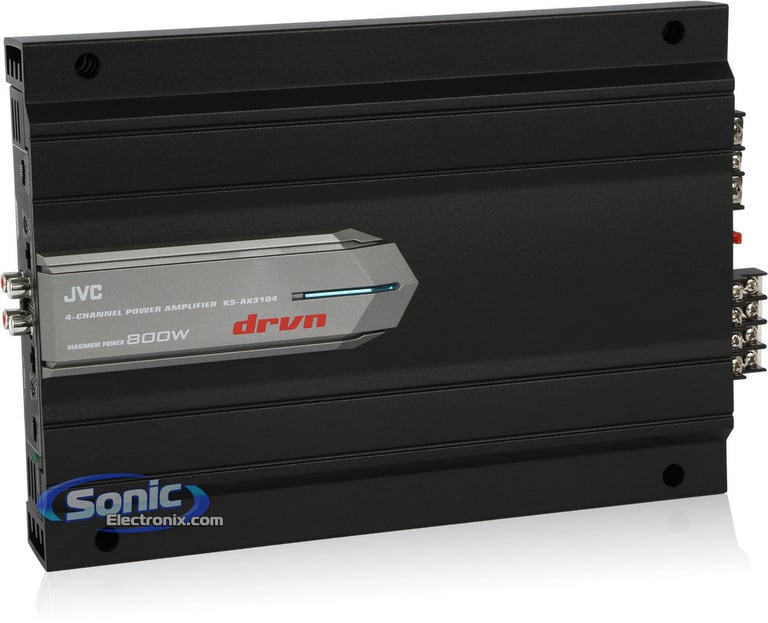

JVC's KS-AX3104 4-channel amplifier is the perfect tool to use when looking to supply power to two pair of JVC CS-V6937 or JVC CS-VS607 car speakers. The amplifier is rated at 60 watts RMS x 4 channels @ 4 ohms, 90 watts RMS x 4 channels @ 2 ohms, and 150 watts RMS x 2 channel @ 4 ohms bridged. The bridged impedance will allow you to run some entry-level subwoofers, giving you multiple application options. It features a sleek and simple look with a smaller chassis design making it the perfect amplifier for any vehicle size or interior. With both high-level speaker inputs and low-level RCA inputs the KS-AX3104 is extremely versatile and able to be installed into any car audio system, be it aftermarket or factory. The DRVN amplifier not only features clean and constant power output but also offers protection. The amplifier features a 4-way protection circuitry and heavy duty aluminum alloy heatsink, allowing the amplifier to play longer without the worry of causing damage at higher temperature levels. This DRVN series amplifier is built with a simple goal in mind, to provide efficient power any time, anywhere. When looking for quality and affordability the DRVN series amplifier is the way to go.

Amplifier Features:

4-Channel Class AB Car Amplifier
RMS Power Rating:

4 ohm: 60 watts x 4 chan.
2 ohm: 90 watts x 4 chan.
Bridged, 4 ohm: 150 watts x 2 chan.

Max power output: 800 watts x 4 chan.
4, 3, or 2 Channel operation
Class-AB circuit
MOS-FET power supply
MOS-FET Output Stage
Frequency response: 5 - 50,000Hz
Signal to Noise Ratio: 76dB
THD: Less than 0.04% at 4 ohm, 1kHz
Fixed high pass filter (150Hz, -12dB/oct)
Fixed low pass filter (80Hz, -12dB/oct)

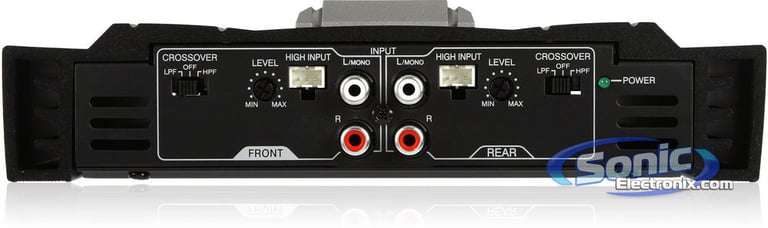

Variable input RCA level control (0.3 - 6V)
Variable speaker input control (1.2 - 12V)
Nickel-plated RCA terminals
Nickel-plated power supply terminals

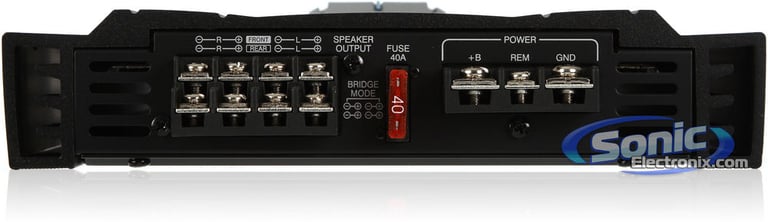

Nickel-plated speaker out terminals
Protection circuitry (thermal/short circuit/overload/DC offset)
Anti-Pop circuit
4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together
Dimensions: 8-3/8”D x 13-1/4”W x 2-1/16”H
Authorized Internet Dealer
1-year Manufacturer's warranty

Product history:

	JVC KS-DR3004 (newest, current model)
	JVC KS-AX3204 (previous model, replaced by JVC KS-DR3004)
	JVC KS-AX3104 (previous model, replaced by JVC KS-AX3204)
