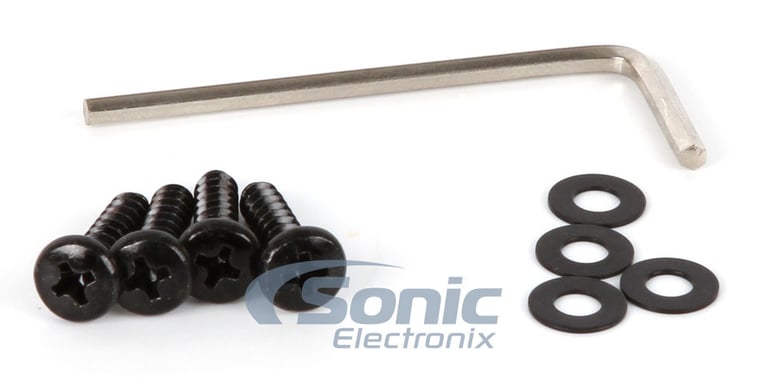

JL Audio JX360/4 (Open Box) Image 5 — JL Audio JX360/4 (Open Box)

JL Audio JX360/4 (Open Box) Image 6 — JL Audio JX360/4 (Open Box)

JL Audio JX360/4 (Open Box) Image 7 — JL Audio JX360/4 (Open Box)

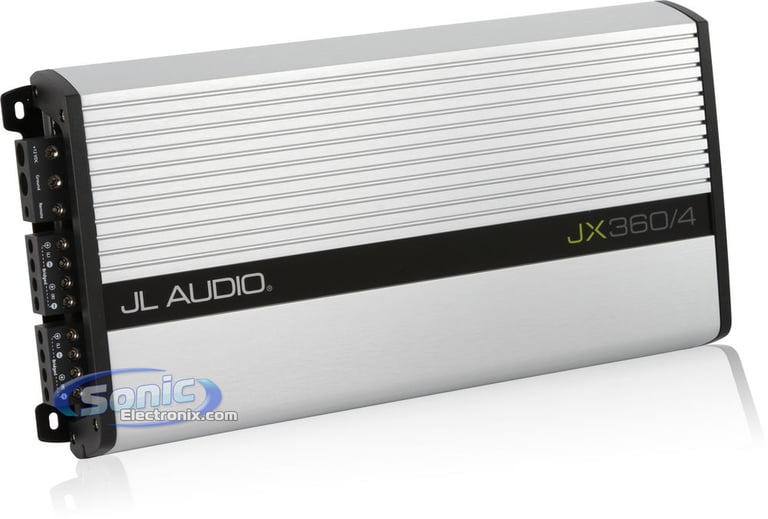

JL Audio JX360/4 (Open Box) Image 8 — JL Audio JX360/4 (Open Box)

JL Audio JX360/4 (Open Box) Image 9 — JL Audio JX360/4 (Open Box)

JL Audio JX360/4 (Open Box) Image 10 — JL Audio JX360/4 (Open Box)

JL Audio JX360/4 (Open Box) Image 11 — JL Audio JX360/4 (Open Box)

JL Audio JX360/4 (Open Box) Image 12 — JL Audio JX360/4 (Open Box)

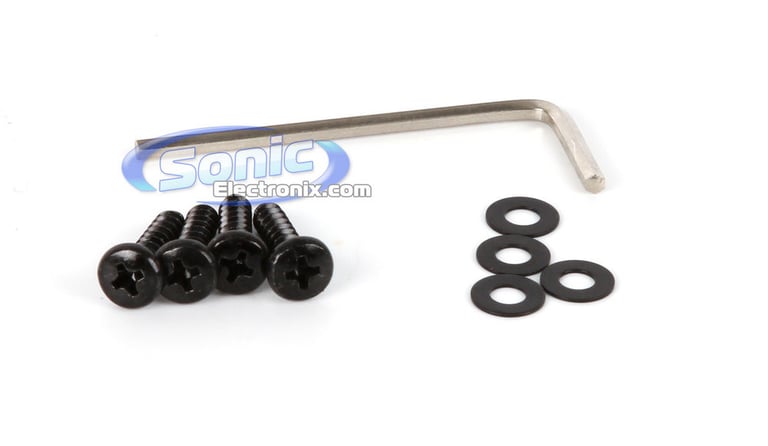

JL Audio JX360/4 (Open Box) Image 13 — JL Audio JX360/4 (Open Box)

Product videos

Product highlights

JX Series 4-Channel Amplifier • Class AB • 70W x 4 Chan @ 4 ohm • 90W x 4 Chan @ 2 ohm • Preamp Outputs • High & Low Level Inputs • Adjustable Input Sensitivity • High & Low Pass Filter • Open Box

Learn more about the LS-jx3604-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

JL Audio Quality with an Affordable Price Tag

The new JL Audio JX Series of amplifiers was designed with a specific purpose: to create a high quality amplifier with a moderate price tag. JL Audio created an entire line of JX series amplifiers to provide an amp configuration for everyone. The line includes three monoblock amplifiers, a two-channel, and a four-channel. Each amp is true to the ratings and provides excellent output for your new speakers or subwoofers. In assisting with matching many of the JL Audio subwoofers together, these amplifiers have specific ratings at 3 ohms. For your next audio system, consider the 2011 JL Audio JX amplifiers for an affordable, high quality amplifier.

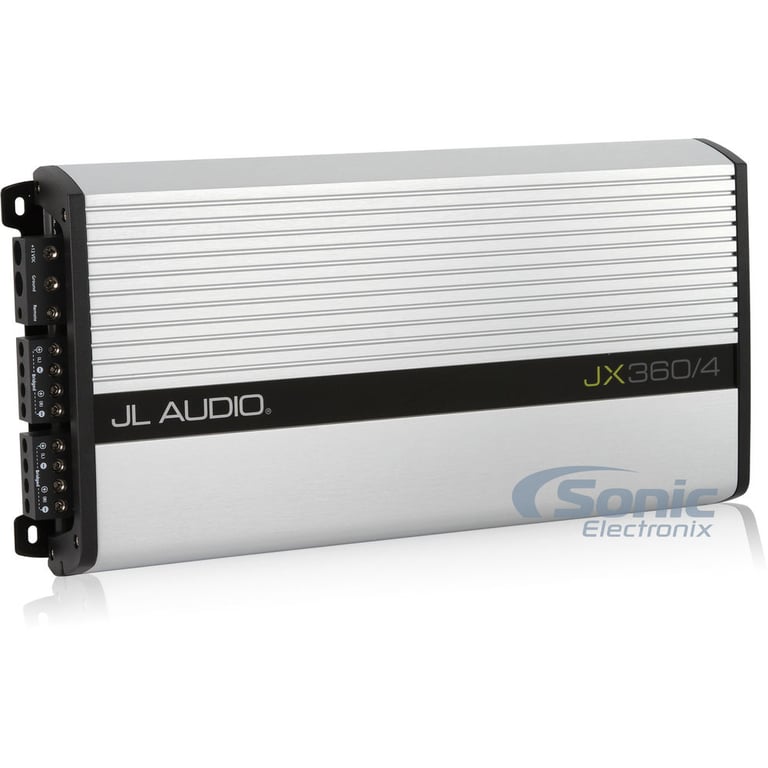

JX Series 4-Channel Class A/B Car Amplifier
Open Box item for greater discount
RMS Power Rating (14.4V):
- 4 ohm: 70 watts x 4 chan.
- 2 ohm: 90 watts x 4 chan.
- Bridged, 4 ohm: 180 watts x 2 chan.
RMS Power Rating (12.5V):
- 4 ohm: 55 watts x 4 chan.
- 2 ohm: 80 watts x 4 chan.
- Bridged, 4 ohm: 160 watts x 2 chan.
Unregulated PWM switching type power supply
LED power (green) and protect (red) indicators
Soft start turn-on prevent clicking and popping when system turns on
4/3/2 channel operation

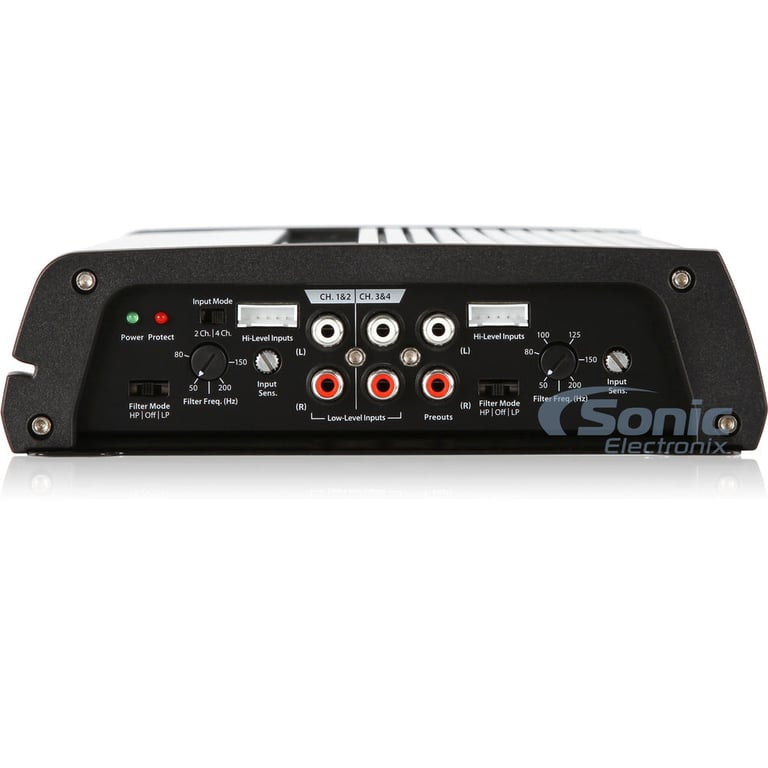

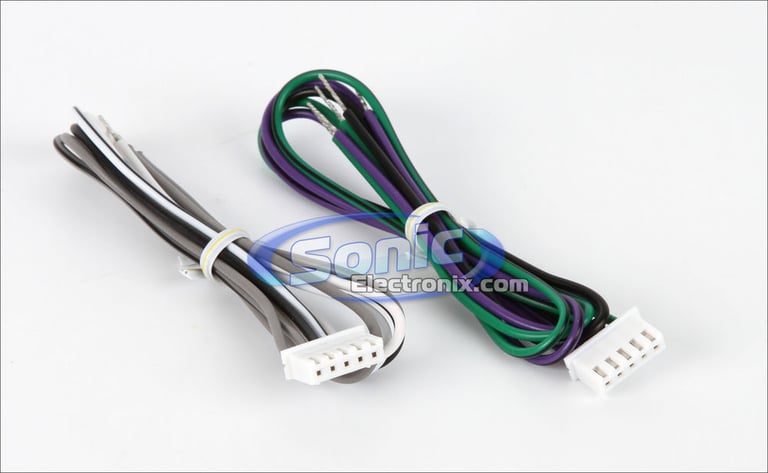

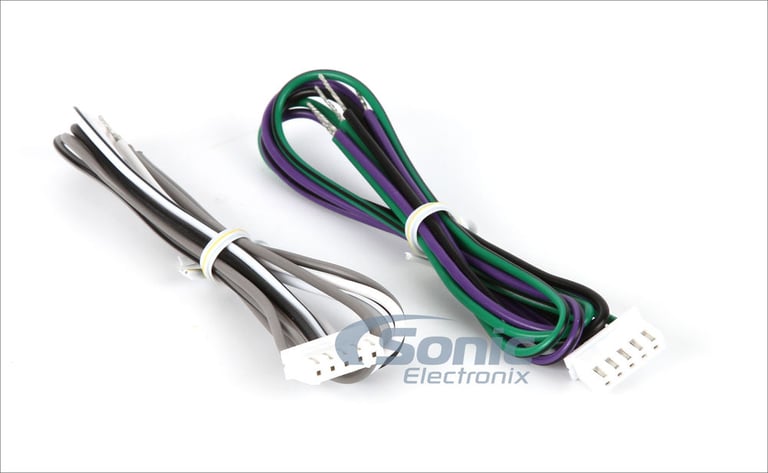

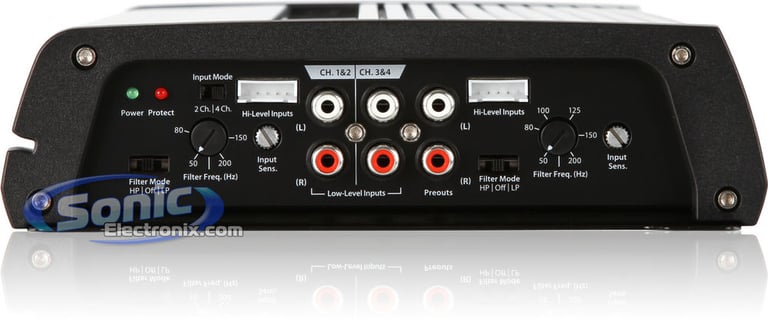

Speaker-level (high-level) inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, low impedance, and speaker short protection)
Heavy duty aluminum alloy heatsink for effective heat dissipation
Nickel-plated RCA level inputs

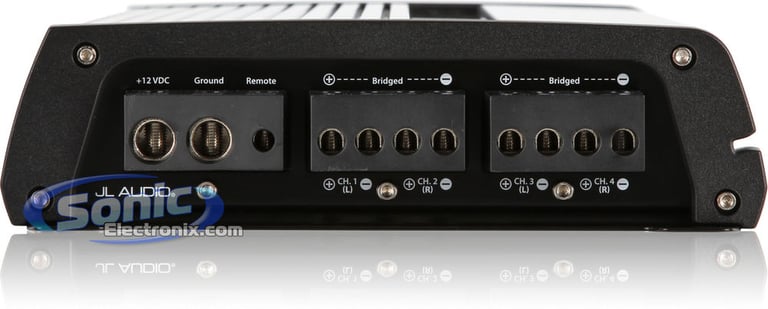

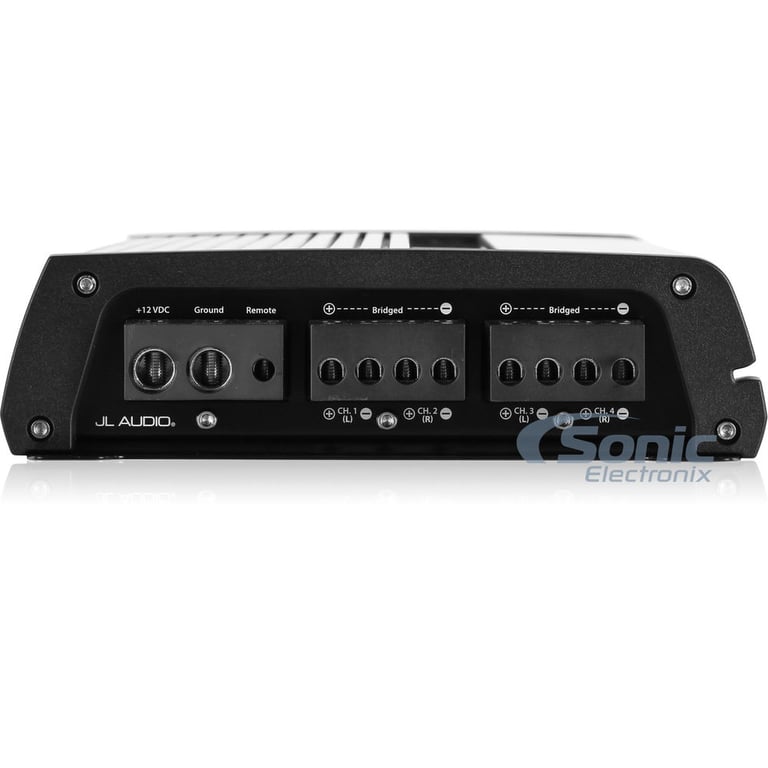

Nickel-plated screw terminals
Input sensitivity:
- Low level: 200mV-4V
- High level: 2.0V-10V
Variable low-pass filter (50-200 Hz, 12 dB/octave)
Damping factor: >60 @ 4 ohm
Frequency response: 20-20,000 Hz (+/– 1 dB)
Recommended Fuse Value (Type): 50A (MAXI or AGU)
Dimensions: 15-1/2"L x 7-3/4"W x 2-1/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
30-Day SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

70 watts x 4 channel

RMS Power @ 2 ohms

90 watts x 4 channel

Bridged RMS Power

180 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total RMS Power Output

360 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

2 ohms

THD at Rated RMS Power

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 200 Hz

Low-Pass Crossover Frequency

50 - 200 Hz

Signal-to-Noise Ratio

100 dB

Remote bass/level controller

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
