Name: Audiobahn A2002J
Brand: Audiobahn
SKU: a2002j
Price: 99.99 USD
Availability: Discontinued
Rating: 4.0000 (1 reviews)

Shop all Audiobahn

by Audiobahn

About
Similar Products
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Audiobahn A2002J Image 1 — Audiobahn A2002J

Audiobahn A2002J Image 2 — Audiobahn A2002J

Audiobahn A2002J Image 3 — Audiobahn A2002J

Audiobahn A2002J Image 4 — Audiobahn A2002J

Audiobahn A2002J Image 5 — Audiobahn A2002J

Audiobahn A2002J Image 6 — Audiobahn A2002J

Product videos

Product highlights

2-Channel Class AB Intake Series Car Amplifier • 75W x 2 Chan @ 4 Ohm • 100W x 2 Chan @ 2 Ohm • Bass Boost On/Off Switch • High Gloss Chrome-Plated Finish • Cobalt Blue Illumination • Air Intake Fan

Learn more about the a2002j

Product Highlights

Description

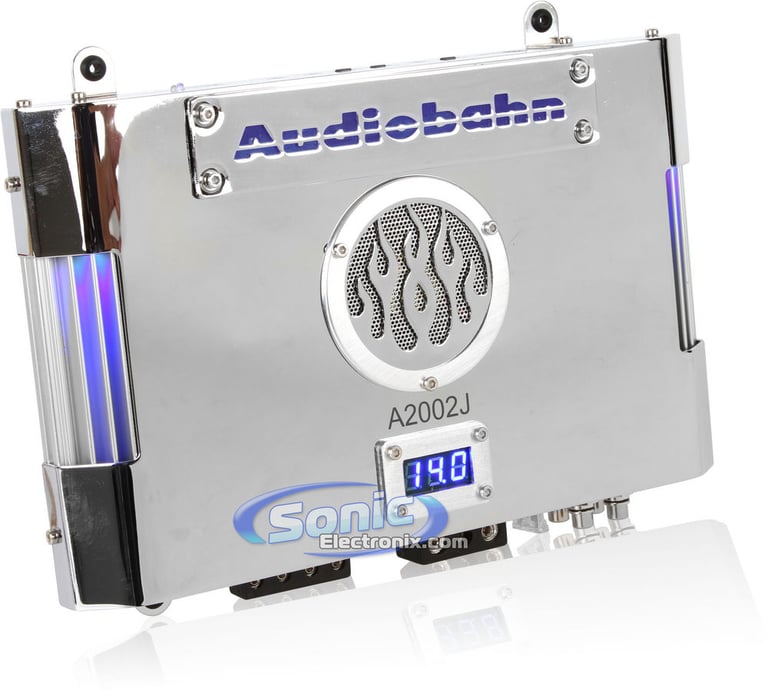

Audiobahn A2002J Intake Series Car Amplifier

Sonic Electronix is now carrying Audiobahn's new 2011 amplifiers. The Intake Series features the same attractive appearance you are used to from Audiobahn with the included flame fan grilles. The intake series also comes equipped with an air-induction groove and a air intake fan that will keep the amps temperature at a safe operating level, a high gloss chrome plated finish to add to the eye catching appearance, and a 3-way protection circuitry which includes thermal, short circuit, and overload protection. Available in mono, 2-channel, 4-channel, and even 5-channel configurations. Combine the stunning looks with the performance and you have yourself a winner.

Digital DC Input Voltage

Audiobahn Intake Amplifiers feature an on-board cobalt blue digital volt meter which allows a quick assessment of your vehicle’s charging voltage to the amplifier. During normal operation, the display should read between 11.5V and 14.4V. A LO or HI readout indicates a problem that requires attention.

Air Intake Fan

Audiobahn’s Intake Series of amplifiers were made to be ultra-durable and allow for installation versatility. Since heat weakens the inner workings of any electrical component, attention was put into the placement of the air-induction groove and air intake fan. These design components help force cooler outside air into the chassis of the amplifier and help to maintain its optimum operating temperature.

Nickel-Plated Block Terminals

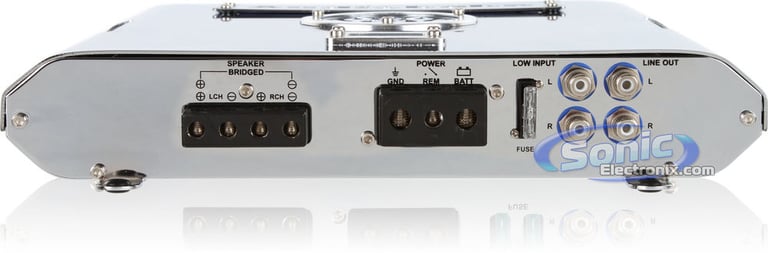

Audiobahn uses nickel-plated block terminals to ensure increased productivity and maintaining proper connection. Because nickel is an ideal electrical conductor, the flow of power is essential in maintaining proper current flow through power connections. The nickel-plated block terminals provide a more efficient power transfer from output terminals to speakers and subwoofers and make a more solid and secure connection for all wires. Each terminal block is also encased in black ABS plastic to prevent short circuits and accidental wire entanglement.

Product Features

2-Channel Class AB Intake Series Car Amplifier
RMS Power Rating:
- 4 ohm: 75 watts x 2 chan.
- 2 ohm: 100 watts x 2 chan.
- Bridged @ 4 Ohm: 300 watts x 1 chan.
PWM MOSFET power supply
Large display volt meter with blue illumination
Bass Boost on/off switch
High gloss chrome-plated finish
2-Channel operation
Throughput RCA connections
Cobalt blue illumination
Double-Sided glass epoxy circuit board
Air-Induction groove and air intake fan help force cooler outside air into the chassis of the amplifier and help to maintain its optimum operating temperature
Chrome flame fan grilles for an enhanced appearance
3-way Protection Circuitry: Thermal, Short Circuit and Overload
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Nickel-Plated RCA level inputs
Nickel-Plated block terminals
Input Sensitivity: 200mV-8V

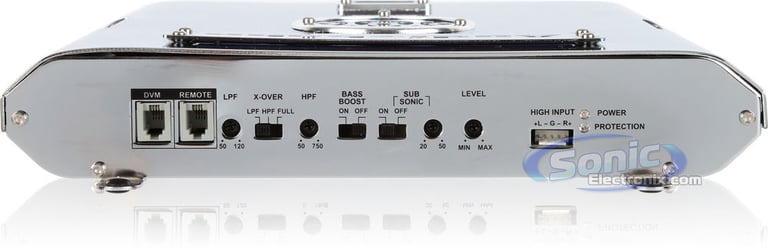

Variable Low-Pass Filter (50-120 Hz, 18 dB/octave)
Variable High-Pass Filter (50-750 Hz, 18 dB/octave)
Subsonic Filter (20-50 Hz)
Frequency Response: 10-40,000 Hz
THD: 0.02%
Signal-To-Noise Ratio: >100 dB
Dimensions: 6-13/16"L x 11-3/16"W x 2-1/8"H
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
1-year Manufacturer's warranty

Product history:

	Audiobahn A2002J (newest, current model)
	Audiobahn A2002V (previous model, replaced by Audiobahn A2002J)
	Audiobahn A2002T (previous model, replaced by Audiobahn A2002V)

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 2 channel

RMS Power @ 2 ohms

100 watts x 2 channel

Bridged RMS Power

300 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total RMS Power Output

300 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.02%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 750 Hz

Low-Pass Crossover Frequency

50 - 120 Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

>100 dB

Bass Boost

On/Off Switch

Remote bass/level controller

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		0%
4 star		100%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4
Value		5
Features		5
Design		5
Usability		5

Customer Reviews

Sort by:

Nice amp.

Bought this amp to power speakers and works great. its nice and small so it fits alot of places. the fan keeps it cooled well.

By Marshall on April 19, 2011
