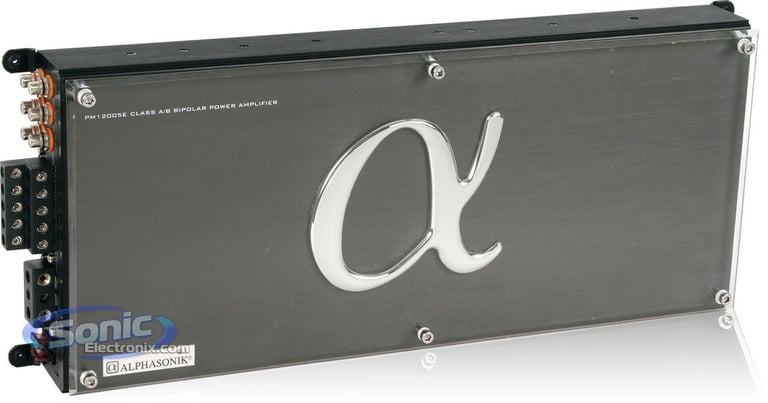

Alphasonik PM12005E

800W, 5-Channel Class A/B PM Series Bi-Polar Amplifier

Alphasonik
Shop all Alphasonik
Product videos
highlight-star-icon

PM Series 5-Channel Class AB Car Amplifier • MOSFET High Speed Switching Power Supply • Soft Start Turn-On • 5/4/3 Channel Operation • Preamp RCA Ouptuts • 4-Way System Protection Circuitry

Learn more about the pm12005e

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Product Highlights


PM Series 5-Channel Class AB Car Amplifier • MOSFET High Speed Switching Power Supply • Soft Start Turn-On • 5/4/3 Channel Operation • Preamp RCA Ouptuts • 4-Way System Protection Circuitry

Description


  • PM Series 5-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan. + 200 watts x 1 chan.
    • 2 ohm: 120 watts x 4 chan. + 320 watts x 1 chan.
    • Bridged, 4 ohm: 185 watts x 2 chan. + 320 watts x 1 chan.
  • MOSFET High Speed switching power supply
  • Remote bass level input (remote level control sold separately)
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 5/4/3 channel operation

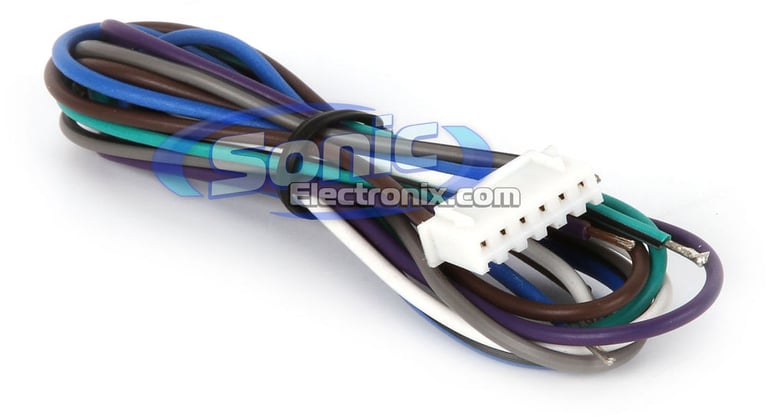

  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, short circuit, overload, and DC offset)
  • Solid brass nickel-plated terminal blocks
  • Milspec double-sided glass epoxy circuit board
  • High-density split-dome convection heat sink for extreme heat dissipation
  • Tiffany-Style RCA level inputs
  • Input sensitivity:
    • Low level: 200V-8V
  • Variable high-pass filter (50-250 Hz, 18 dB/octave)
  • Variable low-pass filter (50-250 Hz, 18 dB/octave)
  • Subsonic filter (20-60 Hz)
  • Phase Shift: 0-180°
  • Damping factor: >175
  • Dimensions: 18-15/16"L x 8-1/4"W x 2-5/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(10)

$259.99

List price $323.99

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

RD800/6 small

JL Audio RD800/6

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 400 watts x 1 channel @ 4 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(1)

$649.99

List price $779.98

X803-5 small

Kenwood eXcelon X803-5

• 50 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 150 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$499.99

List price $600.00

MICRO85U small

Diamond Audio MICRO85U

• + @ 4 ohm
• 85 watts x 1 channel + 375 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 375 watts x 1 channel @ 2 ohm
• Total RMS Power: 1035 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

$659.99

List price $719.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
120 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
185 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
320 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
5-Channel
Total Peak Power Output
Not Specified
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
1 pair
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
20 - 60 Hz
Signal-to-Noise Ratio
95 dB
Channel Separation
60 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
40A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PM12005E

Weight:

13.50lbs

Internal SKU:

pm12005e

Internal Product ID:

34645
