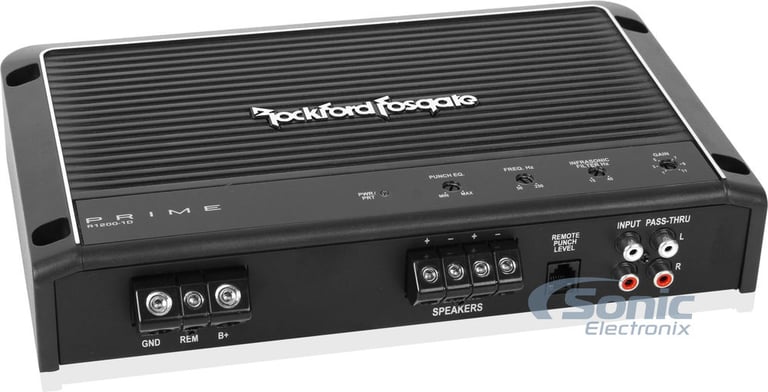

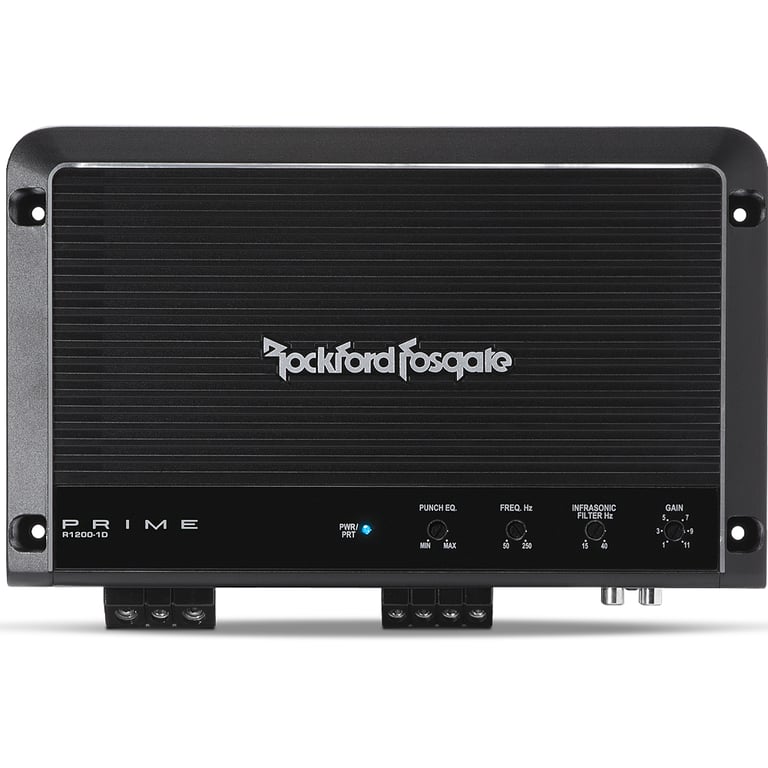

Rockford Fosgate Prime R1200-1D

1200W RMS Prime Series Class-D Monoblock Amplifier

Product videos
highlight-star-icon

• 400 watts x 1 channel @ 4 ohms
• 800 watts x 1 channel @ 2 ohms
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohms Stable Monoblock Amplifier

Learn more about the r12001d

We apologize

This item has been discontinued

Product Highlights


• 400 watts x 1 channel @ 4 ohms
• 800 watts x 1 channel @ 2 ohms
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohms Stable Monoblock Amplifier

Description


Rockford Fosgate brand icon

Authorized dealer



Product Details:

  • Prime Series Class D 1 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 400 watts x 1 channel
    • 2 ohms: 800 watts x 1 channel
    • 1 ohm: 1200 watts x 1 channel
  • Total RMS power output: 1200 watts
  • LED Power/Protect Light
  • Wired bass level remote control included

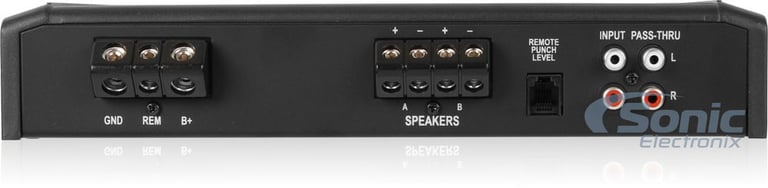

  • 1 pair of pre-amp outputs
  • CEA-2006 compliant
  • MOSFET power and output stages
  • Input sensitivity: .15 - 4 volts
  • Frequency Response: 20 - 250 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: 75 dB

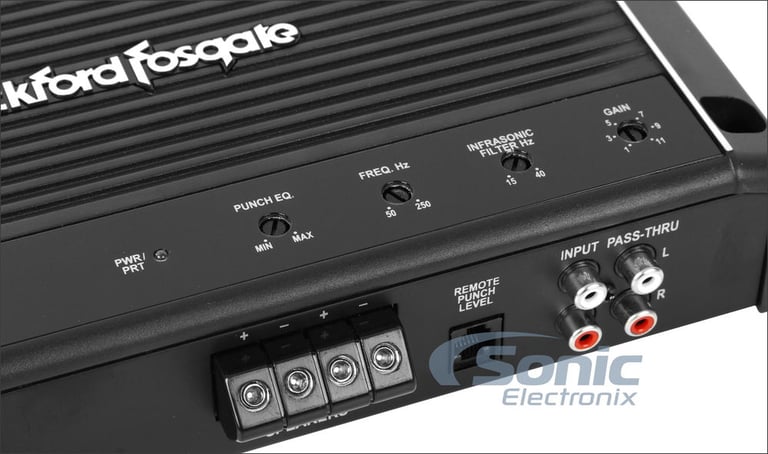

  • Variable low-pass filter: 50 - 250 Hz
  • Subsonic filter: 15 - 40 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 100A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 11-1/8" L x 7-3/8" W x 2" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: R1200-1D
Check out the Rockford Fosgate Prime R1200-1D Owner's Manual

Product history:

Rockford Fosgate R1200-1D thumbnail
(newest, current model)
Rockford Fosgate R1000-1D thumbnail
(previous model, replaced by Rockford Fosgate Prime R1200-1D)

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
800 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Series
Prime Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
20 - 250 Hz
THD at Rated RMS Power
<1%
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
75 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
100A x 1
Total Fuse Rating
100
Sonic Certified Amplifier
Not Tested
Low-Level Input Sensitivity
.15 - 4 volts
High-Level Input Sensitivity
.15 - 4 volts
What is in the box?
Paperwork

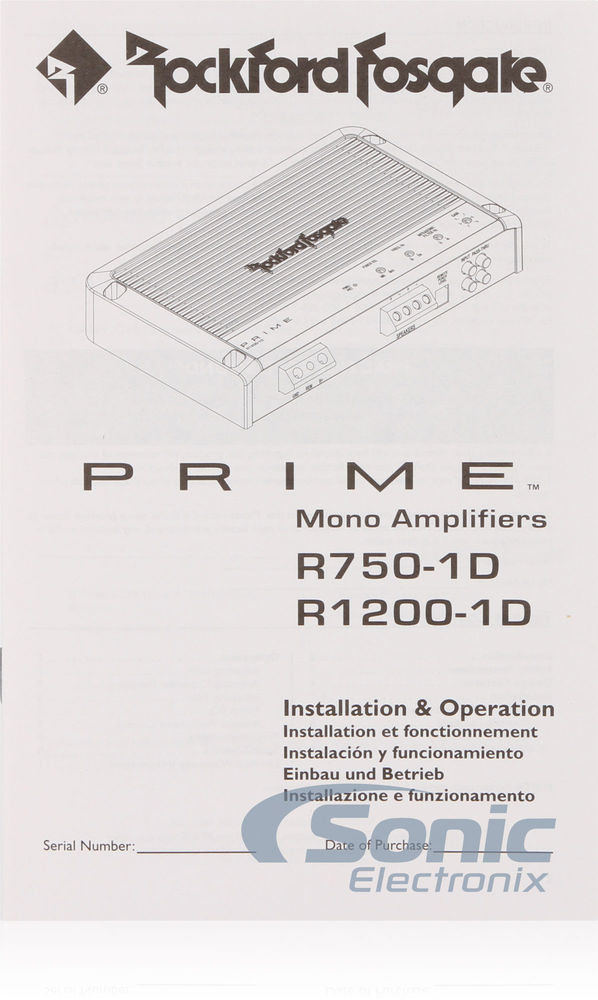

User manual
Power certification
WITB: Amplifiers
Amplifier

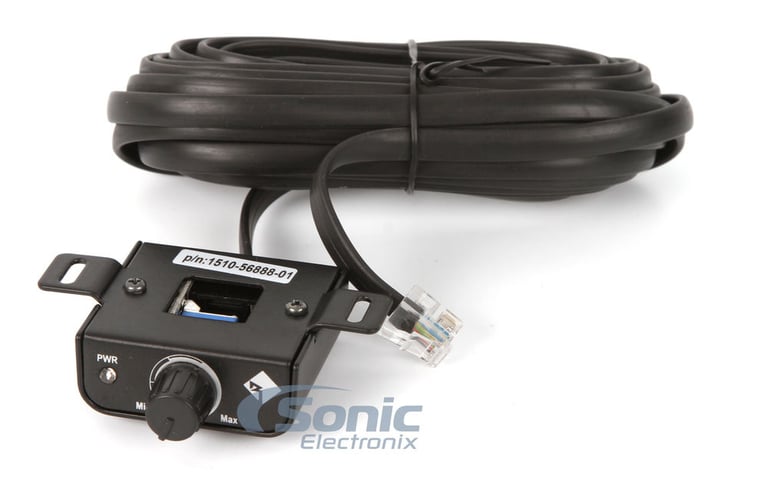

Wired gain knob (wire attached)

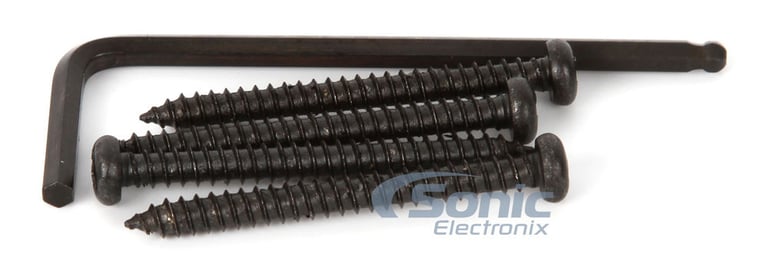

Mounting screws (6)
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R1200-1D

Weight:

5.90lbs

Internal SKU:

r12001d

Internal Product ID:

34764

Product and How-to Videos


  • 3Sixty3 Aftermarket Setup Wizard Tutorial
  • Rockford Fosgate Prime Series Amplifiers
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews



5 star
88%
4 star
10%
3 star
2%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Amazing Amp

This amp is an absolute monster at putting out wattage! I was surprised with how small this thing is too especially since it puts out so much! The only problem I had with this amp was that the description says it fits 0 gauge although there is no way that it fits 0 gauge, I had to buy special adapters to compensate for this although not a big deal in the long run!

By Kevin on November 14, 2014

75

found this helpful.

Rockford prime 1500

Installed this amp to run two 10" Rockford Fosgate P3 shallows and it hits.very pleased with price,shipping and quick service.

By Me on March 17, 2014

73

found this helpful.

Great Amp

This amp puts out more than it is rated, the birth sheet on my amp said 1300 watts rms. Overall it's a great amp for the money.

By Cole on September 24, 2014

72

found this helpful.

Excellent amp for the price

I have this amp pushing 2 Kenwood shallow mount 12-inch subs in my truck. The birth sheet on mine said 1300 watts even, and I have no doubt it puts out that much power. I also have a Prime 400-4D running my Kenwood components in the doors. Maybe they don't have some of the ultra-cool, competition-level amp features found on more expensive amps, but that's not what I bought them for. I like how this amp sounds, and I don't intend to enter any sound competitions anyway. I can't even turn the system all the way up and stay in the truck; that's how loud it is. And even in 95-degree Florida Panhandle weather, neither of my Prime amps get very warm. I would definitely recommend this unit for anyone wanting to add some serious power to their system without having to spend large sums of cash.

By Stephen on September 15, 2014

70

found this helpful.

Works Amazingly

This amp blew me away. I replaced my POS kenwood kac-9105d amp with this and the difference was night and day. I've owned the amp for 6 months had have had no problems with it. It never overheats, even in the 90+ degree heat. My only complaint is hooking up the power and ground cables. 1. The power is on the right when it is traditionally on the left. I almost blew the fuses the first time I hooked it up and since the fuses are internal, I would've had a completely dead amp. My friend did this with his amp and he had to buy a whole new amp. And 2. Fosgate recommends 2-gauge power and ground cable for this amp but I can just BARELY fit my 4-gauge wire into it. It takes me forever to get the power cable in correctly. Not to mention i have the amp mounted on the back of my sub box out of sight, and the terminals are faced inward towards the box! How stupid is that? So not only is it nearly impossible to fit 4-guage wire into it, but you can't see what the hell you're doing either. And they made all their amps like this! Honestly, they could have done things better and made things a lot simpler.

By John on May 26, 2014

71

found this helpful.

lots of power for the price

My birth sheet said 1,313 watts at 1 ohm. Can't really beat that for the price. Small amp with a lot of power. I recommend upgrading your battery though. My lights dim a lot on my stock battery. It accepts 4 gauge wire but I would recommend running 1 gauge wire to the trunk then use a 1 gauge to 4 gauge distribution block so you will only have about 1 or 2 feet of 4 gauge for more juice to the amp. It does not have a built-in fuse so you need to buy a fuse holder.

By shaun on February 2, 2014

71

found this helpful.

Awesome Value

I purchased this for a quick replacement for a 5 year old MTX amp that went out; I was very surprised how great this amp sounds with my 2 Rockford Fosgate P3SD412 subs considering how inexpensive and small it is!!!

By Joby on December 27, 2011

70

found this helpful.

Great amp!

Great amp, compact aids in install and price is fair.

By Jr. on January 30, 2014

66

found this helpful.

Second To None!

This is a very powerful amp in a very small package. I paired it with two Rockford Fosgate P3's in a bandpass box. I would definitely recommend it for those wanting the most for their money.

I only have one complaint...the website states that this amp accepts a 0/1 gauge wire for power, but it doesn't. 4 AWG is the largest size that will fit.

Overall it is an excellent product at a very low price.

By Medic Mike on September 20, 2013

61

found this helpful.

amazing buy

Bought this amp to push 1 kicker 12" l7 @ 2 ohms but then I got rid of that sub and got my hands on 2 kicker l5 15's running @1ohm. This amp does a lot more power than it says it can.. By far the best purchase I've ever made. Rememeber people, YOU GET WHAT YOU PAY FOR! If you buy this amp, you will NOT be disappointed!!

By will on August 7, 2013

58

found this helpful.
