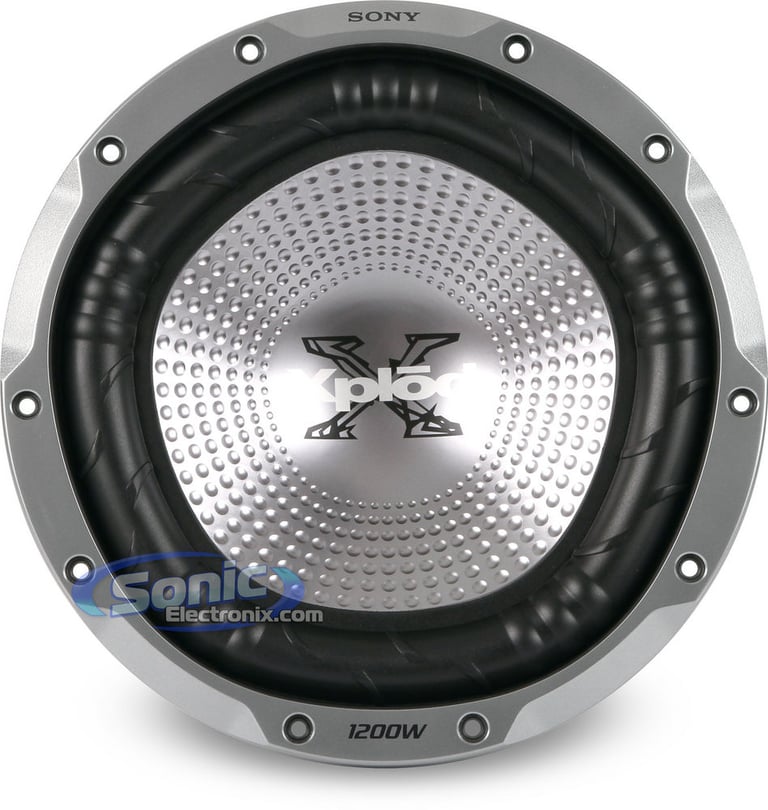

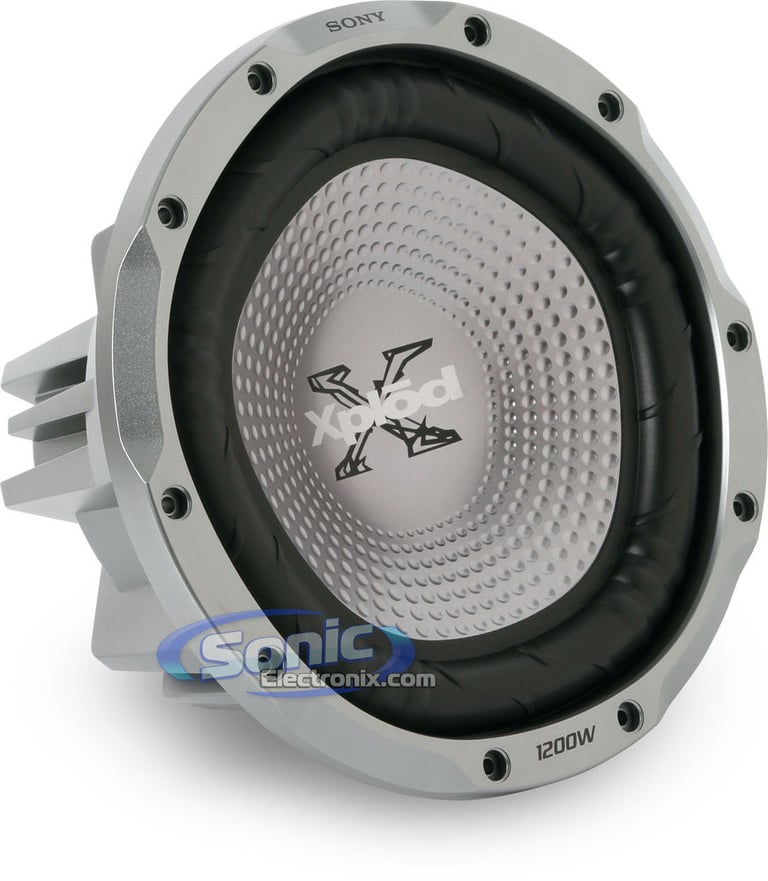

Sony XS-GTR100L

10" Single 4 ohm GTR Series Car Subwoofer

Sony
Shop all Sony
Product videos
highlight-star-icon

• Peak Power: 1200W
• RMS Power: 330W
• Impedance: 4 Ohm
• Polymer Cone
• Stroke Stabilizer Rubber Surround
• High Energy Ferrite Magnet

Learn more about the xsgtr100l

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Product Highlights


• Peak Power: 1200W
• RMS Power: 330W
• Impedance: 4 Ohm
• Polymer Cone
• Stroke Stabilizer Rubber Surround
• High Energy Ferrite Magnet

Description


Sony brand icon

Authorized dealer

Product Features:

  • 10" Single 4 Ohm Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 330 watts
  • Impedance: 4 ohm

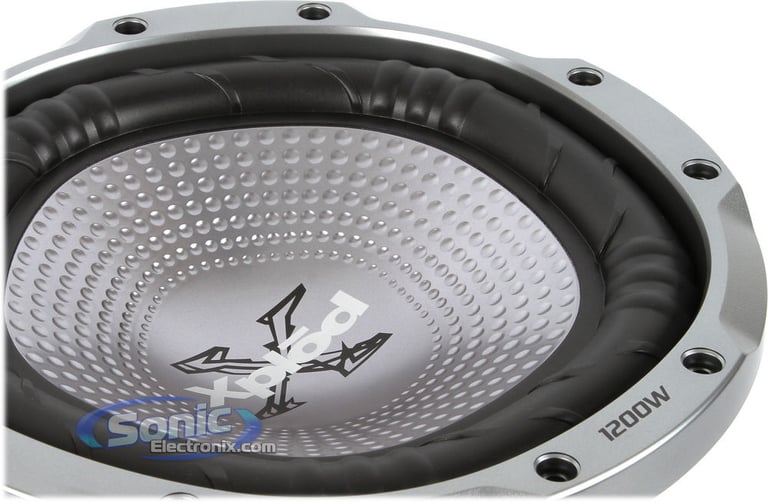

  • Polymer cone features dimpled, five-sided design
  • Stroke stabilizer rubber surround

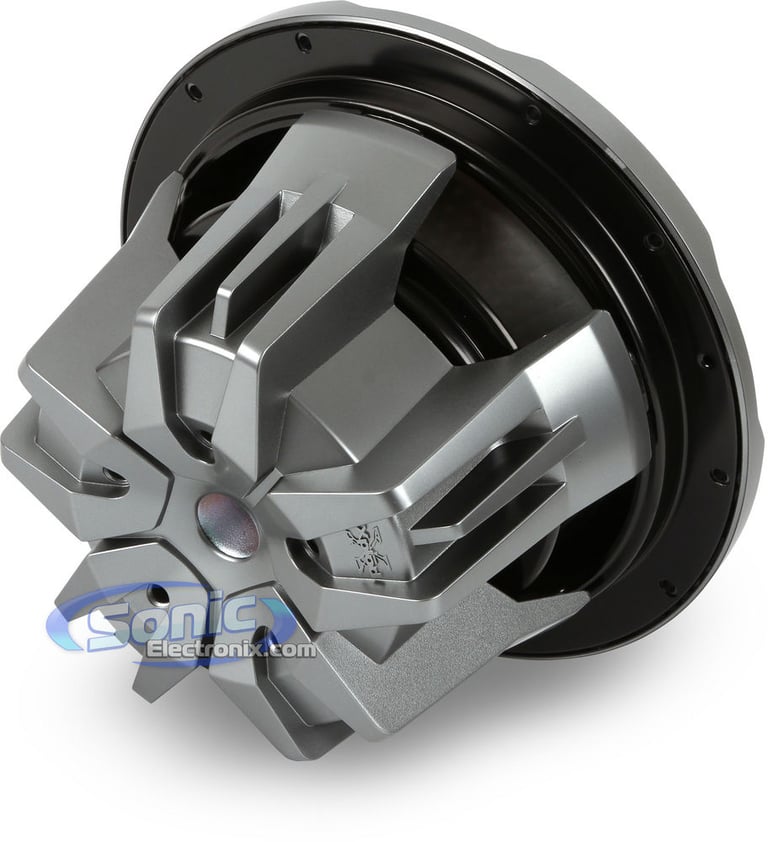

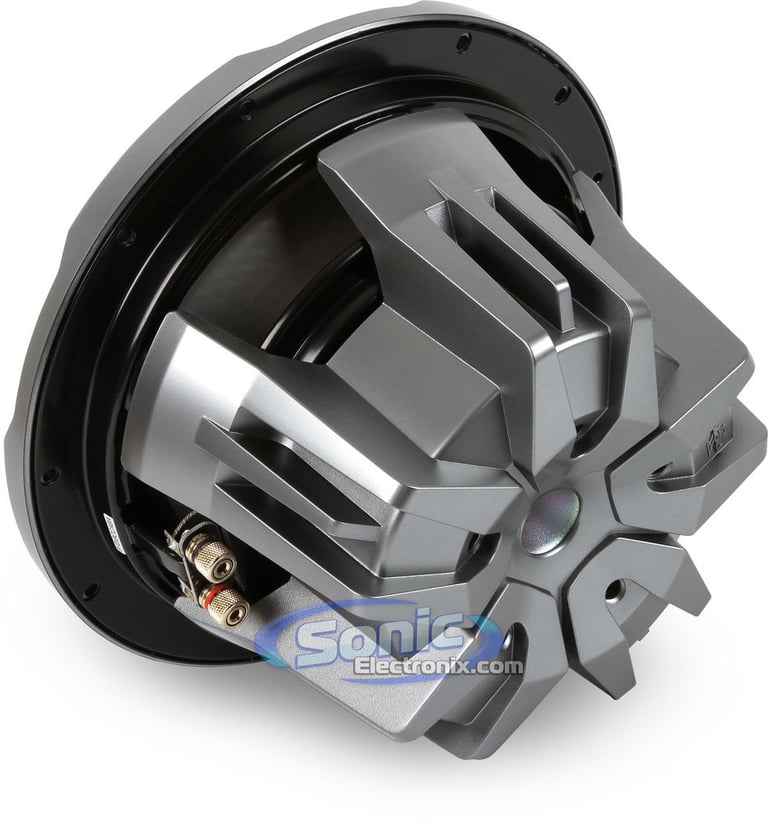

  • Large ferrite magnet
  • Frequency response: 30-1,000 Hz
  • Sensitivity: 92 dB
  • Top Mount Depth: 5-7/8"
  • Bottom Mount: 6-5/8"
  • Cutout Dimensions: 9-1/8"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

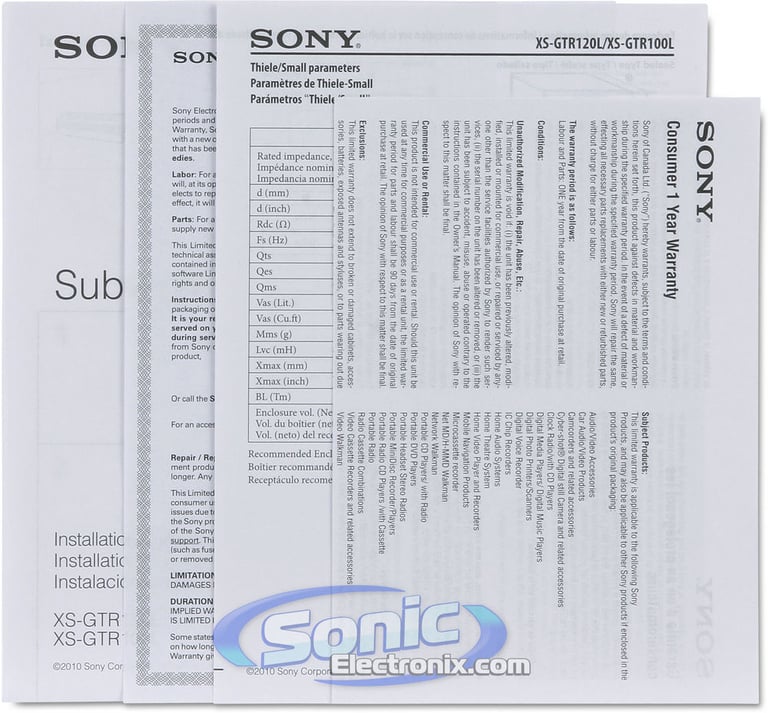

Note: Due to a Sony misprint, the rated RMS will differ from what is being represented on the manufacturer's box. The actual RMS was taken from the owner's manual.

Product history:

Sony XS-GTR100L thumbnail
(newest, current model)
Sony XS-L106P5 thumbnail
(previous model, replaced by Sony XS-GTR100L)
Sony XS-L104P5B thumbnail
(previous model, replaced by Sony XS-L106P5)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Sony XS-GTR100L Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Sony XS-GTR100L Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Sony XS-GTR100L Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Sony XS-GTR100L Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
Xplod GTR Series
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
330 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
35 - 1,000 Hz
Sensitivity
92 dB
Xmax (millimeters)
7.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Polymer
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.62 cubic feet
Maximum Sealed Box Volume
0.62 cubic feet
Minimum Ported Box Volume
0.84 cubic feet
Maximum Ported Box Volume
0.84 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XS-GTR100L

Weight:

11.00lbs

Internal SKU:

xsgtr100l

Internal Product ID:

35675

Product and How-to Videos


Customer Ratings & Reviews


Sony XS-GTR100L thumbnail image

5 star
67%
4 star
17%
3 star
17%
2 star
0%
1 star
0%



Durability
4.4
Value
4.7
Features
3.9
Design
4.2
Usability
4.9

Customer Reviews

Sort by:

Loading...

Rob / Canada story bout these..

First subs I purchased were these. 2 of them... made a box for them tuned at 25hz it was 2.61 ft3 & 16" of port. They performed well with the high notes, n hit the lower notes a bit sloppier. Its obviously because of the lack of the dual voice coils. This sub is more for rock music i believe also i would place it inside a ported box you've built yourself. I still own them after beating on them for about 6-1/2 months i upgraded to COMP VRs. I am thinking about buying another two of these and walling off my trunk. The subs did okay overall and i would recommend them.

By Rob on March 6, 2013

8 found this helpful


swell

if your looking to add a little bass these are great. your not going to turn heads by any means but if u hook em up right they will bang in a little car. i bought 2, put em in a sealed box and its enough to jam out to but it wont tickle your ears or vibrate your car apart. have em in a chrysler seabring and they sound great. simple to hook up and install as well. way better then the "sound storm" garbage i bought.

By Anthony on February 28, 2013

8 found this helpful


red

I buy this product and i love it any one will like it.

By red on October 12, 2012

6 found this helpful


Very capable subwoofer

Installed in a 2006 s10 blazer in a .6 cft box run off RE DTS1000.1 @ 4ohm (amp also bought here).

Decent loudness, forcefulness of bass note changes were really impressive. Not the cleanest sounding sub, some notes muddle just a little the lower the bass gets. Overall pleased.

Highly Recommend for anyone wanting a starter-ish subwoofer.

By George on September 25, 2012

7 found this helpful


WOW!

This is the little sub that can. Puts out way more than I ever imagined. I have two of these in my Wrangler, and the amount of bass is unbelievable!

By Robert on August 29, 2012

7 found this helpful


Hits harder than I expected

This is a decent subwoofer. I paired it with a Sony amp that puts out 340 watts RMS, so it is almost a perfect match.

By WakkoWarner on February 28, 2013

5 found this helpful
