Hifonics BX500D Brutus Class-D Series

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

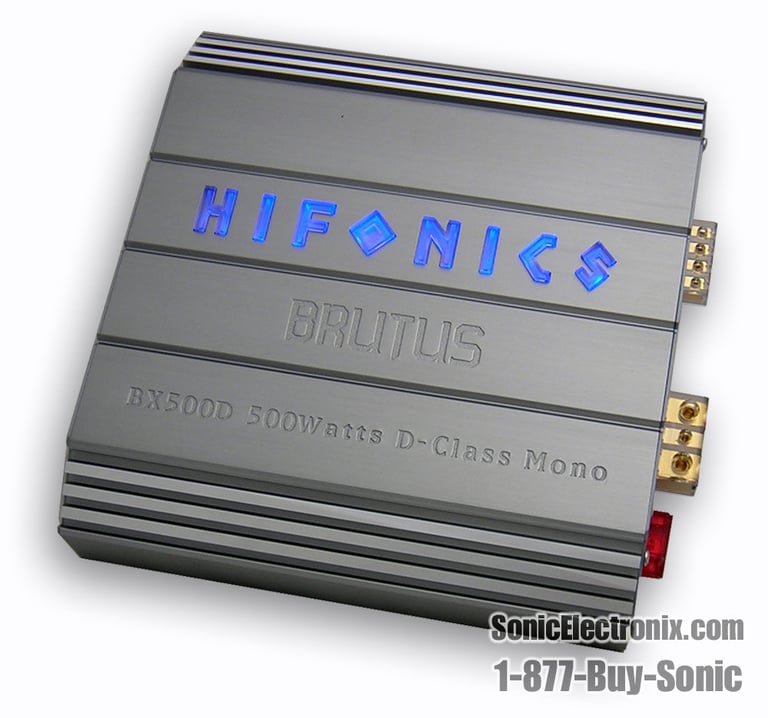

BX500D Brutus Series Monoblock Car Amplifier • 200 watts x 1 chan @ 4 ohm • 350 watts x 1 chan @ 2 ohm • Bass Remote Included • Illuminated Hifonics Badge • Ultra-Fi MOSFET Board • Fully Adjustable Accu-Cross Crossovers

Learn more about the bx500d

We apologize

This item has been discontinued


Loading...
Limited time!
TS-G1620F main

Pioneer TS-G1620F

600W Peak (80W RMS) 6.5" G-Series 2-Way Coaxial 4-ohm Car Speakers

13
-26.15%

$48.00

List price $65.00

Limited time!
TS-G6820S main

Pioneer TS-G6820S

500W Peak (80W RMS) 6x8" G-Series 2-way 4-ohm Coaxial Car Speakers

4
-23.09%

$49.99

List price $65.00

Product Highlights


BX500D Brutus Series Monoblock Car Amplifier • 200 watts x 1 chan @ 4 ohm • 350 watts x 1 chan @ 2 ohm • Bass Remote Included • Illuminated Hifonics Badge • Ultra-Fi MOSFET Board • Fully Adjustable Accu-Cross Crossovers

Description


Hifonics brand icon

Authorized dealer

The new Hifonics Brutus amplifiers provide brute power and pack a powerful punch when it comes to driving your subwoofers. The Brutus Class D amps are stable at 1 ohm which means you can easily power a pair of dual 4 ohm subwoofers that handle 300W RMS each.

Designed in the same heat sink as the Zeus series, the Brutus amplifiers compliment Hifonics full-range amps. Try the Zeus and Brutus amps today if you want an awesome illuminated look to your trunk with superb, ultra-Fi MOSFET power!

Key Features:

  • Hifonics BX500D Brutus Series Monoblock Class-D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 350 watts x 1 chan.
    • 1 ohm: 500 watts x 1 chan.
  • New 1 ohm stable design for improved efficiency at lower impedances
  • Hifonics Twentieth Anniversary Heat Sink Design
  • Illuminated Hifonics Badge

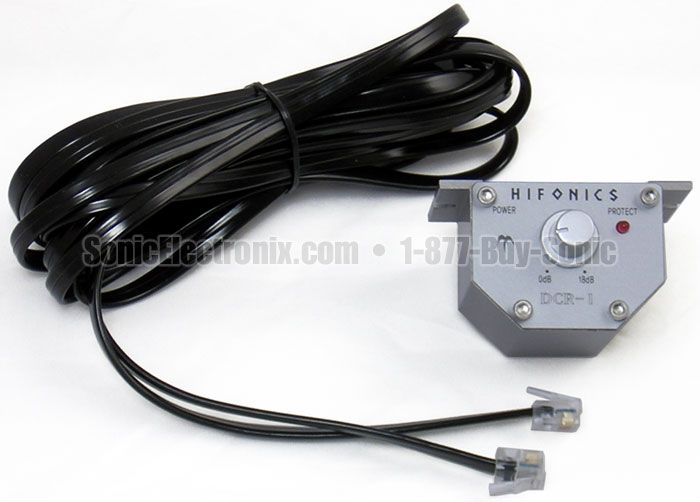

  • Bass Remote with blue LED Power On & Diagnostic Indicator Included
  • D-Class Design
  • Ultra-Fi MOSFET board
  • Zeus EVXP (Exponential Vari-Power Supply)
  • SPC - Simpatico Coil Design
  • HSMD - Hifonics Surface Mount Design
  • Fully Adjustable Accu-Cross Crossovers
  • PWM Mosfet Power Supply
  • Line Output for Amplifier Daisy Chaining
  • Variable Bass Equalization (0-18 dB)
  • Low Pass Filter (35-250 Hz @ 24 dB)
  • Sub-Sonic Filter (15-35 Hz @ 24 dB)
  • Additional High Speed MOSFET Output Devices
  • 4 Gauge Power Connectors
  • 50A Maxi-Fuse
  • Dimensions: 13"L x 10-7/16"W x 2-7/16"H
  • Item Condition: Factory Refurbished
  • 90-Day SonicElectronix.com warranty
