Name: Pioneer GM-5500T Open Box
Brand: Pioneer
SKU: LS-gm5500t-OB
Price: 89.99 USD
Availability: Discontinued

by Pioneer

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

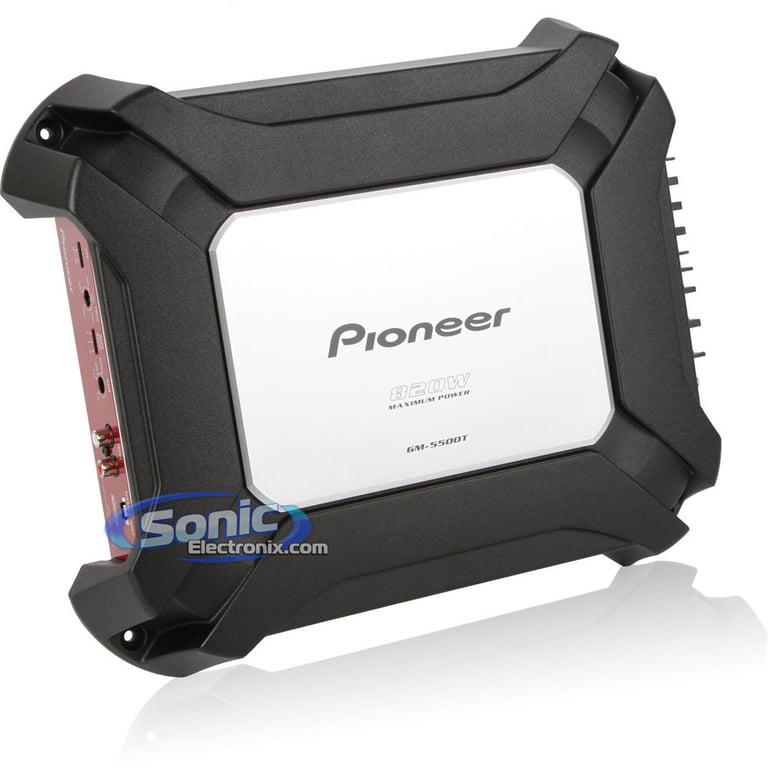

Pioneer GM-5500T Open Box Image 1 — Pioneer GM-5500T Open Box

Pioneer GM-5500T Open Box Image 2 — Pioneer GM-5500T Open Box

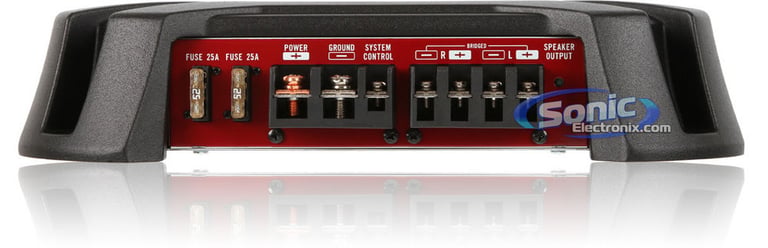

Pioneer GM-5500T Open Box Image 3 — Pioneer GM-5500T Open Box

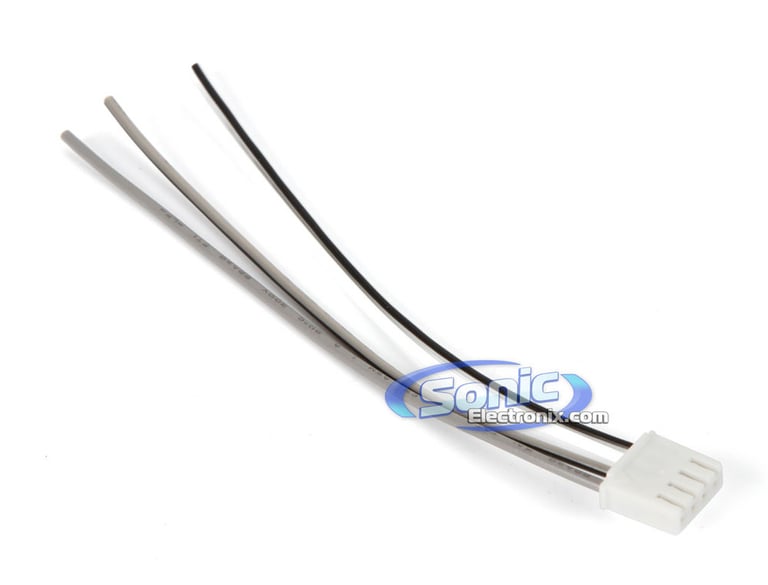

Pioneer GM-5500T Open Box Image 4 — Pioneer GM-5500T Open Box

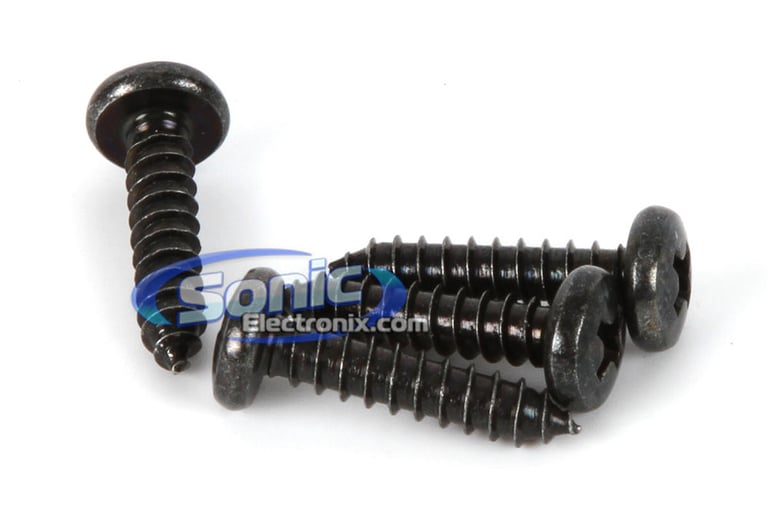

Pioneer GM-5500T Open Box Image 5 — Pioneer GM-5500T Open Box

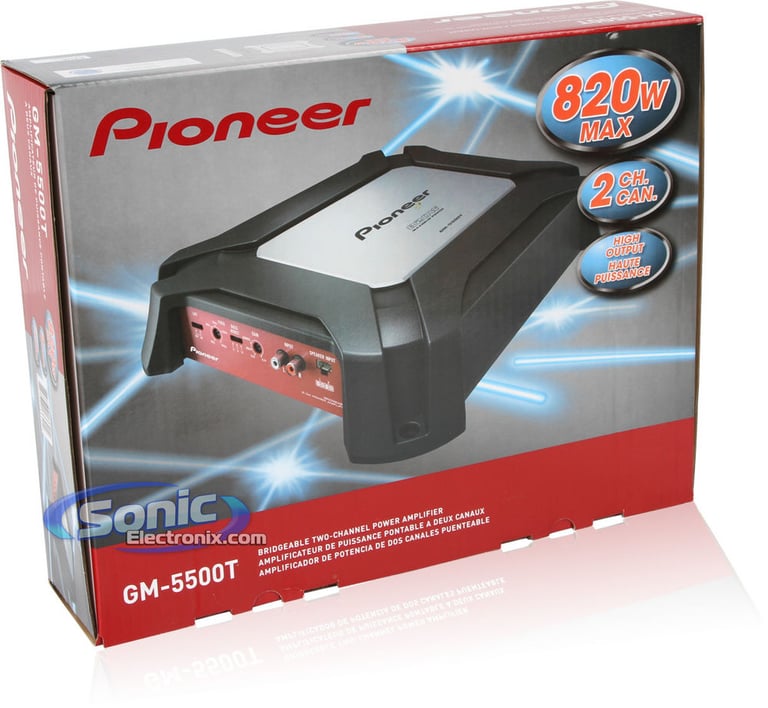

Pioneer GM-5500T Open Box Image 6 — Pioneer GM-5500T Open Box

Pioneer GM-5500T Open Box Image 7 — Pioneer GM-5500T Open Box

Pioneer GM-5500T Open Box Image 8 — Pioneer GM-5500T Open Box

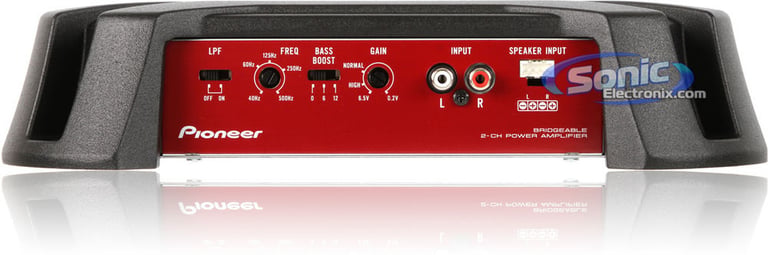

Pioneer GM-5500T Open Box Image 9 — Pioneer GM-5500T Open Box

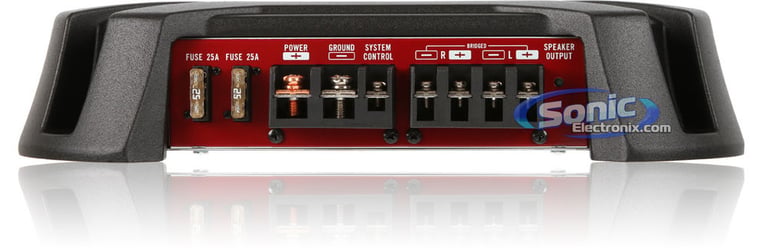

Pioneer GM-5500T Open Box Image 10 — Pioneer GM-5500T Open Box

Product videos

Product highlights

GM Series 2-Channel Class A/B Car Amplifier • 125W x 2 Chan. @ 4 Ohm • 190W x 2 Chan. @ 2 Ohm • 400W x 1 Chan. Bridged • 820 Watts Max • Selectable Bass Boost • Speaker-Level Inputs • Variable Low-Pass Filter • CEA-2006 Compliant Amplifier

Learn more about the LS-gm5500t-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Product Features:

GM Series 2-Channel Class A/B Car Amplifier
RMS Power Rating: (14.4V)
- 4 ohm: 125 watts x 2 chan.
- 2 ohm: 190 watts x 2 chan.
- Bridged, 4 ohm: 400 watts x 1 chan.
Max power output: 820 watts x 1 chan.
MOSFET power supply
LED power indicator
Selectable bass boost (0, 6, 12 dB at 50 Hz)
2/1 Channel operation
2-Channel speaker-level inputs
Heavy duty heatsink and a sub-heatsink for maximum heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Variable low-pass filter (40-500 Hz, 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 10-70,000 Hz
Dimensions: 13-3/4"L x 11-3/8"W x 2-1/2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90-Day SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

125 watts x 2 channel

RMS Power @ 2 ohms

190 watts x 2 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

400 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

820 watts

Total RMS Power Output

400 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 500 Hz

Signal-to-Noise Ratio

98 dB

Bass Boost

Selectable (0, 6, 12dB)

Remote bass/level controller

Fuse Rating

25A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
