Cadence Chicago

560W RMS, United Series Class A/B 4-Channel Car Amplifier

Cadence
Shop all Cadence
Product videos
highlight-star-icon

United Series 4-Channel Class A/B Car Amplifier • 90W RMS x 4 Chan. @ 4 ohm • 140W RMS x 4 Chan. @ 2 ohm • 280W RMS x 2 Chan. @ 4 ohm Bridged • Wired Bass Remote Included • Preamp RCA Output • Variable High/Low Crossovers • Variable Bass Boost

Learn more about the chicago

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49

Product Highlights


United Series 4-Channel Class A/B Car Amplifier • 90W RMS x 4 Chan. @ 4 ohm • 140W RMS x 4 Chan. @ 2 ohm • 280W RMS x 2 Chan. @ 4 ohm Bridged • Wired Bass Remote Included • Preamp RCA Output • Variable High/Low Crossovers • Variable Bass Boost

Description


Cadence brand icon

Authorized dealer

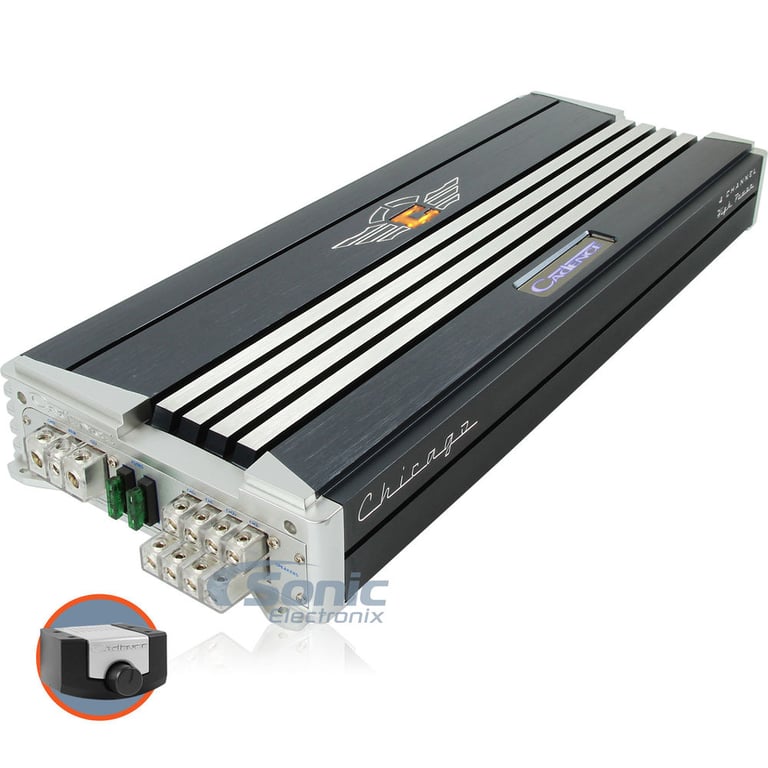

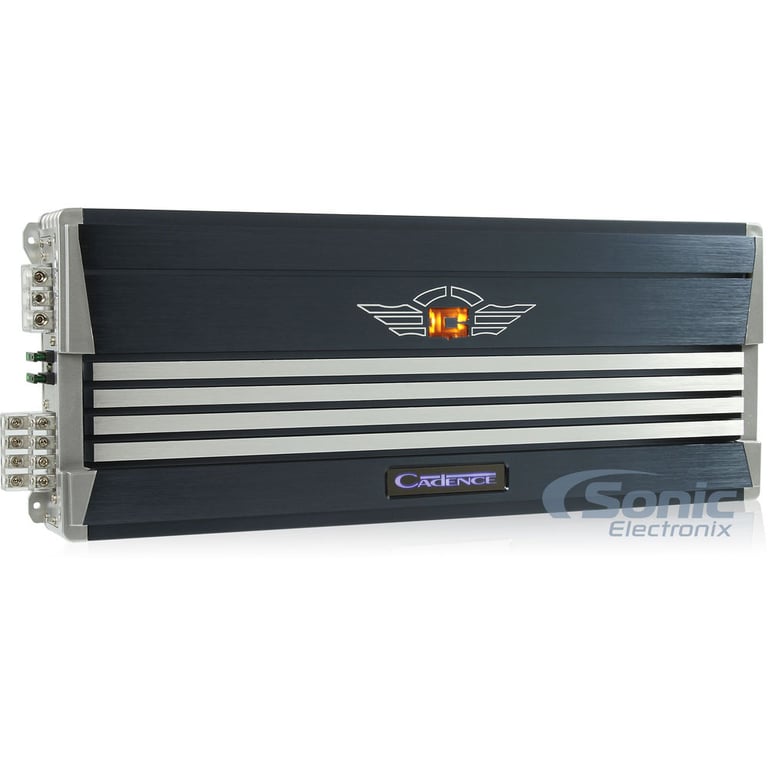

  • United Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 90 watts x 4 chan.
    • 2 ohm: 140 watts x 4 chan.
    • Bridged, 4 ohm: 280 watts x 2 chan.
  • MOSFET high speed power supply

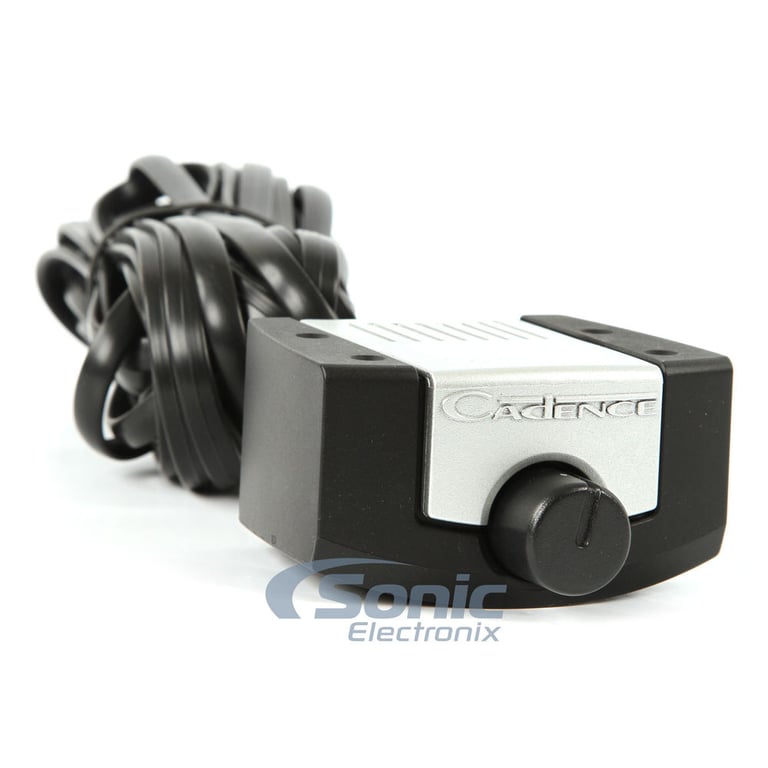

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB)
  • Soft start system with mute and delay features
  • 4/3/2 Channel operation
  • 2 channel / 4 channel input mode switch
  • 2 Ohm stable stereo
  • 4 ohm mono bridgeable
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry
  • 3-Channel mixed mono capable
  • 8 Volt preamp circuitry
  • Bipolar studio-grade output stage transistors
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals

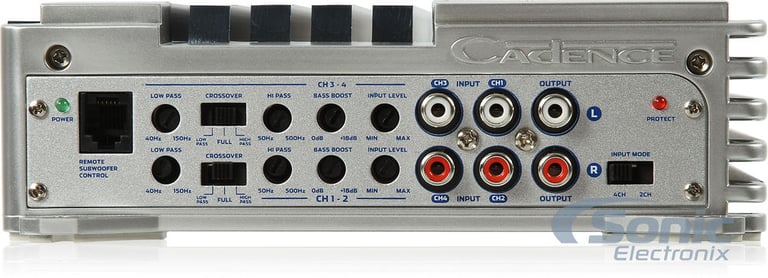

  • Variable high-pass filter (50-500 Hz, 12 dB/octave)
  • Variable low-pass filter (40-150 Hz, 12 dB/octave)
  • Damping factor: >200 @ 100 Hz
  • Frequency response: 10-40,000 Hz
  • Dimensions: 22"L x 7-1/4"W x 2-1/4"H

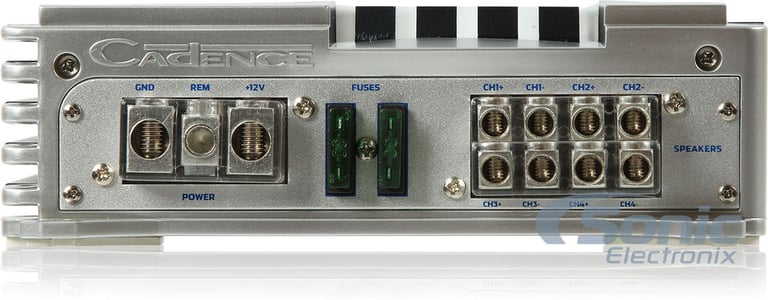

  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
90 watts x 4 channel
RMS Power @ 2 ohms
140 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
280 watts x 2 channel
Amplifier Specifications
Series
United Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
560 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Chicago

Weight:

13.01lbs

Internal SKU:

chicago

Internal Product ID:

38269
