Realm A600.4

600W 4-Channel Class A/B Car Amplifier

600W 4-Channel Class A/B Car Amplifier

• Multi-Color LED Protection
• High-Level Speaker Inputs
• Preamp RCA Outputs
• Variable Low/High-Pass Crossovers
• Discrete Plug Style Terminals
• CEA-2006 Compliant

List price $509.00
Save: $189.01

$319.99

In Stock. Only 1 Left! with warranty
Thanks , You Pay:
Order within 16 hrs 42 mins to ship 6/16

FREE delivery: Fri, June 18 to VA.

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

BUNDLE AND SAVE (1 offer)

This offer cannot be combined with any other coupons or offers.

Realm A600.4

50% off


Priced separately $359 98

Bundle Savings of $20 00

Total bundle price:

$339 98

DESCRIPTION
Realm

Authorized dealer

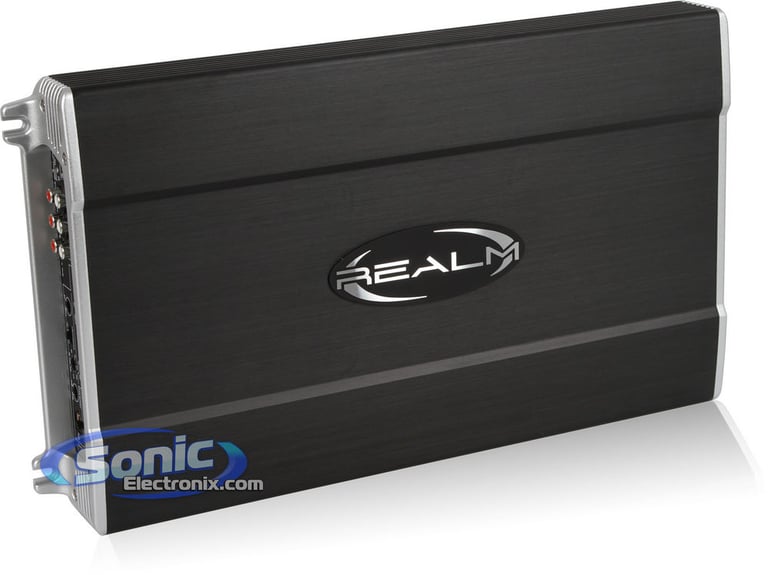

  • Realm by Scosche 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 90 watts x 4 chan.
    • 2 ohms: 150 watts x 4 chan.
    • Bridged, 4 ohms: 300 watts x 2 chan.
  • MOSFET power supply
  • Remote bass level input (remote level control sold separately, rear channels only
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Power LED (blue) indicator
  • Multi-Color LED Protection:
    • Red: overload or circuit problem
    • Yellow: thermal problem
    • Green: low voltage problem
  • Soft Start Turn-on
  • 4/3/2 channel operation
  • 2-Ch/3-Ch/4-Ch input selector
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry

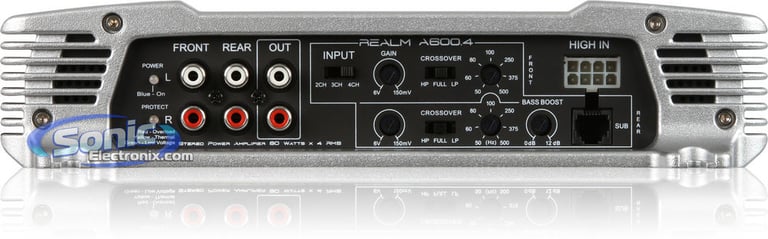

  • Illuminated dial controls

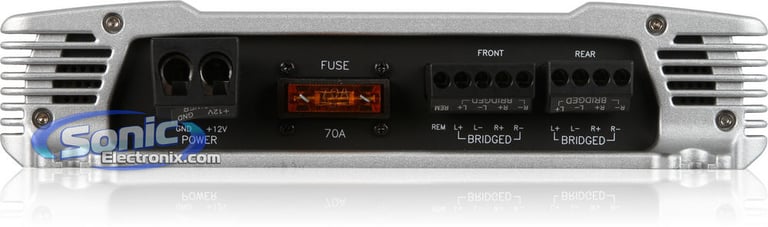

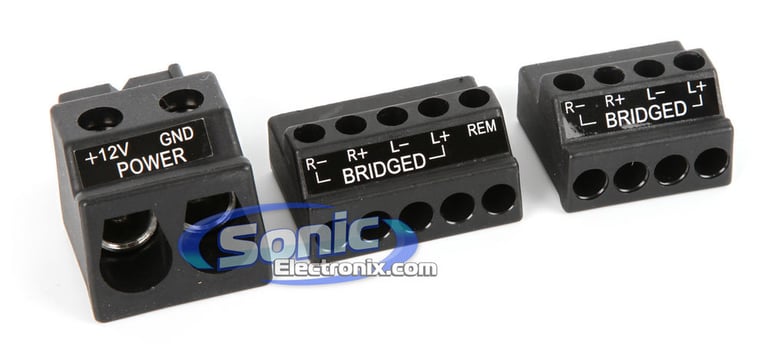

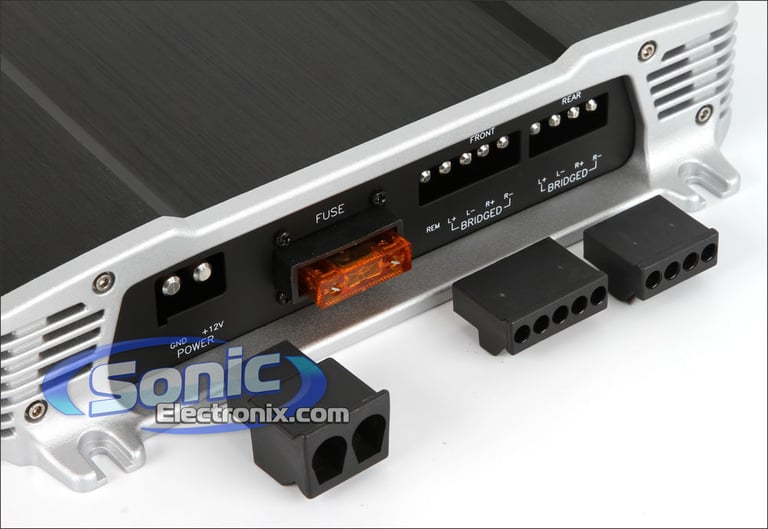

  • Discrete plug style terminals
  • Double sided glass-epoxy circuit boards
  • Internal transistor heat sinks for maximum heat dissipation
  • Input sensitivity:
    • Low level: 150mV-6V
    • High level: 325mV-10V
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable high-pass filter (50-500 Hz, 12 dB/octave)
  • Variable low-pass filter (50-500 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz
  • Dimensions: 17-13/16"L x 9-13/16"W x 2-1/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
90 watts x 4 channels
RMS Power @ 2 ohms
150 watts x 4 channels
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
300 watts x 2 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
180 watts x 4 channels
Peak Power @ 2 ohms
300 watts x 4 channels
Bridged Peak/Max Power
600 watts x 2 channels
Amplifier Specifications
Amplifier Series
Marine Certified
No
Amplifier Class
AB
Number of Channels
4
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
70A x 1
Total Fuse Rating
70
Strappable
No
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer

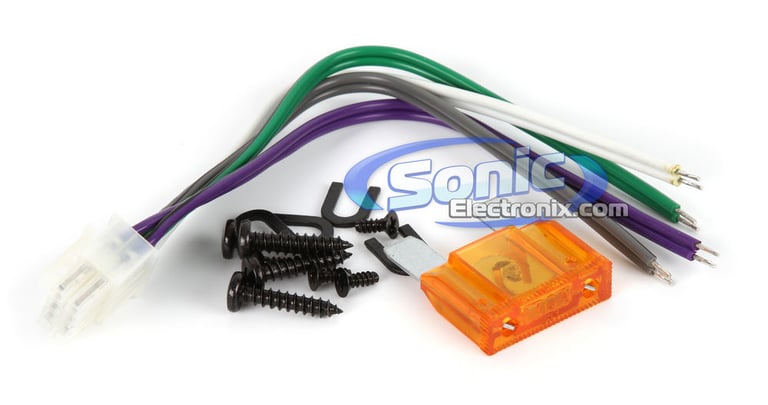

What is in the box?
WITB: Amplifiers

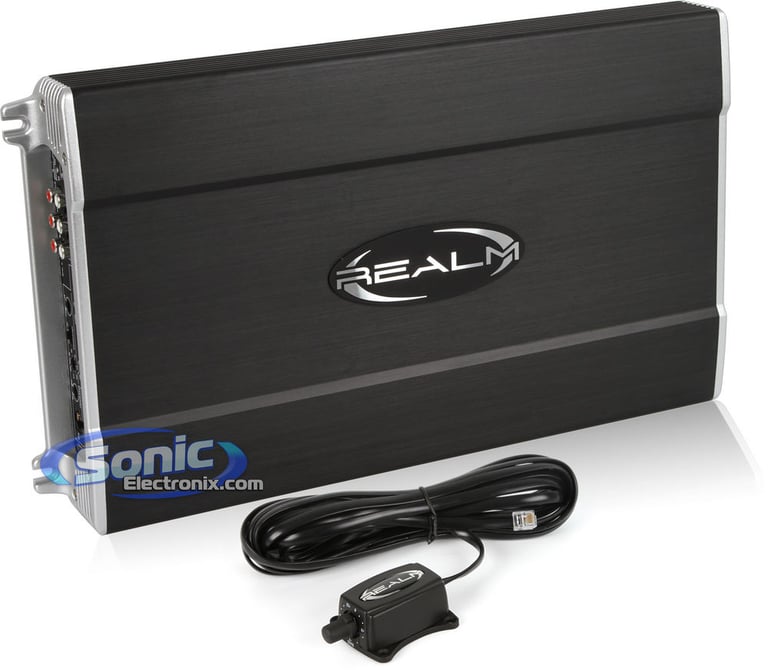

Amplifier

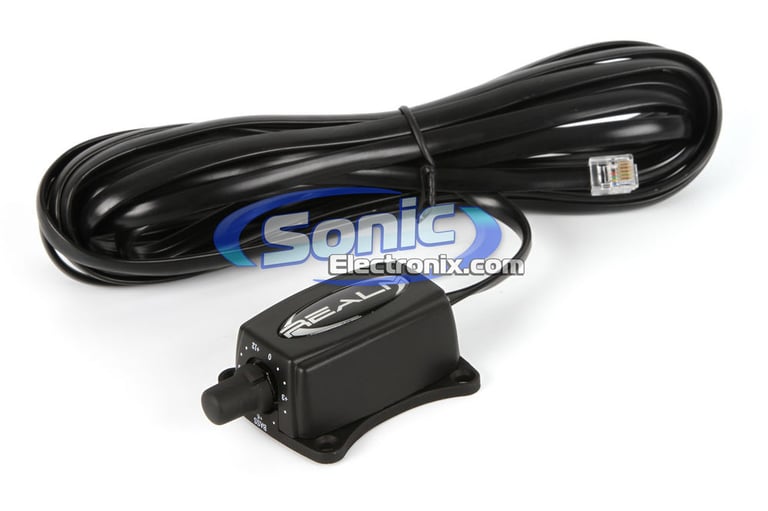

Wired gain knob (wire attached)
Mounting screws (4)
High-level input wiring harness w/ molex connector
Paperwork

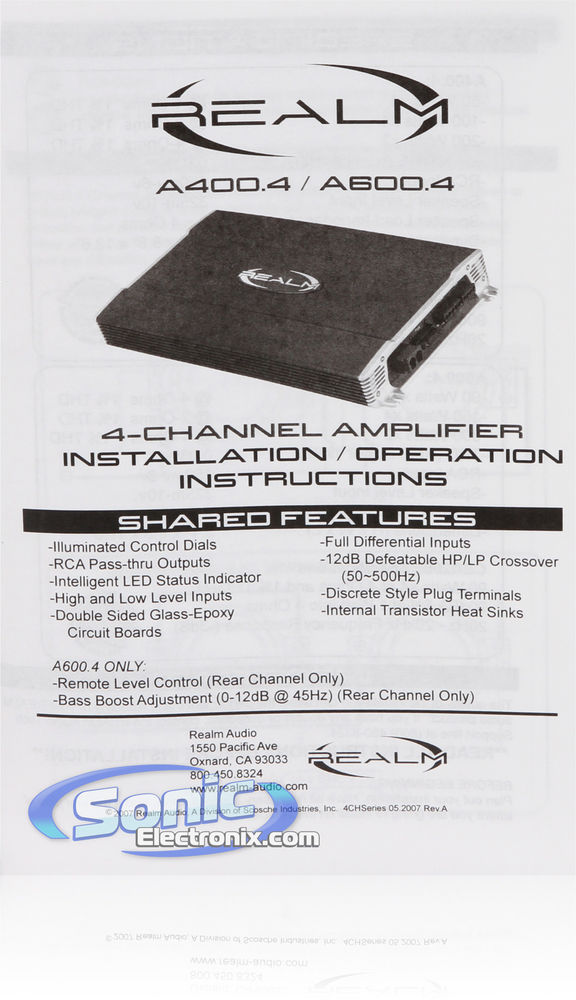

User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
