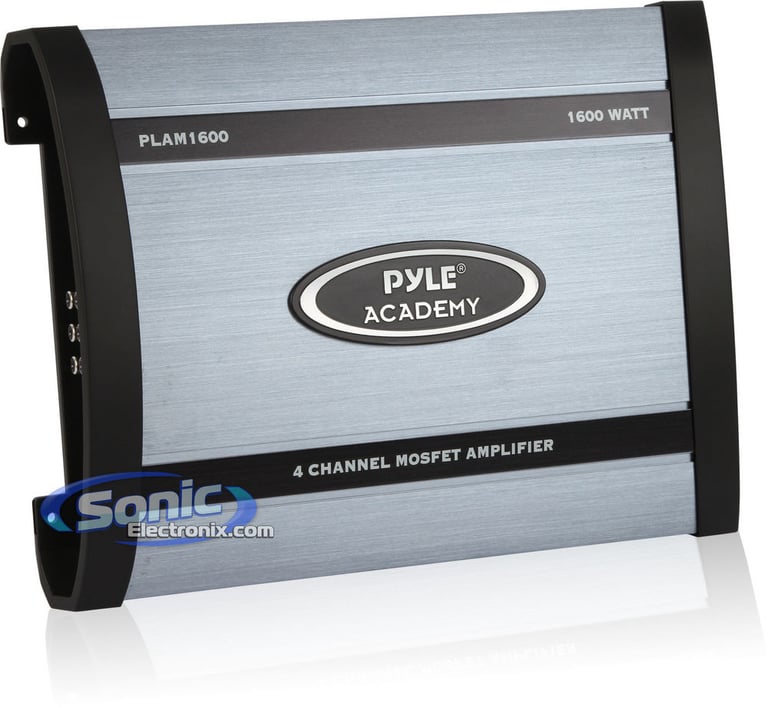

Pyle PLAM1600

1600W 4-Channel Class A/B Academy Series Car Amplifier

Pyle
Shop all Pyle
Product videos
highlight-star-icon

Academy Series 4-Channel Class A/B Car Amplifier • Selectable Bass Boost • Variable High and Low Level Crossovers • Speaker Output Terminal Strip • 3-Way Protection Circuitry • LED Diagnostic Condition Indicator • Preamp RCA Outputs

Learn more about the plam1600

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

11
-38.81%

$20.80

List price $33.99

SAT-01 main

PAC SAT-01 Antenna Adapter

Connect your factory SiriusXM antenna to a new aftermarket radio for select 2004-2024 vehicles from Ford, Audi, GMC

1
-44.86%

$15.99

List price $29.00

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

82-5603 main

Metra 82-5603

6" to 6-3/4" Speaker Adapter for select 2011-2019 Explorer

2
-50.01%

$19.99

List price $39.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Product Highlights


Academy Series 4-Channel Class A/B Car Amplifier • Selectable Bass Boost • Variable High and Low Level Crossovers • Speaker Output Terminal Strip • 3-Way Protection Circuitry • LED Diagnostic Condition Indicator • Preamp RCA Outputs

Description


Pyle brand icon

Authorized dealer

Product Features:
  • Academy Series 4-Channel Class A/B Car Amplifier
  • Pyle Power Rating:
    • 4 ohm: 35 watts x 4 chan.
    • 2 ohm: 55 watts x 4 chan.
    • Bridged,4 ohm: 110 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply

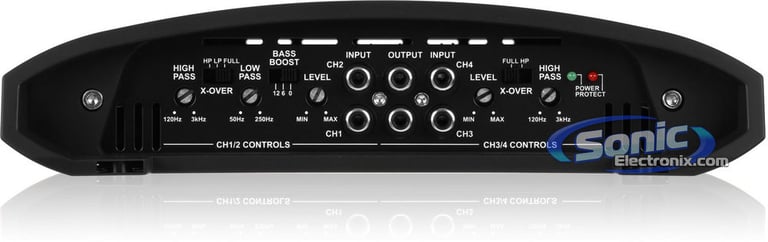

  • LED power (green) and protect (red) indicators
  • Selectable bass boost (0, 6, 12 dB at 45 Hz)
  • Soft Start Turn-on
  • 4/3/2/ channel operation
  • Variable gain control
  • Built-in variable subwoofer crossovers
  • High level low impedance MOLEX input connector

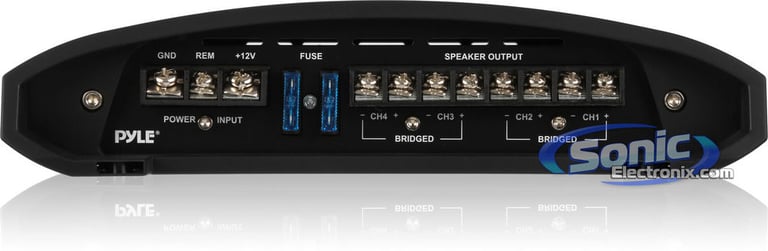

  • Speaker output terminal strip
  • LED diagnostic condition indicator
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 200V-5V
  • Variable high-pass filter (120-3,000 Hz, 24 dB/octave)
  • Variable low-pass filter (50-250 Hz, 24 dB/octave)
  • Frequency response: 10-50,000 Hz
  • Dimensions: 11"L x 10"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
35 watts x 4 channel
RMS Power @ 2 ohms
55 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
110 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1600 watts
Total RMS Power Output
220 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.04%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
120 - 3000 Hz
Low-Pass Crossover Frequency
20 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
15A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PLAM1600

Weight:

7.00lbs

Internal SKU:

plam1600

Internal Product ID:

42282
