See all parts that fit your 2011 TT

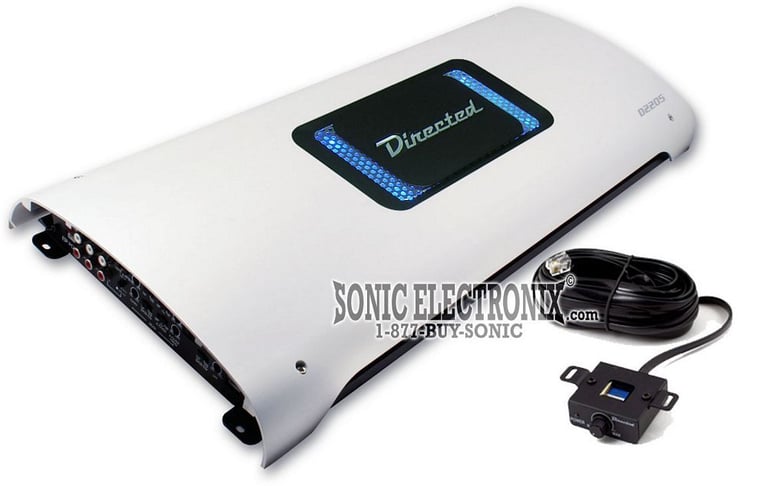

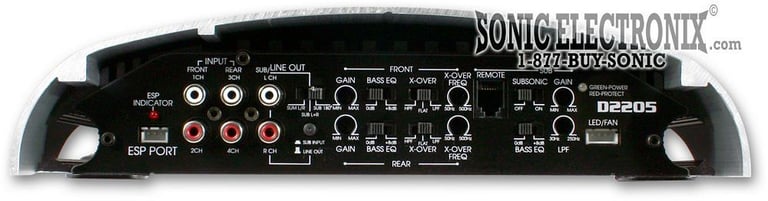

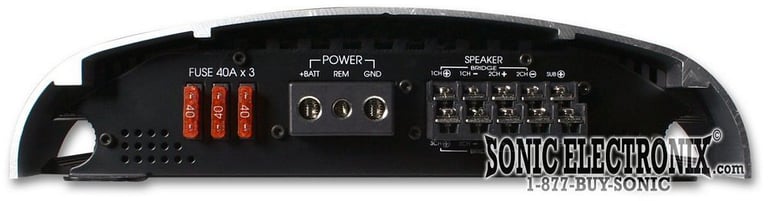

DEI - Directed Audio D2205 R/B

5-Channel Hybrid Amplifier with ESP and Class D 5th Channel for Sub(s)

Directed
Shop all Directed
Product videos
highlight-star-icon

5 Channel hybrid Amplifier • 80Wx4 + 280Wx1 @ 4 Ohm RMS • ESP Port for Bitwriter • Adjustable Crossovers and Gain • 8dB Bass Boost • 600W RMS x 1 @ 1 Subwoofer Output • LED/Fan Output

Learn more about the LS-dei-d2205-RB

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

5 Channel hybrid Amplifier • 80Wx4 + 280Wx1 @ 4 Ohm RMS • ESP Port for Bitwriter • Adjustable Crossovers and Gain • 8dB Bass Boost • 600W RMS x 1 @ 1 Subwoofer Output • LED/Fan Output

Description

Directed brand icon

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • 5 Channel Hybrid Amlifier with ESP

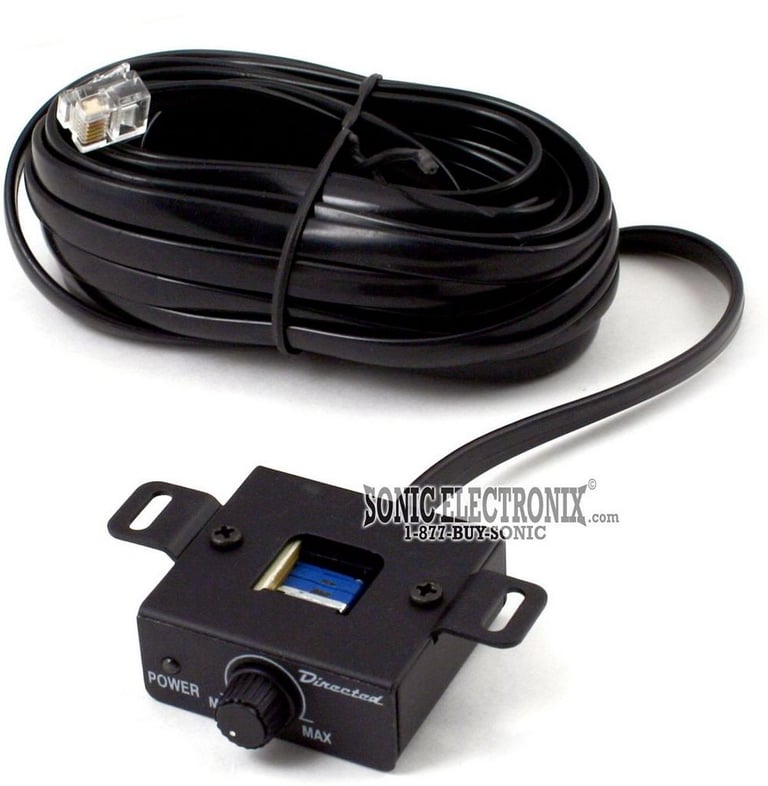

  • Bass Remote Included
  • RMS Power Output: 80 watts x 4 chan. + 250 watts x 2 chan. @ 4 ohm
  • RMS Power Output: 125 watts x 4 chan.@ 2 ohm
  • 600 watts x 1 chan. @ 1 ohm (Subwoofer Channel)
  • High-Speed MOSFET switching power supply and complimentary bi-polar outputs
  • Thermal, DC offset, reverse polarity, short circuit, and over/under voltage protection
  • Programmable features controlled via ESP serial databus and Directed's Bitwriter tool
  • Continuously variable crossovers: Hp, LP 50 - 500 Hz
  • Subsonic filter for subwoofer channel
  • Switchable Line Output/Subwoofer Input
  • Switchable 8 dB Bass EQ
  • Variable input sensitivity optimizes match with different signal sources
  • Chrome plated wire and RCA jacks ensure maximum signal transfer
  • Rugged extruded two piece heatsink and cover
  • Unity gain pass through RCA jacks
  • Adjustable input sensitivity: 500mV - 8V
  • Output for optional cooling fan / LED lighting
  • 90 Days Repair Only Warranty

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 4 + 280 watts x 1
RMS Power @ 2 ohms
125 watts x 4 + 400 watts approx. .x 1
RMS Power @ 1 ohm
5th Channel: 600 watts x 1 channel
Bridged RMS Power
250 watts x 2 + 400 watts approx. x 1
Amplifier Specifications
Amplifier Class
Channels 1-4: A/B, Channel 5: D
Number of Channels
5-Channel
Total Peak Power Output
2200 watts
Minimum Impedance Unbridged
2 ohms (Channels 1-4); 1 ohm (Subwoofer channel)
Minimum Impedance Bridged
4 ohms (Channels 1-4); 1 ohm (Subwoofer channel)
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
20 - 250 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Subsonic Filter
On/Off
Signal-to-Noise Ratio
98 dB
Bass Boost
0 - 8 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 3

Item Details

Manufacturer:

Directed

Model Number:

D2205-RB

Weight:

26.00lbs

Internal SKU:

LS-dei-d2205-RB

Internal Product ID:

9473
