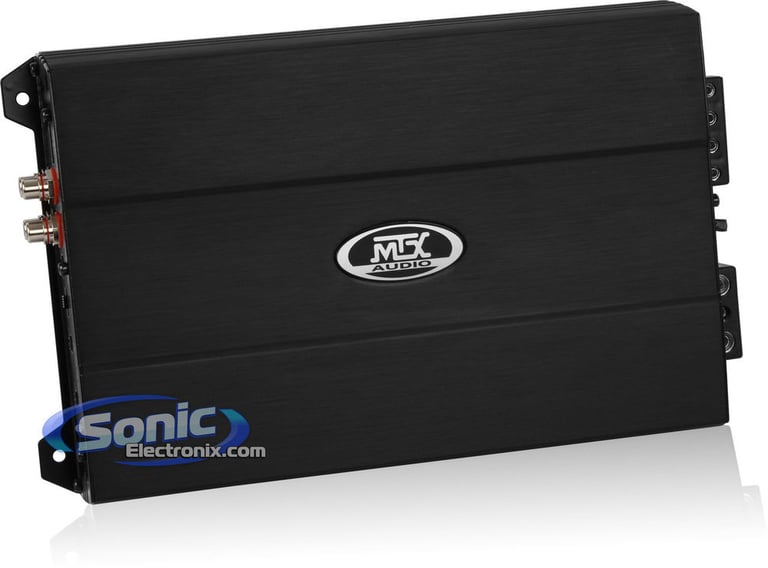

MTX TH90.2

360W Max, 2-Channel TH Series Class A/B Car Amplifier

MTX
Shop all MTX
Product videos
highlight-star-icon

• 4 ohm: 60 watts x 2 chan.
• 2 ohm: 90 watts x 2 chan.
• Bridged, 4 ohm: 180 watts x 1 chan.
• Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)

Learn more about the th902

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
STAGE245F main

JBL Stage2 45F (STAGE245F)

100W Peak (50W RMS) 6.5" Stage2 Gen 2 Series 2 Way Coaxial Speakers

-27.55%

$49.99

List price $69.00

Limited time!
46CSC44 main

Kicker CSC4 (46CSC44)

300W Peak (100W RMS) 4” CS Series 2 Way Coaxial 4-ohm Speakers

1
-29.45%

$59.96

List price $84.99

Limited time!
C2-400X main

JL Audio C2-400x

70W RMS 4" C2 Series 2-Way Coaxial 4-ohm Car Speakers

9
-13.16%

$164.99

List price $189.99

S2-S40 main

Alpine S2-S40

280W Peak (90W RMS) 4" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

2
-15.42%

$109.95

List price $130.00

P142 main

Rockford Fosgate Punch P1 P142

120W Peak (60W RMS) 4" Punch Series 2 Way Coaxial 4-ohm Speakers

11

Product Highlights


• 4 ohm: 60 watts x 2 chan.
• 2 ohm: 90 watts x 2 chan.
• Bridged, 4 ohm: 180 watts x 1 chan.
• Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)

Description


MTX brand icon

Authorized dealer

General Features:

  • 2-Channel TH Series Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 2 chan.
    • 2 ohm: 90 watts x 2 chan.
    • Bridged, 4 ohm: 180 watts x 1 chan.
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 2 or mono channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink

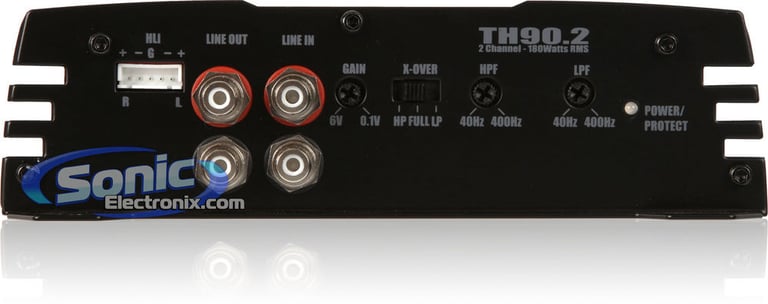

  • Nickel-plated RCA level inputs

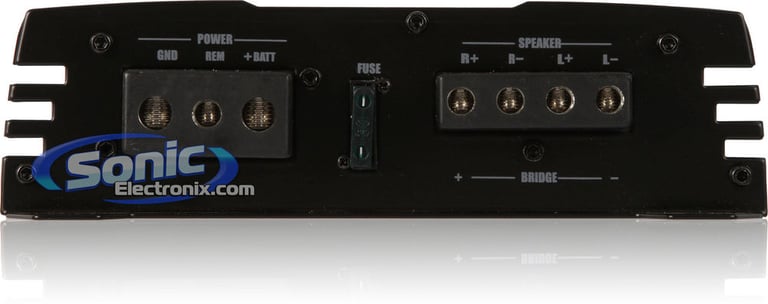

  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV
  • Variable low-pass filter (40-400 Hz, 12 dB/octave)
  • Variable high-pass filter (40-400 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-30000 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 11-1/2"W x 7-1/8"L x 2-1/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

GP-2000.2 small

Crunch GP-2000.2

• 500 watts x 2 channel @ 4 ohm
• 1000 watts x 2 channel @ 2 ohm
• Bridged: 2000 watts x 1 channel @ 4 ohm
• Total Peak Power: 2000 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

$74.99

List price $119.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 2 channel
RMS Power @ 2 ohms
90 watts x 2 channel
Bridged RMS Power
180 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
360 watts
Total RMS Power Output
180 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 400 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

TH90.2

Weight:

6.10lbs

Internal SKU:

th902

Internal Product ID:

43785
