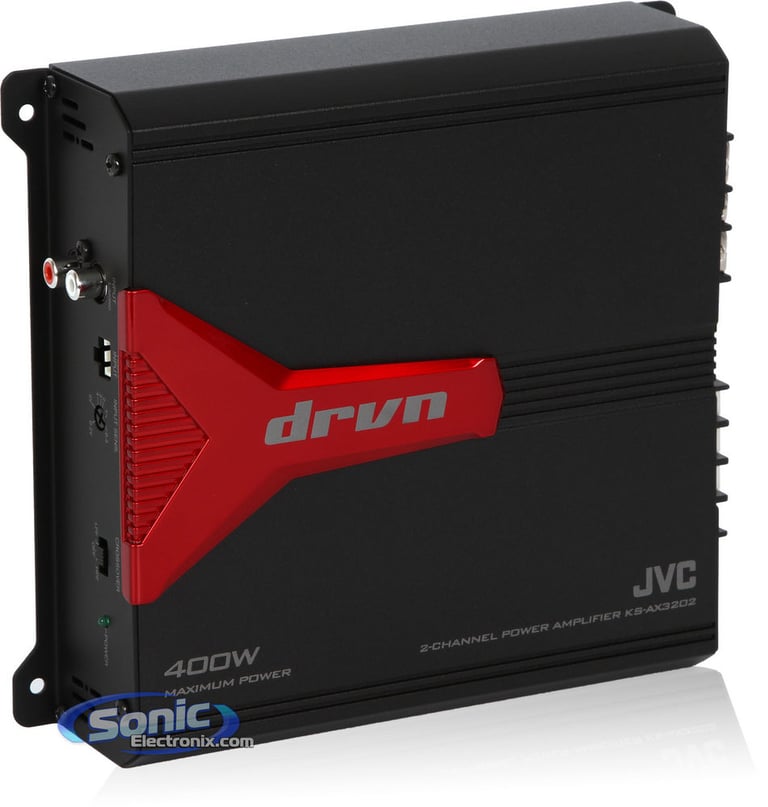

JVC KS-AX3202

2-Channel 150W Class AB DRVN Series Car Amplifier

JVC
Shop all JVC
Product videos
highlight-star-icon

• 65W x 2 Chan. @ 4 ohm
• 90W x 2 Chan. @ 2 ohm
• 150W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Anti-Pop Circuitry

Learn more about the ksax3202

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

ksdr3002 thumbnail

JVC KS-DR3002

OUR PRICE: $99.95

View item

Loading...
40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
99-2011 main

Metra 99-2011 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 1990-2012 vehicles from Chevrolet, GMC, Buick

20
-37.05%

$16.99

List price $26.99

SOCGM-17 main

Crux SOCGM-17 Wiring Interface

Install a new car stereo and retains the safety warning chimes in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

6
-35.71%

$58.05

List price $90.30

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

33
-14.29%

$119.99

List price $139.99

DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Product Highlights


• 65W x 2 Chan. @ 4 ohm
• 90W x 2 Chan. @ 2 ohm
• 150W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Anti-Pop Circuitry

Description


JVC brand icon

Authorized dealer

General Features:

  • DRVN Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 65 watts x 2 chan.
    • 2 ohm: 90 watts x 2 chan.
    • Bridged, 4 ohm: 150 watts x 1 chan.
  • Max power output: 400 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Anti-pop circuitry
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 4-way protection circuitry (thermal, short circuit, overload, and DC offset protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Level: 300mV-6V
  • Fixed high-pass filter (150 Hz)
  • Fixed low-pass filter (80 Hz)
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 8-3/16"W x 7-5/16"L x 2-1/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

JVC KS-DR3002 thumbnail
(newest, current model)
JVC KS-AX3202 thumbnail
(previous model, replaced by JVC KS-DR3002)
JVC KSAX3102 thumbnail
(previous model, replaced by JVC KS-AX3202)
JVC KS-AX3002 thumbnail
(previous model, replaced by JVC KS-AX3102)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
65 watts x 2 channel
RMS Power @ 2 ohms
90 watts x 2 channel
Bridged RMS Power
150 watts x 1 channel
Amplifier Specifications
Series
DRVN Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
150 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.04%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
Fixed 150
Low-Pass Crossover Frequency
Fixed 80
Signal-to-Noise Ratio
80 dB
Remote bass/level controller
No
Fuse Rating
20A x 1
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KS-AX3202

Weight:

4.00lbs

Internal SKU:

ksax3202

Internal Product ID:

68869

Product and How-to Videos


  • JVC Bluetooth Stereo Control Receivers | CES 2014
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


JVC KS-AX3202 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
5
Features
4
Design
5
Usability
4.5

Customer Reviews

Sort by:

Loading...

Perfect for a pa system!

I bought this amplifier for my 65watt pa system. Very compact and also affordable. Only 4/5 stars on features because there is no gain on the amp itself.

By Mitch on November 7, 2014

17 found this helpful


Good value

This is an easy amp to use. Small and compact makes it easy to place in small spaces. Sound is decent.

By winston on December 6, 2013
