Name: Lanzar OPTI3201D OPEN BOX COMPLETE
Brand: Lanzar
SKU: LS-opti3201d-OBCra228115
Price: 329.99 USD
Availability: Discontinued
Rating: 4.0000 (1 reviews)

Shop all Lanzar

by Lanzar

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Lanzar OPTI3201D OPEN BOX COMPLETE Image 1 — Lanzar OPTI3201D OPEN BOX COMPLETE

Lanzar OPTI3201D OPEN BOX COMPLETE Image 2 — Lanzar OPTI3201D OPEN BOX COMPLETE

Lanzar OPTI3201D OPEN BOX COMPLETE Image 3 — Lanzar OPTI3201D OPEN BOX COMPLETE

Lanzar OPTI3201D OPEN BOX COMPLETE Image 4 — Lanzar OPTI3201D OPEN BOX COMPLETE

Lanzar OPTI3201D OPEN BOX COMPLETE Image 5 — Lanzar OPTI3201D OPEN BOX COMPLETE

Lanzar OPTI3201D OPEN BOX COMPLETE Image 6 — Lanzar OPTI3201D OPEN BOX COMPLETE

Lanzar OPTI3201D OPEN BOX COMPLETE Image 7 — Lanzar OPTI3201D OPEN BOX COMPLETE

Lanzar OPTI3201D OPEN BOX COMPLETE Image 8 — Lanzar OPTI3201D OPEN BOX COMPLETE

Lanzar OPTI3201D OPEN BOX COMPLETE Image 9 — Lanzar OPTI3201D OPEN BOX COMPLETE

Lanzar OPTI3201D OPEN BOX COMPLETE Image 10 — Lanzar OPTI3201D OPEN BOX COMPLETE

Lanzar OPTI3201D OPEN BOX COMPLETE Image 11 — Lanzar OPTI3201D OPEN BOX COMPLETE

Lanzar OPTI3201D OPEN BOX COMPLETE Image 12 — Lanzar OPTI3201D OPEN BOX COMPLETE

Lanzar OPTI3201D OPEN BOX COMPLETE-video

Product videos

Product highlights

Previously installed and used
• RMS: 820W x 1 @ 4 ohm, 1500W x 1 @ 2 ohm, 2100W x 1 @ 1 ohm
• Total RMS Power: 3200W
• Class D Circuitry
• Bass Boost: 0-18 dB
• 0.5 Ohm Stable
• Dimensions: 19-3/4"L x 10-11/16"W x 2-1/8"H

Learn more about the LS-opti3201d-OBCra228115

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition: Open Box Complete

Previously installed and used

General Features

OptiDrive Series Monoblock Class D Car Amplifier
RMS Power Rating:
- 4 ohm: 820 watts x 1 chan.
- 2 ohm: 1500 watts x 1 chan.
- 1 ohm: 2100 watts x 1 chan.
- 0.5 ohm: 3200 watts x 1 chan.
Pulse Width Modulated MOSFET power supply

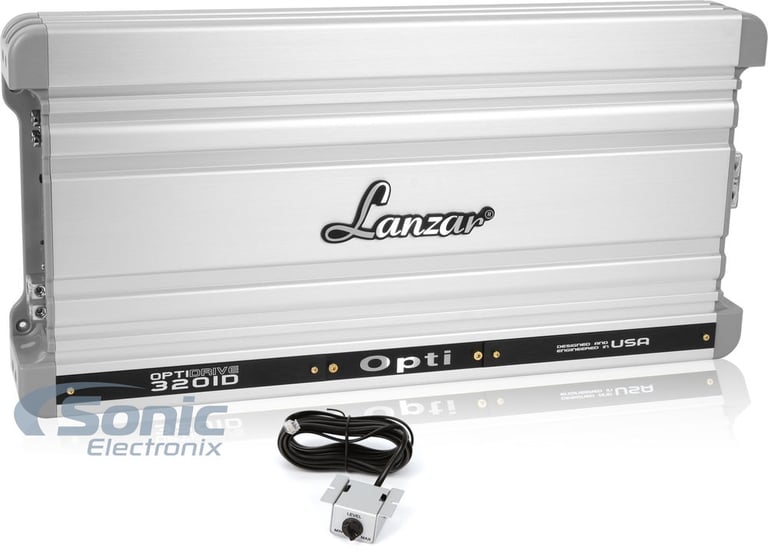

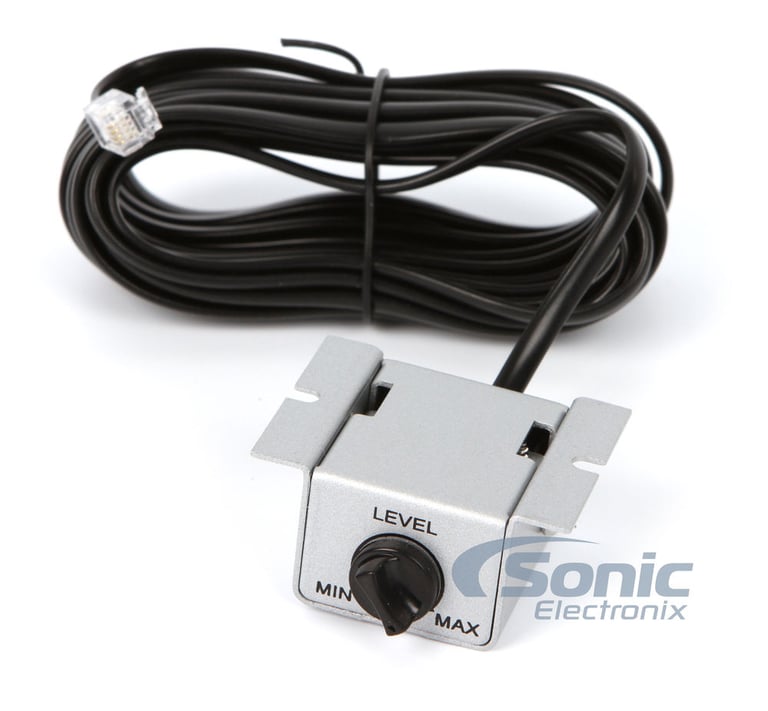

Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB)
Soft Start Turn-on
Double sided Epoxy PCB circuit board
Mono channel operation
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Gold-plated RCA level inputs
Custom Terminal Block for speaker connections
Input sensitivity:
- Low level: 200V-8V
Variable low-pass filter (50-250 Hz, 24 dB/octave)
Subsonic filter (15-40 Hz, 24 dB/octave)
Phase Shift: 0-180°
Damping factor: >400 @ 20Hz/4 ohm
Frequency response: 15-250 Hz
Dimensions: 19-3/4"L x 10-11/16"W x 2-1/8"H
0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

820 watts x 1 channel

RMS Power @ 2 ohms

1500 watts x 1 channel

RMS Power @ 1 ohm

2100 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

3200 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

0.5 ohm

THD at Rated RMS Power

0.1%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 250 Hz

Subsonic Filter

15 - 40 Hz

Signal-to-Noise Ratio

90 dB

Bass Boost

0 - 18 dB

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Lanzar OPTI3201D OPEN BOX COMPLETE thumbnail image

Overall rating distribution

5 star		0%
4 star		100%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4
Value		5
Features		5
Design		4
Usability		5

Customer Reviews

Sort by:

Absolute POWER HOUSE!

WHAT A BEAST THIS AMP IS NOT FOR THE WEAK OR BEGINNER. IF YOU POWER IT CORRECTLY YOUR IN FOR SOME WINDSHEILD FLEXING OR SHATTERING WHAT EVER C0MES FIRST. ITS NICE TO SEE A OLD GREAT NAME MAKE A COME BACK WITH QUALITY AMERICAN MADE AMP LIKE ROCKFORD..

By kyle on March 25, 2016 Checkmark Icon

Verified purchase

Report abuse
