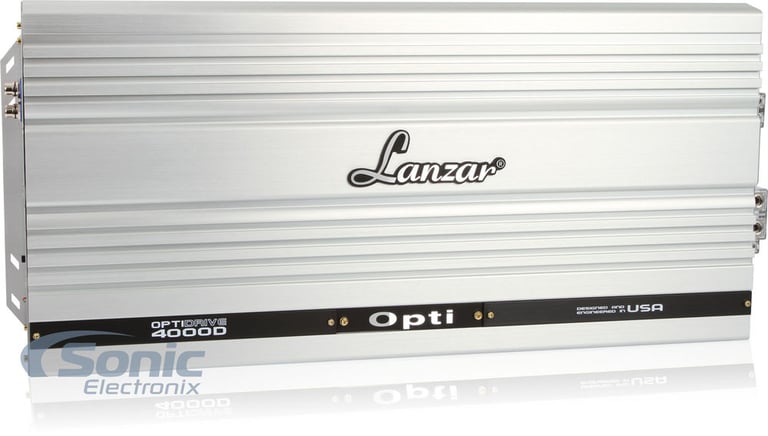

Lanzar OPTI4000D OPEN BOX COMPLETE

4000W RMS, Monoblock Class D OptiDrive Series Car Amplifier

Lanzar
Shop all Lanzar
Product videos
highlight-star-icon

Item is used and has been previously installed
• RMS: 2000W x 1 @ 4 ohm, 3000W x 1 @ 2 ohm, 4000W x 1 @ 1 ohm
• Total RMS Power: 4000W
• Class D Circuitry
• Bass Boost: 0-18 dB
• 1 Pair of Preamp Outputs
• Dimensions: 23-1/3"L x 10-11/16"W x 2-1/8"H

Learn more about the LS-opti4000d-OBCra229476

We apologize

This item has been discontinued

Product Highlights


Item is used and has been previously installed
• RMS: 2000W x 1 @ 4 ohm, 3000W x 1 @ 2 ohm, 4000W x 1 @ 1 ohm
• Total RMS Power: 4000W
• Class D Circuitry
• Bass Boost: 0-18 dB
• 1 Pair of Preamp Outputs
• Dimensions: 23-1/3"L x 10-11/16"W x 2-1/8"H

Description


Lanzar brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition: Open Box Complete

  • Item is used and has been previously installed
    • OptiDrive Series Monoblock Class D Car Amplifier
    • RMS Power Rating:
      • 4 ohm: 2000 watts x 1 chan.
      • 2 ohm: 3000 watts x 1 chan.
      • 1 ohm: 4000 watts x 1 chan.
    • Pulse Width Modulated MOSFET power supply

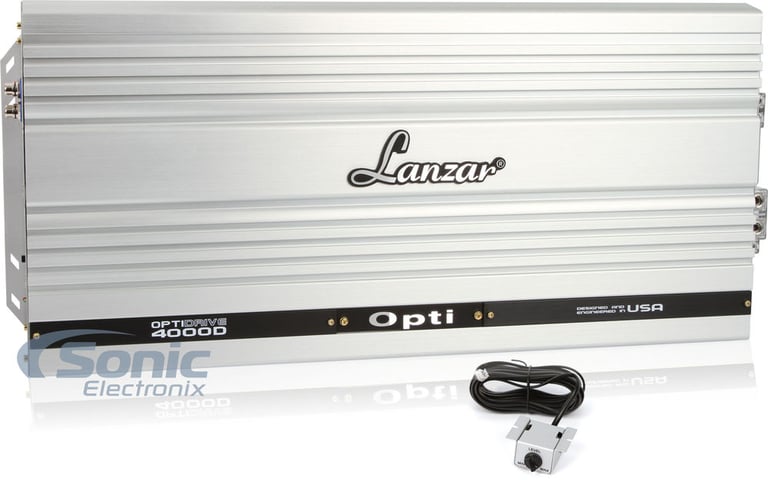

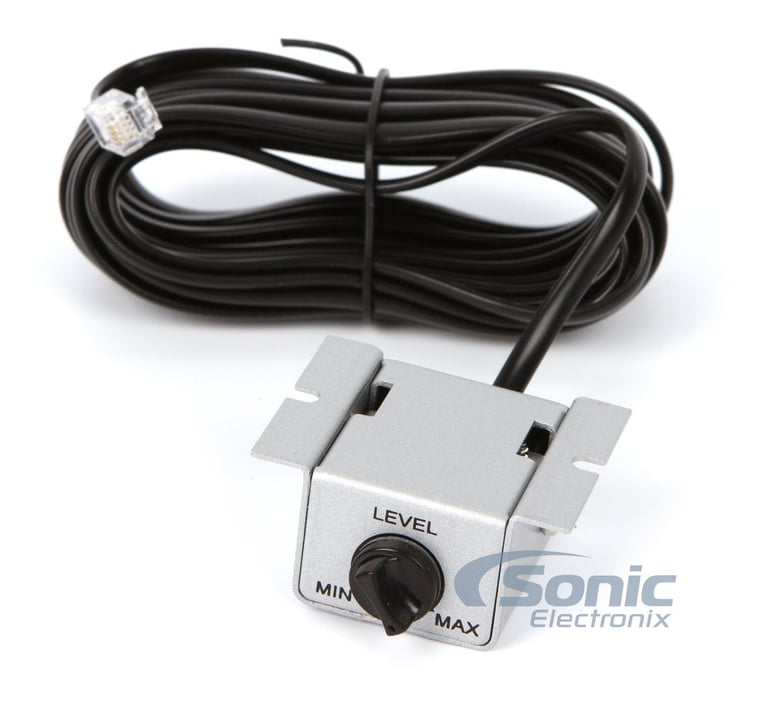

    • Wired remote bass level control included
    • LED power (green) and protect (red) indicators
    • Variable Bass Boost (0 to +18 dB)
    • Soft Start Turn-on
    • Double sided Epoxy PCB circuit board
    • Mono channel operation
    • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
    • Heavy duty aluminum alloy heatsink for extreme heat dissipation

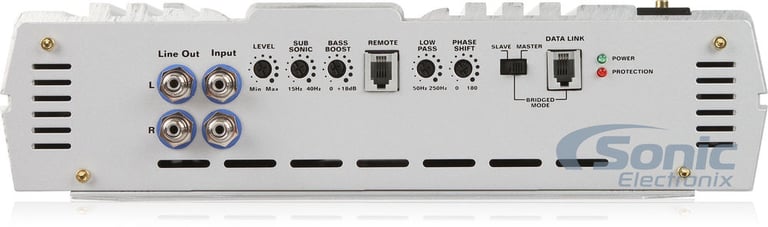

    • Gold-plated RCA level inputs

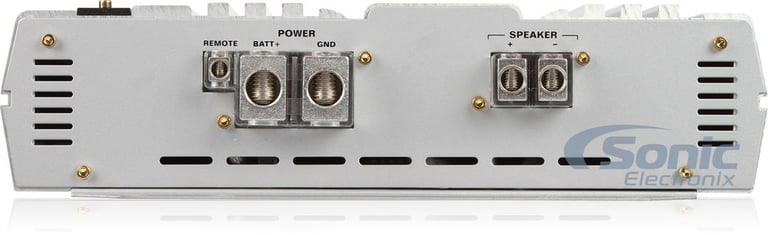

    • Custom Terminal Block for speaker connections
    • Input sensitivity:
      • Low level: 200V-8V
    • Variable low-pass filter (50-150 Hz, 24 dB/octave)
    • Subsonic filter (15-40 Hz, 24 dB/octave)
    • Phase Shift: 0-180°
    • Damping factor: >400 @ 20Hz/4 ohm
    • Frequency response: 15-150 Hz
    • Dimensions: 23-1/3"L x 10-11/16"W x 2-1/8"H
    • 0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
    • Authorized Internet Dealer
    • 1-year Manufacturer's warranty

    Specifications & Details


    Power Specifications - Subwoofer Channel
    RMS Power @ 4 ohms
    2000 watts x 1 channel
    RMS Power @ 2 ohms
    3000 watts x 1 channel
    RMS Power @ 1 ohm
    4000 watts x 1 channel
    Amplifier Specifications
    Amplifier Class
    D
    Number of Channels
    1 - Mono
    Total RMS Power Output
    4000 watts
    Maximum Input Gauge Size
    1/0 AWG
    Minimum Impedance Unbridged
    1 ohm
    Minimum Impedance Bridged
    Not Bridgeable
    THD at Rated RMS Power
    0.1%
    Speaker Level Inputs
    No
    Preamp Outputs
    1 pair
    Built-in Crossover
    Low-Pass (LP)
    Low-Pass Crossover Frequency
    50 - 250 Hz
    Subsonic Filter
    15 - 40 Hz
    Signal-to-Noise Ratio
    90 dB
    Bass Boost
    0 - 18 dB
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    LS-OPTI4000D-OBC

    Weight:

    29.50lbs

    Internal SKU:

    LS-opti4000d-OBCra229476

    Internal Product ID:

    98851
