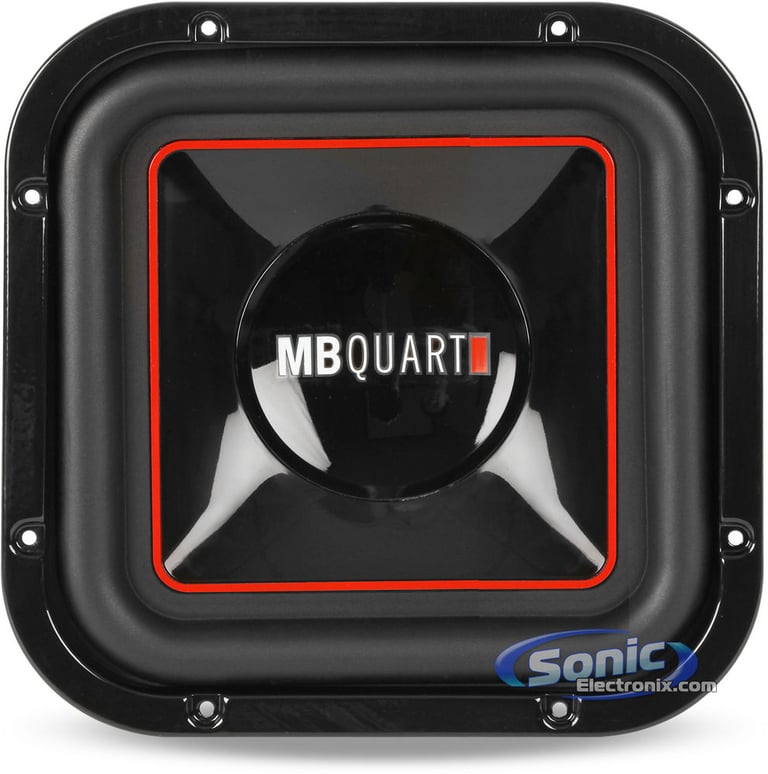

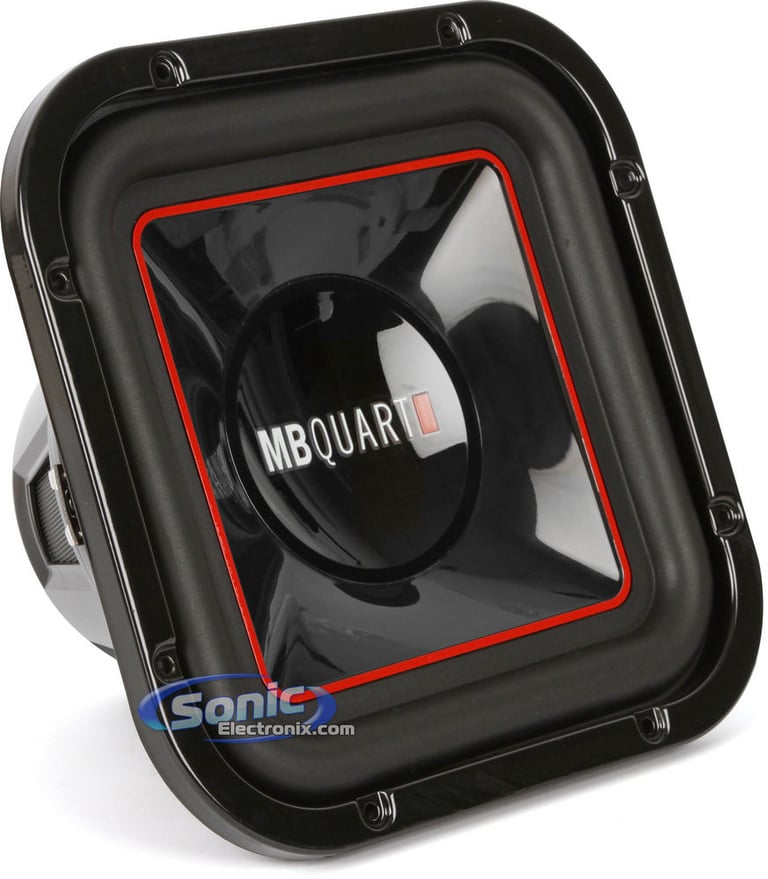

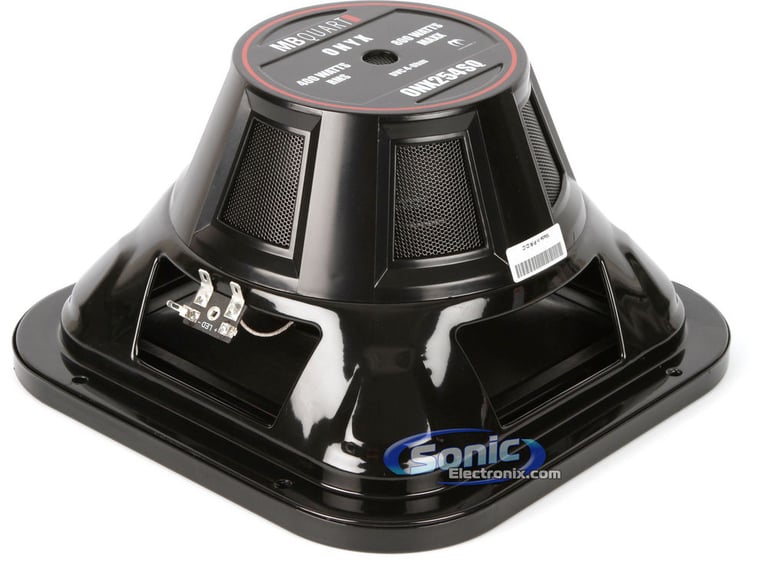

MB Quart ONX254SQ

400W 10" ONYX Series Dual 4 ohm Square Subwoofer

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• 800W Peak
• 400W RMS
• Dual 4 ohm Voice Coil
• Gloss Black Polypropylene Cone
• NBR Rubber Surround
• Illuminated ONYX logo
• Red Nomex Spider

Learn more about the onx254sq

We apologize

This item has been discontinued


Loading...

Rockford Fosgate Punch P1 P1572

240W Peak (120W RMS) 5x7" Punch Series 2 Way Coaxial 4-ohm Speakers

7

$109.99

Product Highlights


• 800W Peak
• 400W RMS
• Dual 4 ohm Voice Coil
• Gloss Black Polypropylene Cone
• NBR Rubber Surround
• Illuminated ONYX logo
• Red Nomex Spider

Description


MB Quart brand icon

Authorized dealer

General Features:

  • 10" Dual 4 ohm ONYX Series Square Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: Dual 4 ohm
  • Gloss Black Polypropylene Cone
  • NBR Rubber Surround
  • Illuminated ONYX logo
  • Red Nomex Spider
  • Spade Style Speaker Terminals
  • High Energy magnet motor structure
  • Frequency response: 35-150 Hz
  • Resonance Frequency (Fs): 33.73 Hz
  • Top-mount depth: 5-7/16"
  • Sensitivity: 87.7 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MB Quart ONX254SQ Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MB Quart ONX254SQ Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MB Quart ONX254SQ Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MB Quart ONX254SQ Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
ONYX Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
35 - 150 Hz
Sensitivity
87.7 dB
Xmax (millimeters)
9 mm
Subwoofer Design
Square
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.15 cubic feet
Maximum Sealed Box Volume
1.15 cubic feet
Minimum Ported Box Volume
1.30 cubic feet
Maximum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/16"
Cutout Diameter
9-3/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33.73 Hz
Equivalent Compliance (Vas)
75.80 liters
Total Speaker Q Value (Qts)
0.61
Electrical Q Value (Qes)
0.79
Electrical Resistance of Voice Coil (Re)
6.22 ohm
Mechanical Q Value (Qms)
2.68
