Product Highlights


Ground Pounder Series 2-Channel Amplifier • MOSFET PWM Power Supply • LED Power/Protect Indicators • Soft Start Sound • High Level Inputs • Illuminated Crunch Badge • 4-Way Protection Circuitry • Full Range Line Output

Description


Crunch brand icon

Authorized dealer

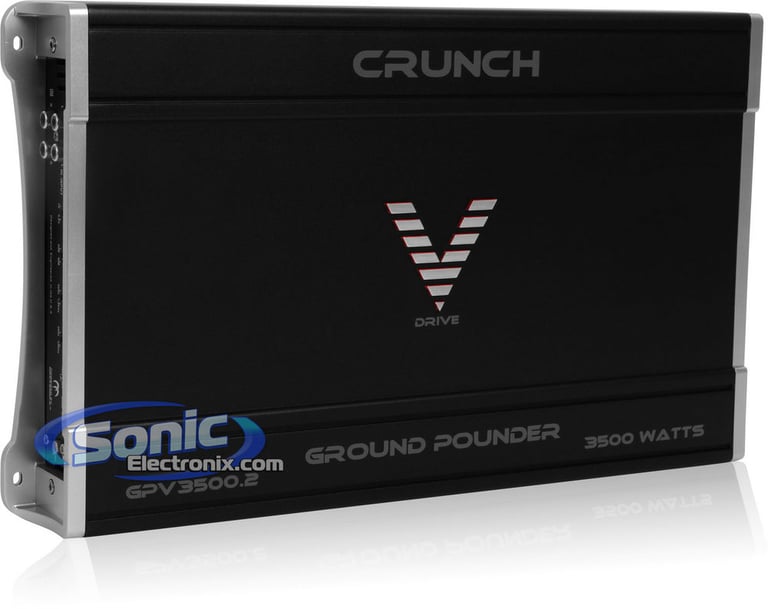

Crunch GPV 3500.2 Ground Pounder Amplifier

The Ground Pounder Series by Crunch has made its mark. These amplifiers are each equipped with a 0-9 dB Bass Boost (excluding monoblock), PWM Mosfet power supply, soft start sound, 4-way protection circuitry (DC, short, thermal, overload), and LED power/protect indicators.

This 2-channel version has a Max power rating of 3500 watts and is bridgeable @ 4 ohms. The GPV 3500.2 has built-in High-Pass, Low-pass, and Subsonic filters, Heavy duty aluminum alloy heatsink for extreme heat dissipation, and two 30 AMP fuses. If you need a high power 2-channel amp, we got just what you're looking for.

Product Features
  • Ground Pounder Series 2-Channel Amplifier
  • Max Power Rating:
    • 4 ohm: 900 watts x 2 chan.
    • 2 ohm: 1750 watts x 2 chan.
    • Bridged, 4 ohm: 3500 watts x 1 chan.
  • MOSFET PWM power supply
  • LED power/protect indicators
  • Bass boost (0-9 dB at 45 Hz)
  • Soft start sound
  • Protection (DC, short, thermal, overload)
  • Full range line output
  • Unbalanced input (RCA Jack)
  • High level inputs
  • Illuminated Crunch badge
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Input Level Control: 0.2V-5V
  • Variable High-Pass/Subsonic Filter (60-1,200 Hz)
  • Variable Low-Pass Filter (30-250 Hz, mono 24 dB/octave)
  • Frequency Response: 30-30,000 Hz
  • Signal-to-Noise Ratio: >90 dB
  • Damping Factor: >180
  • Channel Separation: >80 dB
  • THD (Total Harmonic Distortion): 0.05%
  • Dimensions: 16-9/16L x 9-3/4W x 2-1/8H
  • 0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
900 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
3500 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
60 - 1200 Hz
Signal-to-Noise Ratio
>90 dB
Channel Separation
>80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
40A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

GPV3500.2

Weight:

13.00lbs

Internal SKU:

gpv35002

Internal Product ID:

44513

Product and How-to Videos


Customer Ratings & Reviews


Crunch GPV3500.2 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
50%
1 star
50%



Durability
2
Value
3.5
Features
3
Design
4.5
Usability
3

Customer Reviews

Sort by:

Loading...

OVER RATED

This amp is not true 3500 watts of power. It can not handle my speakers. I don't recommend this amp to anyone that wants true power.

By stephen on October 7, 2013

2 found this helpful


Horrible

Second crunch amp i bought. The old models rocked cant say the same for this one blew it in hours.

By Santika on February 22, 2016
