Alpine PDX-V9 | 1000 Watt PDX Series 5-Channel Amplifier

Alpine PDX-V9

1600W Max, 5-Channel PDX Series Car Amplifier

1600W Max, 5-Channel PDX Series Car Amplifier

• Full-Range RMS: 100W x 4 @ 4 ohms, 100W x 4 @ 2 ohms
• Subwoofer RMS: 500W x 1 @ 4 ohms, 500W x 1 @ 2 ohms
• CEA-2006 Compliant
• Super Efficient PDX Power Supply >90%
• Power Management Processor
• Dimensions: 10-5/8"W x 7-1/2"D x 2"H

SAVE when you bundle with select amp wiring kits:
Click Here to View Bundles!

5.0

(10)
List price $1050.00
Save: $50.05

$999.95

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for
4 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Alpine

Authorized dealer

General Features:

  • 5-Channel PDX Series Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 100 watts x 4 chan. + 500 watts x 1 chan.
    • 2 ohms: 100 watts x 4 chan. + 500 watts x 1 chan.
    • Bridged, 4 ohms: 200 watts x 2 chan.
  • PDX Technology for increased performance and durability
  • Sleek Aggressive Design w/ End Caps
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 5 channel operation
  • Wired Bass Remote Ready
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
  • Variable high-pass filter (30-600 Hz, 24 dB/octave)
  • Variable low-pass filter (30-600 Hz, 24 dB/octave)
  • Variable Subsonic filter (3-30 Hz)
  • Damping factor: >500
  • CEA-2006 compliant amplifier
  • Frequency response: 5-45,000 Hz
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 10-5/8"W x 7-1/2"D x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

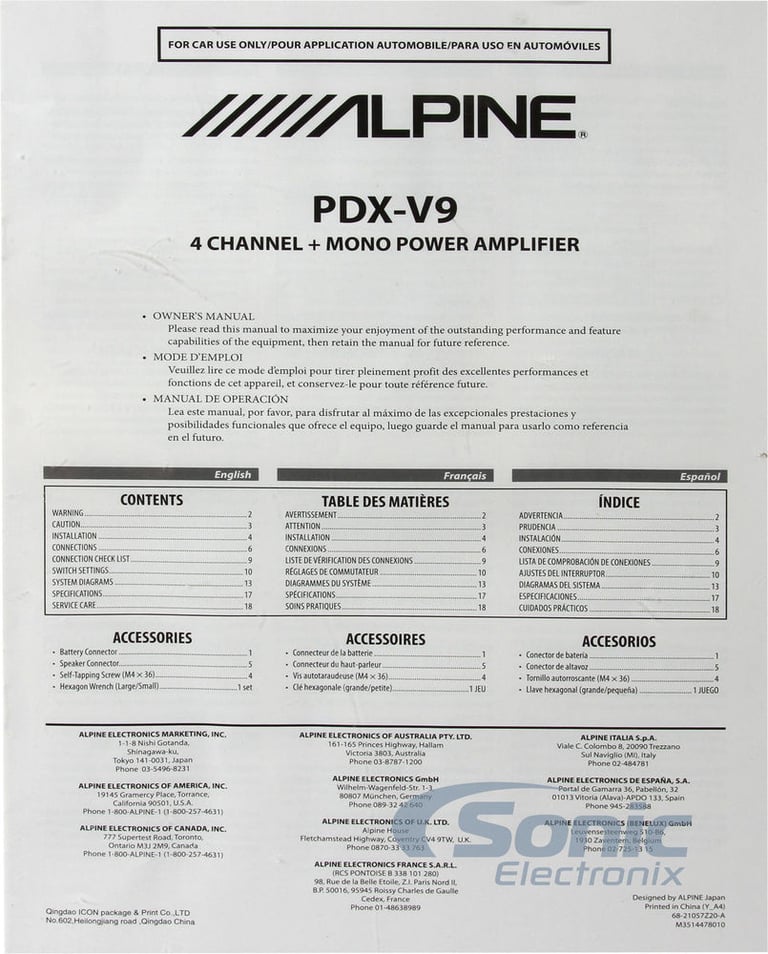

Check out the Alpine PDX-V9 Owner's Manual

Product history:

Alpine PDX-V9 thumbnail
(newest, current model)
Alpine PDX-5 thumbnail
(previous model, replaced by Alpine PDX-V9)
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channels
RMS Power @ 2 ohms
100 watts x 4 channels
Bridged RMS Power
200 watts x 2 channels
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
500 watts x 1 channels
RMS Power @ 2 ohms
500 watts x 1 channels
Amplifier Specifications
Amplifier Series
PDX (Alpine)
Marine Certified
No
Amplifier Class
D
Number of Channels
5
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.01%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
30 - 600 Hz
Low-Pass Crossover Frequency
30 - 600 Hz
Subsonic Filter
5 - 30 Hz
Signal-to-Noise Ratio
112 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
40A x 2
Total Fuse Rating
80
Strappable
No
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Mounting screws (4)
Allen wrenches (2)
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
VIDEOS AND HOW - TO
REVIEWS
Alpine PDX-V9

Alpine PDX-V9

5.0

(10)

Write a review

Overall rating distribution

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
5
Value
4.9
Features
5
Design
4.9
Usability
5

Pg1975

December 7, 2012

Top notch innovation to amps!!

I have owned dozens of amps and this is so well thought out. Excellent design of connectors makes every thing simpler and access panel for adjustments are clean and easy to use awesome amp

25

found this helpful.

dave

April 4, 2014

Its not cheap but is a great amp plenty of power for me.

Great power,small footprint,Go Alpine. Its not cheap, but it runs my old school 12in round solobarics great. Small but powerfull, it looks great also. The plug in terminals are nice also.

24

found this helpful.

PK

September 4, 2012

Geat Power for a little box!!!

This amp is the best clean sounding amp I've owned. Great 3-Way feature that allow me to use just one pair of inputs. You can't get this much power and flexibility from a different brand. Great job Alpine!

22

found this helpful.

Bill

March 11, 2015

Great Amp!

Very good amp, small footprint. Very powerful for its size. I like the way it looks. I have used JL Audio amps for the last 15 years and was hesitate about switching because I have had great luck with JL's. If the durability is there with this amp, I will be very pleased. Lots of adjustments on this amp. The birth certificate showed 144 Watts to the 4 channels and 550 Watts to the sub. I am very pleased with this amp so far.

16

found this helpful.

Andre

December 7, 2014

Alpine PDX-V9

I love this Amp. It's small for tight spaces and has so much power inside of it. I was looking for an amp that could fit under my car seat because I had no room, This amp did the job and it has all the power you could want with 1600 Watts. I have nothing bad to say about this item. 100%

16

found this helpful.

Sean

June 6, 2015

incredibly powerful and small!

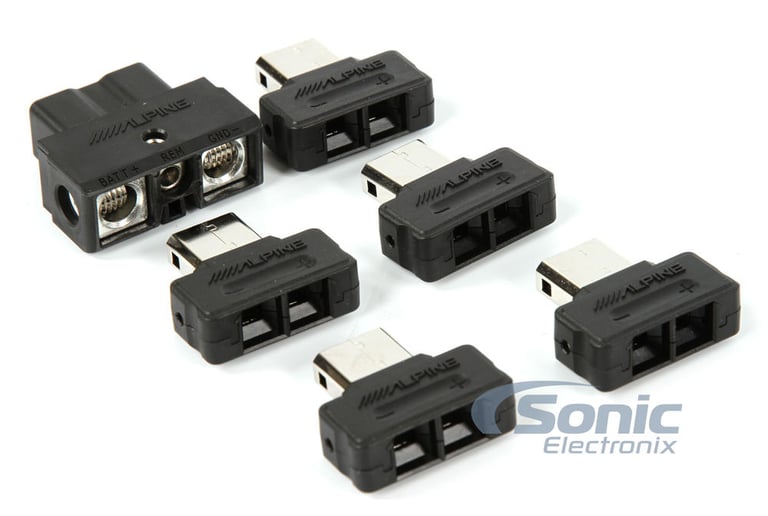

Highly recommend, I especially like the "plugs" it comes with for speaker terminals and power hook up. Does seem to run a bit warm, I'm sure some more air moving over it will remedy.

14

found this helpful.

darcman

August 24, 2015

Awesome

The old Alpine PDX amps were excellent, the new ones are even better. I wanted an all in one box solution. I compared Alpine and JL Audio, I believe the Alpine is a better value. The JL wasnt even fused. Ive had it for around a year. It runs four JL Audio C5s and a JL W6 stealthbox. Its birthsheet showed 138 watts x 4 and 568 watts for the sub, its only ever fealt warm to the touch.
Highly Recommended!!!!!!!!!!!!!!!!

5

found this helpful.

kevin

April 18, 2020

Amazing

I love the size and power of this amp. Running 4 6.5 Pioneer TS-A1675S and ported JL Audio 12”. Totally rocks bass hits hard not set off alarm hard but enough were I turn bass down so not to damage hearing. This amp is better than its JL competition which I also own but have in another vehicle.

3

found this helpful.

Anonymous

March 30, 2019

Amazing power, very underrated. A true do it all 5ch amp

This thing puts out some serious, clean power; the factory ratings are very conservative. I’m using this to power a Morel Tempo Ultra component set and Morel coax set in the rear on channels 1-4 (soon to be full active on the front comps) and a JL 12TW3 in an F150 Crew. It has no problem feeding all 5 channels all the power they can handle and best of all, it’s CRYSTAL CLEAR. I was skeptical of the idea of using a Class D amp to run mids and highs, as specially mids and highs of the quality of these Morels, but my concerns were unfounded. The range is outstanding and the built in cross overs are accurate and easy to use. Honestly the combination is amazing.

Being a pick up truck, there’s not a ton of room for mounting amps and crossovers, so the small footprint of this amp is a welcome feature. It’s been a little under a year since install and overall, I’m extatic with this purchase. Alpine quality and reliability, superb value and of course Sonic is the best to deal with.

1

found this helpful.

Gary

January 23, 2017

Great as always

Another great product from alpine 1 amp for front/rear and subs.it has all the crossover adjs. You will need to fine tune the sound it's clear power in a small size amp. And sonic electronix always has the best prices and service I have been buying from them for the past 9-9 years and never a bad product or service
