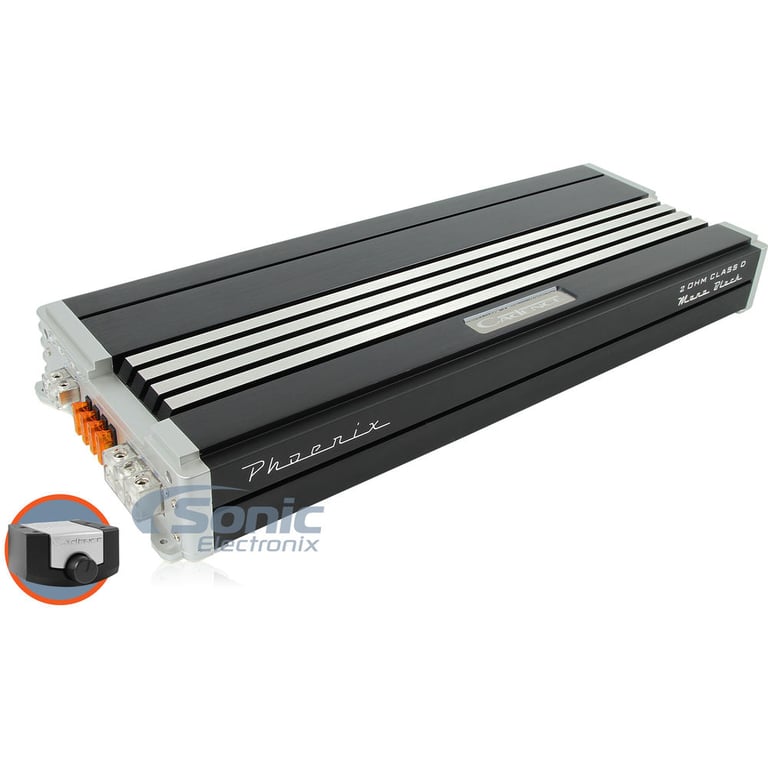

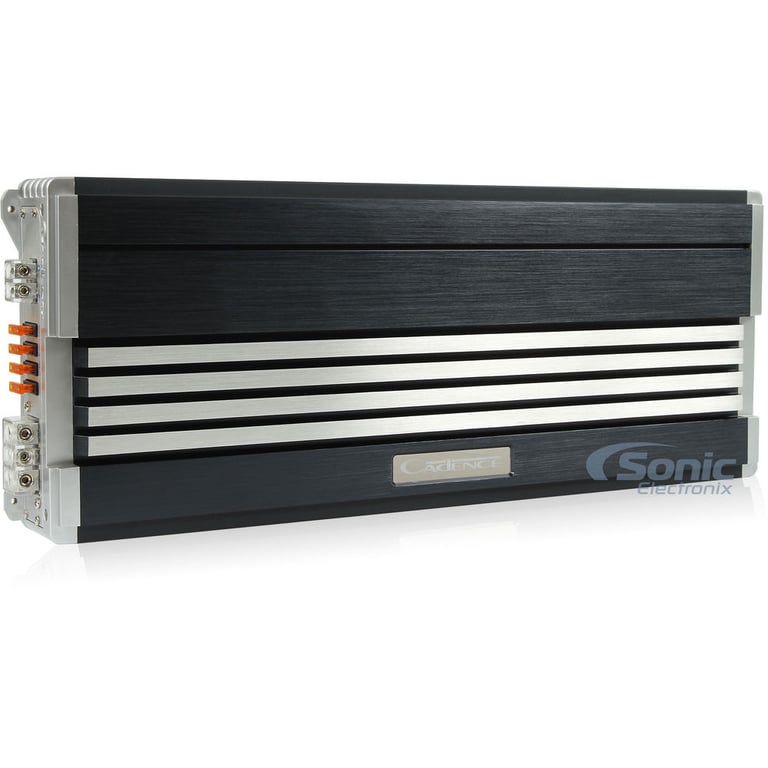

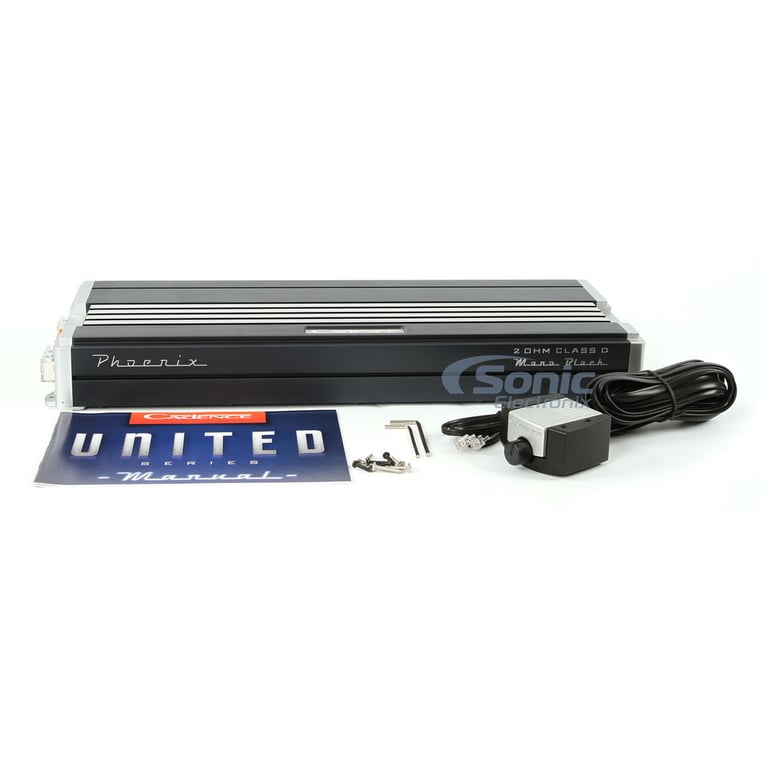

Cadence Phoenix

1200W RMS, United Series Class D Monoblock Car Amplifier

Cadence
Shop all Cadence
highlight-star-icon

United Series Monoblock Class D Car Amplifier • 800W RMS @ 4 ohm • 1200W RMS @ 2 ohm • Wired Bass Remote Included • Variable Low Crossover • RCA Preamp Line Output • Phase Control Switch • Variable Bass Boost • Exclusive "Peak Limiter Circuitry"

Learn more about the phoenix

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

82-7500 main

Metra 82-7500

5-1/4" - 6-1/2" Universal Speaker Adapter Brackets for select 1990-2013 vehicles from Honda, Acura, Mazda

9
-10.53%

$16.99

List price $18.99

70-1721 main

Metra 70-1721 Wiring Harness

Install a new car stereo in select 1998-2013 vehicles from Honda, Suzuki, Acura

27
HonK834 main

American International HONK834

Double DIN Stereo Dash Kit for select 2003-2011 Element

2
-55.91%

$14.99

List price $34.00

99-7863 main

Metra 99-7863 Dash Kit

Install a new Single-DIN car stereo in select 2003-2011 Element

2
-43.76%

$17.99

List price $31.99

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
H7652 main

Cerwin Vega H7652

640W Peak (120W RMS) 6.5" HED Series 2-Way Coaxial 4-ohm Speakers

31
-16.67%

$69.99

List price $83.99

BE7ACP.WXC main

Boss Elite BE7ACP.WXC

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto, and Backup Camera (SiriusXM and iDataLink Maestro Ready)

BE10ACP.X main

Boss Elite BE10ACP.X

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2

Description


Cadence brand icon

Authorized dealer

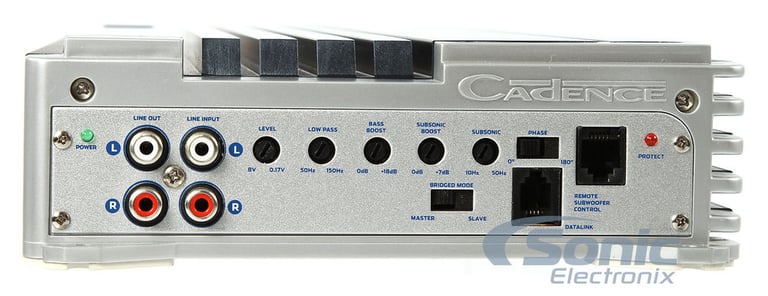

General Features

  • United Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 800 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
  • MOSFET high speed power supply

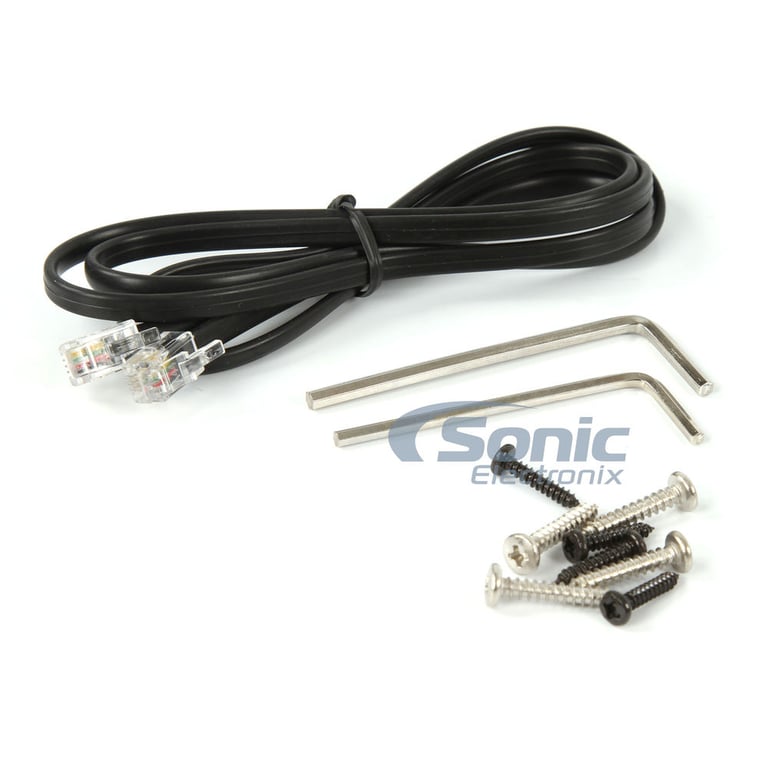

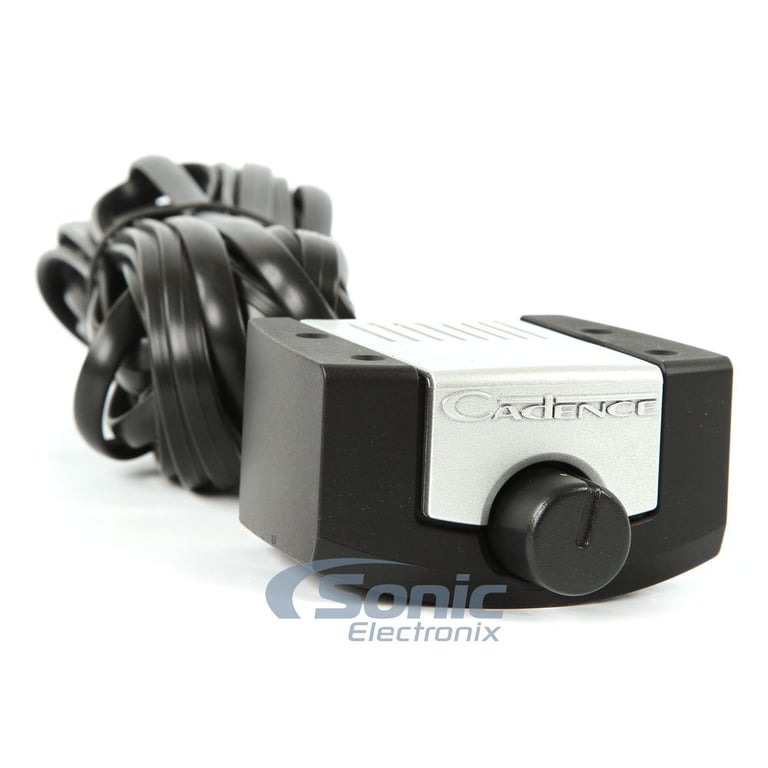

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable bass boost (0 to +18 dB)
  • Variable subsonic boost ( 0 to +7dB)
  • Soft start system with mute and delay features
  • Mono channel operation
  • Master/Slave amplifier daisy chain and bridging capability
  • RCA preamp line output
  • 4-Way System Protection circuitry
  • IC controlled Protection circuitry
  • Exclusive "Professional Peak Limiter Circuitry"
  • 8 Volt preamp circuitry
  • Bipolar studio-grade output stage transistors
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 170mV-8V
  • Variable low-pass filter (50-150 Hz, 12 dB/octave)
  • Variable subsonic filter (10-50 Hz)
  • Phase Shift: 0-180°
  • Damping factor: >220 @ 100 Hz
  • Frequency response: 10-500 Hz
  • Dimensions: 20"L x 7-1/4"W x 2-1/4"H

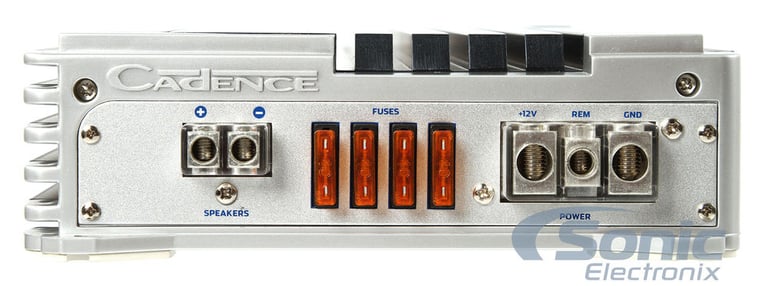

  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
800 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Series
United Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
12000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 4
Strappable
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Phoenix

Weight:

14.55lbs

Internal SKU:

phoenix

Internal Product ID:

38274

Customer Ratings & Reviews


Cadence Phoenix thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
5
Features
3.5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

better than i expected.

so.. we all know cadence use to be GREAT....but what about these new amps?

my alpine PDX 1.1000 (first gen) up and died on me for no reason...turned car off, working fine... an hour later got back in, no bass. internals look brand new, nothing blown..... no idea

anyway.... i only wanted about 800w rms....cheap amps might not give rated power..but i just something to give power to my 400 bucks worth of paper weights in the truck...till i get something nice

seen this for 180 bucks.....had to buy it.

but im getting the full 1200w RMS and then some....my 2 type Rs 1222ds hit WAY HARDER than my PDX did.

it gets the cones MOVING....the car vibrates more...everything

however... the remote gain knob is a little cheap...it works... but its cheap.

i question the life of this amp.... i may replace all the caps with quality ones (not sure if they have quality brands in their...but for 180 bucks, id say they arnt the best..havent took the amp apart yet)

like i said... this is a "temporary" replacement for my PDX 1.1000
1 year and 800ws is all i needed...but im 80% sure ill get more than that.

ive only owned it for 1 day.... but everything works as advertised...

im REALLY happy with this amp.

if it lives for years and years (like my eclipse 3640... built in the USA in 1999) i dont see a need to replace it.

GREAT punch.... just as good/better sound quality (the PDX rolled off HARD past 50 hertz..thats how they made them so small)

damn i really like this amp.

By kain on March 7, 2016 Checkmark Icon Verified purchase

1 found this helpful


Smooth Operator

this amp gives my Soundstream R3.12 a hell of a workout. It does seem to get a little warm at times but never overheats. I'm thinking about purchasing another one of these amps and a second sounstream R3.12. You can't beat the Cadence Phoenix performance to price ratio.

By God of Thunder on March 13, 2016 Checkmark Icon Verified purchase
