Audiobahn A4004V

800W Max, Intake Series 4-Channel Amplifier

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

Intake Series 4-Channel Amplifier • 100W x 4 chan. @ 2 Ohm • 200W x 2 chan. @ 4 Ohm bridged • preamp outputs • cooling fan • MOSFET power supply • built-in digital voltmeter

Learn more about the a4004v

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

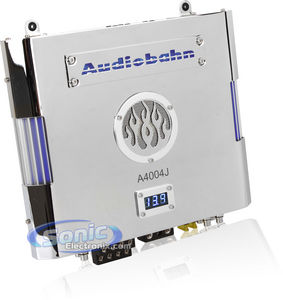

a4004j thumbnail

Audiobahn A4004J

OUR PRICE: $139.99

View item

Loading...
TERMINATOR6 main

MTX TERMINATOR6

180W Peak (90W RMS) 6.5" Terminator Series 2 Way Coaxial 4-ohm Speakers

2
-14.30%

$59.95

List price $69.95

Product Highlights


Intake Series 4-Channel Amplifier • 100W x 4 chan. @ 2 Ohm • 200W x 2 chan. @ 4 Ohm bridged • preamp outputs • cooling fan • MOSFET power supply • built-in digital voltmeter

Description


The new Intake series amplifiers are Audiobahn's latest line of full-throttle beauties. Each amp is equipped with an air induction cooling fan to keep the unit running cool for hours. New this year is the on-board, cobalt blue digital voltmeter display which adds more style to already fabulous looking amplifier. If you want to add even more control, an optional remote bass control and remote-mount volt-meter display module are available separately. As always, the Intake amplifiers provide both performance and customization to your sounds.

Key Features:

  • 800W Max , Intake Series 4-Channel Amplifier
  • RMS Power Output:
    • 50 watts x 4 chan. @ 4 ohm
    • 100 watts x 4 chan. @ 2 ohm
    • 200 watts x 2 chan. @ 4 ohm Bridged
  • Max Power Output: 800 watts @ 2 ohm
  • Class A/B MOSFET Circuitry
  • PWM MOSFET Power Supply
  • Non-regulated Power Supply
  • Semi-double Sided Glass Epoxy Circuit Board
  • 4-way Protection Circuitry: Thermal, Short Circuit, Overload and DC Offset
  • Air Induction Cooling Fan
  • Soft Start Circuitry
  • Cobalt Blue Illumination
  • Speaker level (high-level) inputs
  • Preamp outputs
  • Nickel-Plated Block Terminals
  • Bass Boost Control: On/Off (0 or +18dB)
  • Optional Remote Bass Control (Audiobahn ABR100T VERSION 2 sold separately)
  • Digital volt-meter display on amplifier and the ability to have an optional Remote-mount Digital Volt-meter display (Audiobahn ADM100T VERSION 2 sold separately)
  • Variable Low-Pass Crossover: 50-120Hz
  • Variable High-Pass Crossover: 50-750Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 10Hz-40kHz
  • Variable Subsonic Filter: 20-50Hz
  • THD: 0.02%
  • Input Sensitivity: 200mV-8V
  • Dimensions: 9-1/8"L x 11-1/16"W x 2-1/8"H
  • 8- or 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 1-year SonicElectronix.com warranty

Product history:

Audiobahn A4004J thumbnail
(newest, current model)
Audiobahn A4004V thumbnail
(previous model, replaced by Audiobahn A4004J)
Audiobahn A4004T thumbnail
(previous model, replaced by Audiobahn A4004V)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
400 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
50 - 120 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
On/Off Switch (0 or +18dB)
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
20A x 2

Item Details


Manufacturer:

Model Number:

A4004V

Weight:

12.00lbs

Internal SKU:

a4004v

Internal Product ID:

6771

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn A4004V thumbnail image

5 star
50%
4 star
0%
3 star
50%
2 star
0%
1 star
0%



Durability
4
Value
4.5
Features
4
Design
5
Usability
4

Customer Reviews

Sort by:

Loading...

Decent Amp

Reasonable amp. It looks cool. Performance is decent, nothing amazing but not poor. The sound quality is quite nice.

Some quality control issues. My gain knobs did not work properly. There was no stopper on either so they spun around to infinity...

That is definitely a little iffy. But decent for the price.

By Mark on October 11, 2007

4 found this helpful


Awesome amp

Just got this a few months ago, and I'm impressed! The sound quality compared to just my deck's internal amp is perfect. I have this bad boy pushing Pioneer TS-616's in the front, and TS-A6995's (yeah yeah, old school) in the back. I love it, it's also such a clean look with my other amp.

By Ray on July 12, 2007

2 found this helpful
