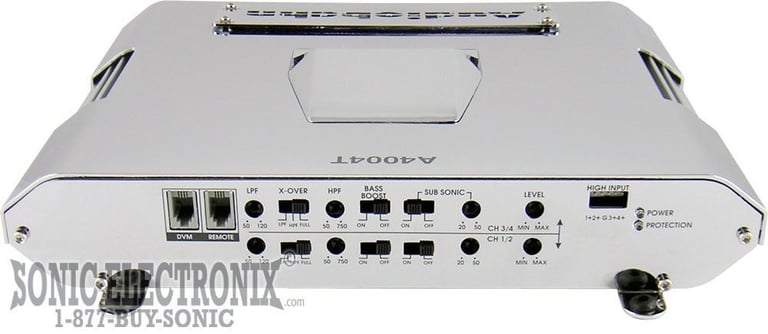

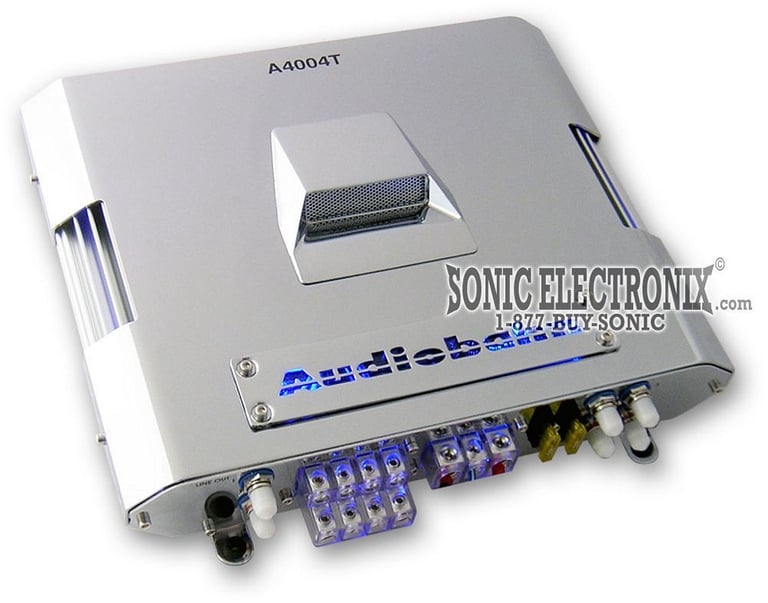

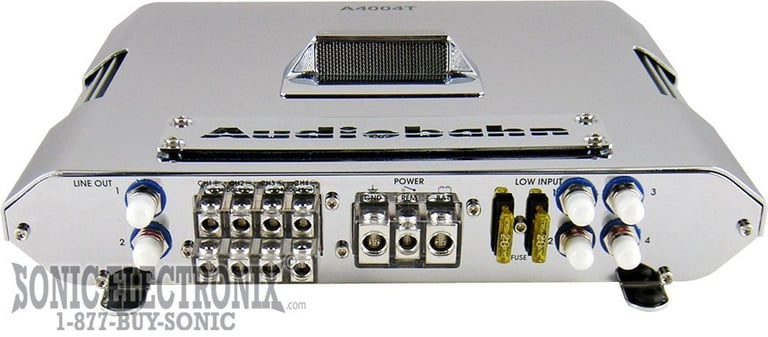

Audiobahn A4004T

800W Max, 4-Channel Intake Series Amplifier

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

800W Max, Intake 4-Channel Amplifier • Optional bass remote and digital volt-meter display available and sold separately • Class A/B • 400W RMS @ 2 ohm • 200W RMS @ 4 ohm • Preamp outputs • Cobalt Blue Illumination • Intake cooling fan • 4-way protection circuitry

Learn more about the a4004t

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

a4004j thumbnail

Audiobahn A4004J

OUR PRICE: $139.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-7400 main

Metra 82-7400

Speaker Adapter for select 2000-2024 vehicles from Nissan, Audi, Mazda

5
-10.00%

$26.99

List price $29.99

72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

JBL Stage3 627F (STAGE3627FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 2-way Coaxial 3-ohm Speakers

3
-20.01%

$79.95

List price $99.95

Product Highlights


800W Max, Intake 4-Channel Amplifier • Optional bass remote and digital volt-meter display available and sold separately • Class A/B • 400W RMS @ 2 ohm • 200W RMS @ 4 ohm • Preamp outputs • Cobalt Blue Illumination • Intake cooling fan • 4-way protection circuitry

Description


The new Intake series amplifiers are Audiobahn's newest line of full-throttle beauties. Each amp is equipped with an air induction cooling fan to keep the unit running cool for hours. Combined with optional accessories such as a digital voltmeter and remote bass control, the Intake amplifiers provide both performance and customization to your sounds.

Key Features:

  • 800W Max, Intake Series 2-Channel Amplifier
  • RMS Power Output:
    • 50 watts x 4 chan. @ 4 ohm
    • 100 watts x 4 chan. @ 2 ohm
    • 200 watts x 2 chan. @ 4 ohm Bridged
  • Max Power Output: 800 watts @ 2 ohm
  • Class A/B MOSFET Circuitry
  • PWM MOSFET Power Supply
  • Semi-double Sided Glass Epoxy Circuit Board
  • 4-way Protection Circuitry: Thermal, Short Circuit, Overload and DC Offset
  • Air Induction Cooling Fan
  • Cobalt Blue Illumination
  • Speaker level (high-level) inputs
  • Preamp outputs
  • Nickel-Plated Block Terminals
  • Optional Remote Bass Control (Audiobahn ABR100T sold separately)
  • Optional Remote-mount Digital Volt-meter display (Audiobahn ADM100T sold separately)
  • Variable Bass Boost Control: 0-18dB @ 45Hz
  • Variable Low-Pass Crossover: 50-120Hz
  • Variable High-Pass Crossover: 50-750Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 10Hz-40kHz
  • Variable Subsonic Filter: 20-50Hz
  • THD: 0.02%
  • Phase Control: 0 or 180°
  • Input Sensitivity: 200mV-8V
  • Dimensions: 9-1/8"L x 11-1/16"W x 1-7/8"H
  • 8- or 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 1-year SonicElectronix.com warranty

Product history:

Audiobahn A4004J thumbnail
(newest, current model)
Audiobahn A4004V thumbnail
(previous model, replaced by Audiobahn A4004J)
Audiobahn A4004T thumbnail
(previous model, replaced by Audiobahn A4004V)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

GM-DX874 small

Pioneer GM-DX874

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable 4-Channel Amplifier

(14)

$220.00

List price $300.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
400 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
50 - 120 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
On/Off Switch (0 or +18dB)
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
20A x 2

Item Details


Manufacturer:

Model Number:

A4004T

Weight:

12.00lbs

Internal SKU:

a4004t

Internal Product ID:

1482
