MB Quart OA240.2

240W Max 2-Channel Onyx Series Stereo/Bridgeable Power Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• 60W x 2 Chan. @ 4 ohm
• 120W x 2 Chan. @ 2 ohm
• 240W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• FLUID-FETS Circuit for Smooth Sound Quality

Learn more about the oa2402

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Product Highlights


• 60W x 2 Chan. @ 4 ohm
• 120W x 2 Chan. @ 2 ohm
• 240W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• FLUID-FETS Circuit for Smooth Sound Quality

Description


MB Quart brand icon

Authorized dealer

Onyx Amplifiers

MB Quart Onyx Q-Stasis

Q-Stasis Pre-Amp Stage

MB Quart has always been an amplifier brand that's been attributed with quality audio. Onyx amplifiers, although priced for a more competitive market, still retain this quality. Onyx amps are an exceptional first step in putting together your car audio system. They're high powered amplifiers that use quality components to ensure that they sound great.

The 2013 Onyx amplifiers use a Q-Statis pre-amplifier stage. This addition is designed to keep incoming noise from source units at nearly immeasurable levels, improving sound quality. MB Quart also incorporates more new technology on the amplifiers with their new Fluid-Fets output devices. These are able to efficiently produce power and mimic the sound quality of high end home amplifiers.



MB Quart Onyx MOSFETS

On-Board Equalization

The multi-channel amplifiers are equipped with Class SQ topology. This circuitry, when matched alongside the Q-Stasis preamp stage is capable of outperforming standard Class A/B amplifiers in sonic accuracy and clarity.

MB Quart multi-channel amplifiers are an exceptional choice when building out your next car audio system. These amps sound great, perform just as well, and even look extremely stylish. Their black finish and illuminating logo help them look awesome when running in your vehicle. Pick yours up today!



General Features:

  • Onyx Series 2-Channel Class SQ Car Amplifier
  • Max Power Rating:
    • 4 ohm: 60 watts x 2 chan.
    • 2 ohm: 120 watts x 2 chan.
    • Bridged, 4 ohm: 240 watts x 1 chan.
  • FLUID-FETS MOSFET Circuit maximizing power efficiency while improving sound quality
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost)
  • Built-in system diagnostics
  • 2/1 Channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

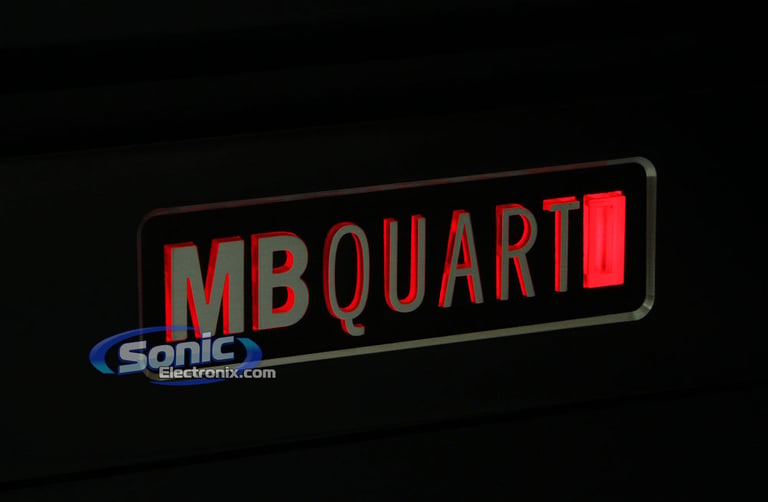

  • Heavy duty Black Onyx aluminum alloy heat-sink with illuminated MB Quart design
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (10-1,200 Hz 24 dB/octave)
  • Variable low-pass filter (30-150 Hz 24 dB/octave)
  • Frequency response: 10-45,000 Hz
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-7/16"W x 6-5/16"D x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

Specifications & Details


Amplifier Specifications
Series
ONYX Series
Amplifier Class
SQ
Number of Channels
2-Channel
Total Peak Power Output
240 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
10 - 1200 Hz
Signal-to-Noise Ratio
92 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
20A x 1
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

OA240.2

Weight:

5.00lbs

Internal SKU:

oa2402

Internal Product ID:

67850

Product and How-to Videos


  • MB Quart Onyx Amplifiers | New for 2013 OA Series
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


MB Quart OA240.2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great value and price.

I am using this amp to drive a 500w max Pioneer car-use component subwoofer. It sounds great and we were able to mount it behind a cargo area panel in my Chevy Tahoe.

By Mark on April 13, 2014

21 found this helpful
