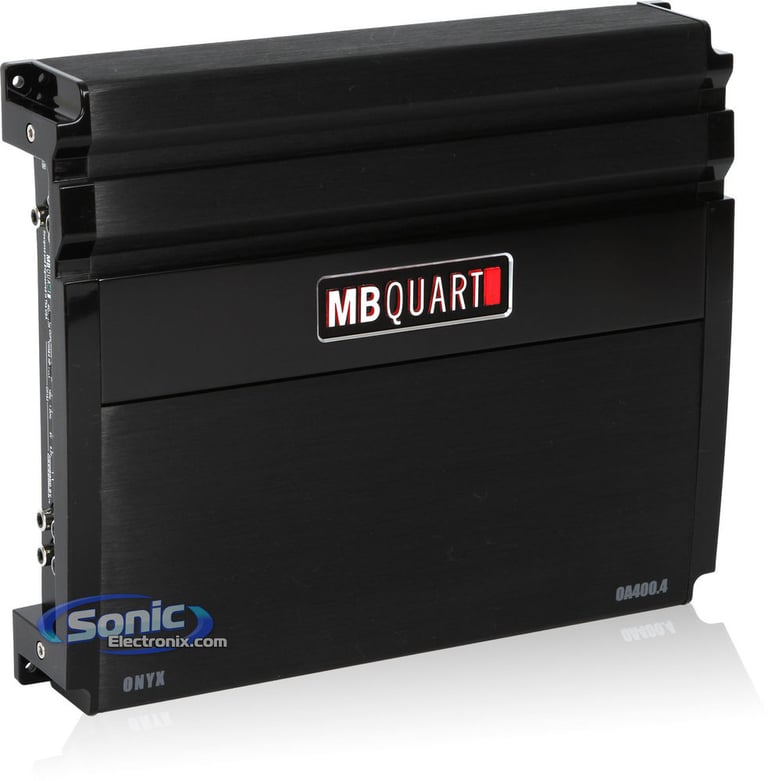

MB Quart OA400.4

400W 4-Channel Onyx Series Full Range Bridgeable Power Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• 50W x 4-Chan. @ 4 ohm
• 100W x 4-Chan. @ 2 ohm
• 200W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• FLUID-FETS Circuit for Smooth Sound Quality

Learn more about the oa4004

We apologize

This item has been discontinued


Loading...
DCPA1013 main

Dual DCPA1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

5
-16.67%

$319.99

List price $383.99

Product Highlights


• 50W x 4-Chan. @ 4 ohm
• 100W x 4-Chan. @ 2 ohm
• 200W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• FLUID-FETS Circuit for Smooth Sound Quality

Description


MB Quart brand icon

Authorized dealer

Onyx Amplifiers

MB Quart Onyx Q-Stasis

Q-Stasis Pre-Amp Stage

MB Quart has always been an amplifier brand that's been attributed with quality audio. Onyx amplifiers, although priced for a more competitive market, still retain this quality. Onyx amps are an exceptional first step in putting together your car audio system. They're high powered amplifiers that use quality components to ensure that they sound great.

The 2013 Onyx amplifiers use a Q-Statis pre-amplifier stage. This addition is designed to keep incoming noise from source units at nearly immeasurable levels, improving sound quality. MB Quart also incorporates more new technology on the amplifiers with their new Fluid-Fets output devices. These are able to efficiently produce power and mimic the sound quality of high end home amplifiers.



MB Quart Onyx MOSFETS

On-Board Equalization

The multi-channel amplifiers are equipped with Class SQ topology. This circuitry, when matched alongside the Q-Stasis preamp stage is capable of outperforming standard Class A/B amplifiers in sonic accuracy and clarity.

MB Quart multi-channel amplifiers are an exceptional choice when building out your next car audio system. These amps sound great, perform just as well, and even look extremely stylish. Their black finish and illuminating logo help them look awesome when running in your vehicle. Pick yours up today!



General Features:

  • Onyx Series 4-Channel Class SQ Car Amplifier
  • Max Power Rating:
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • FLUID-FETS MOSFET Circuit maximizing power efficiency while improving sound quality
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +9 dB bass boost)
  • Built-in system diagnostics
  • 4/3/2/1 Channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

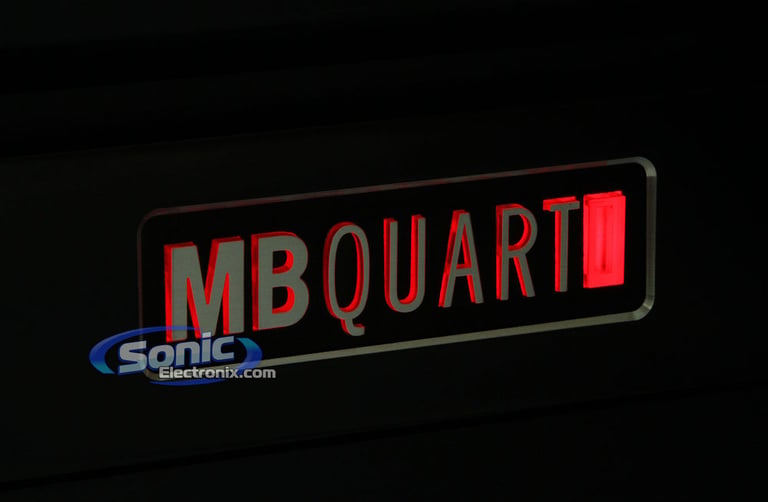

  • Heavy duty Black Onyx aluminum alloy heat-sink with illuminated MB Quart design
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (10-1,200 Hz 24 dB/octave)
  • Variable low-pass filter (30-150 Hz 24 dB/octave)
  • Frequency response: 10-45,000 Hz
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-7/16"W x 10-1/4"L x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Amplifier Specifications
Series
ONYX Series
Amplifier Class
SQ
Number of Channels
4-Channel
Total Peak Power Output
400 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
10 - 1200 Hz
Low-Pass Crossover Frequency
30 - 150 Hz
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
20A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

OA400.4

Weight:

7.50lbs

Internal SKU:

oa4004

Internal Product ID:

67851

Product and How-to Videos


  • MB Quart Onyx Amplifiers | New for 2013 OA Series
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


MB Quart OA400.4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Very Good Amp for the price!!!

Good Sound Quality! No Complaints!!! I have that to drive the Infiniti component speakers, it works GREAT!!!

By James on October 13, 2013

15 found this helpful


Amazing Amp

Great amp for the price. Very good sound quality as well. Only issue I have is that it runs a touch on the warm side but this is normal for A/B amps as they are almost always running a full power.

By Kent on February 22, 2014

14 found this helpful


great value

i love this amp; it looks good, doesnt overheat, didnt break the bank, and has a consistent output. exactly what i expected from MB Quart, keep it up!

By Joe on January 17, 2014

10 found this helpful
