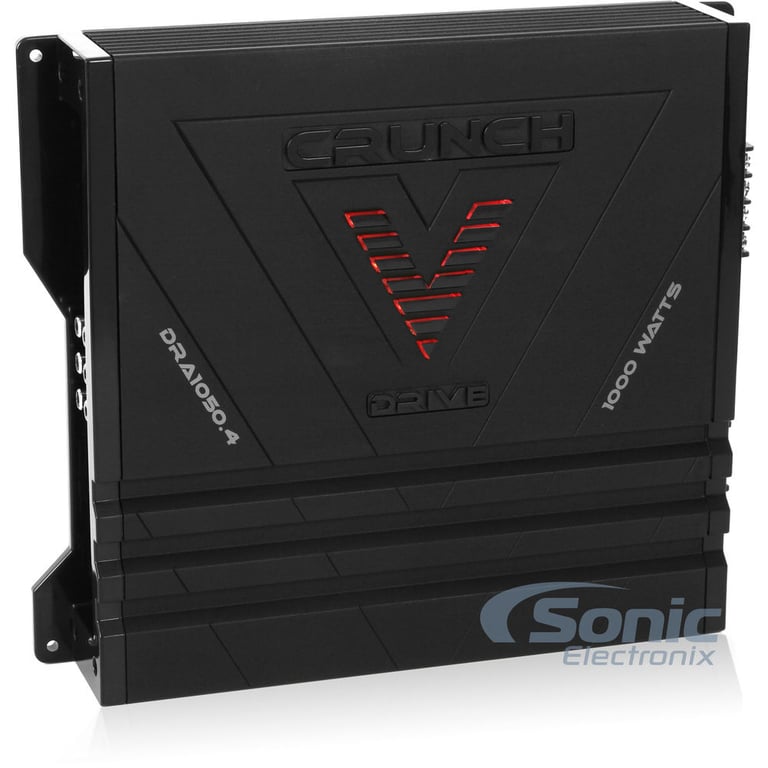

Crunch DRA1050.4

1000W V-Drive Series 4-Channel Class AB Car Amplifier

Crunch
Shop all Crunch
Product videos
highlight-star-icon

• 1000 Watts Max
• 250 Watts x 4-Chan. @ 2 Ohm
• 3-Way System Protection
• Selectable Highpass/Lowpass Filters

Learn more about the dra10504

We apologize

This item has been discontinued


Loading...
40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

95-2009 main

Metra 95-2009 Dash Kit

Install a new Double-DIN car stereo in select 1990-2012 vehicles from Chevrolet, GMC, Buick (Black)

26
-42.32%

$14.99

List price $25.99

70-2003 main

Metra 70-2003 Wiring Harness

Install a new car stereo in select 1998-2008 vehicles from Chevrolet, GMC, Kia

33
GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-31.25%

$54.99

List price $79.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

30

Product Highlights


• 1000 Watts Max
• 250 Watts x 4-Chan. @ 2 Ohm
• 3-Way System Protection
• Selectable Highpass/Lowpass Filters

Description


Crunch brand icon

Authorized dealer



  • V-Drive Series 4-Channel Class A/B Car Amplifier
  • Max Power Rating:
    • 4 ohm: 125 watts x 4 chan.
    • 2 ohm: 250 watts x 4 chan.
    • Bridged, 4 ohm: 500 watts x 2 chan.
  • SPEED-FETS, High Speed Pulse Width Modulated MOSFET power supply
  • V-Drive 3P Power supply with Twin-Coil Isolation Design (TCID) power supplies for maximum efficiency in converting 12volt power into huge watts through the amplifiers
  • Exponential variable-power supply (EXVP) for efficient DC to AC conversion
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 4/3/2/1 channel operation
  • Illuminated badge and heatsink
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals

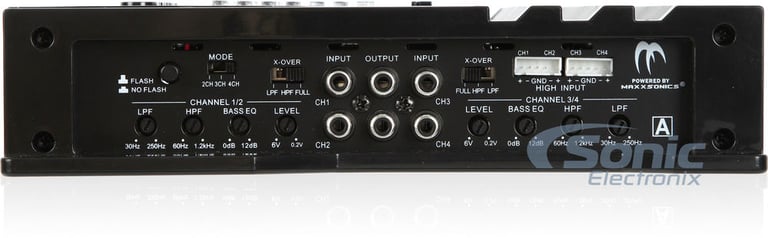

  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (60-12,000 Hz)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Damping factor: >180
  • Frequency response: 10-45,000 Hz
  • Dimensions: 11"L x 9-1/2"W x 2-1/8"H

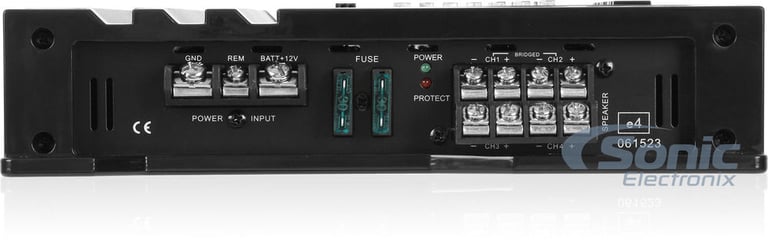

  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
125 watts x 4 channel
RMS Power @ 2 ohms
250 watts x 4 channel
RMS Power @ 1 ohm
500 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DRA1050.4

Weight:

6.60lbs

Internal SKU:

dra10504

Internal Product ID:

67957

Product and How-to Videos


  • Crunch V-Drive Ground Pounder Car Amplifier | Maxxsonics @ CES 2013
  • How To Install an Amplifier: Car Amplifier Basics Part 2
