Name: Crunch DRA1850.1D Open Box Complete
Brand: Crunch
SKU: ls-dra18501d-obc6
Price: 61.99 USD
Availability: Discontinued

by Crunch

About
Specs & Details
Reviews
Add-ons
Related Searches

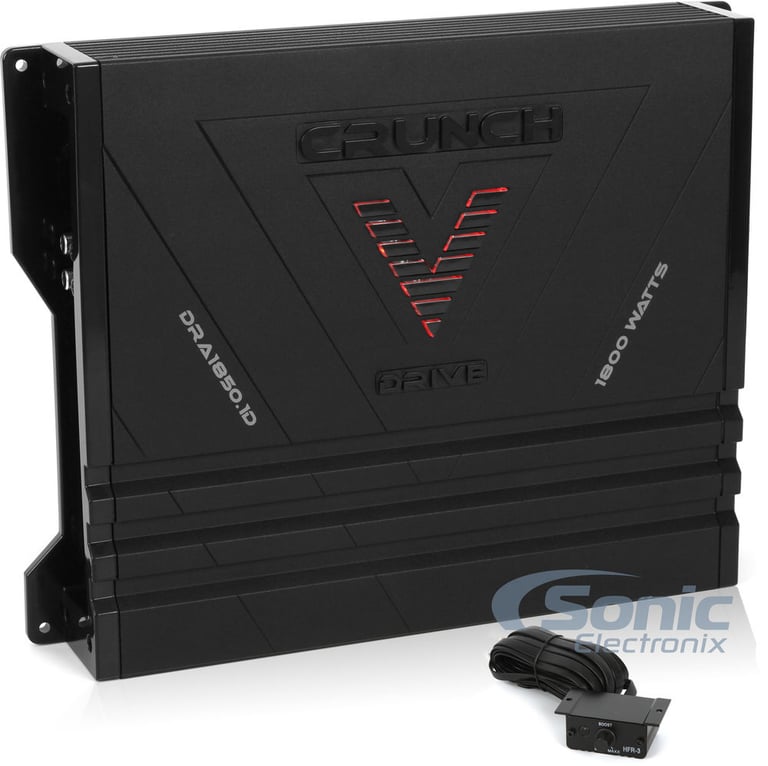

Crunch DRA1850.1D Open Box Complete Image 1 — Crunch DRA1850.1D Open Box Complete

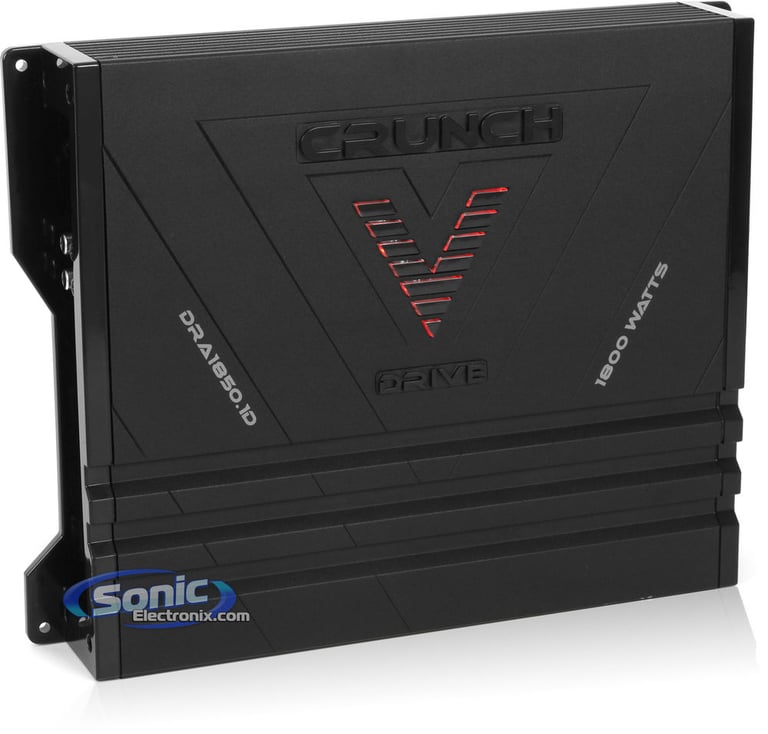

Crunch DRA1850.1D Open Box Complete Image 2 — Crunch DRA1850.1D Open Box Complete

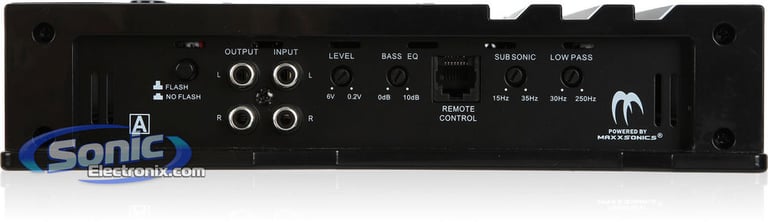

Crunch DRA1850.1D Open Box Complete Image 3 — Crunch DRA1850.1D Open Box Complete

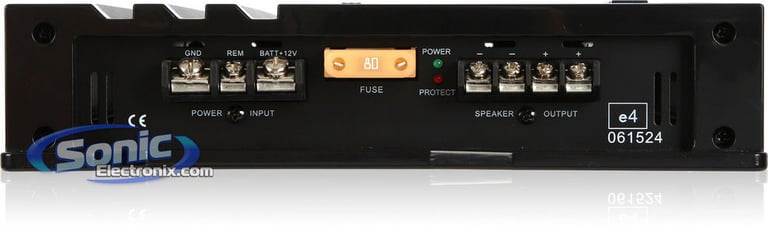

Crunch DRA1850.1D Open Box Complete Image 4 — Crunch DRA1850.1D Open Box Complete

Crunch DRA1850.1D Open Box Complete Image 5 — Crunch DRA1850.1D Open Box Complete

Crunch DRA1850.1D Open Box Complete Image 6 — Crunch DRA1850.1D Open Box Complete

Product highlights

• Item Condition: Open Box Complete
• Peak: 450W x 1 @ 4 ohm, 900W x 1 @ 2 ohm, 1800W x 1 @ 1 ohm
• Total Peak Power: 1800W
• Wired Bass Level Remote
• Bass Boost: 0-10 dB
• Illuminated Badge and Heatsink
• Dimensions: 12-3/16"L x 9-1/2"W x 2-1/8"H

Learn more about the ls-dra18501d-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

A part that is fully functional but shows no sign of use outside of installation.

V-Drive Series Single Channel Monoblock Class D Car Amplifier
RMS Power Rating:
- 4 ohm: 450 watts x 1 chan.
- 2 ohm: 900 watts x 1 chan.
Peak Power at 1 ohm: 1800 watts x 1 chan.

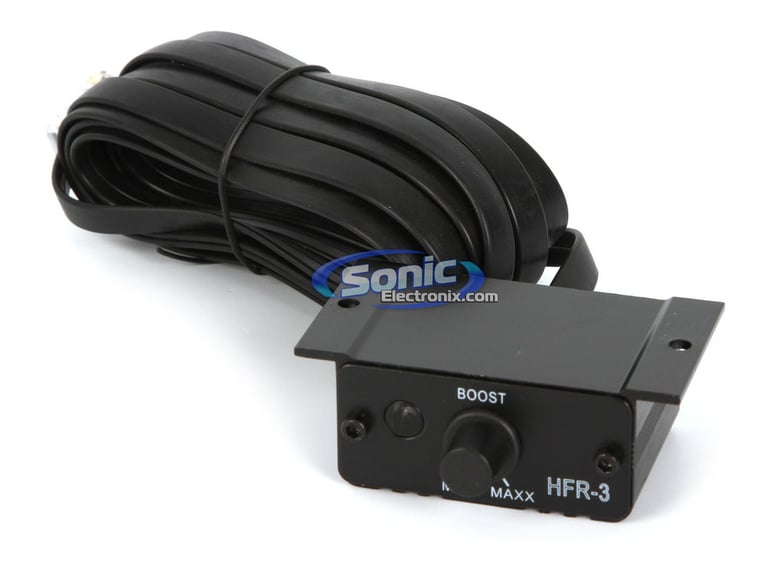

Wired bass level remote included
SPEED-FETS, High Speed Pulse Width Modulated MOSFET power supply
V-Drive 3P Power supply with Twin-Coil Isolation Design (TCID) power supplies for maximum efficiency in converting 12volt power into huge watts through the amplifiers
Exponential variable-power supply (EXVP) for efficient DC to AC conversion
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
Soft Start Turn-on
1 channel operation
Illuminated badge and heatsink
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Silver-plated RCA level inputs
Silver-plated screw terminals
Input sensitivity:
- Level: 200mV-6V
Variable low-pass filter (30-250 Hz, 24 dB/octave)
Variable subsonic filter (15-30 Hz)
Damping factor: >200
Frequency response: 15-250 Hz
Dimensions: 12-3/16"L x 9-1/2"W x 2-1/8"H
1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

450 watts x 1 channel

RMS Power @ 2 ohms

900 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

1800 watts

Total RMS Power Output

900 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.10%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

30 - 250 Hz

Subsonic Filter

15 - 30 Hz

Signal-to-Noise Ratio

95 dB

Bass Boost

0 - 10 dB

Remote bass/level controller

Yes

Fuse Rating

80A x 1

Strappable

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
