Name: Autotek AXL3050.2 (Factory Refurbished)
Brand: Autotek
SKU: LS-axl30502-RB
Price: 84.99 USD
Availability: Discontinued

by Autotek

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

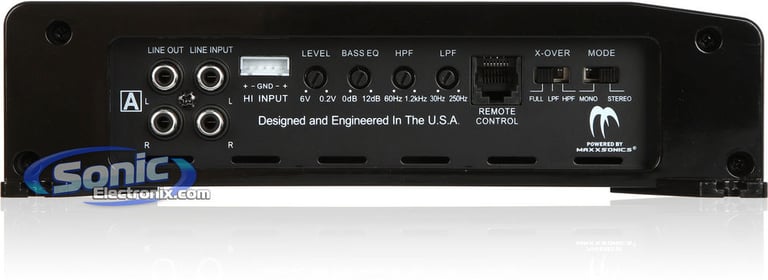

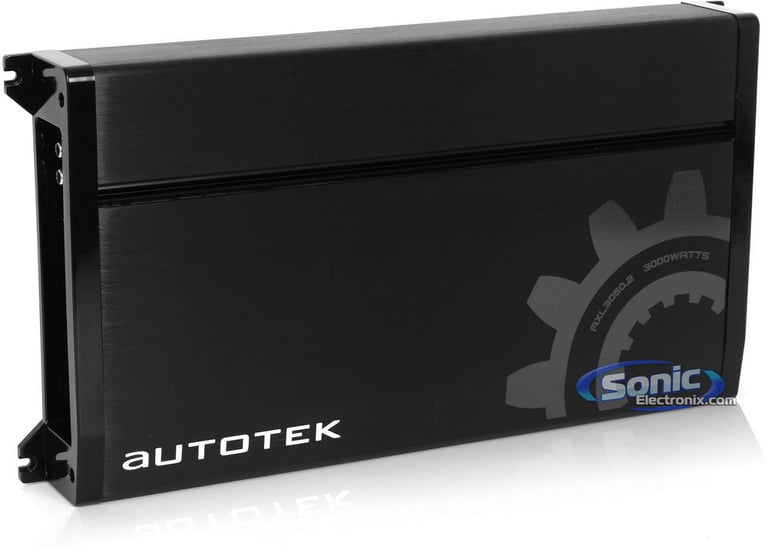

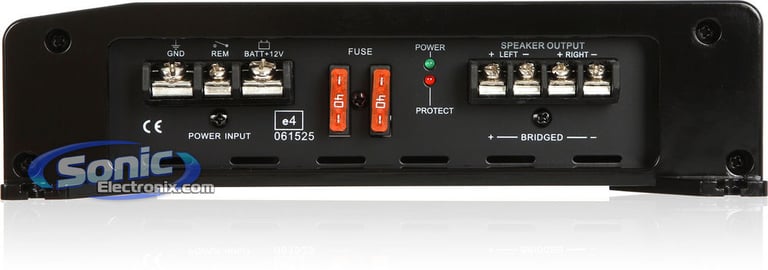

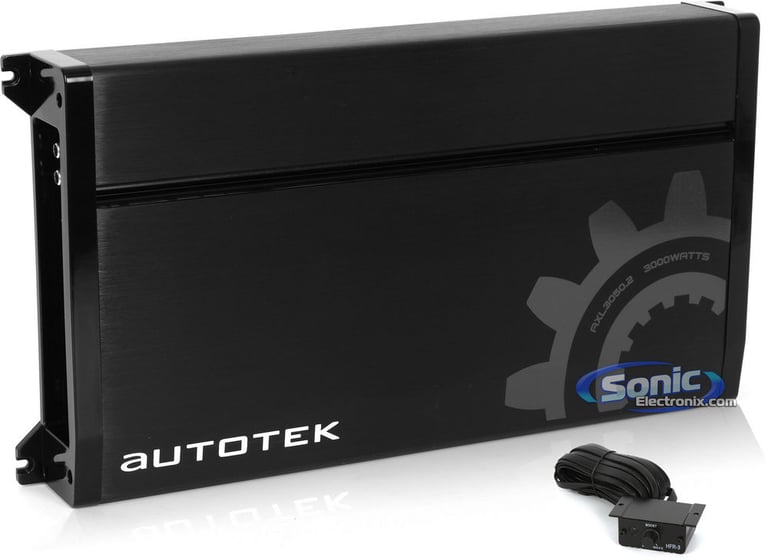

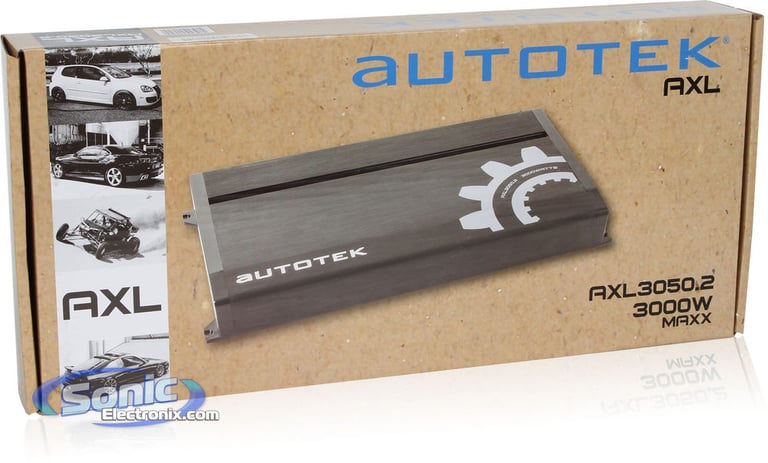

Autotek AXL3050.2 (Factory Refurbished) Image 1 — Autotek AXL3050.2 (Factory Refurbished)

Autotek AXL3050.2 (Factory Refurbished) Image 2 — Autotek AXL3050.2 (Factory Refurbished)

Autotek AXL3050.2 (Factory Refurbished) Image 3 — Autotek AXL3050.2 (Factory Refurbished)

Autotek AXL3050.2 (Factory Refurbished) Image 4 — Autotek AXL3050.2 (Factory Refurbished)

Autotek AXL3050.2 (Factory Refurbished) Image 5 — Autotek AXL3050.2 (Factory Refurbished)

Autotek AXL3050.2 (Factory Refurbished) Image 6 — Autotek AXL3050.2 (Factory Refurbished)

Autotek AXL3050.2 (Factory Refurbished)-video

Product videos

Product highlights

• 750W x 2 Chan. @ 4 ohm
• 1500W x 2 Chan. @ 2 ohm
• 3000W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 1/0 Gauge Power and Ground Inputs
• Illuminated Logo for Stylish and Unique Design

Learn more about the LS-axl30502-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

General Features:

AXL Series 2-Channel Class AB Car Amplifier
Max Power Rating:

4 ohm: 750 watts x 2 chan.
2 ohm: 1500 watts x 2 chan.
Bridged, 4 ohm: 3000 watts x 1 chan.

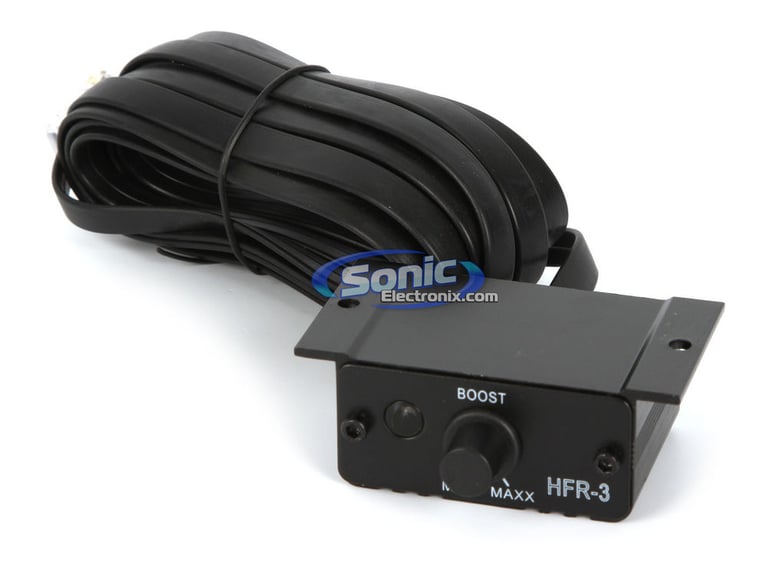

Wired bass level remote control included
Dual blue optic illumination AXL custom gear graphics
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
Soft start turn-on
2 or Mono channel operation
Speaker-level (high-level) inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
4-way protection circuitry (thermal, overload, and speaker short protection, DC)
Heavy duty aluminum alloy heat-sink
Input sensitivity:

Level: 200mV-5V

Variable high-pass filter (60-12,000 Hz)
Variable low-pass filter (30-250 Hz)
Damping factor: >180
Frequency response: 10-45,000 Hz
4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 9-1/16"W x 17-1/8"D x 2-5/16"H
Authorized Internet Dealer
90-day Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

750 watts x 2 channel

RMS Power @ 2 ohms

1500 watts x 2 channel

Bridged RMS Power

3000 watts x 1 channel

Amplifier Specifications

Series

AXL Series

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

3000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

60 - 1200 Hz

Low-Pass Crossover Frequency

30 - 250 Hz

Signal-to-Noise Ratio

90 dB

Channel Separation

80 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

40A x 2

Strappable

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
