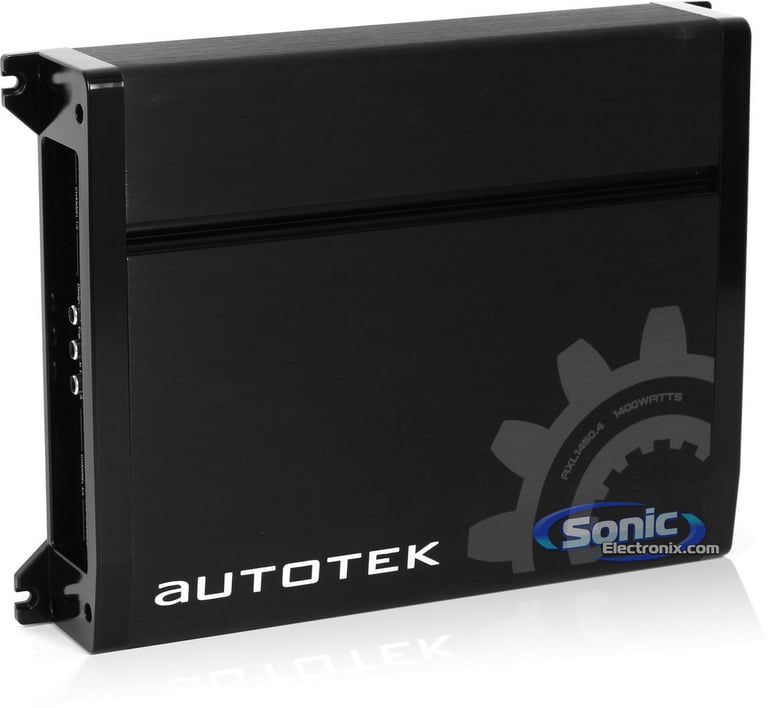

Autotek AXL1450.4

1400W 4-Channel AXL Series Class AB Car Amplifier

Autotek
Shop all Autotek
Product videos
highlight-star-icon

• 150W x 4-Chan. @ 4 ohm
• 350W x 4-Chan. @ 2 ohm
• 700W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2 Channel Operation
• 2 Gauge Power and Ground Inputs
• Illuminated Logo for Stylish and Unique Design

Learn more about the axl14504

We apologize

This item has been discontinued


Loading...
SAVW6 main

Scosche SAVW6

Speaker Adapters for select 1998-2018 vehicles from Volkswagen, Audi

4
72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
Limited time!
CS-DF620 main

JVC CS-DF620

600W Peak (50W RMS) 6.5" DRVN DF Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

4
-39.08%

$38.99

List price $64.00

Limited time!
KFC-1366S main

Kenwood KFC-1366S

520W Peak (60W RMS) 5.25" Sport Series 2 Way Coaxial 4-ohm Car Speakers

3
-38.75%

$49.00

List price $80.00

C1-075ct main

JL Audio C1-075ct

50W RMS 0.75" C1 Series 8-ohm Component Dome Tweeters

5
PR753T main

Infinity Primus 753T (PR753T)

240W Peak (80W RMS) 3/4” Primus Series 3-ohm Edge-Driven Silk Dome Tweeters

1
-30.02%

$69.95

List price $99.95

Product Highlights


• 150W x 4-Chan. @ 4 ohm
• 350W x 4-Chan. @ 2 ohm
• 700W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2 Channel Operation
• 2 Gauge Power and Ground Inputs
• Illuminated Logo for Stylish and Unique Design

Description


Autotek brand icon

Authorized dealer

General Features:

  • AXL Series 4-Channel Class AB Car Amplifier
  • Max Power Rating:
    • 4 ohm: 175 watts x 4 chan.
    • 2 ohm: 350 watts x 4 chan.
    • Bridged, 4 ohm: 700 watts x 2 chan.
  • Wired bass level remote control included
  • Dual blue optic illumination AXL custom gear graphics
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-way protection circuitry (thermal, overload, and speaker short protection, DC)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Level: 200mV-5V
  • Variable high-pass filter (60-12,000 Hz)
  • Variable low-pass filter (30-250 Hz)
  • Damping factor: >180
  • Frequency response: 10-45,000 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-1/16"W x 12-7/16"D x 2-5/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

DS 1200X4 small

Taramps DS 1200X4

• 192 watts x 4 channel @ 4 ohm
• 300 watts x 4 channel @ 2 ohm
• Bridged: 600 watts x 2 channel @ 4 ohm
• Total RMS Power: 1200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(5)

$219.99

List price $258.00

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
175 watts x 4 channel
RMS Power @ 2 ohms
350 watts x 4 channel
Bridged RMS Power
700 watts x 2 channel
Amplifier Specifications
Series
AXL Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AXL1450.4

Weight:

7.10lbs

Internal SKU:

axl14504

Internal Product ID:

67970
