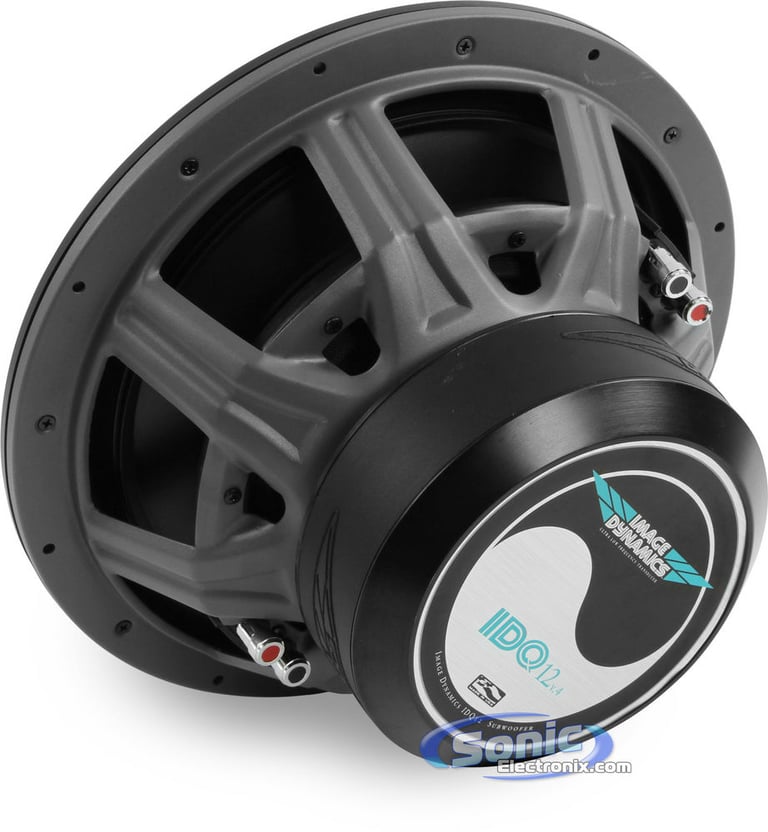

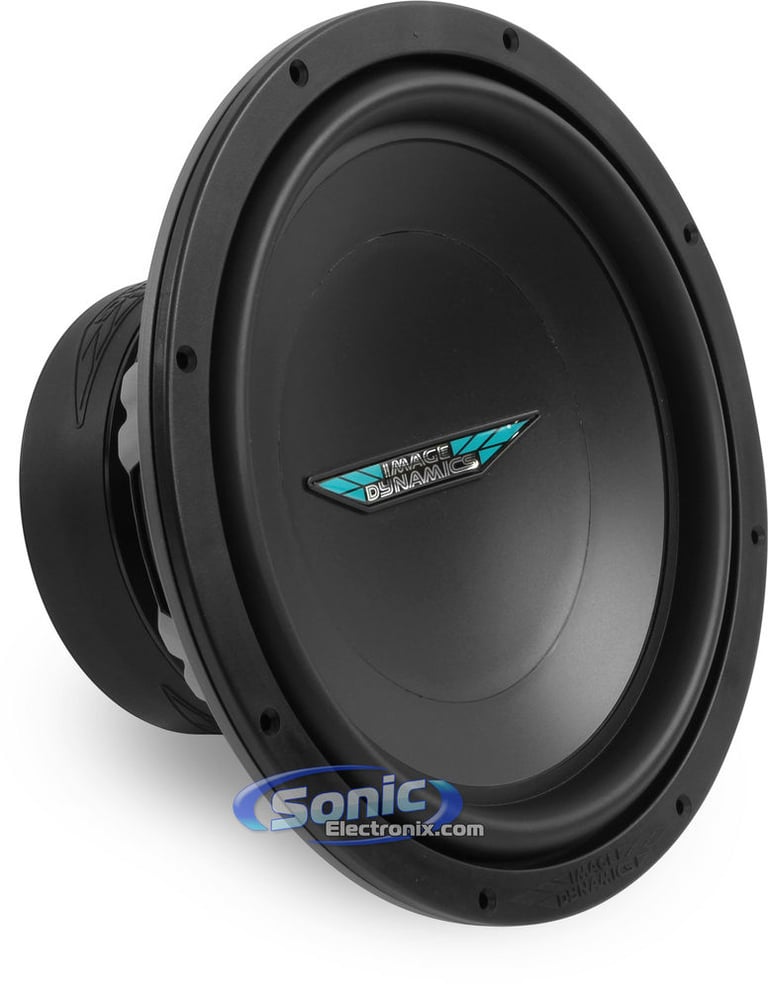

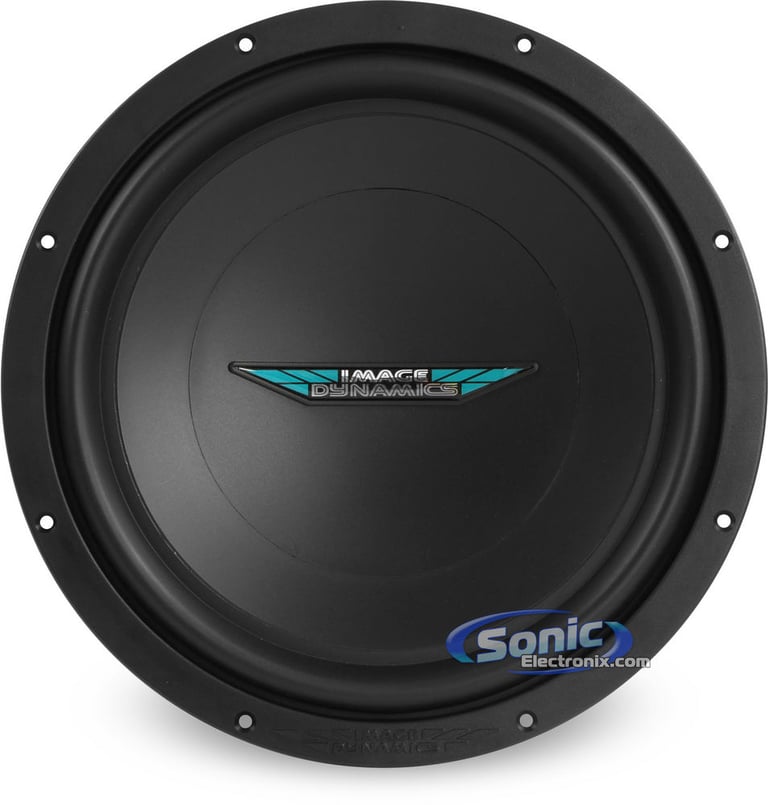

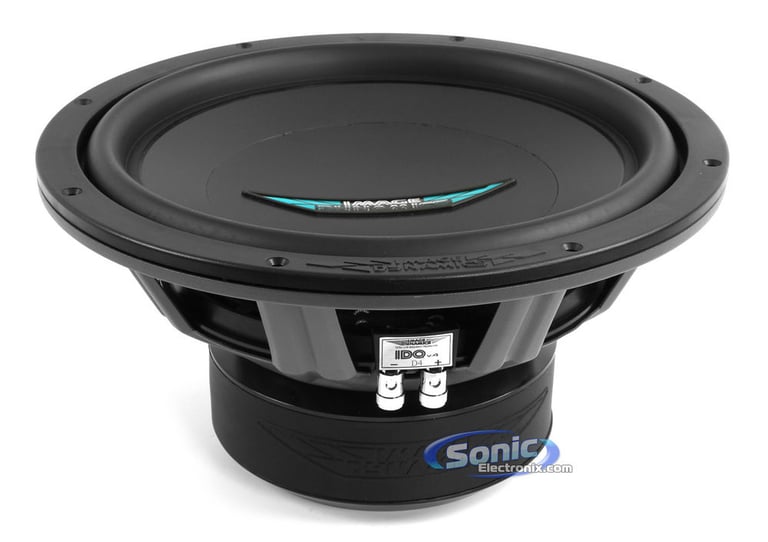

Image Dynamics IDQ12 D4 V.4

750W 12" IDQ V.4 Series Dual 4 ohm Subwoofer

Product videos
highlight-star-icon

• 750W RMS
• Mica-Reinforced Cone Woofer
• NBR Surround
• Conex Spider with Integrated Tinsel Leads
• Fiberglass Composite Basket

Learn more about the idq12d4v4

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

AXDI-FD1 main

Axxess AXDI-FD1

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2006-2022 vehicles from Ford, Lincoln, Mercury

-10.46%

$136.99

List price $152.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

11
-33.36%

$79.96

List price $119.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

Limited time!
DDX5707S main

Kenwood DDX5707S

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

5
-31.21%

$399.00

List price $580.00

Limited time!
KW-M590BT main

JVC KW-M590BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto

1
-32.58%

$269.00

List price $399.00

Limited time!
Kappa 683XF main

Infinity Kappa 683XF (INFSPKKA683XFAM)

600W Peak (200W RMS) 6x8" Kappa Series 2-Way Coaxial 3-ohm Car Speakers

3
-32.13%

$223.95

List price $329.95

Product Highlights


• 750W RMS
• Mica-Reinforced Cone Woofer
• NBR Surround
• Conex Spider with Integrated Tinsel Leads
• Fiberglass Composite Basket

Description


Image Dynamics brand icon

Authorized dealer



General Features:

  • 12" Dual 4 ohm IDQ V.4 Series Subwoofer
  • Power Handling:
    • RMS: 750 watts
  • Recommended Power Range: 50-750 watts
  • Mica-reinforced polypropylene cone woofer
  • Parabolic roll surround
  • Removable core assembly for easy and quick replacement
  • Ability to custom match the basket color to your personal installation
  • Conex spider with integrated tinsel leads
  • Fiberglass composite basket
  • High-temperature aluminum voice coil
  • Proprietary voice coil attachment design
  • Sensitivity: 87.22dB
  • Mounting depth: 5-13/16"
  • Cutout dimensions: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Also found as: IDQ12D2 V.4, IDQ12 D2 V.4, IDQ12 D2, IDQ12D2, IDQ12V.4 D2, IDQv4

Product history:

Image Dynamics IDQ12 D4 V.4 thumbnail
(newest, current model)
Image Dynamics IDQ12 V.3 D4 thumbnail
(previous model, replaced by Image Dynamics IDQ12 D4 V.4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Image Dynamics IDQ12 D4 V.4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Image Dynamics IDQ12 D4 V.4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Image Dynamics IDQ12 D4 V.4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Image Dynamics IDQ12 D4 V.4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

P3D4-12 small

Rockford Fosgate Punch P3 P3D4-12

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 6.66"
• Sensitivity: 85 dB

(134)

$229.99

List price $259.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$89.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

Specifications & Details


Subwoofer Specifications
Series
IDQ V.4 Series
Subwoofer Size
12"
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87.22 dB
Xmax (millimeters)
14.00 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.90 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5-13/16"
Cutout Diameter
11"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

IDQ12 D4 V.4

Weight:

23.50lbs

Internal SKU:

idq12d4v4

Internal Product ID:

68196

Product and How-to Videos


  • Image Dynamics IDQ Shallow Speakers | CES 2014
  • Image Dynamics IDQ v4 Car Subwoofer | CES 2013
  • Image Dynamics IDQ12 Subwoofer Bass Demo | IDQ12 in a Custom Ported box
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Image Dynamics IDQ12 D4 V.4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Why no reviews???

If you do any research on subs you MUST have seen all the forums recommending the idq subs! I put this in the free 1.75 ported box and it sounded pretty nice! Abut boomy but loud! I then put it in sealed 1 cube foot box and it really shines. Hands down the best clean sounding sub I've heard. This and the w6 from JL. I HAVE HAD W7's too. W6 hits lows a bit better in ported box so may be better for hip hop only but this is great for all around sound and wayyyyy cheaper. I like it so much I ordered a bigger amp and a second one w a new box. You won't be disappointed if you want amazing sound. Electronic and rock sound sickly nice with this sealed. It's loud ported also but the manual even says sealed is recommended. Man were they right.m!! My install guy was extremely impressed off only 500 Rms. Can't wait for 2 w 650 each!!!

By erik on April 4, 2016 Checkmark Icon Verified purchase

11 found this helpful


Best sq subwoofer

This sub gets loud and low hits fast and clean on every note

By jeremy on February 28, 2023 Checkmark Icon Verified purchase

10 found this helpful


Really nice subwoofer

I was running 2 10in JL subs in my Trailblazer, but they took up too much cargo space. I was looking for a smaller subwoofer package that way I can still throw baseball equipment back there and still have enough bass to suit my needs. This Image Dynamic IDQ12 fits this requirement perfectly, since it only needs a 1 cubic foot sealed enclosure to sound fantastic. This is a very accurate sub. It hits all of the notes in rock and country music, but will also hit the low notes in decaf music, whenever I get an itch to rattle everything in the truck. It’s only seeing 500rms from a Rockford Prime 500.1 and it gets the job done. Kudos to Image Dynamics and Sonic Electronix for delivering an awesome product.

By Mike on April 10, 2018

10 found this helpful


Excellent!

I orginally was looking into Rockford P3 and JL 3W subs, a quick internet search lead me to this subwoofer and almost every forum recommnded this sub over those. I was looking for something for sound quality (SQ) and not just output (SQL). This is the best sound quality sub I have ever heard in person, from Paul Oakenfold, Rage against the machine to Selena Gomez, this sub can hit mids and lows like no other. Has excellent response and is ready for anything. Turn up the volume and it rattles my car apart. It does both SQ and SQL easily. Excellent sub!

By Thomas on March 12, 2018

10 found this helpful


Best SQ Sub on the Market

I've had this sub for over 2 months now, so it is well broken in and I can give a more honest review of it. Sub is well made, has a good heft to it, and the spring connectors hold the wires very secure.

I initially had this installed in a 1 ft^3 sealed box, but my SUV has too much volume for that so it's now in a 1.8 ft^3 box (as recommended by Image Dynamics rep). Running it at 515 Watts RMS, and it wants more power.

This sub is designed for sound quality in mind, and Image Dynamics delivers on this. The sub produces some of the most accurate bass tones and is able to keep up with any type of music. Not many subs with the same XMax value as the IDQ12 can do that. If you're looking for something that hits in a sealed box and sounds amazing, look no further. You get what you pay for with this sub. A manufacturer that stands behind their product, has a solid reputation, and most importantly; made in the USA.

By Wills on September 2, 2017 Checkmark Icon Verified purchase

10 found this helpful


Superb

Image Dynamics continues to make a great product. I'm running this sub off of anew Alpine PDX amp getting almost 600 watts. The sub is clean and deep. Very happy with it. Grear value and amazing sound quality

By Tony on February 7, 2017

10 found this helpful


Awesome subwoofer

I've been searching for a musical subwoofer that's fast enough to keep up with my front components and I found it with this model. This actually was the 4th one in my search and I based it from a lot of reviews from car audio forums. I'm using a Kenwood Excelon XR900-5 (sub wired for a 2 ohm load so it gets 600W) and it already sounds punchy and fast while still not broken-in. I have it on a 1.6 cubic ft ported box (close to the specs) but I feel I will get more bass definition if I go sealed with the right amount polyfill.

By Alain on January 16, 2017 Checkmark Icon Verified purchase

10 found this helpful




PAKC.42B small

Xscorpion PAKC.42B

4 Gauge Complete Power Dual Amplifier Installation Kit with 1.2 Farad Capacitor

(6)

$89.99

List price $149.99

XA-CLRAIC2-6 small

JL Audio XA-CLRAIC2-6

2-Channel 6 ft. RCA Interconnect Cables

$12.99

List price $29.99

MRWT6C small

Boss MRWT6C (Chrome)

6-1/2" 2-Way Marine Waketower Speaker System (Chrome) (Priced Per Individual Tower Speaker)

$129.99

List price $289.99

CX-CD241RED small

Coby CX-CD241 (CXCD241RED) Portable AM/FM CD Player - Red

Portable CD Player with AM/FM Stereo Tuner

$30.99

List price $38.99

2BA10-2.3-BLACK small

Sonic Sub Box: 2BA10-2.3 (Black Carpet)

Dual 10" Bandpass with Airport MDF Enclosure

$31.99

List price $89.99

GMOS-LAN-06 small

Axxess GMOS-LAN-06 Wiring Interface

Install new car stereo and retains accessory power and other factory features in select 2006-2007 vehicles from Saturn

(3)

$122.99

List price $129.99

MX-1 small

Hifonics Maxxsonics MX-1

Premium High-to-Low Level Converter for OEM Integration

(10)

$74.99

List price $149.99

MPC-I204-4C-6M small

Monster Cable MPC I204 4C-6M

19.68 ft. (6 meters) of 204 LN Series 4-Channel Audio Interconnect Cable

$46.00

List price $64.99

10W3v2 small

JL Audio 10W3v2 ( 10W3v2D4 )

Dual 4 ohms 10" W3v2 Subwoofer W3

(12)

$109.99

List price $229.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2024 Audi A4

2011 Ford Expedition

2016 Audi S7

2012 Subaru Outback

1980 Cadillac Eldorado

2003 Dodge Viper

1990 Suzuki Swift

1986 Ford EXP

2009 Dodge Durango

2003 Dodge Ram 1500 Van

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
