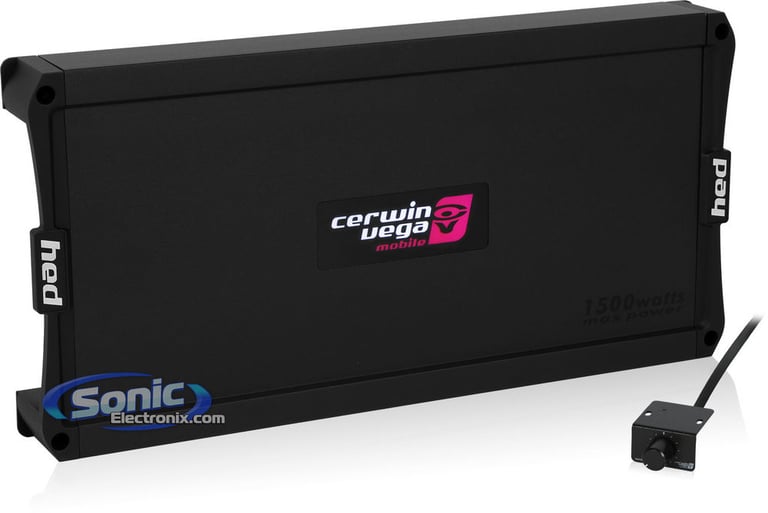

Cerwin-Vega HED31500.1D-OPEN BOX

1500W Max Class D Monoblock HED3 Series Power Car Amplifier

Cerwin-Vega
Shop all Cerwin-Vega
Product videos
highlight-star-icon

• RMS: 550W x 1 @ 4 ohm, 2 ohm 950W x 1 @ 2 ohm
• Total Peak Power: 1500W
• Class D Circuitry
• Bass Boost 0-12 dB at 45 Hz
• Wired Bass Control Included
• Dimensions: 9-1/8"W x 19-3/8"L x 2-1/8"H

Learn more about the LS-hed315001d-OB

We apologize

This item has been discontinued

Product Highlights


• RMS: 550W x 1 @ 4 ohm, 2 ohm 950W x 1 @ 2 ohm
• Total Peak Power: 1500W
• Class D Circuitry
• Bass Boost 0-12 dB at 45 Hz
• Wired Bass Control Included
• Dimensions: 9-1/8"W x 19-3/8"L x 2-1/8"H

Description


Cerwin-Vega brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

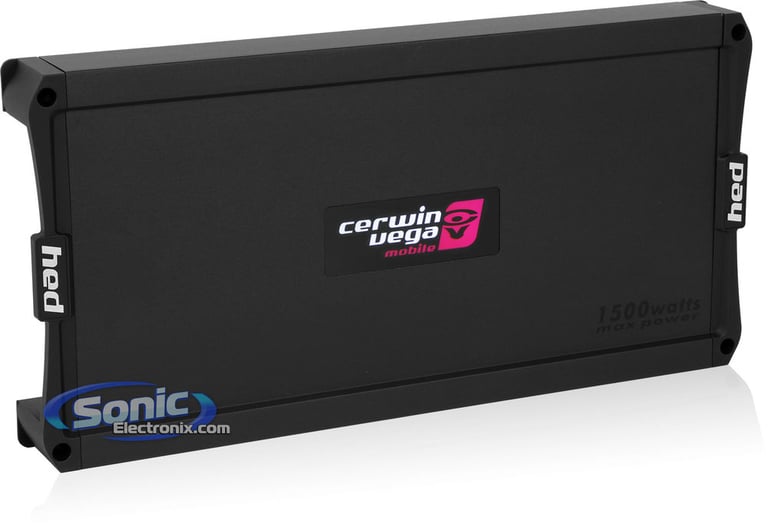

  • HED Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 550 watts x 1 chan.
    • 2 ohm: 950 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

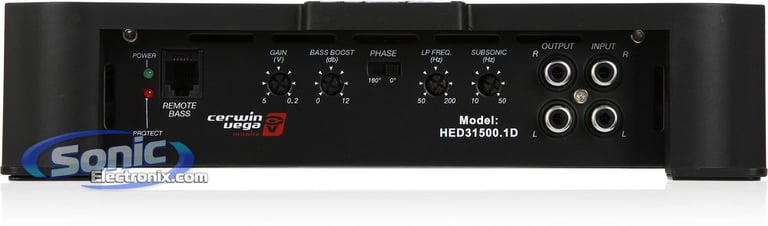

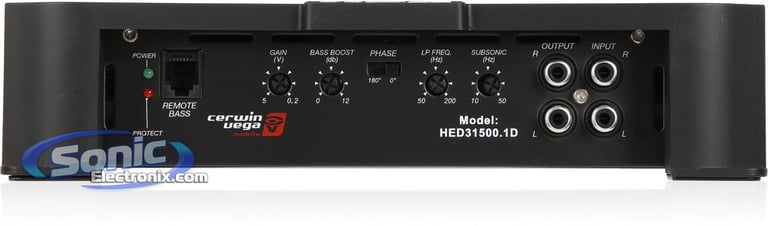

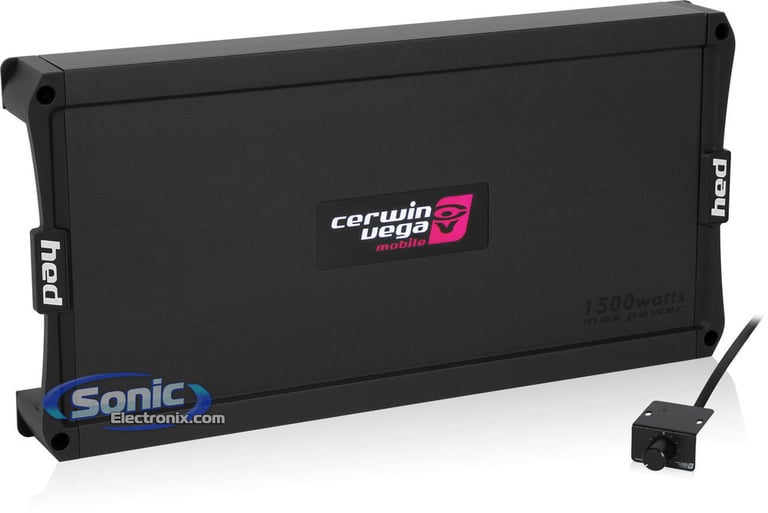

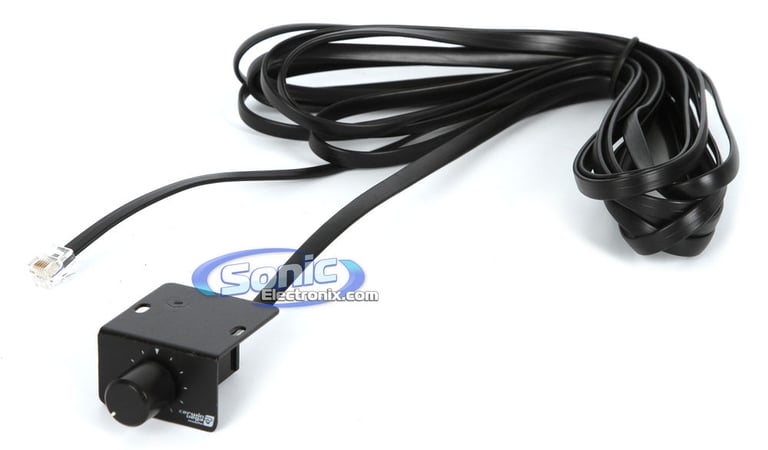

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • High-density alloy heat sink design
  • Input sensitivity:
    • Level: 200mV-5V
  • Variable low-pass filter (50-200 Hz)
  • Subsonic filter (24 dB at 10-50 Hz)
  • CEA-2006 compliant amplifier
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-1/8"W x 19-3/8"L x 2-1/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
550 watts x 1 channel
RMS Power @ 2 ohms
950 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Total RMS Power Output
950 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes

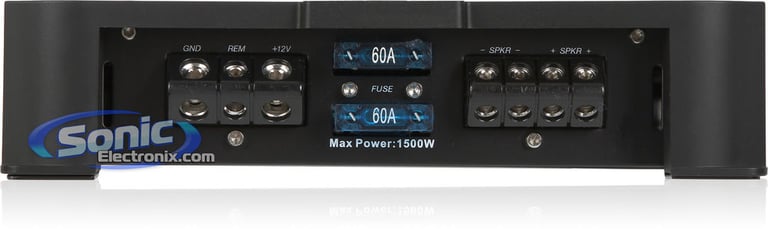

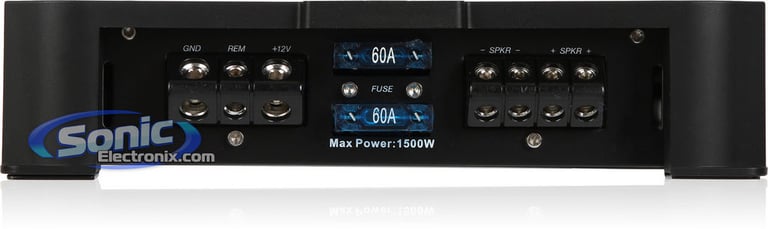

Fuse Rating
60A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HED31500.1D-2

Weight:

12.50lbs

Internal SKU:

LS-hed315001d-OB

Internal Product ID:

80448
