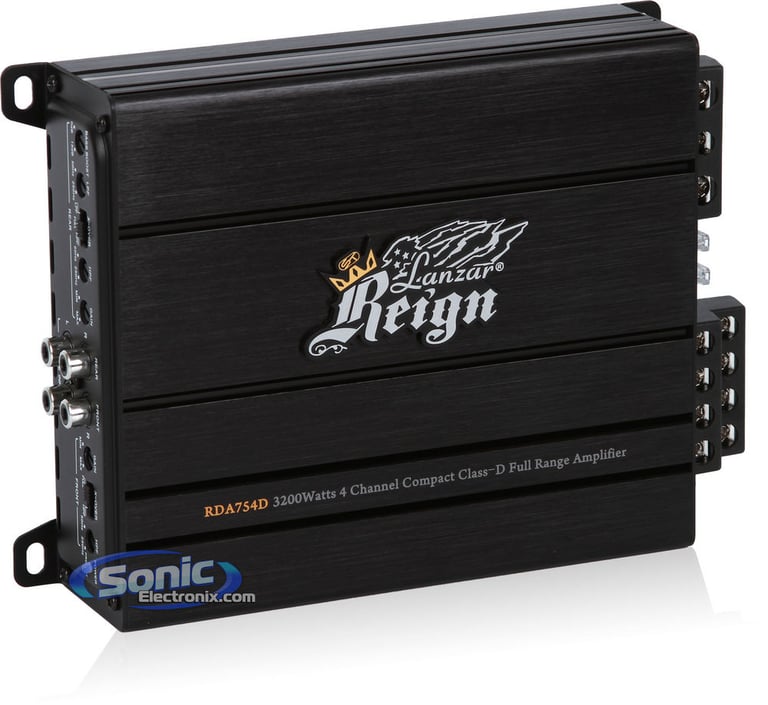

Lanzar RDA754D

3200W Reign Series 4-Channel Class D Full-Range Compact Hybrid Car Power Amplifier (RDA75.4D)

Lanzar
Shop all Lanzar
Product videos
highlight-star-icon

• 250W x 4-Chan. @ 4 ohm
• 400W x 4-Chan. @ 2 ohm
• 800W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 3/2/1 Channel Operation

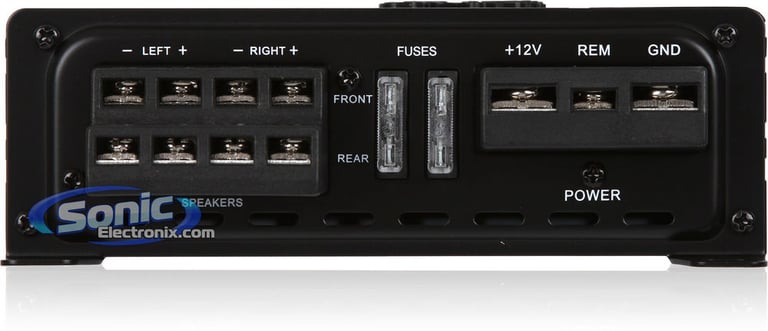

• 4 Gauge Power and Ground Inputs
• Double Sided SMT Circuit Board

Learn more about the rda754d

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

95-5026 main

Metra 95-5026 Dash Kit

Install a new Double-DIN car stereo in select 2002-2006 vehicles from Ford, Lincoln, Mercury (Black)

18
-41.68%

$13.99

List price $23.99

FD1428B main

Scosche FD1428B / FD1428 Dash Kit

Install a new Double-DIN car stereo in select 2001-2006 vehicles from Ford, Lincoln, Mercury (Black)

39
-9.51%

$11.99

List price $13.25

70-5701 main

Metra 70-5701 Wiring Harness

Install a new car stereo and retain factory amplifier in select 1998-2003 Mountaineer and Explorer

9
-10.26%

$34.99

List price $38.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85

Product Highlights


• 250W x 4-Chan. @ 4 ohm
• 400W x 4-Chan. @ 2 ohm
• 800W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 3/2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Double Sided SMT Circuit Board

Description


Lanzar brand icon

Authorized dealer

General Features:

  • Reign Series 4-Channel Class D Car Amplifier
  • RMS Power Rating:
  • RMS Power Rating:
    • 4 ohm: 250 watts x 4 chan.
    • 2 ohm: 400 watts x 4 chan.
    • Bridged, 4 ohm: 800 watts x 2 chan.
  • Max power output: 3200 watts
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • Double sided SMT circuit board
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Level: 125mV-5V

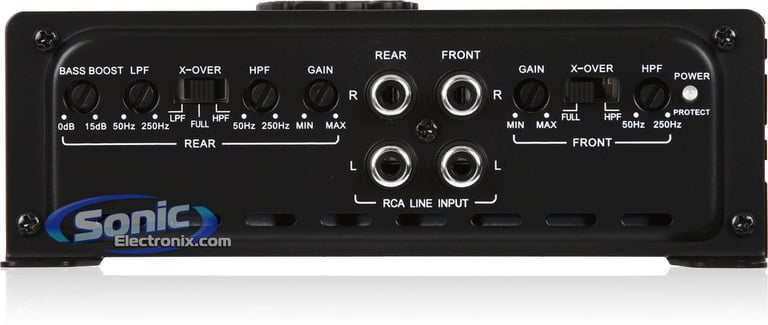

  • Variable high-pass filter (50-250 Hz)
  • Variable low-pass filter (30-200 Hz)
  • Subsonic filter (24 dB at 15 Hz)
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 6-1/8"W x 9-13/16"D x 2-11/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
