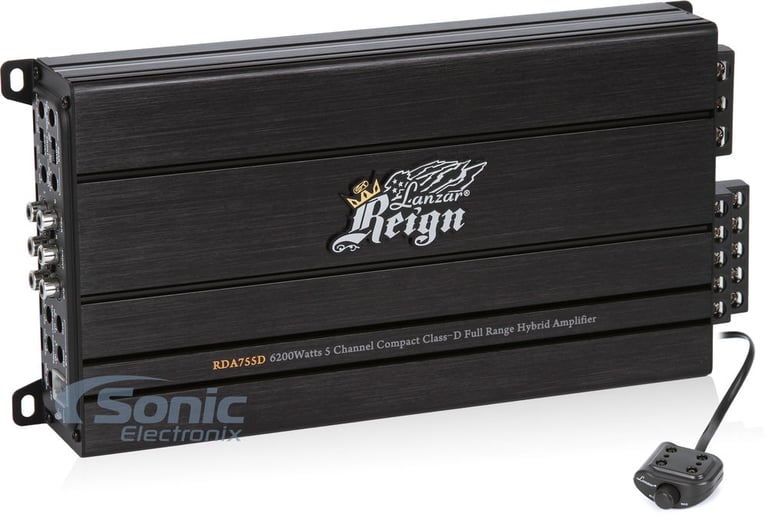

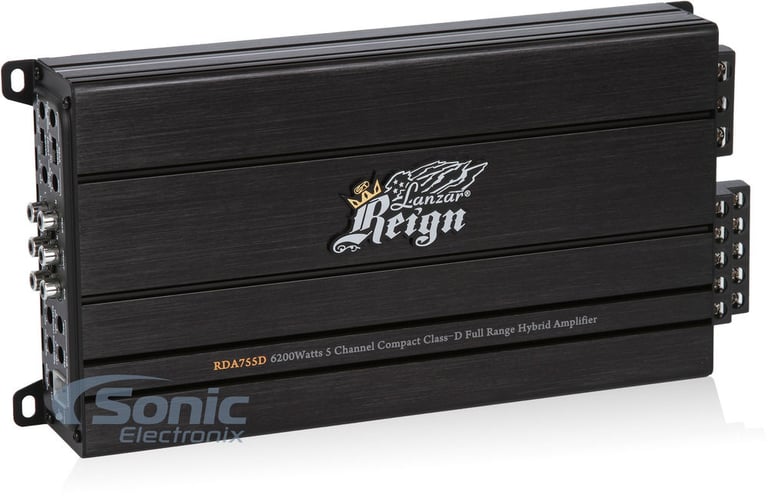

Lanzar RDA755D

6200W Max Reign Series 5-Channel Class D Full-Range Compact Hybrid Car Power Amplifier

Lanzar
Shop all Lanzar
Product videos
highlight-star-icon

• Full-Range RMS: 250W x 4 @ 4 ohm, 400W x 4 @ 2 ohm
• Subwoofer RMS: 750W x 1 @ 4 ohm, 1100W x 1 @ 2 ohm
• Wired Bass Remote Included!
• Class D Circuitry
• Variable Bass Boost: 0 - 18 dB
• Dimensions: 6-1/8"W x 11-7/16"D x 2-11/16"H

Learn more about the rda755d

We apologize

This item has been discontinued


Loading...
99-3108 main

Metra 99-3108 Dash kit

Install a new Single-DIN or Double-DIN car stereo in select 2000-2005 vehicles from Saturn

2
-45.73%

$18.99

List price $34.99

70-2002 main

Metra 70-2002 Wiring Harness

Install a new car stereo in select 2000-2005 vehicles from Saturn

4
460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8

Product Highlights


• Full-Range RMS: 250W x 4 @ 4 ohm, 400W x 4 @ 2 ohm
• Subwoofer RMS: 750W x 1 @ 4 ohm, 1100W x 1 @ 2 ohm
• Wired Bass Remote Included!
• Class D Circuitry
• Variable Bass Boost: 0 - 18 dB
• Dimensions: 6-1/8"W x 11-7/16"D x 2-11/16"H

Description


Lanzar brand icon

Authorized dealer

General Features:

  • Reign Series 5-Channel Class D Car Amplifier
  • RMS Power Rating:
  • Channel 1-4 RMS Power Rating:
    • 4 ohm: 250 watts x 4 chan.
    • 2 ohm: 400 watts x 4 chan.
  • Subwoofer Channel RMS Power Rating:
    • 4 ohm: 750 watts x 1 chan.
    • 2 ohm: 1100 watts x 1 chan.
  • Max power output: 6200 watts
  • Pulse Width Modulated MOSFET power supply

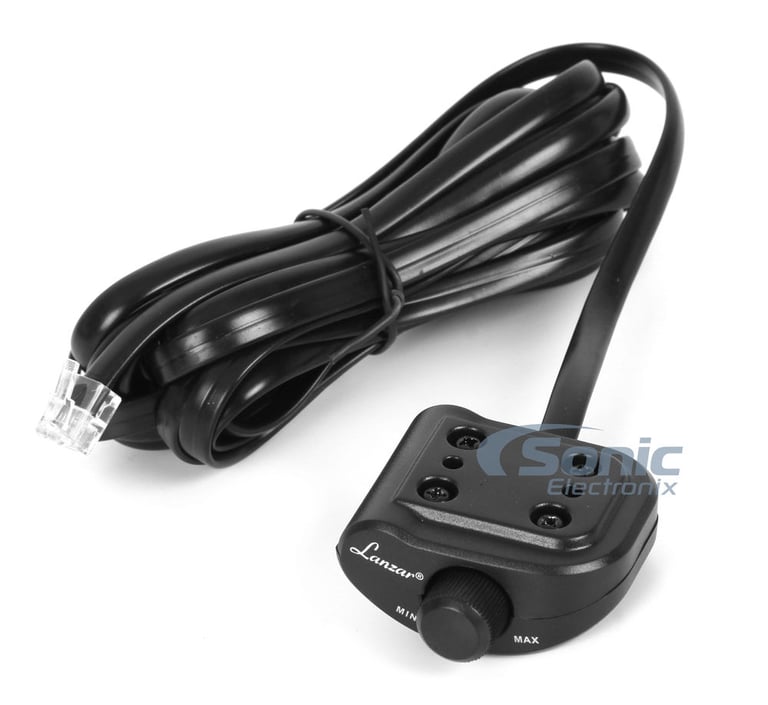

  • Wired remote bass level control included
  • Double sided SMT circuit board
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 5/4/3/2 or Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

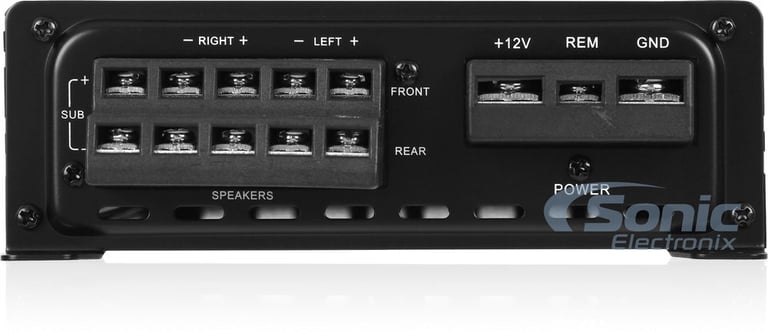

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink

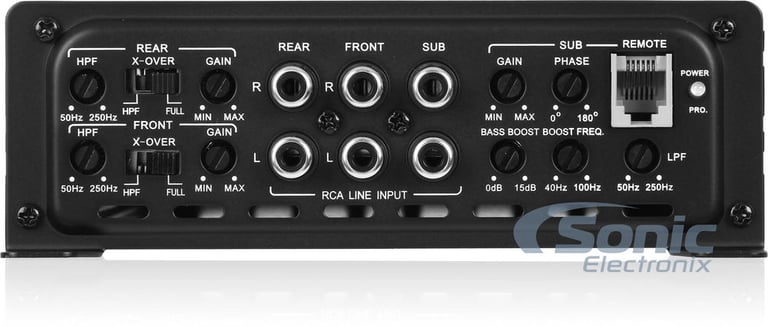

  • Input sensitivity:
    • Level: 125mV-5V
  • Variable high-pass filter (50-250 Hz)
  • Variable low-pass filter (30-200 Hz)
  • Subsonic filter (24 dB at 15 Hz)
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 6-1/8"W x 11-7/16"D x 2-11/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00


Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(9)

$259.99

List price $323.99

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

46CXA6605t small

Kicker CXA660.5T (46CXA6605T)

• 65 watts x 4 channel + 150 watts x 1 channel @ 4 ohm
• 90 watts x 4 channel + 300 watts x 1 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total RMS Power: 660 watts
• Class A/B 2 ohm Stable 5-Channel Amplifier

$449.99

List price $479.99

MICRO85U small

Diamond Audio MICRO85U

• + @ 4 ohm
• 85 watts x 1 channel + 375 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 375 watts x 1 channel @ 2 ohm
• Total RMS Power: 1035 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

$659.99

List price $719.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
250 watts x 4 channel
RMS Power @ 2 ohms
400 watts x 4 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
750 watts x 1 channel
RMS Power @ 2 ohms
1100 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
5-Channel
Total Peak Power Output
6200 watts
Total RMS Power Output
2700 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
30 - 200 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 3
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RDA755D

Weight:

5.80lbs

Internal SKU:

rda755d

Internal Product ID:

68857

Product and How-to Videos


Customer Ratings & Reviews


Lanzar RDA755D thumbnail image

5 star
0%
4 star
50%
3 star
50%
2 star
0%
1 star
0%



Durability
3
Value
4
Features
4
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Not perfect but still nice

Power: Not really as powerful as it's rated but there is still plenty of power there. I would say it's more like 100-125wX4 on the full range and 300-350x1 on the sub channel. Be advised though, there is a HUGE difference between running 2ohm and 4 ohm on the sub channel. Be careful if you are running small subs like 6.5's or lower end 8's.

Sound Quality: Pretty nice. I am running a JVC KW-R900BT headunit and the sound is fairly open and well separated. The sub channel remote is a little more like an on-off switch than a variable volume control.

Features: Separate Crossovers for every channel is nice for an amp in this price range. The sub phase switch is nice too...makes the amp fairly adaptable for multiple setups if you are the kind of guy who changes things around alot.

Things that could be improved upon: It might just be my amp but my cros overs are misprinted...the inputs are correct but the front and rear x-overs are switched. Took me a sec to figure this out when I was tuning the system. Also, along with the remotes sensitivity issues the shape of the thing is not my cup of tea but that's a personal opinion.

It seems to get a little warm, though it's nothing too bad. But my install is on my vanity cover in my 06 GTO so it has airflow to it and I could foresee overheating issues in a tight install (like under a seat or behind a interior panel).

Overall I give 4 out of 5. Sounds really good, is pretty powerful and is really flexible. Just hope there is a cure for the remote and that the x-over markings are not a common mistake.

By Donald on June 24, 2013

12 found this helpful


Lanzar RDA755D

really hot and shuts down. after a few days, there were noise from the speakers of the engine, thus if you put another amplifier, the noise is not present. not satisfied with the purchase.

By Vagarshak on September 18, 2013

10 found this helpful




MI-6 small

Mega Cook MI-6

6qt. Cast Aluminum Non-Stick Casserole / Stock Pot (Dishwasher Safe)

$44.00

List price $69.00

BV9986BI small

Boss BV9986BI

Single-Din In-Dash DVD Player w/ Bluetooth, 7" LCD Touchscreen Display, Mini-USB Port & iPod Control

(25)

$189.99

List price $469.00

CS-1003 small

Prime Pacific CS-1003

Durable 4 qt. Stainless Steel Chafing Dish With Glass Lid

$49.99

List price $69.95

No picture

Primus P734000

Primus Meal Set - Red (2 Plates,

$24.00

List price $20.00

TR880/2 small

Soundstream Tarantula TR880/2

$359.99

List price $899.99

XR-4S small

Kenwood eXcelon XR-4S Open Box

Reference Fit Class D 4-Channel Amplifier

$299.99

List price $599.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Saturn SC2

2015 Dodge Ram ProMaster 2500

2007 Chevrolet TrailBlazer

2016 Audi Q3 Quattro

2015 MINI Cooper

2018 Ford Explorer

2021 Subaru Ascent

1997 Lexus LS400

2011 Toyota Sienna

2000 Chevrolet Blazer

Vehicle
Store
Delete

2000 Harley Davidson FXR4

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
