Orion C0700.1M2

400W RMS Cobalt Series Class A/B Monoblock Car Amplifier

Orion
Shop all Orion
Product videos
highlight-star-icon

• RMS: 250W x 1 @ 4 ohm, 400W x 1 @ 2 ohm
• Total Peak Power: 700W
• CEA-2006 Compliant
• Bass Boost: 0-18 dB
• Class D Circuitry
• Dimensions: 13-3/16"L x 7-1/2"W x 2"H

Learn more about the co7001m2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
21576KA main

Select Increments Intra-Pod (21576KA)

Custom-fit center console with 8" Kicker subwoofer and Amplifier for select 1976-2006 vehicles from Jeep

108
-13.10%

$729.90

List price $839.92

63092KA main

Select Increments Sono-Pod (63092KA)

Custom-fit subwoofer enclosure with 10" Kicker Subwoofer and 400W Monoblock

109
-17.58%

$543.90

List price $659.92

63092K main

Select Increments Sono-Pod (63092k)

Custom-fit enclosure with 10" Kicker subwoofer for

2
-11.80%

$343.91

List price $389.94

21576K main

Select Increments Intra-Pod (21576K)

Custom-fit center console subwoofer enclosure with 8" Kicker Subwoofer for select 1976-1995 CJ7 and Wrangler and Scrambler

1
-7.02%

$529.91

List price $569.94

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

Product Highlights


• RMS: 250W x 1 @ 4 ohm, 400W x 1 @ 2 ohm
• Total Peak Power: 700W
• CEA-2006 Compliant
• Bass Boost: 0-18 dB
• Class D Circuitry
• Dimensions: 13-3/16"L x 7-1/2"W x 2"H

Description


Orion brand icon

Authorized dealer

General Features:

  • Cobalt Series Monoblock Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 400 watts x 1 chan.
  • Max power output: 700 watts
  • MOSFET power supply

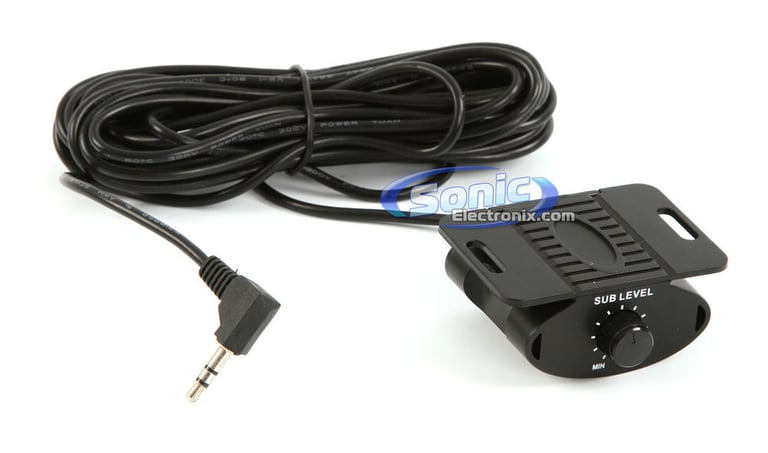

  • Wired bass remote control included
  • Tri-mode and bridgeable operation
  • LED power and protect indicators
  • Illuminated blue LED stripe design
  • Variable bass boost (0-18 dB)
  • Mono channel operation
  • 3-Way system protection circuitry (thermal, short circuit, and overload)
  • Heavy duty aluminum alloy convection heatsink
  • Input sensitivity (250mV-5V)
  • Variable low-pass filter (15-400 Hz, 12 dB/octave)
  • Subsonic filter (25 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-30,000 Hz
  • Dimensions: 13-3/16"L x 7-1/2"W x 2"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
700 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
Any Gauge with use of Ring Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
15 - 400 Hz
Subsonic Filter
25 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
20A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

C0700.1M2

Weight:

6.50lbs

Internal SKU:

co7001m2

Internal Product ID:

69439
