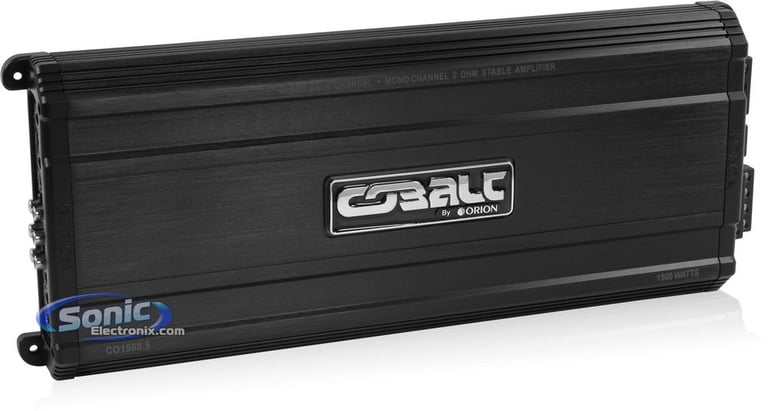

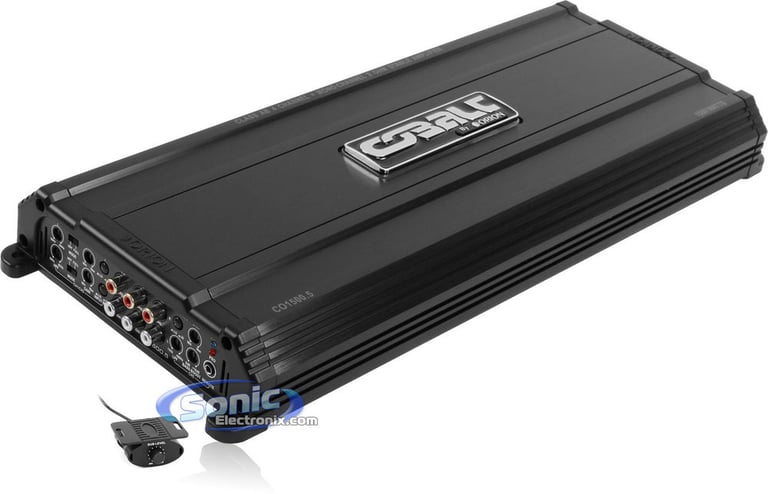

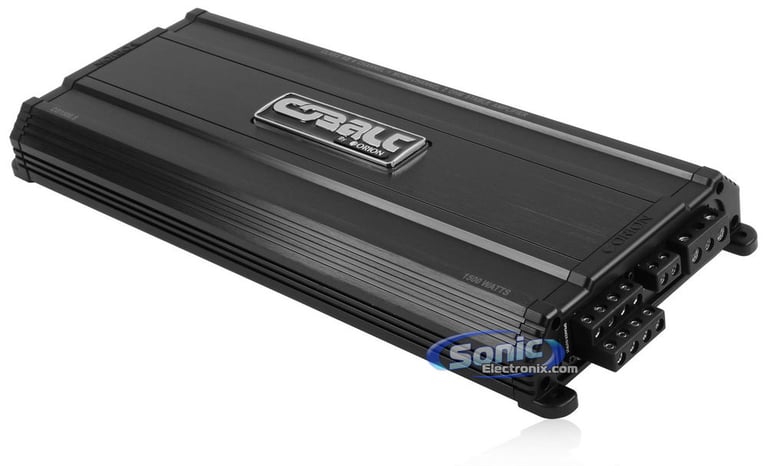

Orion CO1500.5

1500W Max Cobalt Series 5-Channel Stereo Bridgeable Car Amplifier

Orion
Shop all Orion
Product videos
highlight-star-icon

• 75 Watts x 4 Chan. @ 4 Ohm
• 100 Watts x 4 Chan. @ 2 Ohm
• 1500 Watts Max
• Tri-Mode Capable
• High-Level Inputs
• Selectable Bass Boost
• LED Power/Protect Indicators

Learn more about the co15005

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99

Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

23
-33.36%

$79.96

List price $119.99

T1650-S main

Rockford Fosgate Power T1 T1650-S

320W Peak (160W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

1
GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

38
-34.45%

$117.99

List price $180.00

Limited time!
CST20 main

Kicker CST204 (46CST204)

200W Peak (100W RMS) 3/4” CS Series 4-ohm Titanium Dome Tweeters

21
-30.04%

$55.96

List price $79.99

Crunch CS5768CX

500W Peak (100W RMS) 5x7"/6x8" CS Series 2-Way Coaxial 4-ohm Car Speakers

13
-11.77%

$29.99

List price $33.99

Limited time!

JVC KW-M595BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

3
-30.30%

$299.00

List price $429.00

Product Highlights


• 75 Watts x 4 Chan. @ 4 Ohm
• 100 Watts x 4 Chan. @ 2 Ohm
• 1500 Watts Max
• Tri-Mode Capable
• High-Level Inputs
• Selectable Bass Boost
• LED Power/Protect Indicators

Description


Orion brand icon

Authorized dealer

General Features:

  • Cobalt 5-Channel Class A/B Car Amplifier
  • Channel 1-4 RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
  • Subwoofer Channel RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 375 watts x 1 chan.
  • Max power output: 1500 watts
  • MOSFET power supply

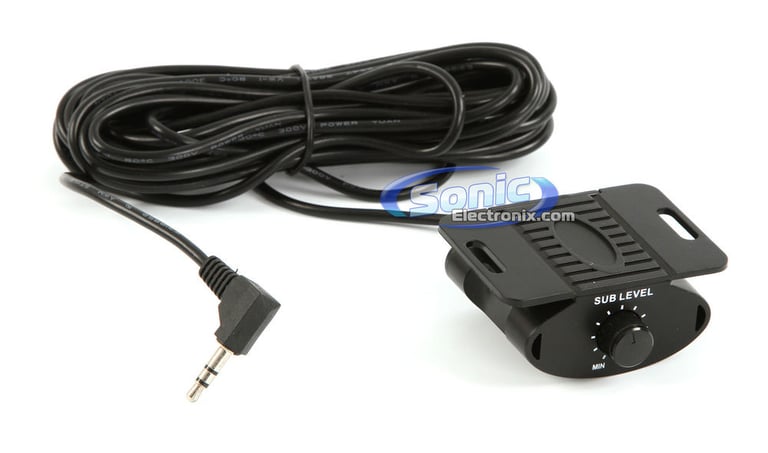

  • Wired bass remote control included
  • Tri-mode and bridgeable operation
  • LED power and protect indicators
  • Illuminated blue LED stripe design
  • Variable bass boost (0-10 dB)
  • 5/4/3/2/1 channel operation
  • 3-Way system protection circuitry (thermal, short circuit, and overload)
  • Heavy duty aluminum alloy convection heatsink

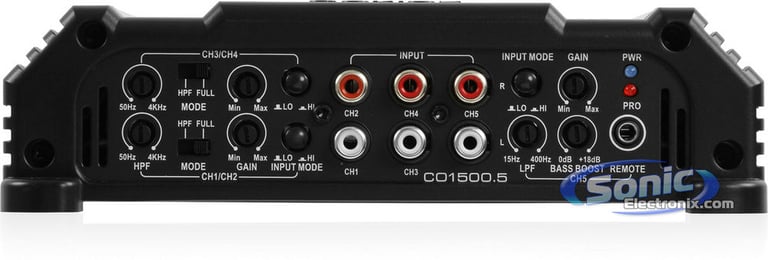

  • Input sensitivity (250mV-5V)
  • Variable high-pass filter (50-4,000 Hz)
  • Variable low-pass filter (50-4,000 Hz)
  • Variable low-pass filter (40-500 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-30,000 Hz
  • Dimensions: 18-11/16"L x 7-1/2"W x 2"H

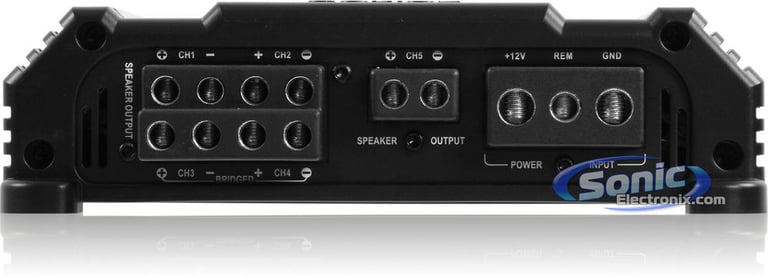

  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
Lowest price in 30 days
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-28.32%

$389.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95


Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(137)

$349.99

List price $419.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(17)

$259.99

List price $323.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(1)

$259.00

List price $259.00

RD800/6 small

JL Audio RD800/6

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 400 watts x 1 channel @ 4 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(1)

$549.99

List price $779.98

X803-5 small

Kenwood eXcelon X803-5

• 50 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 150 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(5)

$499.99

List price $600.00

MICRO85U small

Diamond Audio MICRO85U

• + @ 4 ohm
• 85 watts x 1 channel + 375 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 375 watts x 1 channel @ 2 ohm
• Total RMS Power: 1035 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

$659.99

List price $719.99

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
375 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
5-Channel
Total Peak Power Output
1500 watts
Total RMS Power Output
775 watts
Maximum Input Gauge Size
Any Gauge with use of Ring Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 4000 Hz
Low-Pass Crossover Frequency
15 - 400 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

CO1500.5

Weight:

9.50lbs

Internal SKU:

co15005

Internal Product ID:

69446

Product and How-to Videos


Customer Ratings & Reviews


Orion CO1500.5 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great 5 channel amp for a clean sounding system!

I highly recommend this amp. I have a 2004 Tundra double cab. This amp is mounted underneath the front passenger seat. It have it running 4 - 2 ohm Infinity Kappa 6.5 inch separates at 90 watts RMS and 2 - 4 ohm 8" pioneer shallow mount sub's at 125 watts RMS at 2 ohms in a custom box under the rear seats. The amp puts out plenty off power without any noticeable distortion. It has a remote bass control knob that allows you to add the perfect amount of bass for different types of music. You can't go wrong with this awesome amp. One amp saves room and install time.

By Steve on April 7, 2014

14 found this helpful




JK-SQBASSHARNESS small

DS18 JK-SQBASSHARNESS

SQBASS Underseat Subwoofer Plug and Play Harness for Jeep JK and JKU Vehicles

$71.95

List price $86.99

FXA5000.5 small

Cadence FXA5000.5

5000W 5-Channel Flash (FXA) Series Class A/B Car Amplifier

(1)

$149.95

List price $458.88

ZO6000.5 small

Orion ZO6000.5

6000W Peak (3000W RMS) 5-Channel Amplifier

$399.99

List price $599.99

010-00766-01 small

Garmin GPSMAP 441s

Dual Frequency Marine GPS Receiver w/ 4" QVGA Display and Worldwide Marine Basemaps (P/N: 010-00766-01)

$549.99

List price $479.99

AC09ULWT small

Uninex AC09ULWT (AC09)

9 ft House Hold Extension Cord with Safety Cover Attached

$5.99

List price $9.99

CQ-C5305U small

Panasonic CQ-C5305U

CD, MP3, WMA Receiver with Remote

$94.99

List price $199.99

No picture

Kenwood KAC-959

$284.99

List price $549.99

AL-1670-B small

Excalibur AL-1670-B

1-Way Paging Remote Start, Keyless Entry and Vehicle Security System w/ 4 Button Remote & sidekick remote

(3)

$85.99

List price $128.98

SAGMHR634B small

Scosche SAGMHR634B

6-1/2" or 6-3/4" Speaker Adapter for select 2005-2019 vehicles from Chevrolet, GMC, Buick

(43)

$14.95

List price $14.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 Ford Expedition

1985 Toyota 4Runner

2002 Nissan Pathfinder

2012 BMW 750i

2006 Saab 9-5

2012 Toyota Matrix

2003 Audi A6

1990 Geo Metro

2003 Lotus Esprit

1975 Mazda RX-3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
