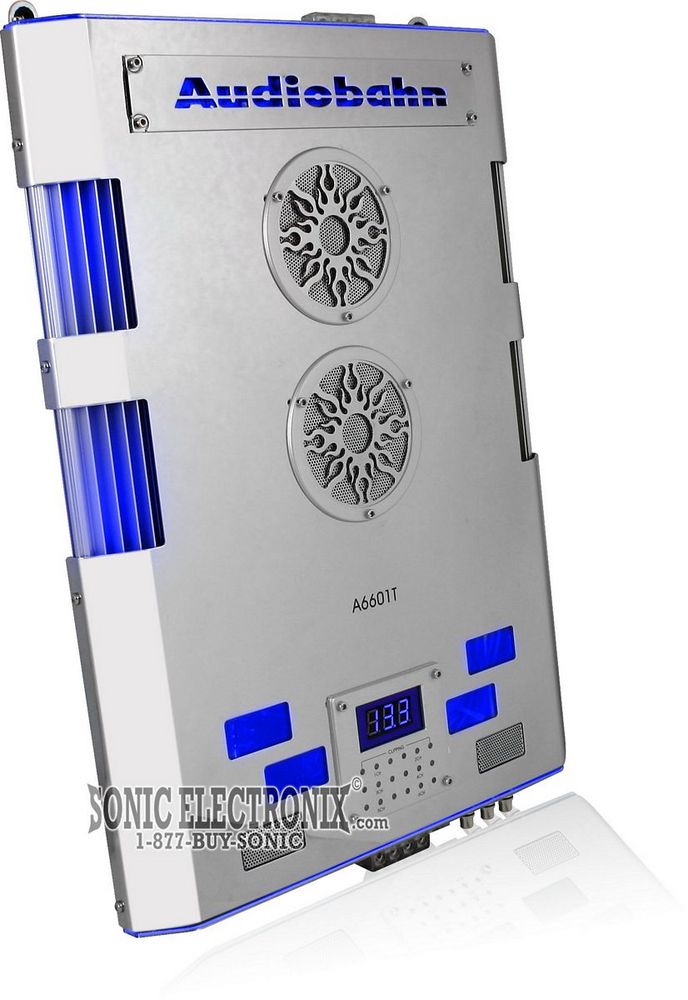

Audiobahn A6601T

6-Channel Class A/B Amplifier

3
Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

6-Channel Class A/B Amplifier with Cobalt Blue Illumination and chrome finish • 1260W Max Power Output • 630W RMS @ 2 ohms • 450W RMS @ 4 ohms • Digital LCD Voltmeter Display • Cooling Fan • Preamp Outputs

Learn more about the a6601t

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

6-Channel Class A/B Amplifier with Cobalt Blue Illumination and chrome finish • 1260W Max Power Output • 630W RMS @ 2 ohms • 450W RMS @ 4 ohms • Digital LCD Voltmeter Display • Cooling Fan • Preamp Outputs

Description

Audiobahn
  • 1260W Max, Class A/B 6-Channel Car Amplifier
  • RMS Power Rating:
    • 75 watts x 6 chan. @ 4 ohms
    • 105 watts x 6 chan. @ 2 ohms
    • 210 watts x 3 chan. @ 4 ohms Bridged
  • Max Power Output: 1260 watts @ 2 ohms stereo or 4 ohms bridged
  • Full MOSFET Power Supply with Soft Start Class A/B Circuitry

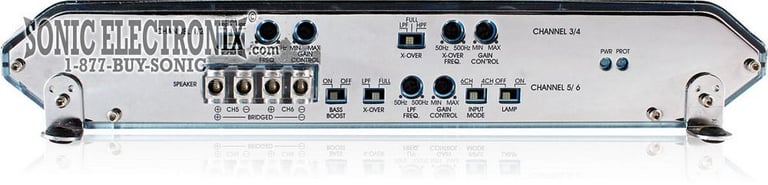

  • Switchable 4-channel and 6-channel input mode
  • Channels 1-4 include Low-,High-, and Full-Pass Crossovers and are predominantly used for powering full-range speakers or component systems.
  • Channels 5-6 include a Low- or Full-Pass Crossover which allows for more accurate control of your subwoofer(s).
  • Preamp Outputs
  • Cobalt Blue Illumination (on/off switch for your preference)
    • Circuit Board, Heat Sink, Audiobahn Name Plate, Volt-meter and End Caps illuminate
  • Cobalt Blue Digital Volt-meter Display
  • Clipping Blue LED Indicators under the volt-meter display
  • Cooling Fan
  • Chrome Flame Cooling Fan Grill Cover Included (other optional designs available and sold separately)
  • Double Sided Glass Epoxy Circuit Board
  • High Gloss Chrome Plated Finish

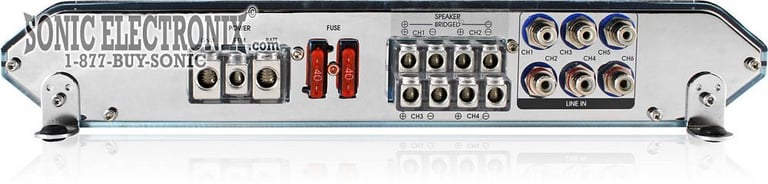

  • Nickel Plated Block Terminals
  • 3-way Protection Circuitry: Thermal, Short Circuit and Overload
  • High quality Bipolar Audio Stage
  • On/Off Bass Boost Setting: 0 or +18dB
  • Variable High-Pass Crossover: 50-500Hz
  • Variable Low-Pass Crossover: 50-500Hz
  • Variable Subsonic Filter: 20-50Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 10Hz-40kHz
  • THD: 0.02%
  • Phase Control: 0 or 180°
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Dimensions: 17-1/4" L x 12-3/4" W x 2-1/4" H
  • 1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 6 channel
RMS Power @ 2 ohms
105 watts x 6 channel
Bridged RMS Power
210 watts x 3 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
6-Channel
Total Peak Power Output
1260 watts
Total RMS Power Output
630 watts
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
100 dB
Channel Separation
50 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
40A x 2
Warranty and Return Policy

Item Details

Manufacturer:

Audiobahn

Model Number:

A6601T

Weight:

12.00lbs

Internal SKU:

a6601t

Internal Product ID:

71

Product and How-to Videos

Customer Ratings & Reviews

Audiobahn A6601T
3
Rate or review product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Durability
4.7
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:
Loading...

NICE!

I ordered this product from this site. I am VERY pleased with every aspect of the transaction, and the product. The amp is crystal clear and powerful, really makes those 6X9's thump... after installing this amp I got the comment that my Audiobahn 6X9's hit harder than my friends's MTX 12's (they don't really, but they sound GREAT). I would highly reccomend both this site and this product to anyone!

By Jason on July 17, 2004

5

found this helpful.
Helpful? Report abuse

Very Happy

I got this amp to run a set of Infinity Kappa Perfect 6.1 components and a set of Polk MoMo 6x8's and an Infinity Kappa Perfect 10.1 sub. I have the first four channels going to the speakers and the last two bridged to the sub. I was afraid the sub would be underpowered but I can turn the gain all the way up and stay in my seat. All of the speakers are very clean and there is plenty of power for them all. Very pleasantly surprised. I thought I would have to buy a second amp for the sub but now I am not even considering it.

By Vincent on March 2, 2007

4

found this helpful.
Helpful? Report abuse

Awesome amp with flexibility

This amp is great, all 6 channels can be run to either 6 full-range speakers, or you can bridge channels 5 & 6 and run a sub for your whole system. The amp runs cool all day and the chrome and blue light inside it make it look amazing at night, no better looking amp on the market. Buy this amp, this is the cheapest site on teh net!

By Mac on March 14, 2005

4

found this helpful.
Helpful? Report abuse
