Name: Audiobahn A8002T R/B
Brand: Audiobahn
SKU: LS-a8002t-RB
Price: 99.99 USD
Availability: Discontinued

by Audiobahn

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

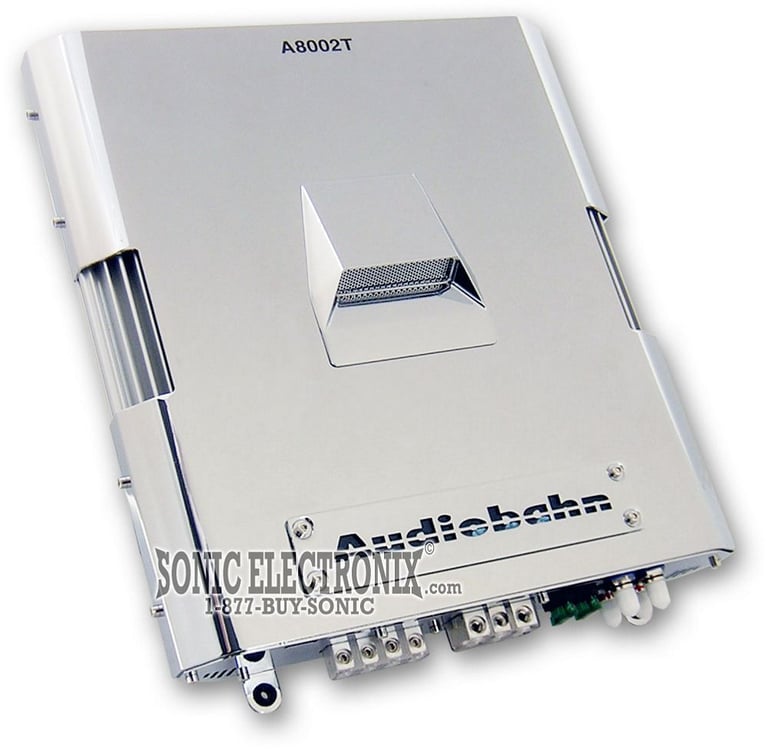

Audiobahn A8002T R/B Image 1 — Audiobahn A8002T R/B

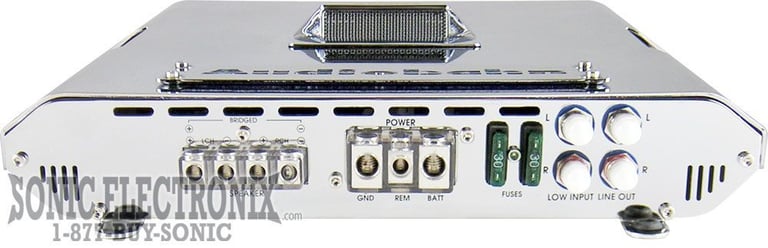

Audiobahn A8002T R/B Image 2 — Audiobahn A8002T R/B

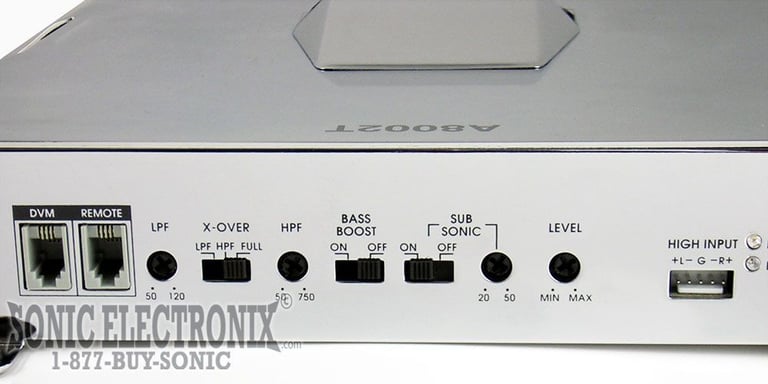

Audiobahn A8002T R/B Image 3 — Audiobahn A8002T R/B

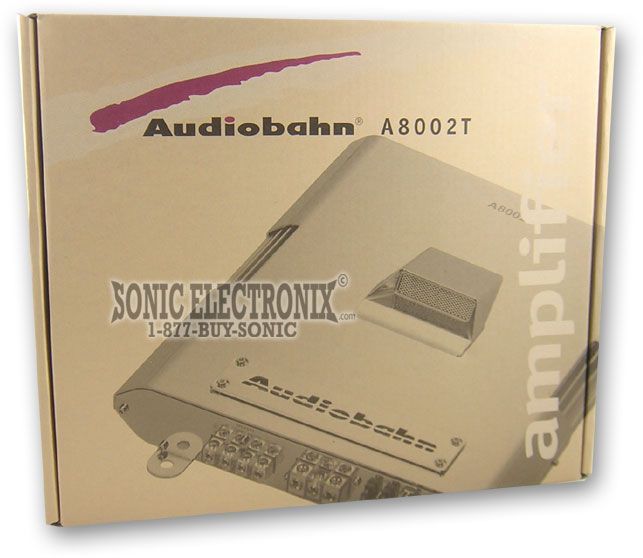

Audiobahn A8002T R/B Image 4 — Audiobahn A8002T R/B

Product videos

Product highlights

1600W Max, Intake 2-Channel Amplifier • Optional bass remote and digital volt-meter display available and sold separately • Class A/B • 800W RMS @ 2 ohm • 400W RMS @ 4 ohm • Preamp outputs • Cobalt Blue Illumination • Intake cooling fan • 4-way protection circuitry

Learn more about the LS-a8002t-RB

Product Highlights

Description

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

The new Intake series amplifiers are Audiobahn's newest line of full-throttle beauties. Each amp is equipped with an air induction cooling fan to keep the unit running cool for hours. Combined with optional accessories such as a digital voltmeter and remote bass control, the Intake amplifiers provide both performance and customization to your sounds.

Key Features:

1600W Max, Intake Series 2-Channel Amplifier
RMS Power Output:

200 watts x 2 chan. @ 4 ohm
400 watts x 2 chan. @ 2 ohm
800 watts x 1 chan. @ 4 ohm Bridged

Max Power Output: 1600 watts @ 2 ohm
Class A/B MOSFET Circuitry
PWM MOSFET Power Supply
Semi-double Sided Glass Epoxy Circuit Board
4-way Protection Circuitry: Thermal, Short Circuit, Overload and DC Offset
Air Induction Cooling Fan
Cobalt Blue Illumination
Speaker level (high-level) inputs
Preamp outputs
Nickel-Plated Block Terminals
Optional Remote Bass Control (Audiobahn ABR100T sold separately)
Optional Remote-mount Digital Volt-meter display (Audiobahn ADM100T sold separately)
Variable Bass Boost Control: 0-18dB @ 45Hz
Variable Low-Pass Crossover: 50-120Hz
Variable High-Pass Crossover: 50-750Hz
Signal-to-Noise Ratio: 100dB
Frequency Response: 10Hz-40kHz
Variable Subsonic Filter: 20-50Hz
THD: 0.02%
Phase Control: 0 or 180°
Input Sensitivity: 200mV-8V
Dimensions: 11-7/8"L x 11-1/16"W x 1-7/8"H
4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

200 watts x 2 channel

RMS Power @ 2 ohms

400 watts x 2 channel

Bridged RMS Power

800 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

1600 watts

Total RMS Power Output

800 watts

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.02%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 750 Hz

Low-Pass Crossover Frequency

50 - 120 Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

On/Off Switch (0 or +18dB)

Remote bass/level controller

Optional (Accessory required and sold separately)

Audiobahn ABR100T

Fuse Rating

30A x 2
