JL Audio M800/8v2 | 800W Class D 8-Channel Marine Amplifier

JL Audio M800/8v2

800W 8-Channel Class D Marine Full-Range Amplifier

800W 8-Channel Class D Marine Full-Range Amplifier

• RMS: 75W x 8 @ 4 ohms, 100W x 8 @ 2 ohms, 200W x 4 @ 4 ohms Bridged
• Total RMS Power: 800W
• Unregulated MOSFET switching type
• Dual-Range Differential Balanced Input Section
• Advanced Rollback Protection
• NexD™ Switching Technology

SAVE when you bundle with select amp wiring kits:
Click Here to View Bundles!

10% Rewards
Free 2-day Shipping
Free Return Shipping
Extended Warranty
Learn More

5.0

(1)

$969.99

Out of Stock - Backorder with warranty
vip-image
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for
4 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
JL Audio

Authorized dealer

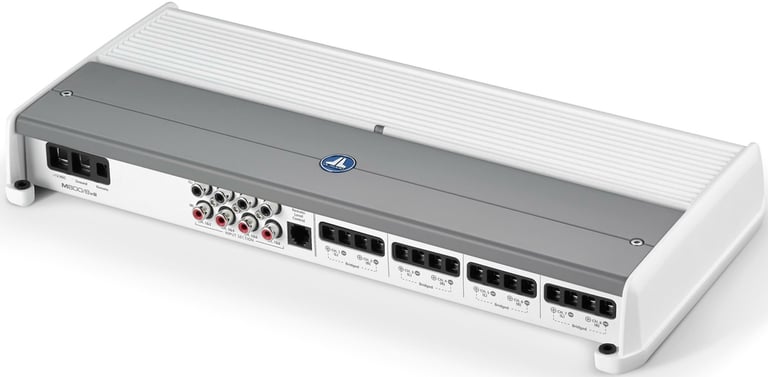

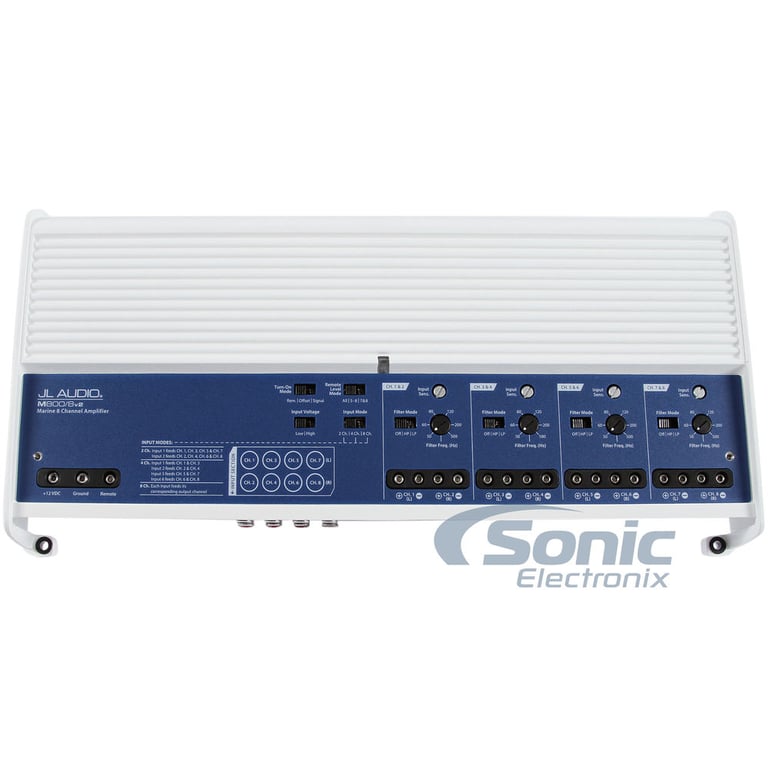

JL Audio M800/8v2 - Cover Off

M800/8v2 - 8-Channel Class D Marine Full-Range Amplifier

This incredibly flexible amplifier packs a serious full-range punch and delivers a staggering 100 watts to each of its eight channels into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.

The M800/8v2 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. The M800/8v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), you have the ability to control the level of two, four, six, or all eight of the amplifier's channel levels from the driver's seat.

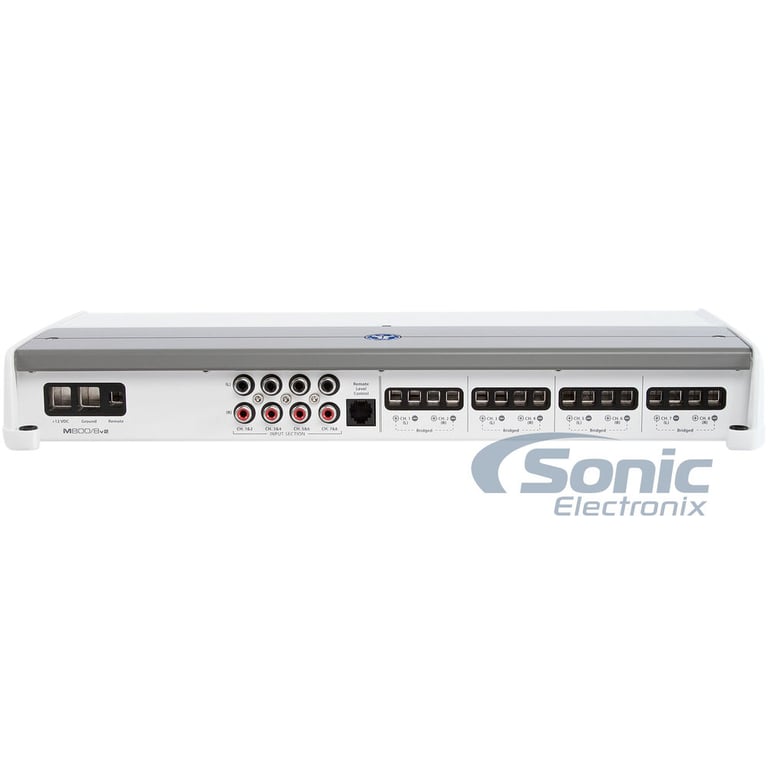

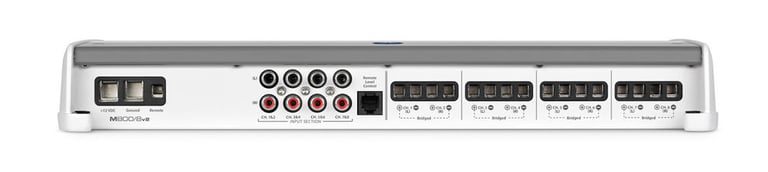

M800/8v2 Inputs Outputs

Key Features:

Flexible Centerpiece

The obvious feature that sets the M800/8v2 apart is its 8 Channels. That means you have the freedom to drive four pairs of speakers properly, without having to hassle about with wiring configurations, impedance matching, or bridging outputs. If you enjoy getting a little nerdy, then the M800/8v2 gives you the benefit of configuring anything from Six Channel System, A Four Channel System, and everything in betweetn including a system with Multiple Speakers & Subwoofers, All Subwoofers, or even a modest 1 Speaker system if you want to get silly.

Advanced Rollback Protection

Should your JL Audio amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases, but it ensures that your music keeps on playing, even under the most demanding conditions.

NexD Switching Technology

JL Audio have taken the simple fixed PWM approach - found in almost all common amplifiers - and enhanced it with a very high switching frequency: 400 kHz, which is exponentially higher than most Class D Full-range amplifiers. This pushes the amplifier's bandwidth to a much higher frequency than seen before, and still provide minimal distortion and improved efficiency, while keeping typically bulky circuity more compact. Your speakers will reward you with crisp, clear performance. The bottom line is simply great audio: clean, powerful and reliable.










General Features:

  • 8-Channel Class D Marine Full-Range Amplifier
  • RMS Power Rating @ 14.4 V:
    • 4 ohms: 75 watts x 8 chan.
    • 2 ohms: 100 watts x 8 chan.
    • Bridged, 4 ohms: 200 watts x 4 chan.
  • RMS Power Rating @ 12.5 V:
    • 4 ohms: 60 watts x 8 chan.
    • 2 ohms: 90 watts x 8 chan.
    • Bridged, 4 ohms: 180 watts x 4 chan.
  • Total power output: 800 watts RMS
  • Unregulated MOSFET switching type
  • NexD™ ultra-high-speed switching design
  • Selectable turn-on modes
    • +12V remote turn-on lead (preferred method)
    • DC Offset-Sensing: detects a very small DC signal (high level signals)
    • Signal sensing: detects presence of a full-range audio signal
  • Dual-Range Differential Balanced Input Section
    • RCA inputs accept Speaker-Level Inputs or Line-Level signals
  • 8 or 4 channel operation
  • LED power (green) and protect (red) indicators
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • White and gray powder-coat finish
  • Gasketed covered controls and stainless steel hardware
  • Wired remote level control available, sold separately: JL Audio HD-RLC
    • Presents the ability to control 2 , 4 , or All Channels
  • Input Voltage Range (Selectable):
    • Low level: 200 mV - 2 V RMS
    • High level: 800 mV - 8 V RMS
  • Frequency Response: 12 - 22,000 Hz
  • Total Harmonic Distortion (THD): <1.0% @ 2 Ω per channel
  • Signal to Noise Ration: >104 dB
  • Damping Factory @ 4ohms: 150 / 50 Hz
  • Selectable Filter Modes: Off / HP / LP
  • Variable high-pass filter: 50 - 500 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 500 Hz, 12 dB/octave
  • Recommended Inline-Fuse Rating (not included): 80 A x 1 (AFS, AGU or MaxiFuse™)
  • 4 gauge OFC power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 7.09"W x 14.73"L x 2.05"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Note from JL Audio: While this amplifier is specially designed for marine applications, it is not waterproof and it should not be mounted where it is likely to get wet.

Check out the JL Audio M800/8v2 Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 8 channels
RMS Power @ 2 ohms
100 watts x 8 channels
Bridged RMS Power
200 watts x 4 channels
Amplifier Specifications
Amplifier Series
M-Series (JL Audio)
Marine Certified
Yes
Amplifier Class
D
Number of Channels
8
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>104 dB
Bass/Gain Remote
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
80A x 1 In-Line (not included)
Strappable
No
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer

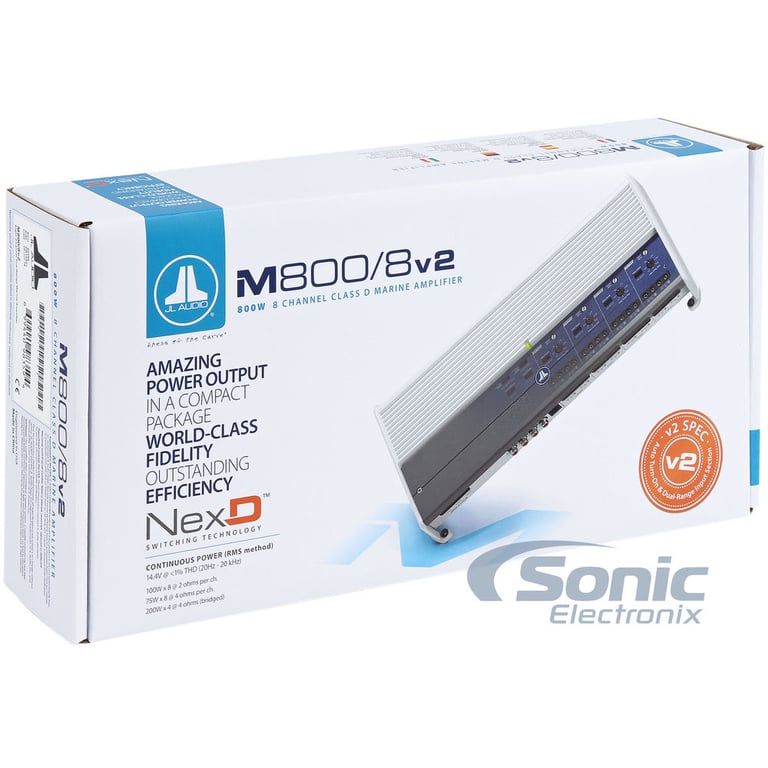

What is in the box?
WITB: Amplifiers
Amplifier
Adhesive brand badge
Allen wrench
Paperwork
User manual
Specials with this Item
Deals
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
