Name: Pioneer GM-A5602 (Factory Refurbished)
Brand: Pioneer
SKU: LS-gma5602-RB
Price: 61.48 USD
Availability: Discontinued
Rating: 4.8000 (5 reviews)

Shop all Pioneer

by Pioneer

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

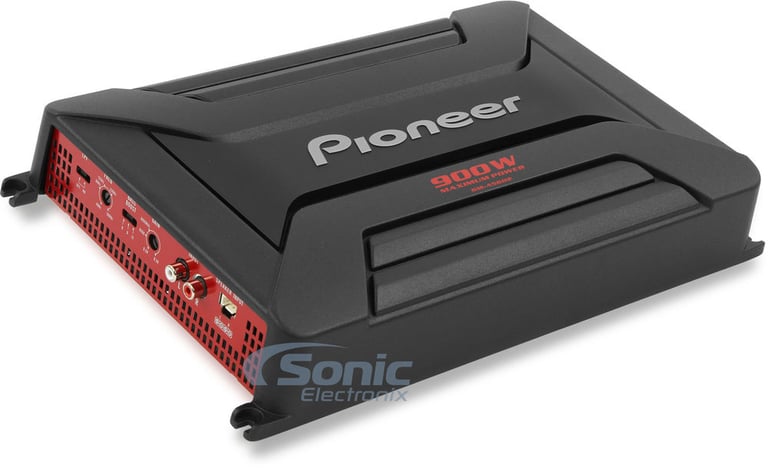

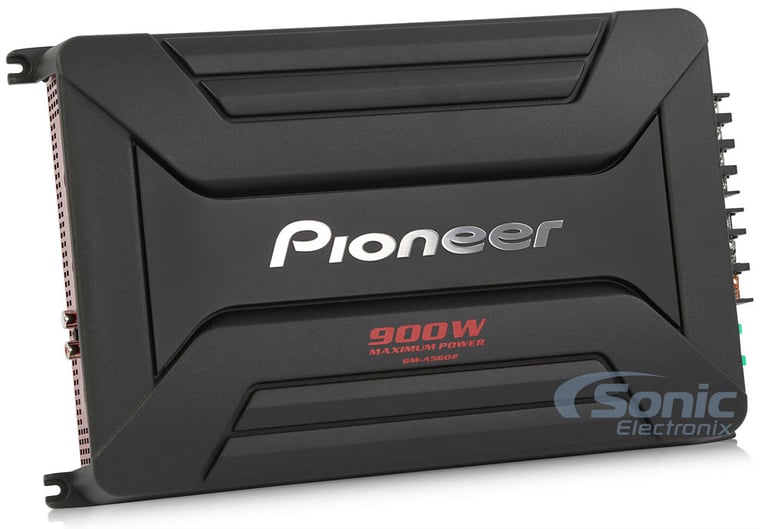

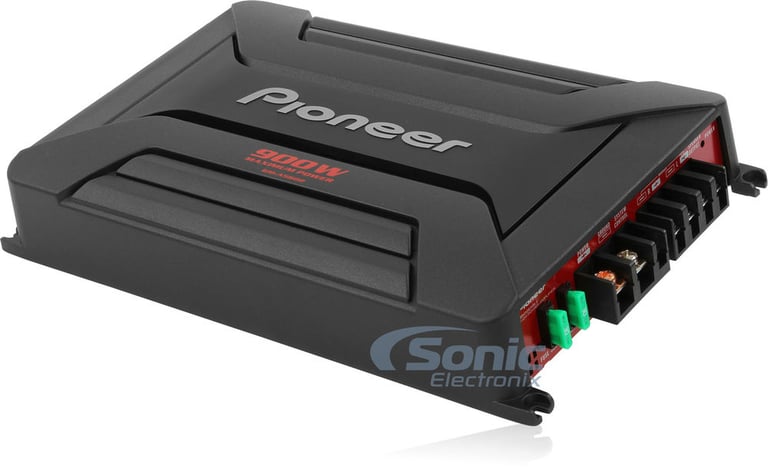

Pioneer GM-A5602 (Factory Refurbished) Image 1 — Pioneer GM-A5602 (Factory Refurbished)

Pioneer GM-A5602 (Factory Refurbished) Image 2 — Pioneer GM-A5602 (Factory Refurbished)

Pioneer GM-A5602 (Factory Refurbished) Image 3 — Pioneer GM-A5602 (Factory Refurbished)

Pioneer GM-A5602 (Factory Refurbished) Image 4 — Pioneer GM-A5602 (Factory Refurbished)

Pioneer GM-A5602 (Factory Refurbished) Image 5 — Pioneer GM-A5602 (Factory Refurbished)

Pioneer GM-A5602 (Factory Refurbished) Image 6 — Pioneer GM-A5602 (Factory Refurbished)

Pioneer GM-A5602 (Factory Refurbished)-video

Product videos

Product highlights

• RMS: 150W x 2 @ 4 ohm, 225W x 2 @ 2 ohm, 450W x 1 @ 4 ohm
• Total Peak Power: 900W
• CEA-2006 Compliant
• Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H

Learn more about the LS-gma5602-RB

Product Highlights

• RMS: 150W x 2 @ 4 ohm, 225W x 2 @ 2 ohm, 450W x 1 @ 4 ohm
• Total Peak Power: 900W
• CEA-2006 Compliant
• Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

General Features:

Product is Factory Refurbished to Like New Condition, All Parts Included

Pioneer A-Series GM-A5602
Class-AB FullRange 2-Ohm Stable 2-Channel Amplifier
RMS Power Rating:

4 ohm: 150 watts x 2 chan.
2 ohm: 225 watts x 2 chan.
Bridged, 4 ohm: 450 watts x 1 chan.

Max power output: 900 watts.
CEA-2006 Compliant Amplifier
Pulse Width Modulated MOSFET power supply
Balanced Isolator Input Circuit
LED power (on) and protect (off) indicators
Soft start turn-on
2 or Mono channel operation
Speaker-level (high-level) inputs with Signal Sensing Turn-on
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Input sensitivity:

Low level: 300mV - 6.5V
High level: 3V - 26V

Frequency Response: 10 - 70,000 Hz
Total Harmonic Distortion (THD): <0.05%
Signal to Noise Ration: >96 dB

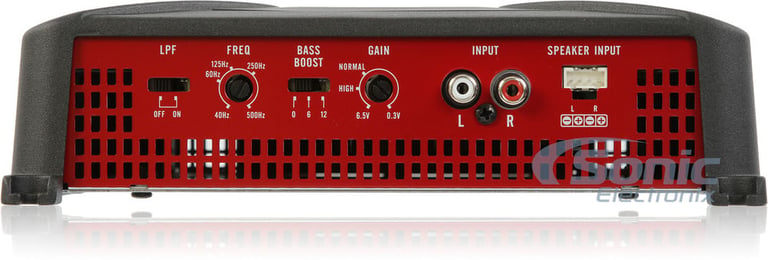

Selectable crossover modes: LPF / OFF
Variable crossover frequency 40 - 500 Hz, 12 dB/octave
Selectable Bass Boost: 0, +6 dB, +12 dB bass boost at 50 Hz

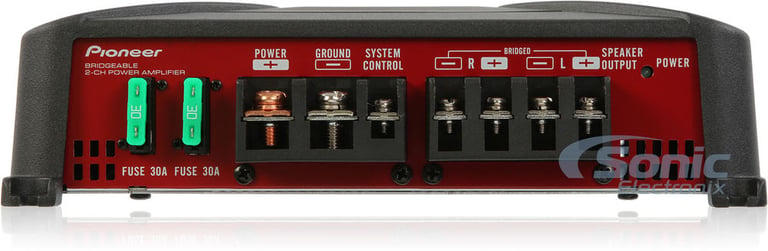

Fuse Rating: 30A x 2
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H
90 Day Sonic Electronix Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

150 watts x 2 channel

RMS Power @ 2 ohms

225 watts x 2 channel

Bridged RMS Power

450 watts x 1 channel

Power Specifications - Full Range Channels

Peak Power @ 4 ohms

300 watts x 2 channel

Peak Power @ 2 ohms

450 watts x 2 channel

Bridged Peak/Max Power

900 watts x 1 channel

Amplifier Specifications

Series

GM Series

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

900 watts

Total RMS Power Output

450 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
Full (AP)

Low-Pass Crossover Frequency

40 - 500 Hz

Signal-to-Noise Ratio

>95 dB

Bass Boost

Selectable: 0dB / 6dB / 12dB

Remote bass/level controller

Fuse Rating

30A x 2

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Pioneer GM-A5602 (Factory Refurbished) thumbnail image

Overall rating distribution

5 star		80%
4 star		20%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.8
Value		5
Features		4.8
Design		5
Usability		5

Customer Reviews

Sort by:

Nice amp

I bought this for my nephews system. I was worried when I got it because it was so light.I was surprised when we got it hooked up to two id12s at 4 ohms in a big box. It pushes them hard and sounds good to. He's had it for about 3 years now with no problems.

By Anonymous on January 16, 2019 Checkmark Icon

Verified purchase

Report abuse

Excellent

I really recomend this amp, because i'm so happy to buy one of this. It's sounds is awsome, With a 1100 Watts Speaker my car is dancing on the streets heheheheh... Simply AWWWWWSOME.

By Rhinnerx on July 11, 2016

Report abuse

Pioneer GM-A5602-RB

I purchased this pioneer amp to go with my 2 12 pioneer champion series subs that are dual voice coils at 2 ohms. This amp was the perfect match, hits extremely hard with plenty of bass. I would recommend it if you are looking for a heavy hitting amp with plenty of bass at a affordable price.

By Tony on June 25, 2016

Report abuse

Awesome amp!

Especially after I hooked the speaker up right (bridged)... I've kept your information in case I need something else... Thanks, Ron

By Ron on May 8, 2016

Report abuse

Solid little amp...

I highly recommend this amp for anyone on a budget. I have one of these on each of my 12" Kicker CompR's and they POUND. I PUNISH these amps daily and they get A LITTLE warm but nothing to get alarmed about.

By Freddy Jones on April 21, 2016
