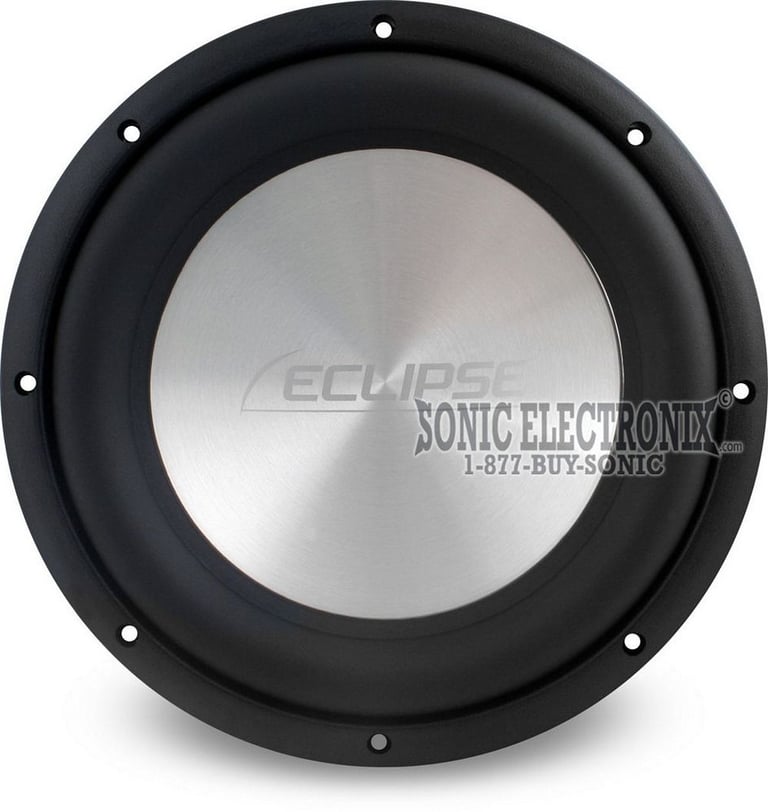

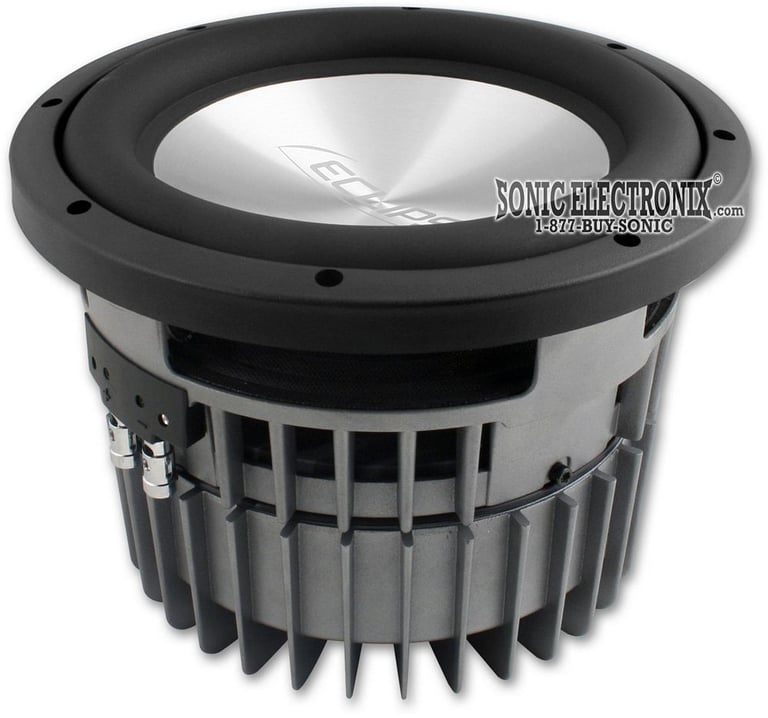

Eclipse SW8000

Single 4 ohm 10" Subwoofer

Eclipse
Shop all Eclipse
Product videos
highlight-star-icon

10" SW8000 Series Subwoofer • 1900W Max • 625W RMS • Solid aluminum cone • SBR Synthetic rubber surround • Single 4 ohm compound linear voice coil • 200oz. Dual stacked magnet

Learn more about the sw8000

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

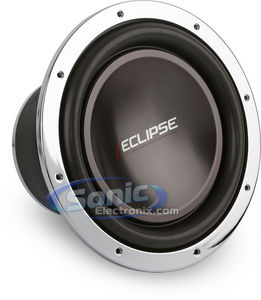

sw8210 thumbnail

Eclipse SW8210

OUR PRICE: $149.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

82-5606 main

Metra 82-5606

6x9" Front Door Speaker Bracket for select 2015-2025 vehicles from Ford, Lincoln

15
-48.62%

$16.95

List price $32.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

11
-38.81%

$20.80

List price $33.99

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

99-5858CH main

Metra 99-5858CH Dash Kit

[Single DIN and Double DIN Stereo Dash Kit and Harness for select 2011-2019 Explorer with Factory 8" Screens

-33.91%

$379.99

List price $574.99

82-5603 main

Metra 82-5603

6" to 6-3/4" Speaker Adapter for select 2011-2019 Explorer

2
-50.01%

$19.99

List price $39.99

AXAMP-FD2 main

Axxess AXAMP-FD2

Amplifier Integration Interface for select 2011-2023 vehicles from Ford

-10.07%

$410.99

List price $456.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

Product Highlights


10" SW8000 Series Subwoofer • 1900W Max • 625W RMS • Solid aluminum cone • SBR Synthetic rubber surround • Single 4 ohm compound linear voice coil • 200oz. Dual stacked magnet

Description


  • 10" SW8000 Series Subwoofer
  • Power Handling:
    • Peak: 1900 watts
    • RMS: 625 watts
  • Solid aluminum cone
  • SBR Synthetic rubber surround
  • Linear transducer technology
  • Aluminum cast basket

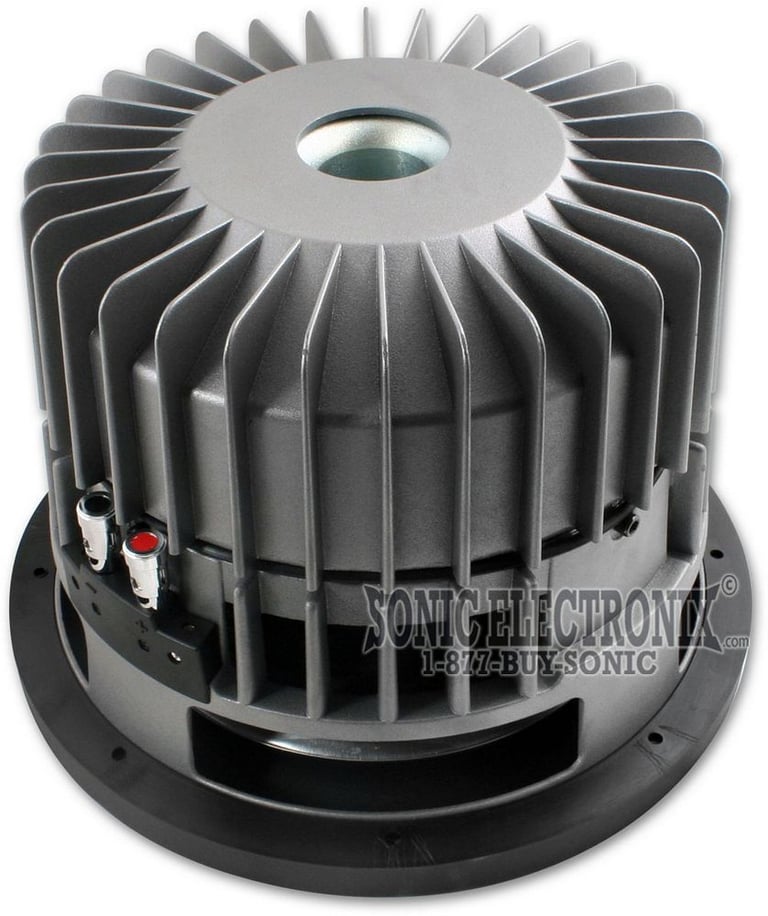

  • Aluminum cast magnet heat sink
  • Polyester-cotton spider
  • QCA (Quick Change Assembly) technology
  • Single 4 ohm compound linear voice coil
  • 200oz. Dual stacked magnet
  • 10-gauge push and screw terminal
  • Frequency response: 19-3500 Hz
  • 1-year SonicElectronix.com warranty

Product history:

Eclipse SW8210 thumbnail
(newest, current model)
Eclipse SW8000 thumbnail
(previous model, replaced by Eclipse SW8210)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Eclipse SW8000 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Eclipse SW8000 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Eclipse SW8000 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Eclipse SW8000 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1900 watts
RMS Power Handling
625 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
16 - 3500 Hz
Sensitivity
84 dB
Xmax (millimeters)
38 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Aluminum
Woofer Surround
Synthetic Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.3 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
6.63"
Cutout Diameter
9.19"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SW8000

Weight:

37.00lbs

Internal SKU:

sw8000

Internal Product ID:

7489

Product and How-to Videos


Customer Ratings & Reviews


Eclipse SW8000 thumbnail image

5 star
83%
4 star
0%
3 star
0%
2 star
0%
1 star
17%



Durability
4
Value
4.4
Features
4
Design
4.2
Usability
3.7

Customer Reviews

Sort by:

Loading...

Loud

Friend has 4 of these in a 95' grand prix....hes replace 2 gas tank covers because the bass loosened them until they would just hang open. The cone size does make space limited in certain vehicles though. If you go buy these at your local Audio Store u better bring your whole bank account because they will burn a hole in your pocket...and you better expect to put some money into a decent amp..I recommend Dynomat with more the 2 of these subs...great buy on sonic electronix!

By Justin on August 7, 2007

16 found this helpful


Smooth and Sweet

I recently bought two of the SW8000 from this site to replace some problematic SW7000 I had first ordered. These subs are the real deal. smooth and crisp with excellent frequency response. I like my bass clean rather then overbearingly loud and these subs are as good as it gets for the price. Not saying that there isn't better speakers out there but these are definitely great quality. the only problem is that the heat sync finned design is slightly bulky and add some unwanted weight to already heavy design. great buy :)
P.S. these amps need some power, so dont go half way on an amp...

By Aaron on September 23, 2008

15 found this helpful


killer sub

i have 2 10's in my 1995 eclipse i blew out 2 of my car windows i know that's bad a$$, the craziest sub ever

By mikey on November 5, 2009

14 found this helpful


SUPERB!

This sub is INCREDIBLE, and a heavy beast for a ten. When you input the thiele parameters into Eminence software and do Klipple analysis - the software thinks the sub is an 18" subwoofer! It moves more than 99% of any sub I've ever seen, including 12's and 15's. This sub produces the deepest, most high impact bass I ever heard from a 10" sub and sounds great doing so. I have 1 JL 12W7 in my Volvo and it's an awesome sub. And yet this 10" is about every bit as good - and hits just as low!!! Not to mention it cost 1/4 the price. Unbelievable subs Eclipse! One of the best 'overall' I've EVER owned - and I've owned at least 25 different subs over the past 15 years. I'd imagine the 12" version is bone crushing.

By Greg on November 10, 2008

15 found this helpful


NEVER AGAIN

This is the biggest piece of junk i have ever bought. Had it hooked up to a jl audio 1000/1 and it didn't do anything. sold it just as fast as i hooked it up. went out and bought the w7 i should have gotten and it was def worth the $$ from here

By Gene on April 23, 2008

14 found this helpful


As a stand alone.

I have a 98 Eclipse and this one on it's own is enough to want to rattle anything I drive by so just imagine.lol.

By Michael on March 24, 2009

13 found this helpful




GM1A-R small

PAC GM1A-R

RadioPRO Advanced Radio installation Adapter for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

$149.00

List price $249.00

12SME small

Atrend 12SME

Empty Single 12" Sealed Shallow Subwoofer Enclosure

(4)

$50.99

List price $79.99

VGMS small

T-Spec VGMS

GM Standard Battery Terminal Post For GM Side Post Style Batteries

(3)

$12.99

List price $14.99

VTL420 small

BOYO Vision VTL420

Universal Bar Type CCD Backup Camera

(5)

$94.99

List price $129.99

CVR122 small

Kicker CompVR CVR122

800W Peak (400W RMS) 12" CompVR Series Dual 2-ohm Subwoofer

(5)

$157.99

List price $149.99

BAK84 small

Belva BAK84

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED

(37)

$34.99

List price $59.99

VDB3 small

T-Spec VDB3

3-Position Compact Non-Fused Ground Distribution Block

$26.99

List price $29.99

AX-MBUSB small

Axxess AX-MBUSB

Factory USB Port Retention Adapter in select 2007-2016 C-Class and AMG C-Class and C450 AMG

$14.99

List price $22.48

FD1437B small

Scosche FD1437B / FD1437

Installation Kit for 2008-2011 Ford Focus (Works with Single DIN or Double DIN)

(3)

$45.99

List price $48.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Ford Explorer

2018 MINI Cooper

2017 Ford Flex

2016 Ford C-Max

1998 Mitsubishi Eclipse

2015 Mazda 6

2018 Ford Flex

2001 Lincoln LS

2014 Nissan Leaf

1980 Volkswagen Scirocco

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
