Name: Kenwood KAC-5206 (OPEN BOX COMPLETE)
Brand: Kenwood
SKU: LS-kac5206-OBCRA233423
Price: 51.95 USD
Availability: Discontinued

by Kenwood

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

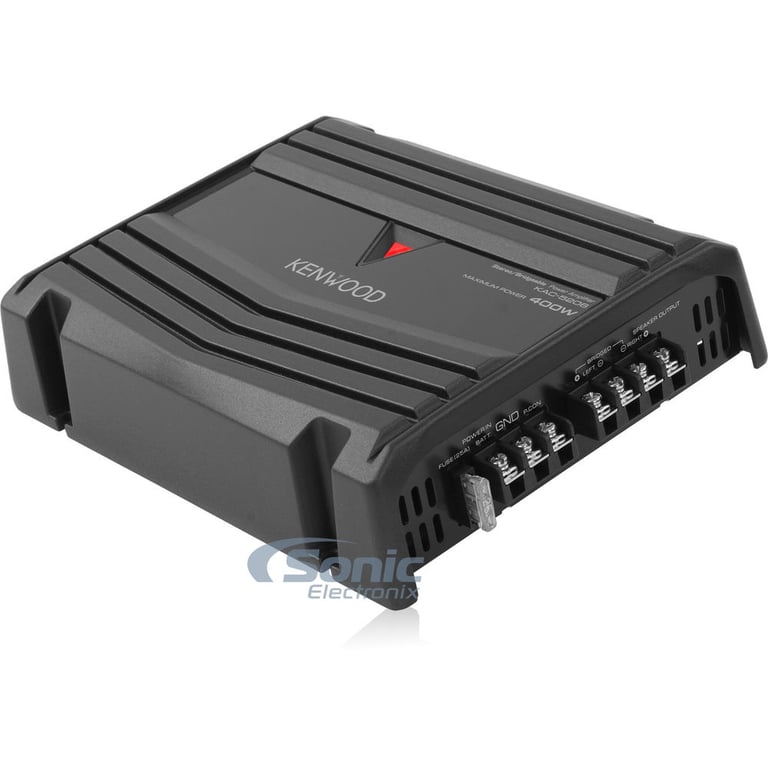

Kenwood KAC-5206 (OPEN BOX COMPLETE) Image 1 — Kenwood KAC-5206 (OPEN BOX COMPLETE)

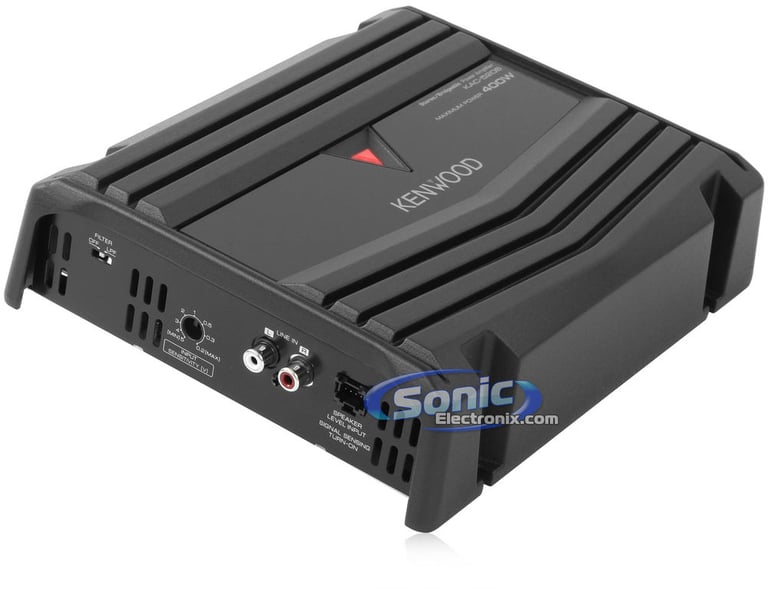

Kenwood KAC-5206 (OPEN BOX COMPLETE) Image 2 — Kenwood KAC-5206 (OPEN BOX COMPLETE)

Kenwood KAC-5206 (OPEN BOX COMPLETE) Image 3 — Kenwood KAC-5206 (OPEN BOX COMPLETE)

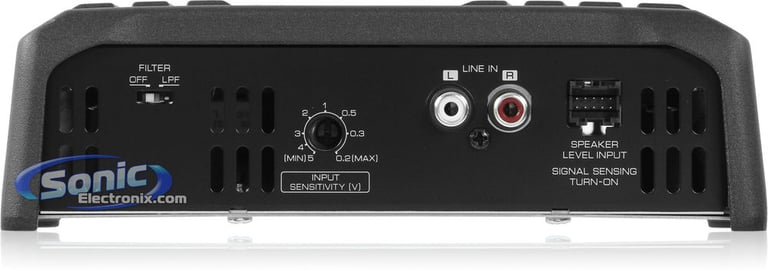

Kenwood KAC-5206 (OPEN BOX COMPLETE) Image 4 — Kenwood KAC-5206 (OPEN BOX COMPLETE)

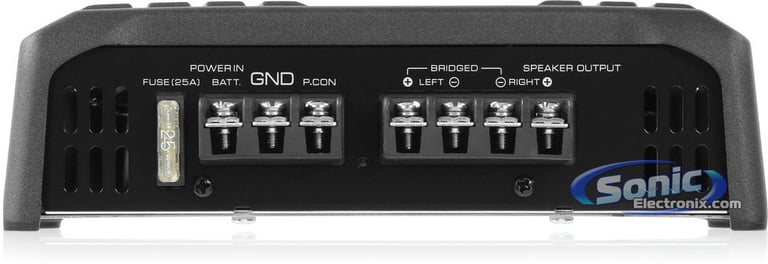

Kenwood KAC-5206 (OPEN BOX COMPLETE) Image 5 — Kenwood KAC-5206 (OPEN BOX COMPLETE)

Kenwood KAC-5206 (OPEN BOX COMPLETE) Image 6 — Kenwood KAC-5206 (OPEN BOX COMPLETE)

Kenwood KAC-5206 (OPEN BOX COMPLETE) Image 7 — Kenwood KAC-5206 (OPEN BOX COMPLETE)

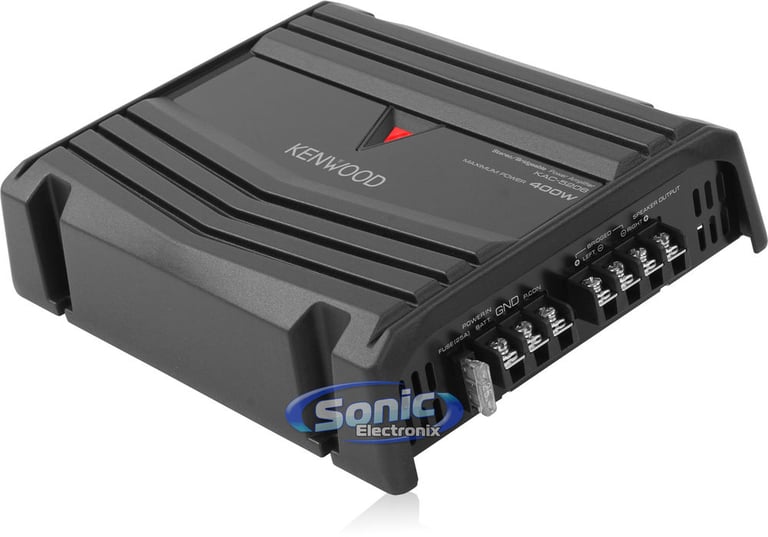

Kenwood KAC-5206 (OPEN BOX COMPLETE) Image 8 — Kenwood KAC-5206 (OPEN BOX COMPLETE)

Kenwood KAC-5206 (OPEN BOX COMPLETE) Image 9 — Kenwood KAC-5206 (OPEN BOX COMPLETE)

Kenwood KAC-5206 (OPEN BOX COMPLETE) Image 10 — Kenwood KAC-5206 (OPEN BOX COMPLETE)

Kenwood KAC-5206 (OPEN BOX COMPLETE) Image 11 — Kenwood KAC-5206 (OPEN BOX COMPLETE)

Kenwood KAC-5206 (OPEN BOX COMPLETE) Image 12 — Kenwood KAC-5206 (OPEN BOX COMPLETE)

Kenwood KAC-5206 (OPEN BOX COMPLETE) Image 13 — Kenwood KAC-5206 (OPEN BOX COMPLETE)

Kenwood KAC-5206 (OPEN BOX COMPLETE)-video

Product videos

Product highlights

• 60 Watts RMS x 2 @ 4 ohm
• 75 Watts RMS x 2 @ 2 ohm
• 150 Watts RMS x 1 @ 4 ohm, Bridged
• Total Peak Power: 400 Watts
• CEA-2006 Compliant
• Speaker-level (high-level) inputs with Auto Turn-On
• Nickel plated RCA, Power/Ground and Speaker connections
• Signal to Noise Ration: 95 dB

Learn more about the LS-kac5206-OBCRA233423

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

This is an Open Box Item

We have checked, tested, and confirmed this item to function properly. It contains all the same parts as a new unit, but shows some visible signs of use.

This open box product has a 30-day return policy and a 90-day warranty

Item Condition: Open Box Complete

Item has been installed, used, and has box damage and inner package missing.

General Features:

Performance Series Class AB 2-Channel/Bridgeable Car Amplifier
RMS Power Rating:

4 ohm: 60 watts x 2 chan.
2 ohm: 75 watts x 2 chan.
Bridged, 4 ohm: 150 watts x 1 chan.

Total peak power output: 400 watts
CEA-2006 Compliant Amplifier
Pulse Width Modulated MOSFET power supply
Illuminated Red LED Kenwood Emblem
Soft start turn-on
Speaker-level (high-level) inputs with Auto Turn-On (Harness Included, not shown)
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty cast aluminum alloy heat-sink for extreme heat dissipation
Nickel plated RCA, Power/Ground and Speaker connections
Input sensitivity:

Low level: 200mV - 5V
High level: 4.0V - 12.0V

Frequency Response: 5 - 50,000 Hz
Total Harmonic Distortion (THD): <1.0 %
Signal to Noise Ration: 95 dB
Selectable low-pass filter: OFF / 80 Hz (LPF), 18 dB/octave
Fuse Rating: 25A x 1
8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 8-7/8" W x 2-3/16"H x 7-1/16" D
Authorized Internet Dealer
90 Day Sonic Electronix Warranty

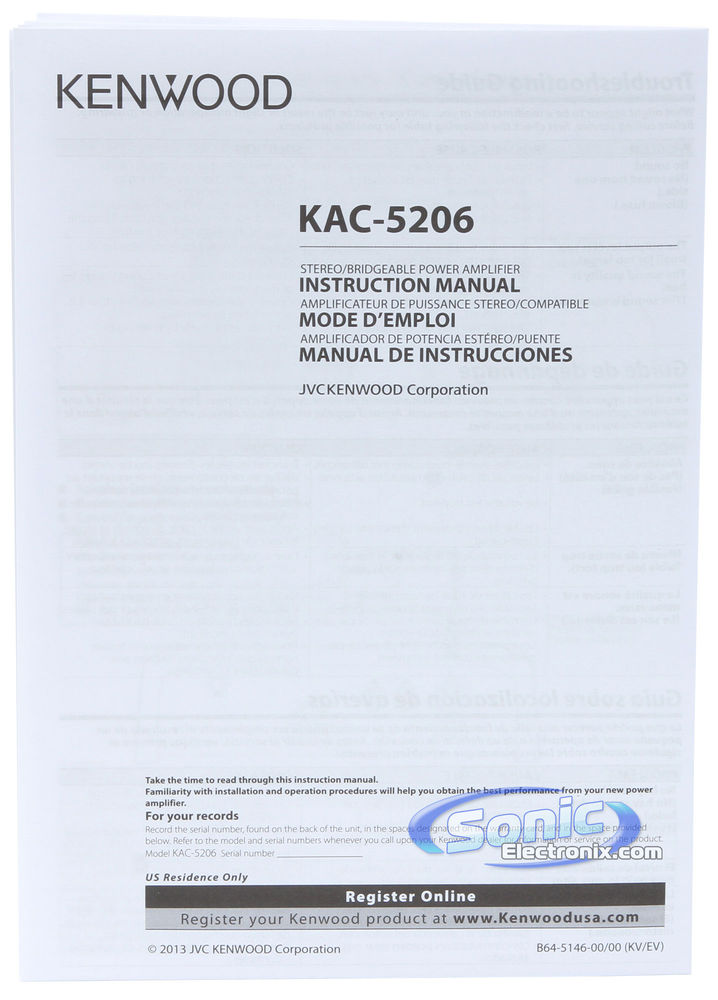

Check out the Kenwood KAC-5206 Owner's Manual

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

60 watts x 2 channel

RMS Power @ 2 ohms

75 watts x 2 channel

Bridged RMS Power

150 watts x 1 channel

Power Specifications - Full Range Channels

Bridged Peak/Max Power

400 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

400 watts

Total RMS Power Output

150 watts

Maximum Input Gauge Size

Any Gauge with use of Spade Terminal AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<1.0%

Speaker Level Inputs

Yes

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

80 Hz

Signal-to-Noise Ratio

95 dB

Remote bass/level controller

Fuse Rating

25A x 1

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
