Name: Kenwood KAC-5206 Open Box Complete
Brand: Kenwood
SKU: ls-kac5206-obc6
Price: 47.99 USD
Availability: Discontinued

by Kenwood

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

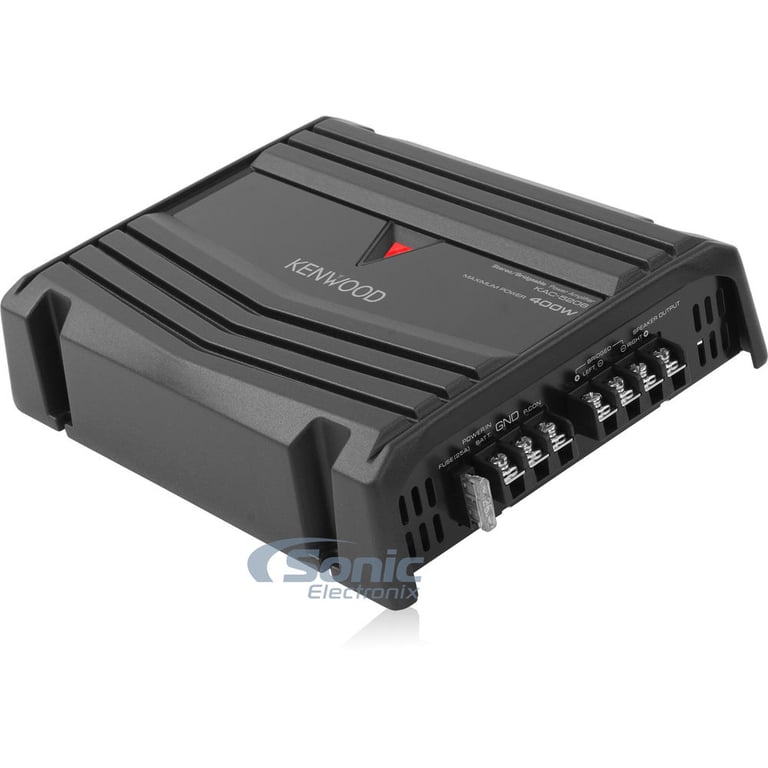

Kenwood KAC-5206 Open Box Complete Image 1 — Kenwood KAC-5206 Open Box Complete

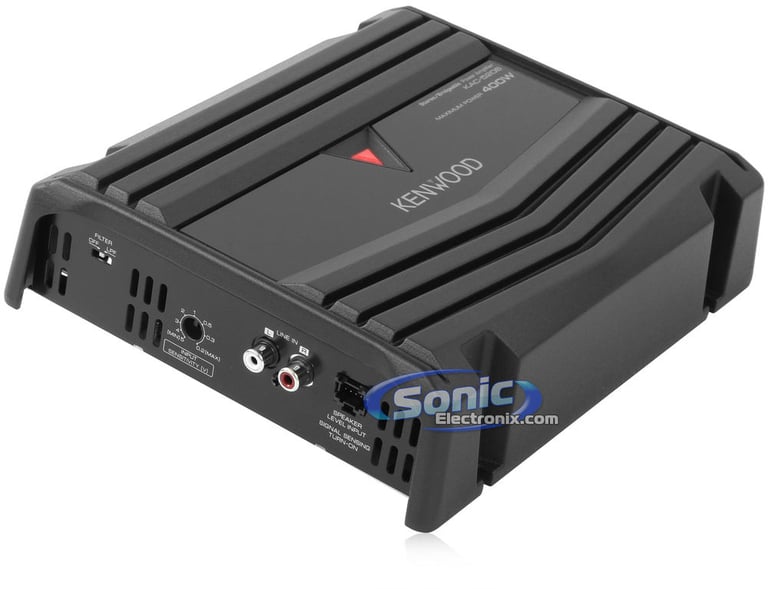

Kenwood KAC-5206 Open Box Complete Image 2 — Kenwood KAC-5206 Open Box Complete

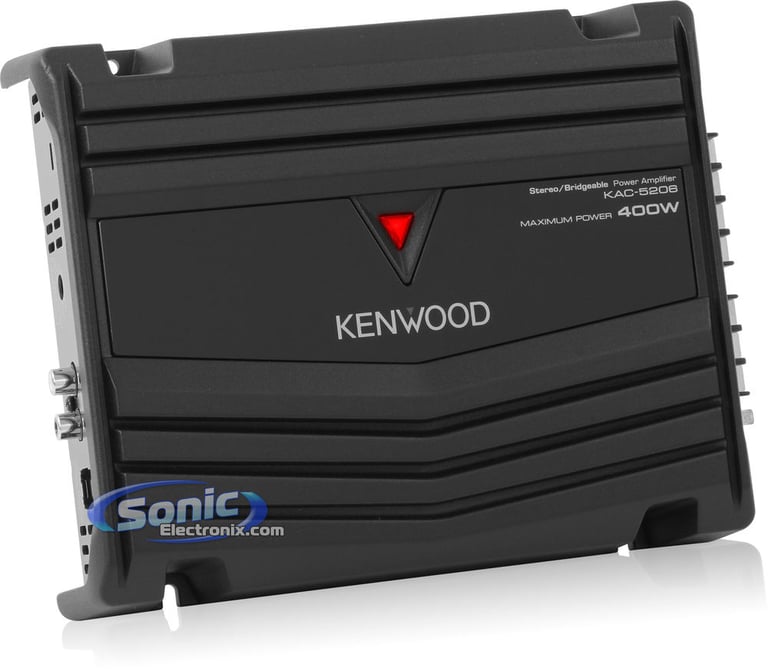

Kenwood KAC-5206 Open Box Complete Image 3 — Kenwood KAC-5206 Open Box Complete

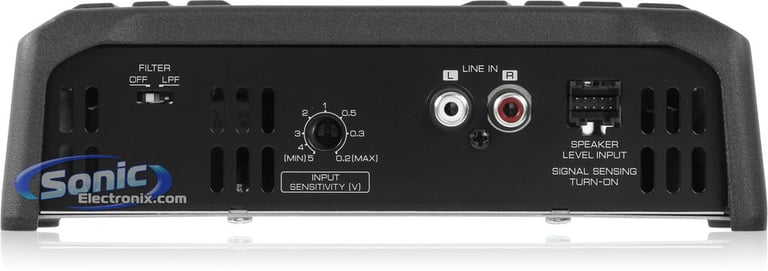

Kenwood KAC-5206 Open Box Complete Image 4 — Kenwood KAC-5206 Open Box Complete

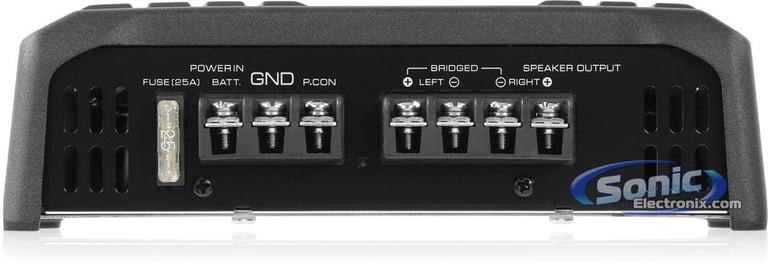

Kenwood KAC-5206 Open Box Complete Image 5 — Kenwood KAC-5206 Open Box Complete

Kenwood KAC-5206 Open Box Complete Image 6 — Kenwood KAC-5206 Open Box Complete

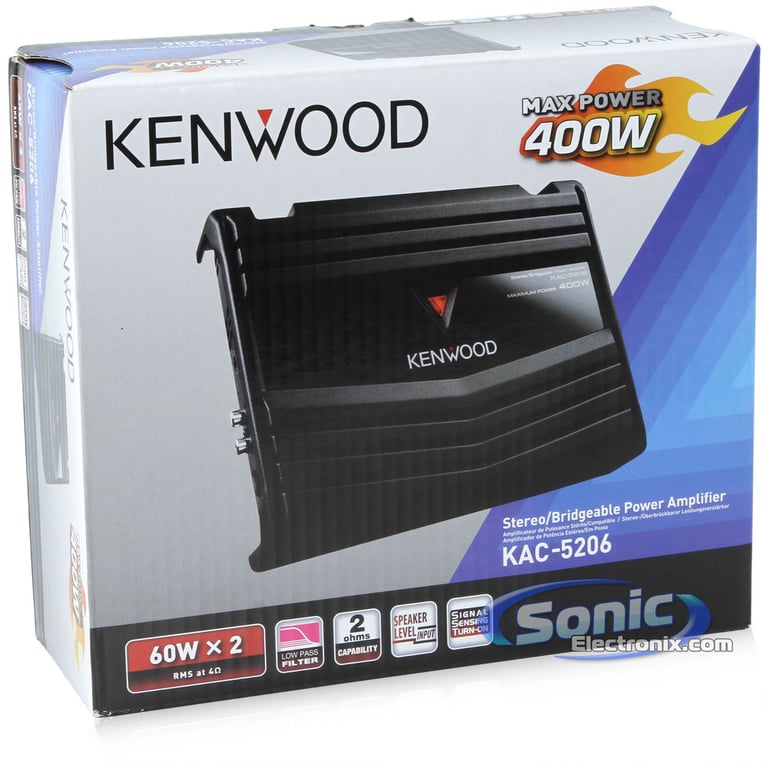

Kenwood KAC-5206 Open Box Complete Image 7 — Kenwood KAC-5206 Open Box Complete

Product highlights

• Item Condition: Open Box Complete
• 60 Watts RMS x 2 @ 4 ohm
• 75 Watts RMS x 2 @ 2 ohm
• 150 Watts RMS x 1 @ 4 ohm, Bridged
• Total Peak Power: 400 Watts
• CEA-2006 Compliant
• Speaker-level (high-level) inputs with Auto Turn-On
• Nickel plated RCA, Power/Ground and Speaker connections
• Signal to Noise Ration: 95 dB

Learn more about the ls-kac5206-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.

General Features:

Performance Series Class AB 2-Channel/Bridgeable Car Amplifier
RMS Power Rating:

4 ohm: 60 watts x 2 chan.
2 ohm: 75 watts x 2 chan.
Bridged, 4 ohm: 150 watts x 1 chan.

Total peak power output: 400 watts
CEA-2006 Compliant Amplifier
Pulse Width Modulated MOSFET power supply
Illuminated Red LED Kenwood Emblem
Soft start turn-on
Speaker-level (high-level) inputs with Auto Turn-On (Harness Included, not shown)
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty cast aluminum alloy heat-sink for extreme heat dissipation
Nickel plated RCA, Power/Ground and Speaker connections
Input sensitivity:

Low level: 200mV - 5V
High level: 4.0V - 12.0V

Frequency Response: 5 - 50,000 Hz
Total Harmonic Distortion (THD): <1.0 %
Signal to Noise Ration: 95 dB
Selectable low-pass filter: OFF / 80 Hz (LPF), 18 dB/octave
Fuse Rating: 25A x 1
8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 8-7/8" W x 2-3/16"H x 7-1/16" D
Authorized Internet Dealer
1-year Sonic Electronix Warranty

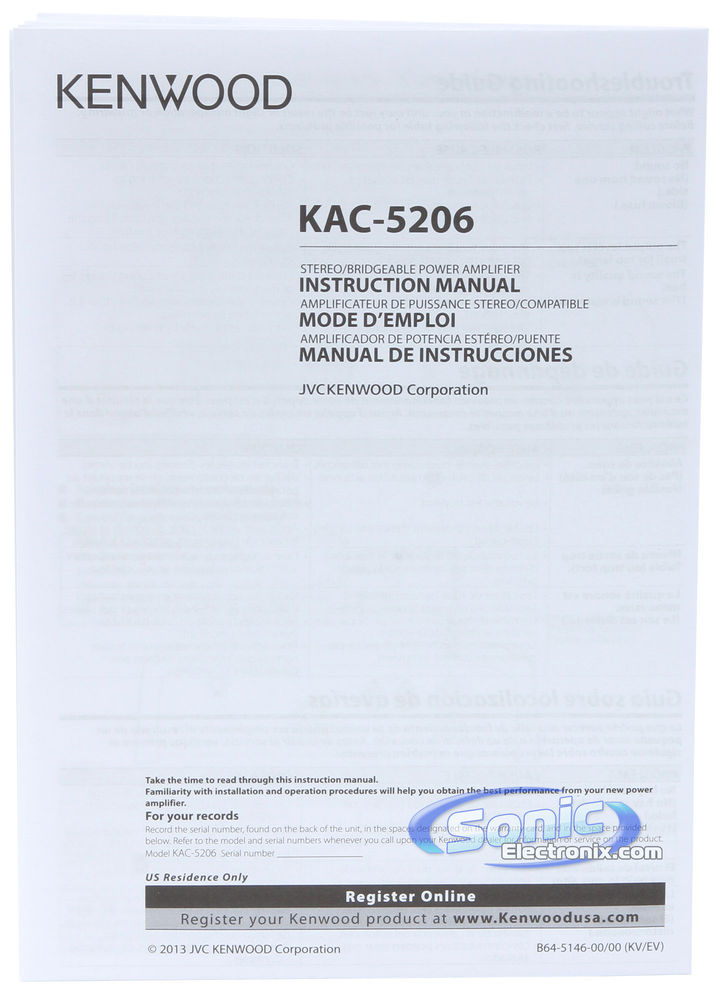

Check out the Kenwood KAC-5206 Owner's Manual

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

60 watts x 2 channel

RMS Power @ 2 ohms

75 watts x 2 channel

Bridged RMS Power

150 watts x 1 channel

Power Specifications - Full Range Channels

Bridged Peak/Max Power

400 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

400 watts

Total RMS Power Output

150 watts

Maximum Input Gauge Size

Any Gauge with use of Spade Terminal AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<1.0%

Speaker Level Inputs

Yes

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

80 Hz

Signal-to-Noise Ratio

95 dB

Remote bass/level controller

Fuse Rating

25A x 1

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
