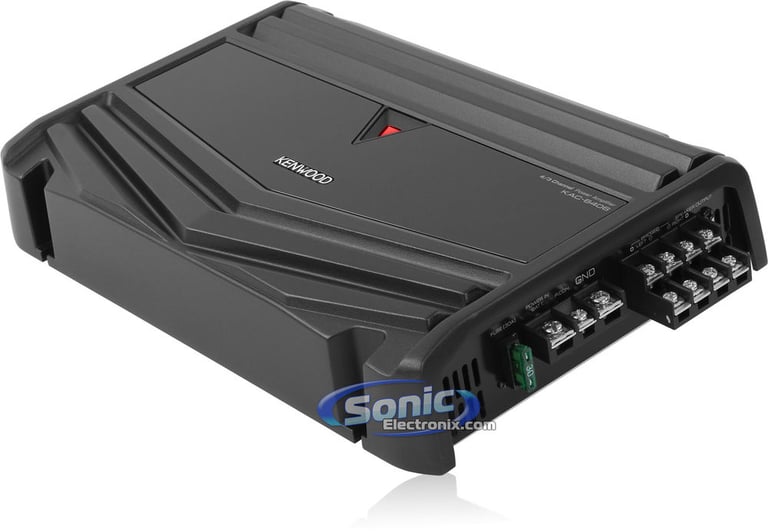

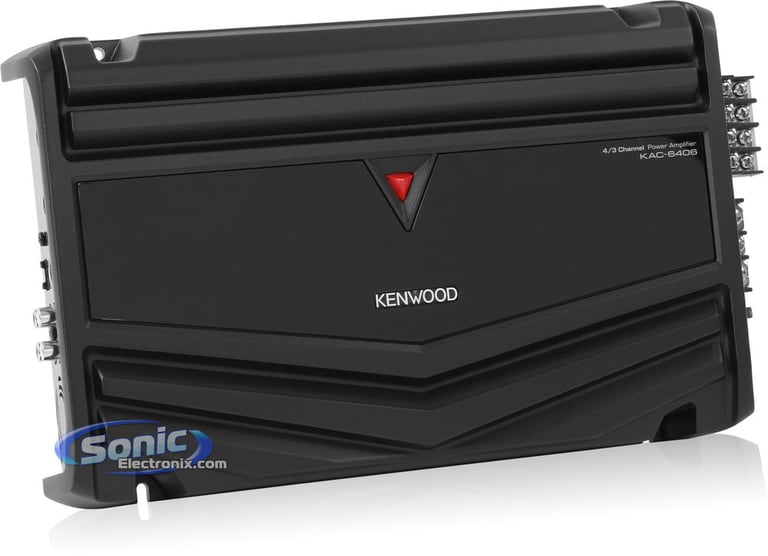

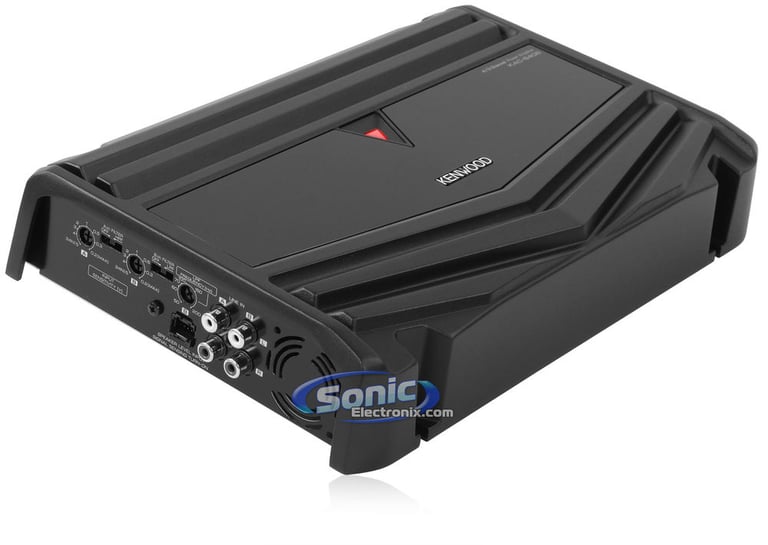

Kenwood KAC-6406

500W Peak (260W RMS) CEA-2006 Compliant Class-AB Bridgeable 4-Channel 2-Ohm Stable Amplifier

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

• RMS Power: 40W x 4 @ 4 ohm, 60W x 4 @ 2 ohm
• Total Peak Power: 250W
• CEA-2006 Compliant
• 7-7/8"W x 12-3/8"L x 2-3/16"H

Learn more about the kac6406

We apologize

This item has been discontinued


Loading...
40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

HON2MVL2 main

GROM Audio HON2MVL2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2010-2015 vehicles from Acura, Honda

70-1732 main

Metra 70-1732

Factory Amplifier Bypass Harness for select 2007-2013 MDX

-45.01%

$32.99

List price $59.99

AXBUCH-MDX main

Axxess AXBUCH-MDX

Install a New Car Stereo and Retain Backup Camera in select 2010-2013 MDX

-10.00%

$26.99

List price $29.99

Product Highlights


• RMS Power: 40W x 4 @ 4 ohm, 60W x 4 @ 2 ohm
• Total Peak Power: 250W
• CEA-2006 Compliant
• 7-7/8"W x 12-3/8"L x 2-3/16"H

Description


Kenwood brand icon

Authorized dealer

General Features:

  • Kenwood KAC-6406
  • Class-AB FullRange 2-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 40 watts x 4 chan.
    • 2 ohm: 60 watts x 4 chan.
    • Bridged @ 4 ohm: 130 watts x 2 chan.
  • Total peak output: 500 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power and protect indicator
  • Soft start turn-on
  • 4, 3 or 2 channel operation
  • Speaker-level (high-level) inputs with Signal Sensing Turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

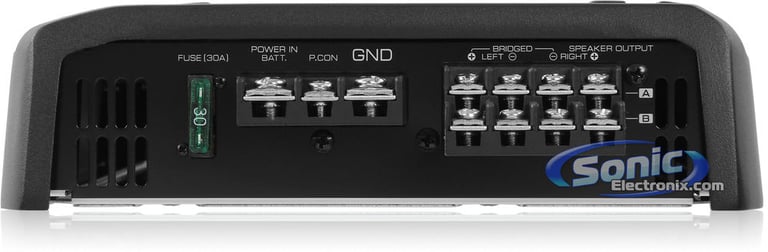

  • Nickle-plated RCA, Speaker and Power terminals
  • Heavy duty cast aluminum alloy heat-sink for extreme heat dissipation

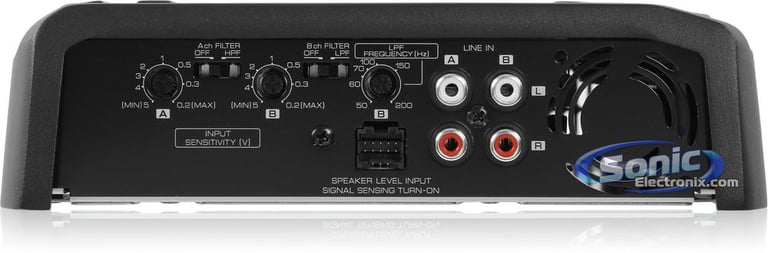

  • Input sensitivity:
    • Low level: 200mV - 5V
    • High level: 4V - 12V
  • Frequency Response: 5 - 50,000 Hz
  • Total Harmonic Distortion (THD): <1.0%
  • Signal to Noise Ration: 100dB
  • CH A Selectable high-pass filter: Fixed 80 Hz, 12 dB/octave
  • CH B Variable low-pass filter: Off, 50 - 200 Hz, 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • Fuse Rating: 30 A x 1
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 7-7/8"W x 12-3/8"L x 2-3/16"H
  • 1-year Sonic Electronix Warranty

Product history:

Kenwood KAC-6406 thumbnail
(newest, current model)
Kenwood KAC-6404 thumbnail
(previous model, replaced by Kenwood KAC-6406)
Kenwood KAC-6402 thumbnail
(previous model, replaced by Kenwood KAC-6404)
Kenwood KAC-6401 thumbnail
(previous model, replaced by Kenwood KAC-6402)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

GM-DX874 small

Pioneer GM-DX874

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable 4-Channel Amplifier

(14)

$220.00

List price $300.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
40 watts x 4 channel
RMS Power @ 2 ohms
60 watts x 4 channel
Bridged RMS Power
130 watts x 2 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
80 watts x 4 channel
Peak Power @ 2 ohms
120 watts x 4 channel
Bridged Peak/Max Power
240 watts x 2 channel
Amplifier Specifications
Series
Sport Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
500 watts
Total RMS Power Output
260 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.00%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
Fixed at 80Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
100 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KAC-6406

Weight:

5.35lbs

Internal SKU:

kac6406

Internal Product ID:

76451

Product and How-to Videos


Customer Ratings & Reviews


Kenwood KAC-6406 thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
5
Features
4.8
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

Great Product

I bought this amplifier as a replacement for one that stopped working a while back. This amplifier was barely off the truck before I had it installed and working in my car. It took me about twenty minutes to install since the necessary wires were already there and that included mounting it in my trunk. The price paid for this product was unbeatable compared to other outlets like Crutchfield. I highly recommend this product for those of you that want a "Little Bass" in your vehicle and buy it for Sonix Electronix.

By Big Dex on May 16, 2014

32 found this helpful


Kenwood KAC-6406

Great amp for the money. Got it for my mids and highs. Sounds great. Have no complaints.

By lionel on April 21, 2014

27 found this helpful


Kenwood KAC-6406

The KAC is a decent amp. As mentioned in my review for the EX-Floc-4 (Line out converter) this amp will supply you with the power you need for the price you are paying. It's doing a nice job powering my two pioneer 6x9's 60RMS and a pair of Polk audio 651's also 60RMS.

By Mike on January 10, 2016


RaMon T

This a decent amp just make sure you put the amp with speakers in it's wattage range. I have mine on NVX 6X8 and it sounds nice. I would recommend this amp.CAN'T RATE DURABILITY A 5 BECAUSE I HAVEN'T HAD IT LONG

By Ramon on September 18, 2015 Checkmark Icon Verified purchase




33966 small

Hamilton Beach 33966

Hamilton Beach 33966 Set 'n Forget 6 Quart Programmable Slow Cooker

$36.36

List price $0.00

LS-SXE-1750S-OBC small

Alpine SXE-1750S OPEN BOX COMPLETE

6.5" 2-Way Type-E Series Component Car Audio Speaker System

$39.95

List price $89.95

RS1-216 small

MB Quart RS1-216

220 Watt 6.5" Reference 2-Way Component Speaker System (Grills Included)

(2)

$167.99

List price $189.99

No picture

Massive Audio FC6 (Like New (Open Box))

1200W Peak (300W RMS) 6.5" FC Series 4-ohm Component Speaker System

$84.98

List price $129.98

ONX302-PAIR small

MB Quart ONX302 Subwoofer Pair Combo

Pair of 12" Dual 2 ohm ONYX Series Car Subwoofers

(4)

$129.26

List price $259.90

Z42 (WR) small

Cort Zenox Z42 (WR)

Mohogany Body Single Cutaway Electric Guitar with Cort Dynamic Active Pickups (Wine Red)

$229.00

List price $319.99

KDC-MPV622 small

Kenwood KDC-MPV622

$179.99

List price $289.99

No picture

MB Quart RLP-304, Open Box (Very Good, Used)

300W 12" Reference Series Dual 4 ohm Low-Profile Subwoofer

$47.99

List price $169.99

No picture

Hertz DPK 165.3 (Open-box, Like New)

320W Peak (160W RMS) 6.5" Dieci Series 2-way 4-ohm Component Speakers System

$237.99

List price $315.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1954 GMC 100-24

2012 Acura MDX

2016 Chevrolet Spark

2017 Ford Expedition EL

2018 Chevrolet Spark

2018 Chevrolet Corvette

1990 Mitsubishi Mighty Max

2007 Volkswagen Beetle

2009 Kia Spectra

2013 Cadillac ATS

Vehicle
Store
Delete

2011 Harley Davidson FLSTSB Cross Bones

2007 Harley Davidson FXSTSSE Screamin Eagle Softail Springer

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
