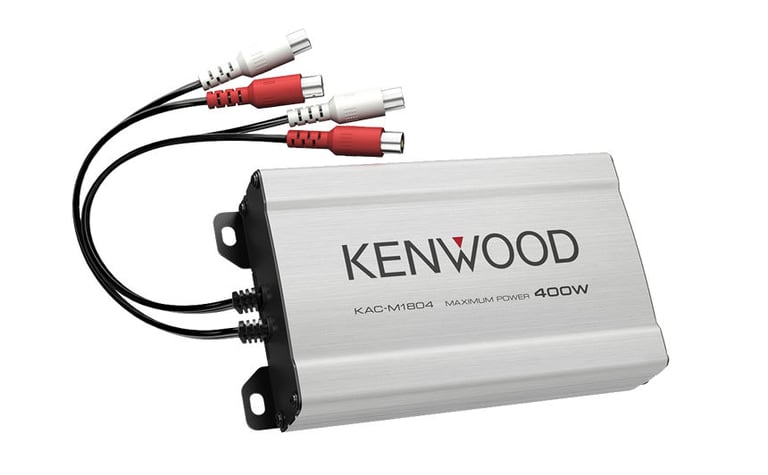

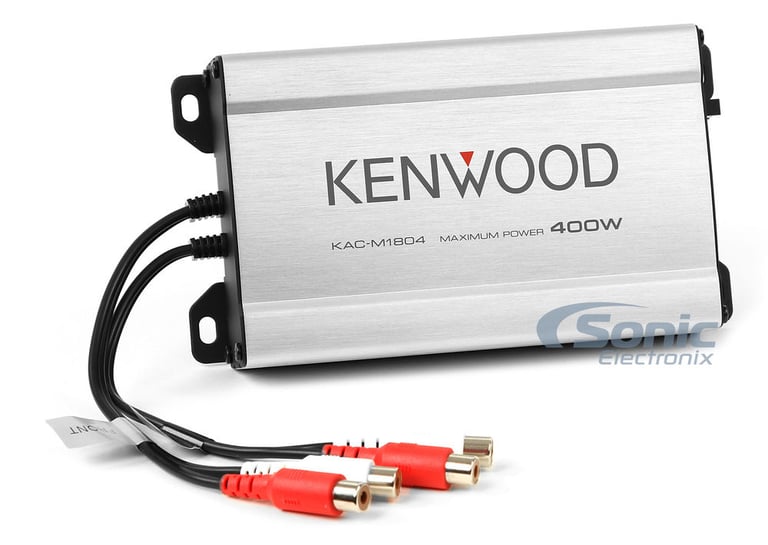

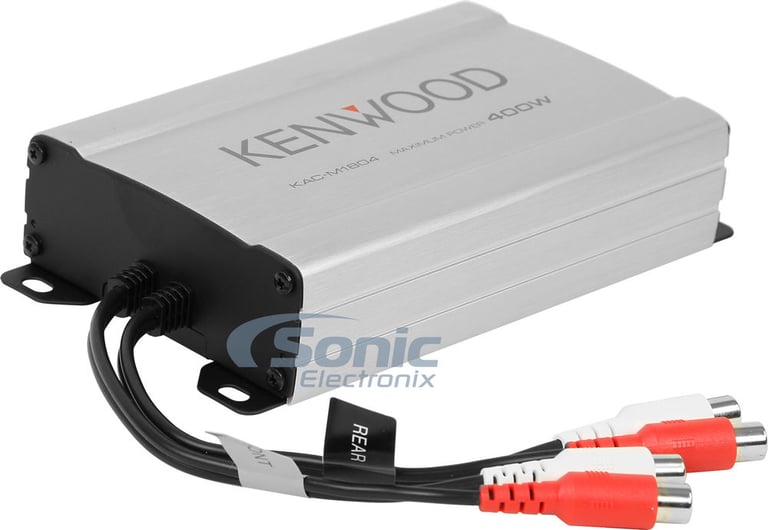

Kenwood KAC-M1804

400W 4-Channel Class-D Compact Digital Car Marine/ATV Amplifier

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

• RMS Power: 45W x 4 @ 4 ohm
• Total Peak Power: 400W
• CEA-2006 Compliant
• Dimensions: 5-1/2" W x 3-9/16" D x 1-5/16" H

Learn more about the kacm1804

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


• RMS Power: 45W x 4 @ 4 ohm
• Total Peak Power: 400W
• CEA-2006 Compliant
• Dimensions: 5-1/2" W x 3-9/16" D x 1-5/16" H

Description


Kenwood brand icon

Authorized dealer

General Features:

  • Kenwood KAC-M1804
  • Class-D Full Range 4-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 45 watts x 4 chan.
  • Total power output: 400 watts
  • CEA-2006 Compliant Amplifier
  • Power MOSFET Switching Power Supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • PCB Protection by Conformal Coating
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Extruded Aluminum Heat Sink Design
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 90dB
  • Variable low-pass filter: 50 - 200 Hz, 24 dB/octave
  • Fuse Rating: 15A x 1
  • 10 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 5-1/2"W x 3-9/16"D x 1-5/16"H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
45 watts x 4 channel
Amplifier Specifications
Series
KAC Series
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
180 watts
Maximum Input Gauge Size
10 AWG
Minimum Impedance Unbridged
4 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
90 dB
Remote bass/level controller
Yes
Fuse Rating
15A x 1
Total Fuse Rating
15
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork

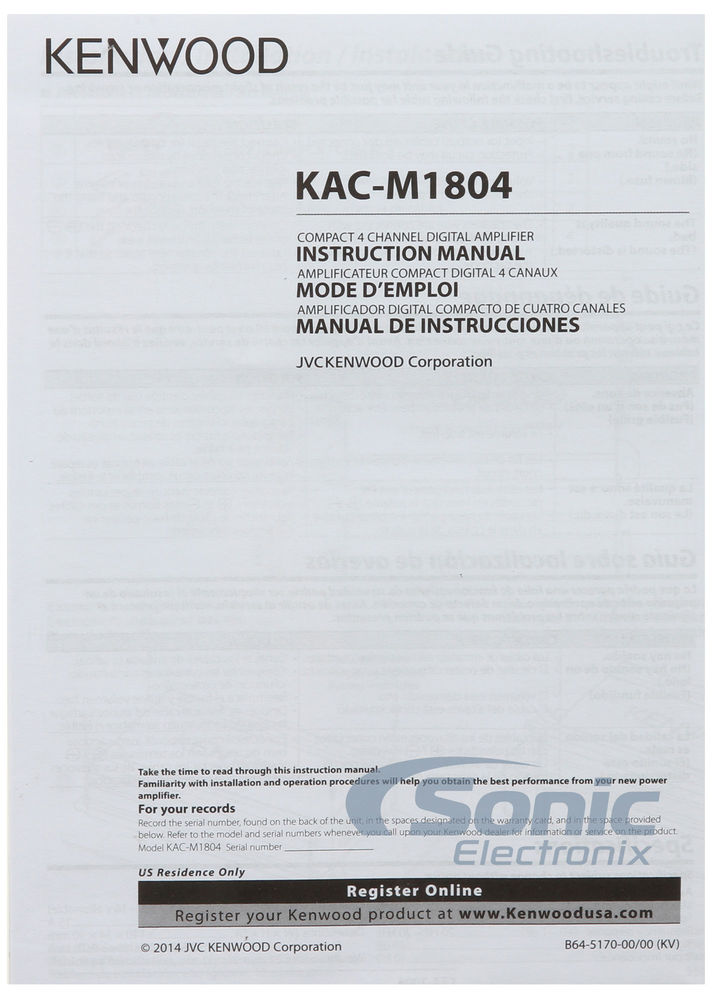

User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KAC-M1804

Weight:

2.20lbs

Internal SKU:

kacm1804

Internal Product ID:

76498

Product and How-to Videos


Customer Ratings & Reviews


Kenwood KAC-M1804 thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.7
Features
4.2
Design
4.7
Usability
5

Customer Reviews

Sort by:

Loading...

Great little amp for the price

I have this little amp installed in my car with aftermarket speakers (6X9). I bought it mainly because it was small and could hide it under the head unit so I don't have an annoying amp and cables under the seats. I was not expecting much on the performance side since it is only 400W but I was very impressed! Highs are crystal clear and it adds powerfull bass in comparision to the radio built-in amp. A lot of amps are cheaper for the same power rating but if you really need small size this amp is the way to go!

By JMP on March 21, 2015

22 found this helpful


Kenwood KAC-M1804

Here's the good, The Bad, and the Ugly.
Sounds great!
I have no idea what the RCA level inputs take. It's not in the specs.
My Sony head unit has 5V outputs. I think this unit takes 2-4 volts.
My issue: It gets too loud before the dynamic range opens up from the head unit. No way to adjust at the amp for the higher level inputs. I can only turn it up to 1/3rd of the head units output. I want 2/3 to open up that dynamic range.

By Yosiff on April 3, 2015

20 found this helpful


Just as expected...

Received the unit and installed in my pontoon boat. Easily connected to my Sony DSX-MS60. Has only been installed for a week so can't post much experience with amp. Very pleased thus far and thinking about purchasing same amp for my 20' bowrider.

By Michael on September 17, 2014

17 found this helpful


Decent little Amp

The Good:

- Very Compact, easy to install, especially in tight places - I put it vertically next to the glove box bheind the dash with no issues.

- Puts out good power for its size with little draw and produces a nice clean signal.

- Easy to set up with the harness kit.

- Not expensive

The Less than Good:

- No gains, which may or may not be an issue, depending on your head unit and preferred volume/cab size (I had no problem with a Pioneer 720bt in my Elantra).

- Causes a slight *pop* on shutdown - not enough to damage the speakers (probably), but still audible, and a little annoying.

- Contains a 15A fuse. If it was truly a 400W max, it should be able to handle 25+A, so it makes me wonder... although I have never tripped it.

By Neil on November 12, 2016

2 found this helpful


Easy installation and great sound

Installed in 2010 VW Sportwagen with Kenwood KDC-BT758HD receiver and two sets of Polk DB6501 component speakers. Once i added the second set of speakers the head unit couldn't deliver the power. The KAC-M1804 really makes these speakers stand out and deliver great sound.
Very easy to install

By Dave on September 19, 2015

4 found this helpful


Great for what it is

I got this amp to power 4 Cerwin Vega door speakers. It put out a lot more power than my kenwood head unit and greatly improved my sound. You know it puts out its rated power because it's CEA-2006 compliant. I was able to fit it in my dash behind my head unit. It worked right away when I hooked it up, which was a relief. Keep in mind, after playing loud for a while it does get pretty warm. All in all great buy for anyone looking for a little boost over what their head unit can put out.

By jondrom on November 20, 2015

2 found this helpful


Kenwood KAC-M1804

Great product and great delivery time highly recommended this product

By Rich on April 18, 2016


kenwood kac-m1804

I have used this for about 30 days,working good,easy to hookup and hide

By novafrog on April 4, 2016


Good value and sound, easy hookup

I used this as part of a new sound system in a 1994 Mustang GT (with a Kenwood cd player/receiver and 6x8 Kicker speakers). All together this system sounds better than the factory installation did.

Since it is new to me I cannot honestly comment on durability but Kenwood has a good reputation for that. The review did not allow me to skip rating durability so I rated it in the middle...

By G on November 22, 2015
