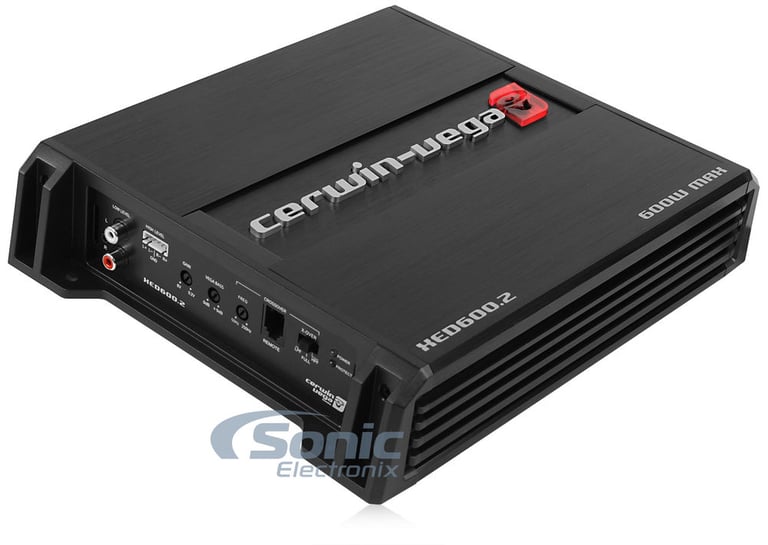

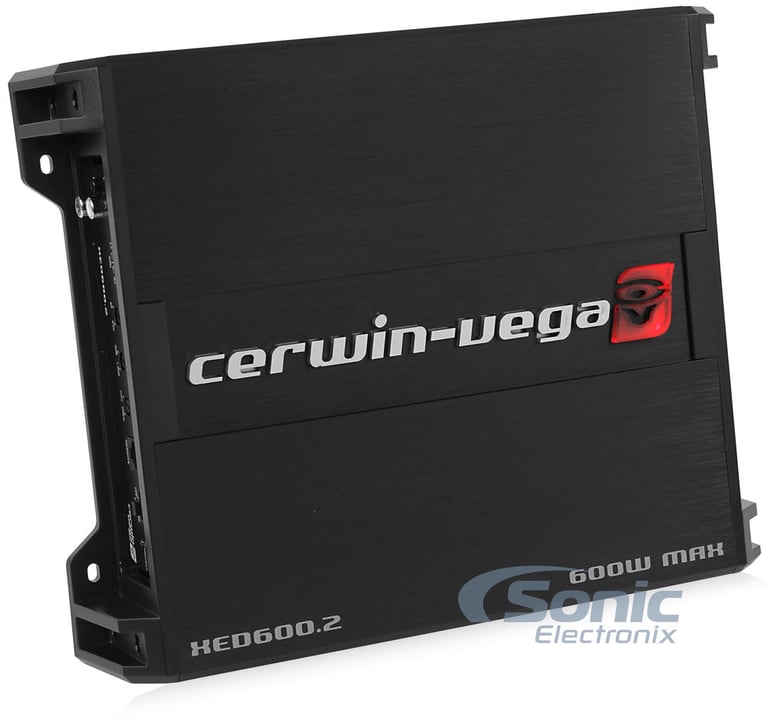

Cerwin-Vega XED600.2

600W XED Series 2-Channel Class AB Amplifier

Product videos
highlight-star-icon

• RMS Power: 60W x 2 @ 4 ohm , 85W x 2 @ 2 ohm , Bridged 240W x 1 @ 4 ohm
• Total Peak Power: 600W
• Variable Low-Pass Filter
• Pulse Width Modulated MOSFET Power Supply
• Heavy-Grade Aluminum Alloy Extruded Heatsink

Learn more about the xed6002

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

Product Highlights


• RMS Power: 60W x 2 @ 4 ohm , 85W x 2 @ 2 ohm , Bridged 240W x 1 @ 4 ohm
• Total Peak Power: 600W
• Variable Low-Pass Filter
• Pulse Width Modulated MOSFET Power Supply
• Heavy-Grade Aluminum Alloy Extruded Heatsink

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • XED Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 2 chan.
    • 2 ohm: 85 watts x 2 chan.
    • Bridged 4ohm: 240 watts x 1 chan.
  • Max Power Output: 600W
  • High Quality 2-Channel Class AB Topology Design
  • Heavy-Grade Aluminum Alloy Extruded Heatsink
  • LED power (green) and protect (red) indicators
  • Power Supply Threshold: 10.0 VDC - 17.0 VDC
  • Total Harmonic Distortion: 0.1%
  • Signal to Noise Ratio (@1w): 85 dBa
  • Low Input Sensitivity: 0.2 mV - 6.0 V
  • High Input Sensitivity: 2.0 mV - 20.0 V
  • Damping Factory: >70
  • Frequency Response: 10 - 45000 Hz
  • Selectable Crossover Modes: LPF/Full/HPF
  • Variable low-pass filter: 50 - 250 Hz
  • Variable subsonic filter: 50 - 250 Hz
  • Variable Bass Boost: 0 - 9 dB
  • Fuse Rating: 25A x 1
  • 8 gauge power and ground wiring is recommended for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 8.875"W x 10.90"L x 2.187H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Cerwin-Vega XED600.2 Owner's Manual

Product history:

Cerwin-Vega XED600.2 thumbnail
(newest, current model)
Cerwin-Vega HED3600.2 thumbnail
(previous model, replaced by Cerwin-Vega XED600.2)

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 2 channel
RMS Power @ 2 ohms
85 watts x 2 channel
Bridged RMS Power
240 watts x 2 channel
Amplifier Specifications
Series
XED Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
240 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.1%
Speaker Level Inputs

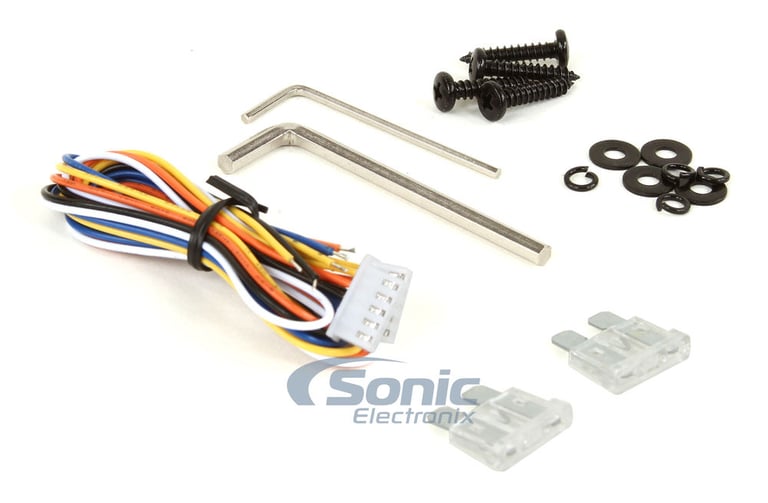

Yes - with included adapter
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XED600.2

Weight:

6.20lbs

Internal SKU:

xed6002

Internal Product ID:

76867

Product and How-to Videos


Customer Ratings & Reviews


Cerwin-Vega XED600.2 thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great One

Super Nice Clear & Very Strong Sound, The Best. Great Price.

By corozo64 on November 2, 2014

17 found this helpful


Not a Class D Amp, Its a Class AB

This Amplifier Works great, It has a built in fan. I have only had this for about a week so if anything changes I will let you know.

By Eric on March 16, 2015

15 found this helpful
